topled MYLED-064A User Manual

Hide thumbs

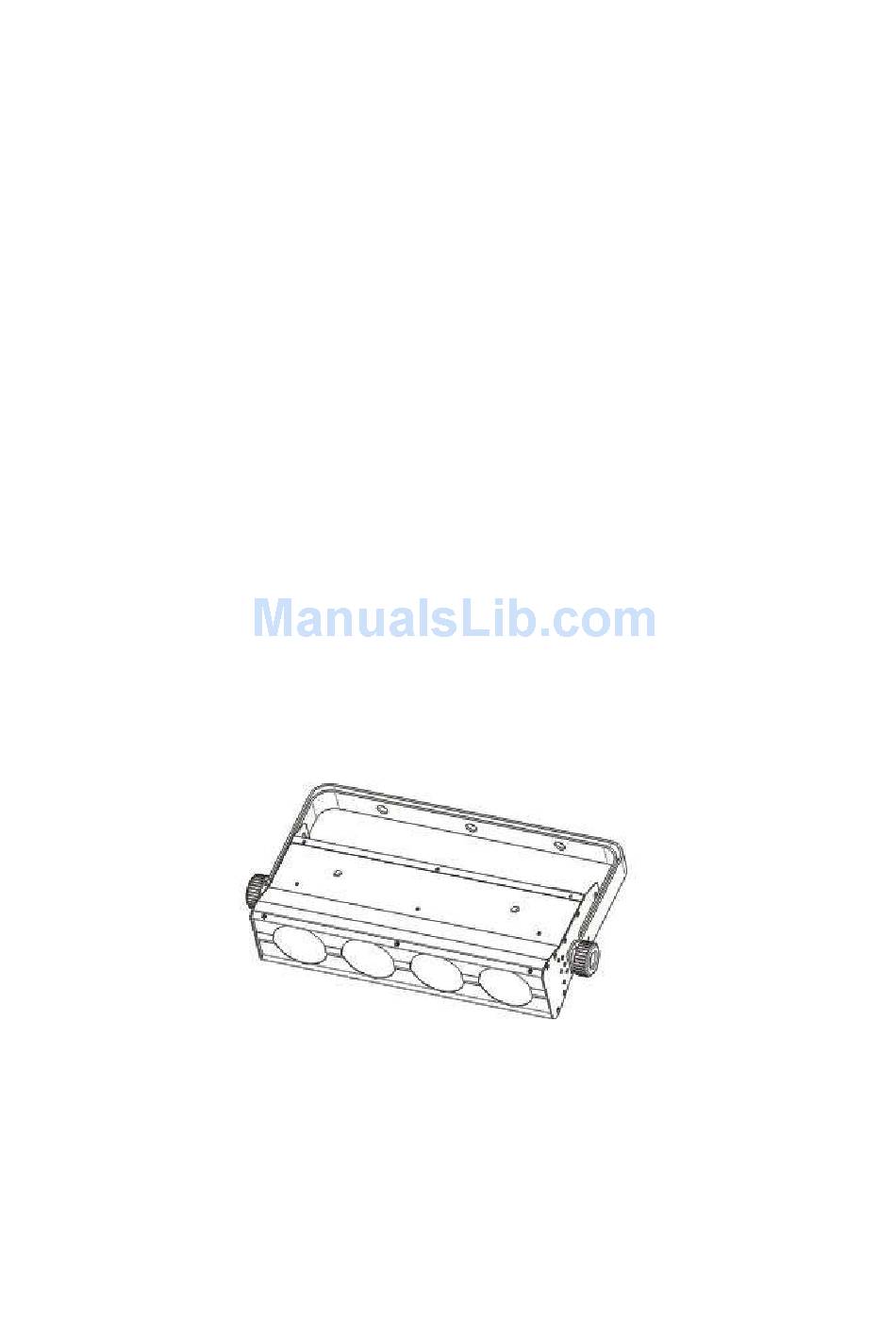

Our COB light offers many possibilities to achieve very nice laser effects which you want. It is specially designed

for the stages, disco, night clubs and etc. Please read the manual before operation.

A. SPECIFICATION

Voltage: AC 110V/240V, 50Hz/60Hz

Power consumption: 60W

Current: 0.95A@110V, 0.4A@240V

LED: COB Tri-15W 4pcs LED

Beam angle: 55 degree

Operation mode: LED display

Working environment: -10~40℃

DMX channels: 2, 3, 5, 6, 12 CH

Working mode: DMX mode, master/slave mode, built-in programs mode, auto running mode, static color,

Sound-Active Mode

10. Lumen: R

135lux@2m

150lux@2m

170lux@2m

RGB

11. Power linking: 8pcs@110V, 18pcs@240V

B. OPERATION

This series of product has rich effect programs, there are six working modes:

·Built-in programs mode

·Auto running mode

·Sound-active mode

·DMX mode

·Master-slave mode

450lux@2m

MYLED-064A

User Manual

Table of Contents

Need help?

Do you have a question about the MYLED-064A and is the answer not in the manual?

Questions and answers

Summary of Contents for topled MYLED-064A

Page 1 MYLED-064A User Manual Our COB light offers many possibilities to achieve very nice laser effects which you want. It is specially designed for the stages, disco, night clubs and etc. Please read the manual before operation. A. SPECIFICATION Voltage: AC 110V/240V, 50Hz/60Hz Power consumption: 60W Current: 0.95A@110V, 0.4A@240V...
Page 2 ·Static color 1. Built-in Programs Mode 1) Press the “MODE”, enter into built-in programs operation menu “ ”; 2) Press the “UP” or “DOWN”, select the running programs effect “ – ”. 3) Press the “SETUP”, enter into the setting menu of programs running speed “ ”;...
Page 3 72—79 PROGRAM03 80—87 PROGRAM04 88—95 PROGRAM05 96—103 PROGRAM06 104—111 PROGRAM07 112—119 PROGRAM08 120—127 PROGRAM09 128--135 PROGRAM10 136—143 PROGRAM11 144—151 PROGRAM12 152—159 PROGRAM13 160—167 PROGRAM14 168—175 PROGRAM15 176—183 PROGRAM16 184—191 PROGRAM17 192—199 PROGRAM18 200--207 PROGRAM19 208—215 PROGRAM20 216—223 PROGRAM21 224—131 PROGRAM22 232—239 PROGRAM23 240—247 PROGRAM24 Sensitivity...
Page 4 5. Master-slave Mode Press the “MODE”, enter into master-slave mode “SLAv”. 6. Static Color Mode 1) Press the “MODE”, enter into static color mode “clor”. 2) Press the “SETUP”, enter into the settings menu or red brightness “r255”; 3) Press the “UP” or “DOWN”, to set the red brightness value “r000 – r255”. 4) Press the “SETUP”, enter into the setting menu of green brightness “G255”;...
