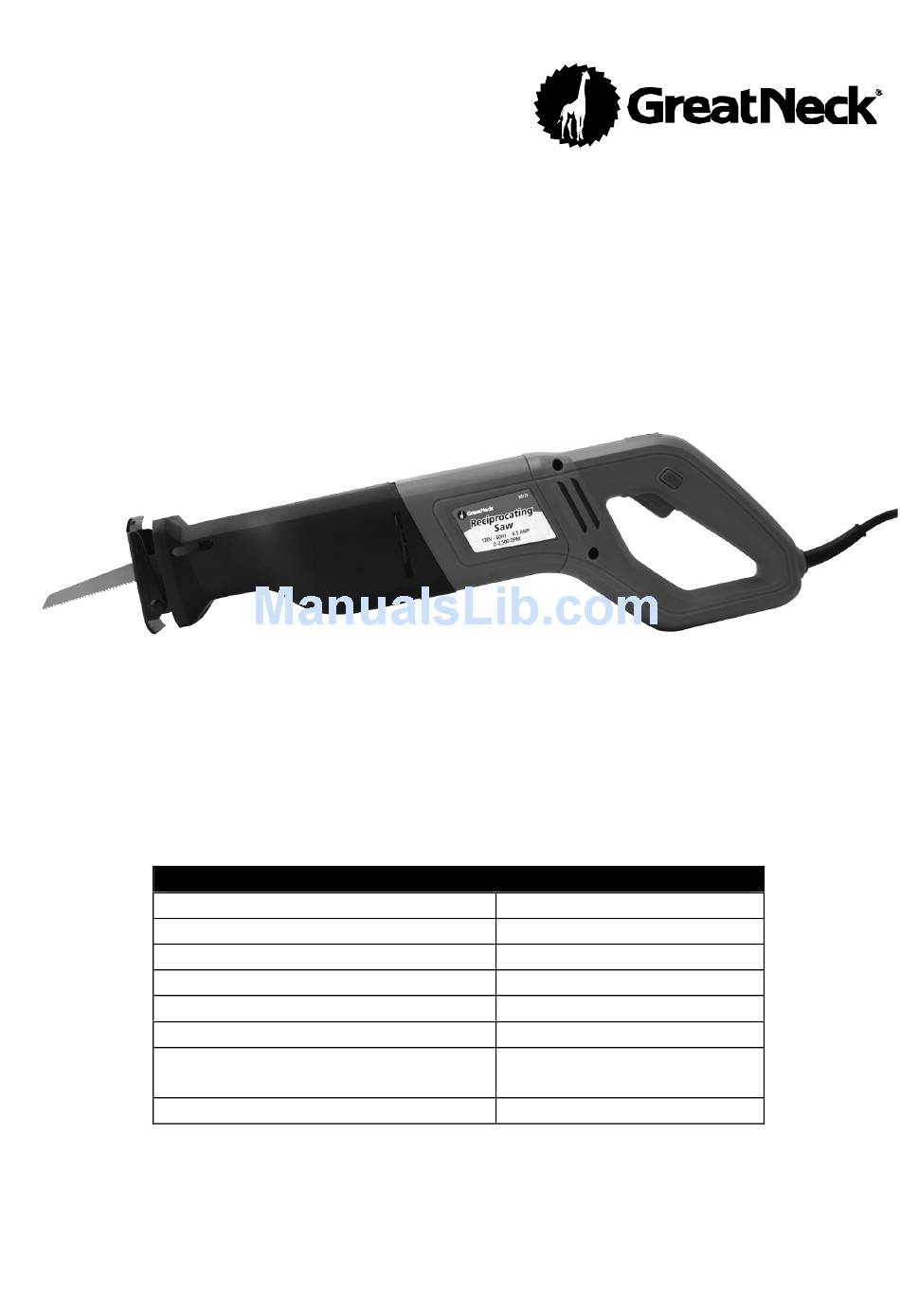

PRODUCT SPECIFICATIONS
Reciprocating Saw
Instruction Manual
120 V, 60 Hz, AC
6.5 A
0–2500 SPM (no load)
1 1/8 "(28.6 mm)
4" (101.6 mm)
1/2" (12.7 mm)
1-1/4" (31.7 mm)
7 lb 8 oz (3.41 kg)
80155
Advertisement
Table of Contents
Related Manuals for Greatneck 80155
Summary of Contents for Greatneck 80155
-
Page 1: Product Specifications
Maximum cutting depth in wood: 4” (101.6 mm) Maximum cutting depth in steel: 1/2” (12.7 mm) Maximum cutting depth in copper 1-1/4” (31.7 mm) or plastic pipe: Weight: 7 lb 8 oz (3.41 kg) GreatNeck Tools, LLC Mineola, NY 11501 Rev 7/10... -
Page 2: Table Of Contents
TABLE OF CONTENTS Product specifications ………….……………………………………………………. Table of contents ……………………………………………………………………... General safety warnings …………………………………………………………….. 3–4 Eye, ear & lung protection ………………………………………………… 3–4 Electrical safety ……………………………………………………………. Power tool safety ……………………………………………………………………... 5–6 General safety rules ……………………………………………………….. Work area …………………………………………………………………... Electrical safety ……………………………………………………………. Personal safety ……………………………………………………………. -
Page 3: General Safety Warnings
GENERAL SAFETY WARNINGS C AUT ION: B efore us ing this tool or any of its acces s ories , read this manual and follow all Safety Rules and Operating Instructions. This instruction manual includes the following: General Safety Rules Specific Safety Rules and Symbols Functional Description Assembly... -
Page 4: Electrical Safety
GENERAL SAFETY WARNINGS ALWAYS WEAR A DUST MASK DESIGNED FOR USE WHEN OPERATING A POWER TOOL IN A DUSTY ENVIRONMENT. WARNING: Some dust created by power sanding, sawing, grinding, drilling and other construction activities contains chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: •... -
Page 5: Power Tool Safety
POWER TOOL SAFETY GENERAL SAFETY RULES Avoid body contact with grounded surfaces such as pipes, radiators, ranges and WARNING: Read and understand refrigerators. There is increased risk of all instructions. Failure to follow all electric shock if your body is grounded. instructions listed below may result in electric shock, fire and/or serious personal Do not expose power tools to rain or wet... -
Page 6: Tool Use And Care
POWER TOOL SAFETY Disconnect the plug from the power source PERSONAL SAFETY – cont’d before making any adjustments, changing Avoid accidental starting. Be sure the accessories or storing the tool. Such switch is OFF before plugging in. Carrying preventive safety measures reduce the risk tools with your finger on the switch or of starting the tool accidentally. -
Page 7: Specific Safety Rules
SPECIFIC SAFETY RULES WARNING: For your safety, do not Never hold the workpiece in one hand and plug in your reciprocating saw until you the tool in the other hand when sawing. have read and understood this Owner’s Never place the hands near or below the Manual. -
Page 8: Extension Cord Safety
EXTENSION CORD SAFETY WARNING: Keep the extension MINIMUM GAUGE (AWG) EXTENSION cord clear of the working area. Position CORDS the cord so it will not get caught on the (120 V use only) workpiece, tools or any other obstructions Ampere Rating Total length in feet while you are working with the power tool. -
Page 9: Symbols
SYMBOLS WARNING: Some of the symbols below may be used on your tool. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the tool better and safer. direct current volts amperes no load speed hertz alternating or direct current... -
Page 10: Know Your Reciprocating Saw
KNOW YOUR RECIPROCATING SAW B lade clamp V ariable s peed Air vents s et s crew control wheel Lock-off button T rigger s witch Main handle P ivoting s hoe P ivoting adjus ting s hoe s crews ACCESSORIES & CARTON CONTENTS AVAILABLE ACCESSORIES CARTON CONTENTS WARNING:... -
Page 11: Carton Contents
CARTON CONTENTS ASSEMBLY AND OPERATION INSTALLING BLADE WARNING: Always remove the plug from the power supply before installing or removing blades. Ins ert the 4 mm hex key (1) into the blade clamp s et s crew (2) and turn it counter-clockwis e to loos en the blade clamp (3) (F ig. -
Page 12: Removing Blade
ASSEMBLY AND OPERATION REMOVING BLADE To remove the blade, simply loosen the blade clamp set screw and pull the blade out of the blade clamp. ADJUSTING PIVOTING SHOE The pivoting shoe will pivot to follow the angle of the blade to the workpiece. This action ensures the flat surface of the shoe is against the workpiece for better cutting action and easier control of the saw. -
Page 13: Trigger Switch & Lock-Off Button
ASSEMBLY AND OPERATION TRIGGER SWITCH & LOCK-OFF BUTTON The lock-off button is a safety device designed to reduce the possibility of a user accidentally starting the saw. This button must be depressed before the trigger switch can be depressed and the saw started. -
Page 14: Materials You Can Cut
ASSEMBLY AND OPERATION WARNING: Have you read “GENERAL SAFETY WARNINGS”, “POWER TOOL SAFETY”, “SPECIFIC SAFETY RULES”, EXTENSION CORD SAFETY” and “SYMBOLS” on pages 3, 4, 5, 6, 7, 8 & 9 of this Manual? If not, please do it now before you operate this reciprocating saw. -
Page 15: General Cutting
ASSEMBLY AND OPERATION GENERAL CUTTING C learly mark the workpiece to locate the pos ition of the cut. Hold s maller workpiece with a vice. C lamp larger workpiece to a work bench or table. DANGER: Any workpiece that is not adequately clamped in place may come loose and cause serious injury. -
Page 16: Plunge Cutting
ASSEMBLY AND OPERATION PLUNGE CUTTING C learly mark the workpiece to locate the pos ition of the cut. C lamp the workpiece to a work bench or table (F ig. 6). NOTE: Make s ure the area to be cut is clear under the workpiece s o that the blade will not come into contact with anything other than the... -
Page 17: Metal Cutting
ASSEMBLY AND OPERATION METAL CUTTING Metals s uch as pipe, s teel rods , s heet s teel, aluminum, bras s and copper can be cut with your s aw (F ig. 7). T o cut thin s heet material, “s andwich” the material between hardboard or plywood and clamp the layers to limit Fig. -
Page 18: Maintenance
MAINTENANCE LUBRICATION WARNING: W hen s ervicing, us e only identical replacement parts . Us e of any All of the bearings in this reciprocating s aw other part may create a hazard or caus e are lubricated with a s ufficient amount of product damage. -
Page 19: Parts Diagram
PARTS DIAGRAM – MODEL 80155... -
Page 20: Parts List
PARTS LIST – MODEL 80155 WARNING: When servicing, use only GreatNeck replacement parts. Use of any ® other parts may create a safety hazard or cause damage to the tool. Any attempt to repair or replace electrical parts on this power tool may create a safety hazard unless repair is performed by a qualified technician. -
Page 21: Warranty
PARTS LIST – MODEL 80155 Part # Part Name Quantity 80155-36 Motor hous ing 80155-37 B rus h holder s upport hold down 80155-38 T apping s crew S T 2.9x9 80155-39 T apping s crew S T 4.2x16 80155-40 T apping s crew S T 3.9x19...
