Digital On-Hold Audio System
User Manual
Digital On-Hold Audio System
with analog line capability
Before using this unit, please read these operating instructions carefully.
Afterwards, keep them handy for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OHP 4500 and is the answer not in the manual?

Questions and answers

Summary of Contents for Intellitouch OHP 4500

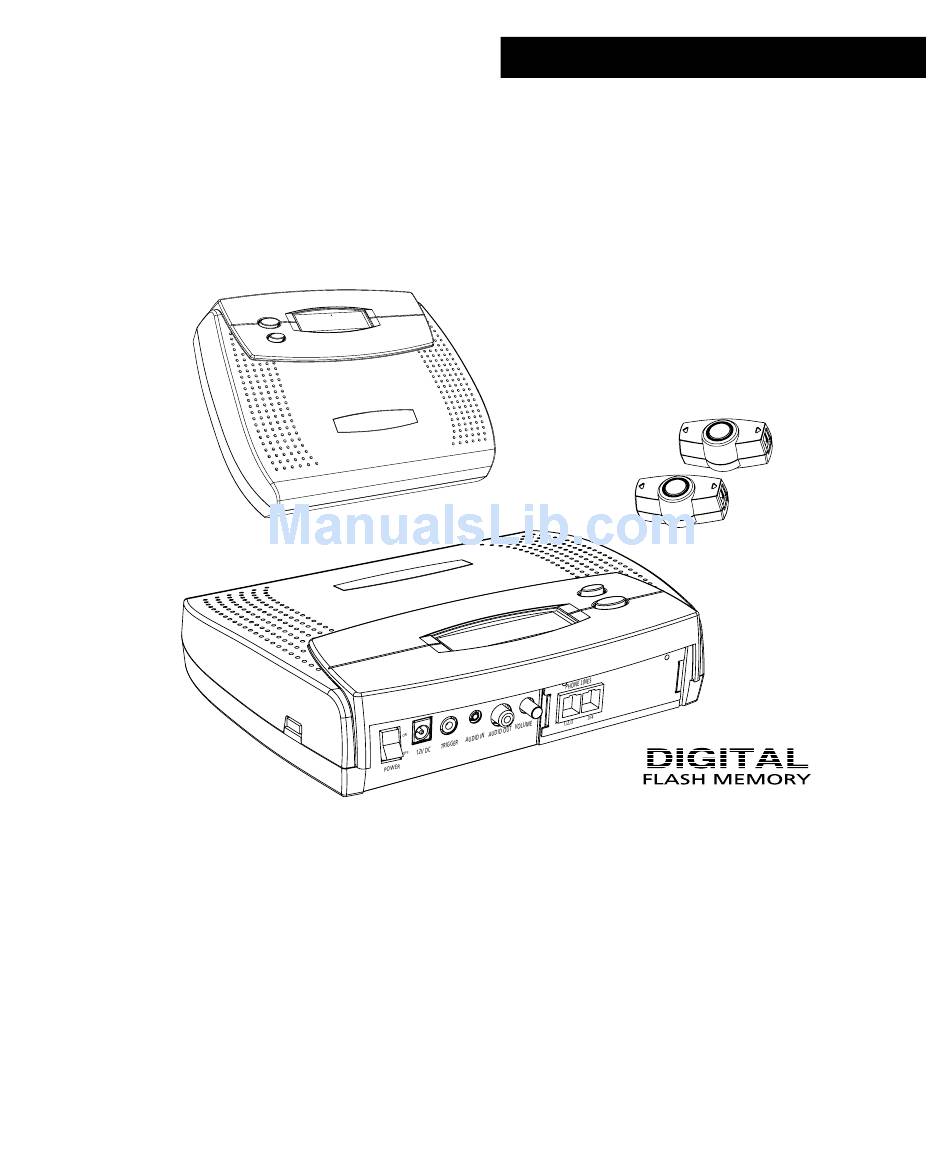

  • Page 1 Digital On-Hold Audio System User Manual Digital On-Hold Audio System with analog line capability Before using this unit, please read these operating instructions carefully. Afterwards, keep them handy for future reference.

  • Page 2: Supplied Accessories

    "T" Adapters Connector Cable AC Adapter Dual 3.5mm mini plugs OHP 4500 Features Analog Line Capability - provides on-hold audio capability to ordinary analog and KSU-less phones. Telephone Extension Hold Music Activators - connects to phone extensions for true "hold button activation" of the on-hold audio function.
  • Page 3 Digital On-Hold Audio System User Manual Player Set-up Connection to analog phone lines Combined Line Connection step Lines 1 & 2 are combined in one wall jack and lines 3 & 4 are combined in another wall jack Line 1/2 Line 3/4 Line 3/4 Plug the supplied "T adapter"...
  • Page 4 Digital On-Hold Audio System User Manual Corded Phone Set-up Telephone Extension Hold Music Activators (TEHMA) For true "hold button activation" of on-hold audio, each phone extension requires a "hold music activator". Two activators have been included in your package. If you require additional activators for other phones, contact your reseller or visit www.onholdplus.com to purchase them on-line.
  • Page 5 Digital On-Hold Audio System User Manual Cordless Phone Set-up Telephone Extension Hold Music Activators (TEHMA) For true "hold button activation" of on-hold audio, each cordless phone requires the use of a telephone headset (not included) in conjunction with a "hold music activator". Two hold music activators and headset adapter cables have been included in your package.
  • Page 6 Digital On-Hold Audio System User Manual Controls & Functions Player Controls & LCD Display RECORD Playback Indicator Record Mode Indicator used to initiate manual displayed when audio is displayed when unit recording function being recorded to memory is playing SPEAKER turns speaker on/off SPEAKER IMPEDANCE...

  • Page 7: Auto Recording

    Digital On-Hold Audio System User Manual Player Operation Playback Playing Audio Stored in Memory By default, the unit is always in "playback" mode. When unit is playing, the LCD will display a running time and the segments on the speaker icon will move. Playback After Power Loss If power to the unit is lost, the unit will resume playback as soon as power is reapplied.

  • Page 8: Speaker Button

    Digital On-Hold Audio System User Manual Settings Impedance Switch Location -- right side of unit Operation -- Most telephone systems prefer an 8 ohm output. If you are working with an older phone system, the 600 ohm setting may be preferable. Speaker Button Location -- left top, located below the "REC"...
