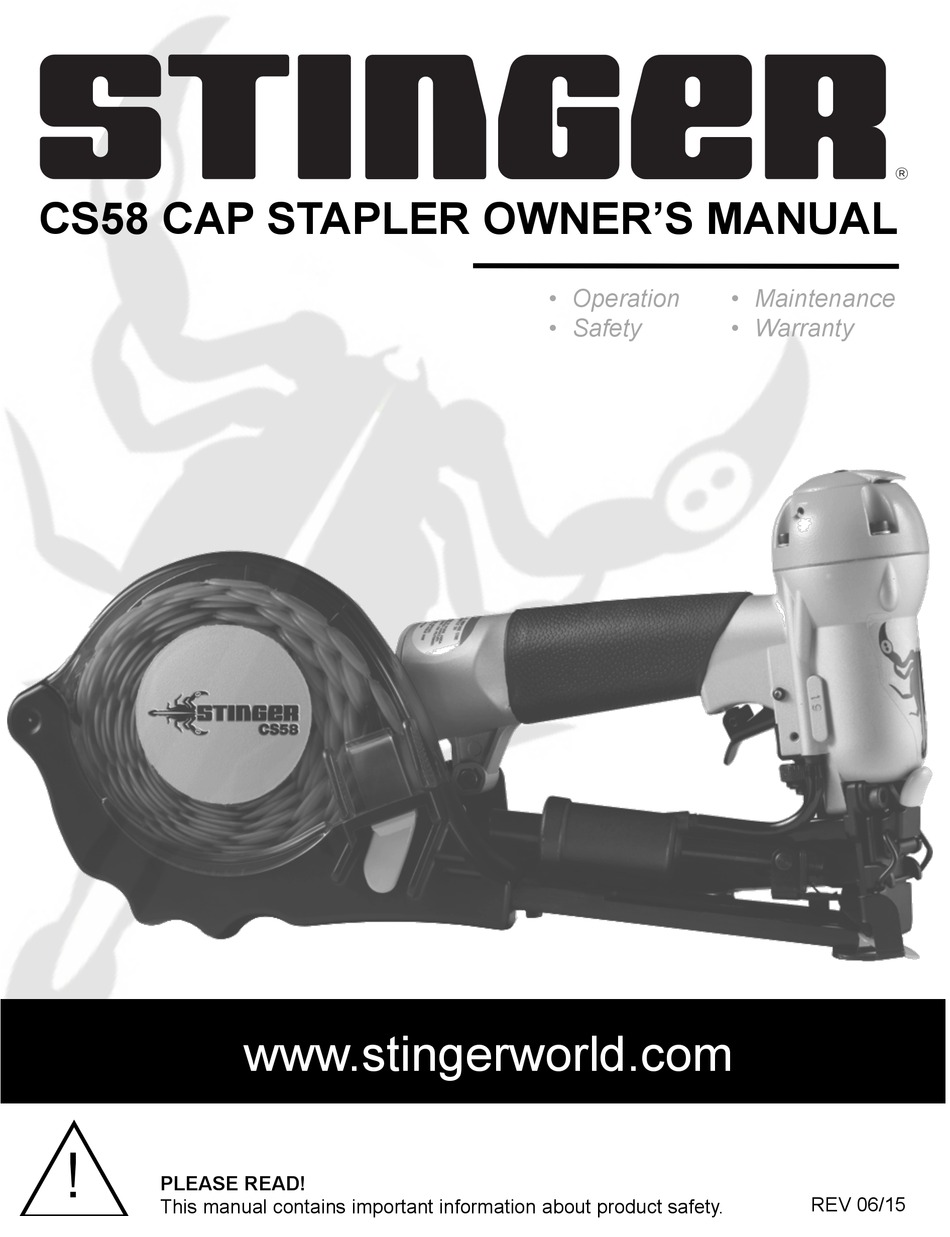

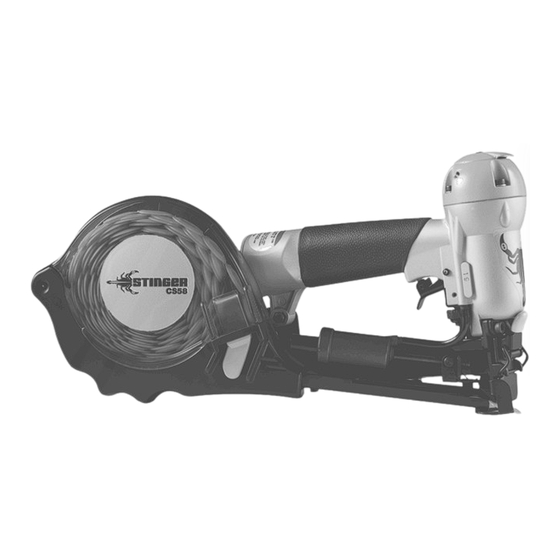

- Page 1 ® CS58 CAP STAPLER OWNER’S MANUAL • Operation • Maintenance • Safety • Warranty www.stingerworld.com PLEASE READ! REV 06/15 This manual contains important information about product safety.
- Page 2 The CS58 is intended for securing housewrap and roofing felt only. Improper use of the CS58 could result in serious injury or even death. Most accidents occur because of the failure to observe basic safety rules and precautions, which are outlined in the “Important Information”...
-
Page 3: Table Of Contents
CS58 Cap Stapler TABLE O F C ONTENTS • Important Information • Tool Specifications • Loading the Tool • Operating the Tool • STINGER CS58 Schematic • STINGER CS58 Parts List • Maintenance and Storage • Warranty • Troubleshooting... -
Page 4: Important Information
• To prevent accidental injuries: – Handle the tool with care – Always assume that the tool contains fasteners – Always disconnect the air hose from the STINGER CS58 when: • loading staples and/or caps • performing inspection, maintenance or repair • ... - Page 5 CS58 Cap Stapler IMPORTANT I NFORMATION AIR S UPPLY A ND C ONNECTIONS • Use o nly c lean, r egulated c ompressed a ir a s a p ower s ource f or t his t ool. D o n ot u se b o;le g ases, ...
- Page 6 ® cap fasteners with the STINGER CS58 Cap Stapler. Never use any fasteners that are not specified for use in this tool. The CS58 holds 1 coil of plastic caps (200 caps) and 2 strips of staples (100 staples each).
-
Page 7: Tool Specifications
CS58 Cap Stapler TOOL S PECIFICATIONS Operating pressure 90-95 psi Weight 3.9 lb. Nail capacity 200 staples (2-100 count strips) Cap capacity 200 plastic collated caps (1 reel) Air inlet ¼” Fasteners STINGER StaplePac ® (National Nail product number 0136360) Consists of 20 strips of 5/8”... -
Page 8: Loading The Tool
CS58 Cap Stapler LOADING T HE T OOL USE 5/8 ” STINGER STAPLEPAC ® CAP STAPLES ONLY • Disconnect air. • Open the magazine cover by pushing the green cover release tab and lifting. • Place cap reel in basket. Make sure the front end of the cap coil is placed over the cap guide area of the basket. -
Page 9: Operating The Tool
The tool is not in use • Leaving the work area • Moving the tool to another work location • Handing the STINGER CS58 to another person • Storing the tool 10. Following recommended loading instructions, load the fasteners approved for use in the tool. - Page 10 CS58 Cap Stapler OPERATING T HE T OOL 11. Cycle the tool on a scrap work piece to evaluate the depth of penetration by the fastener into the work piece. 12. To adjust the depth of penetration, regulate the air pressure at the regulator and/or disconnect the air hose, adjust the depth control screw, connect the air hose and cycle the tool on a scrap work piece to evaluate the adjustment.
-
Page 11: Stinger Cs58 Schematic
CS58 Cap Stapler STINGER C S58 S CHEMATIC ... -
Page 12: Stinger Cs58 Parts List
CS58 Cap Stapler STINGER C S58 P ARTS L IST Ref. No. Item No. Description Ref. No. Item No. Description 0136665 SCREW 0135897 SAFETY FOOT GUIDE 0135851 WASHER 0136658 SPRING 0135951 EXHAUST DEFLECTOR 0135899 SAFETY... -
Page 13: Maintenance And Storage
Whenever repairs or replacement of parts inside the body occur, check the piston “O” ring for adequate grease lubrication. 4. Never use any parts other than genuine STINGER replacement parts. 5. Periodically clean the magazine and nose of the tool with a mild solvent. -
Page 14: Warranty
CS58 Cap Stapler WARRANTY WARRANTY I TEMS 1. Warranty f or c ap a ssemblies, c as<ngs a nd h ousing c as<ngs i s o ne y ear. ... -
Page 15: Troubleshooting
CS58 Cap Stapler TROUBLESHOOTING Disconnect the air hose from the tool when performing inspections, maintenance or repairs. PROBLEM: CORRECTION: 1. Tool o perates, b ut n o f asteners a re ... -
Page 16: Replacement Parts
Contact Inside Sales at 800-746-5659 to place an order for replacement parts. Visit our website at www.stingerworld.com to learn more about our products and services. 2964 Clydon SW, Grand Rapids MI 49519, USA Phone: 800-968-6245 Fax: 616-531-5970...
