Summary of Contents for Microcomputer Systems PDX-057T-5A

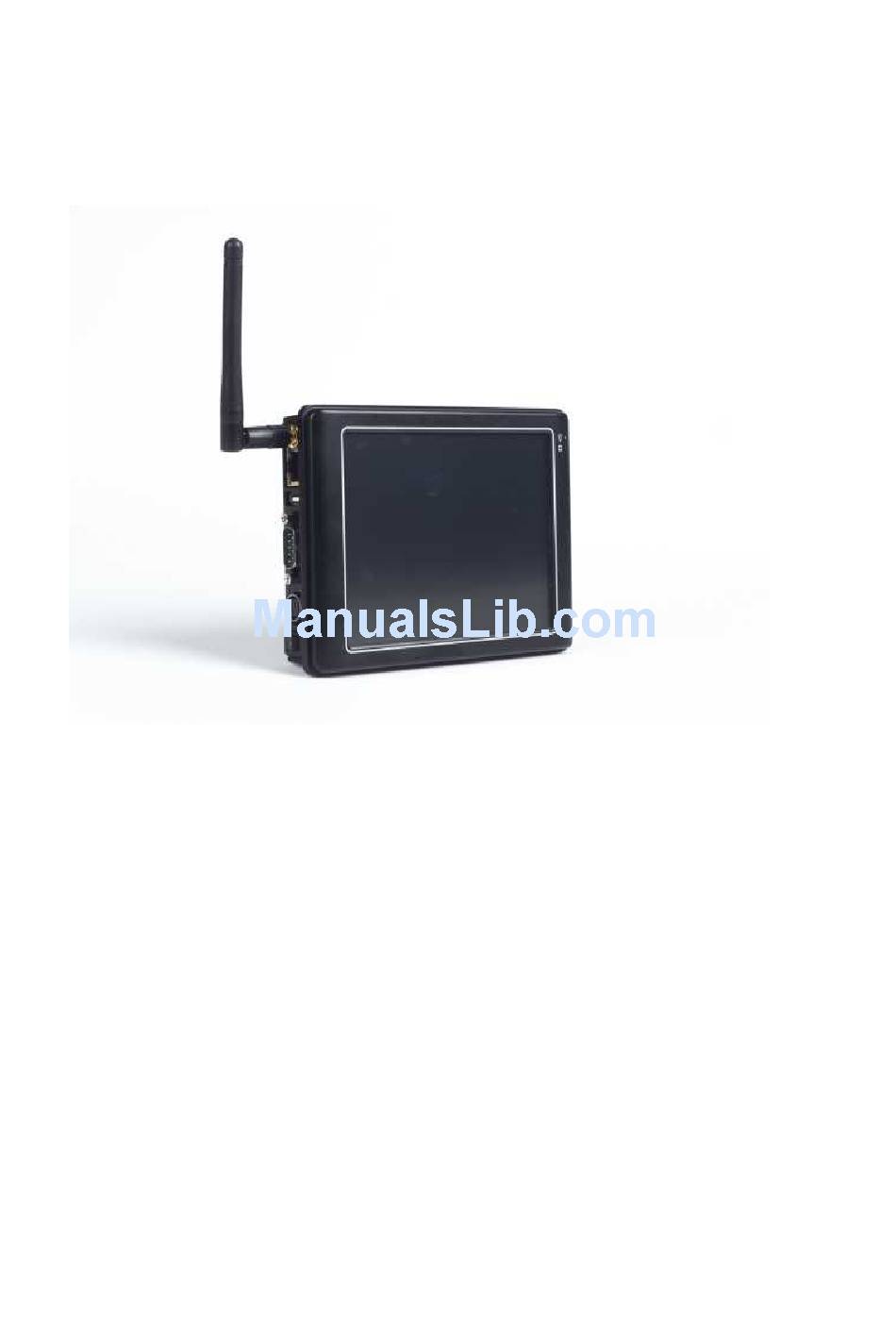

- Page 1 PDX-057T-5A / PDX-057T-8A Vortex86DX Panel PC with 5.7” VGA TFT LCD User’s Manual (Revision 1.0A)
-
Page 2: Trademarks Acknowledgment
Copyright The information in this manual is subject to change without notice for continuous improvement in the product. All rights are reserved. The manufacturer assumes no responsibility for any inaccuracies that may be contained in this document. And makes no commitment to update or to keep current the information contained in this manual. -
Page 3: Safety Information
Safety Information Read these Safety instructions carefully. ♦ Make sure the voltage of the power source is correct before connecting the equipment to ♦ the power outlet. Do not expose your Panel PC to rain or moisture, in order to prevent shock and fire ♦... -
Page 4: Table Of Contents
T a b l e C o n t e n t s T a b l e o f C o n t e n t s .............iv C h a p t e r 1 General Information..…………………………………1 Product Description ..........1 Product Specifications.......... - Page 5 This page is blank...
-
Page 6: Chapter 1 General Information
C h a p t e r General Information Product Description PDX-057T is an ultra compact platform for the present demanding embedded and productive applications. It has new Vortex86DX SoC CPU which consumes only minimum power requirement when running at 1GHz, and DDR2 memory provides faster data transfer rate. By using 5.7”... -
Page 7: Product Specifications
1.2 Product Specification CPU Board Specifications D Vortex86DX 1GHz L1:16KB I-Cache, 16KB D-Cache Cache L2: 128KB Cache AMI BIOS BIOS 256MB DDR2 onboard Memory Software programmable from 30.5u to 512 seconds x 2 sets Watchdog Timer Integrated 10/100M Ethernet CM119 Line-Out Audio Compact Flash Type I/II slot Internal Drives... - Page 8 LCD Specifications 5.7” TFT LCD Display Type Backlight Unit 640(W) x 480(H) Display Resolution 400 nits Brightness (cd/m 300:1 Contrast Ratio 262,144 Display Color 0.06 x 0.18 Dot Pitch (mm) Vertical 100 Viewing Angle Horizontal 140 25,000 hrs Backlight Lifetime Touchscreen Analog Resistive Type...
-
Page 9: Product Dimension
1.3 Product Dimension PDX-057T Vortex86DX™ Panel PC with 5.7” VGA TFT LCD... -
Page 10: Chapter 2 System Installation
C h a p t e r 2 System Installation 2.1 CPU Board Outline PDX-057T Vortex86DX™ Panel PC with 5.7” VGA TFT LCD... -
Page 11: Connector Summary
2.2 Connector Summary Summary Table Description Type of Connections Pin nbrs. CF Master/Slave Switch On/OFF Slide Switch 6-pin External USB Connector 6-pin External USB Connector USB (Touchscreen) 5-pin 2.0mm 5-pin wafer J-TAG 6-pin 1.25mm 6-pin wafer PS/2 Keyboard 5-pin 2.54mm 5-pin box header PS/2 Keyboard/Mouse 6-pin External Mini DIN Socket... -
Page 12: Connector Pin Assignments
2.3 Connector Pin Assignments J1: CF Master/Slave Switch Pin # Signal Name Master Slave J3: USB Pin # Signal Name Pin # Signal Name USBD2- USBD2+ J4: USB Pin # Signal Name Pin # Signal Name USBD3- USBD3+ J5: USB (Touchscreen) Pin # Signal Name USBD1-... - Page 13 J8: PS/2 Keyboard Pin # Signal Name Pin # Signal Name KBCLK KBDAT J9: PS/2 Keyboard/Mouse Pin # Signal Name Pin # Signal Name KBCLK MSCLK KBDATA MSDATA J10: COM1 RS232/422/485 (Change setting by BIOS) Pin # Signal Name Pin # Signal Name DCD1/ 422TX- / RS485- RXD1 / 422TX+ / RS485+...
- Page 14 HSYNC 3.3V VSYNC GPIOB PDX-057T Vortex86DX™ Panel PC with 5.7” VGA TFT LCD...
- Page 15 J24: MIC-IN Pin # Signal Name MICVREF MIC-IN PWR: Power Connector (5A) KYCON KPPX-3P Pin # Signal Name PWR: Power Connector (8A) Pin # Signal Name + 8 ~ 35V PDX-057T Vortex86DX™ Panel PC with 5.7” VGA TFT LCD...
-
Page 16: External I/O Overview
2.4 External I/O Overview PDX-057T-8A PDX-057T-5A (Note1: Wireless is optional) (Note2: COM1 RS232/422/485 is selected by BIOS setting) PDX-057T Vortex86DX™ Panel PC with 5.7” VGA TFT LCD... -
Page 17: External I/O Pin Assignment
2.5 External I/O Pin Assignment Power Switch Pin # Status Power Connector (5A) Signal Name Pin # Power Connector (8A) Signal Name Pin # +8 ~ 35V J10: COM1 RS232/422/485 (Change setting by BIOS) Pin # Signal Name Pin # Signal Name DCD1/422TX-/RS485- RXD1/422TX+/RS485+... - Page 18 Audio Line-Out Signal Pin # Name LOUTL Open Touch Open Touch VREFOUT Pin # Signal Name USB0- USB0+ GGND GGND RJ45 Pin # Signal Name Pin # Signal Name FTXD+ FTXD- FRXIN+ FRXIN- PS/2 Keyboard/Mouse Pin # Signal Name KBCLK PMCLK KBDAT PMDAT...
-
Page 19: System Mapping
System Mapping PDX-057T Vortex86DX™ Panel PC with 5.7” VGA TFT LCD... - Page 20 PDX-057T Vortex86DX™ Panel PC with 5.7” VGA TFT LCD...
- Page 21 PDX-057T Vortex86DX™ Panel PC with 5.7” VGA TFT LCD ...
-
Page 22: Watchdog Timer
2.7 Watchdog Timer There are two watchdog timers in PDX-057T, we can also provide DOS, Linux and WinCE example for your reference. PDX-057T Vortex86DX™ Panel PC with 5.7” VGA TFT LCD... -
Page 23: Chapter 3 Driver Installation
C h a p t e r Driver Installation The Vortex86DX processor also use external Display chip ““Volari™ Z9s” which is an ultra low powered graphics chipset with total power consumption at around 1-1.5 W. The Vortex86DX processor also integrated 10/100Mbps Ethernet controller that supports both 10/100BASE-T and allows direct connection to your 10/100Mbps Ethernet based Local Area Network for full interaction with local servers, wide area networks such as the Internet. -
Page 24: Pdx-057T Development Note
3.1. PDX-057T Development Note <Primary /Secondary IDE: Master or Slave> Micro SD: Primary Master CF Slot: Secondary IDE: Master or Slave (User can use slide switch (in side of CF slot) to adjust Master or Slave <Linux installation note> Please forced the IDE setting in BIOS to PIO mode before install Linux on PDX-057T as follows: 1-Go to the advanced BIOS setting and make the “Onboard IDE Operate Mode”... -
Page 25: Bios Default Setting
Note: 1-Wi-Fi module is optional. 2 -PDX-057T COM1: support RS232/422/485, please contact your regional sales. 3 -PDX-057T series (CPU Speed: 1GHZ): Support Free DOS,DOS 6.22,DR-DOS,x-DOS,Xlinux,Embedded Linux, Windows CE 5.0, CE 6.0, Windows 98, Windows XP Professional, Windows Embedded standard(XPE) and Windows 2000. 3.2. -
Page 26: Warranty
Warranty This product is warranted to be in good working order for a period of one year from the date of purchase. Should this product fail to be in good working order at any time during this period, we will, at our option, replace or repair it at no additional charge except as set forth in the following terms.
