General Music RPStudio Service Manual page 2

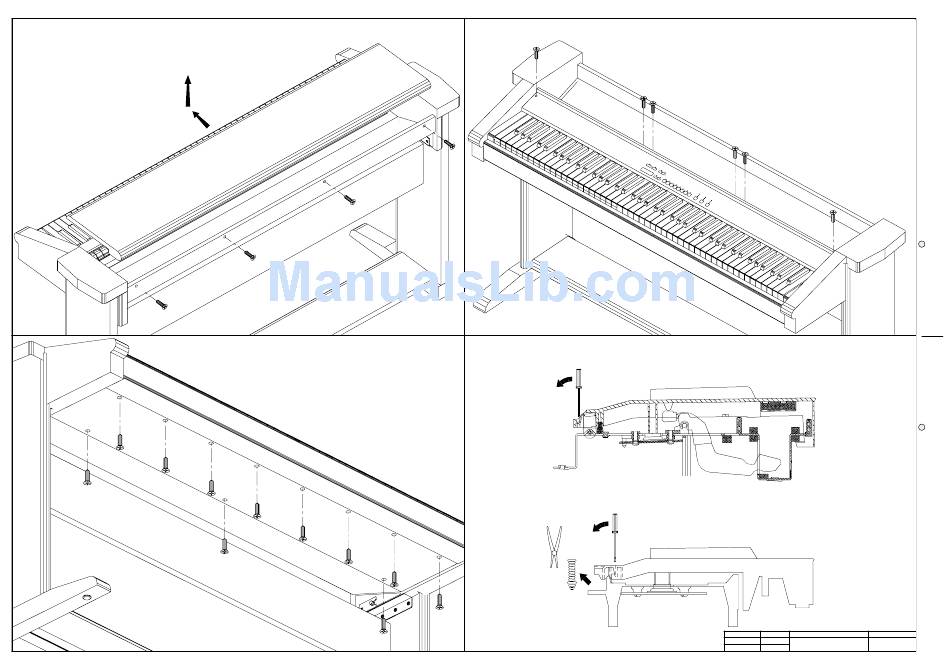

1) TO REMOVE THE COVER UNSCREW THE FOUR SCREWS ON THE REAR, PULL THE COVER TOWARD YOU AND LIFT IT UP.
3) TO REMOVE THE KEYBOARD UNSCREW THE 11 (TP20) OR 16 (TP8) SCREWS UNDER THE KEYBOARD.
❏ ❏ ❏ ❏ ❏ 2 2 2 2 2
2) TO REMOVE THE CONTROL PANEL UNSCREW THE TWO SCREWS AT EACH END AND THE TWO SCREWS THAT ANCHOR THE CONTROL PANEL SUPPORTS TO THE CHASSIS.
4) TO REMOVE A KEY INSERT A SCREWDRIVER OR OTHER SIMILILAR OBJECT IN THE SPLIT AT THE KEY BACK, APPLY A LIGHT PRESSURE AND PUSH IN THE DIRECTION SHOWN.
NOTE: BEFORE YOU REMOVE A NATURAL KEY YOU MUST REMOVE THE KEYBOARD, IF YOU REMOVE A SHARP KEY THIS OPERATION IS NOT NECESSARY.
TP20
4) TO REMOVE A KEY, FIRST REMOVE THE RETURN SPRING, THEN INSERT A SCREWDRIVER IN THE SPLIT AT THE KEY BACK AND APPLY A LIGHT PRESSURE IN THE DIRECTION SHOWN.
NOTE: BEFORE YOU REMOVE A KEY YOU MUST REMOVE THE KEYBOARD; IF YOU REMOVE A SHARP KEY, YOU MUST REMOVE AN ADJACENT NATURAL KEY FIRST.
TP8
500732 GENERALMUSIC S.p.A. ITALY
DRW G. Boccato DWG# PCB#
Disassembling Instructions
ALL RIGHTS ARE RESERVED, NO COPIES
CKD D. Jakowsky DISK: 39 PART: 1/1
OR REPRODUCE THIS DOCUMENT WITHOUT
WRITTEN CONSENT BY GENERALMUSIC.
APP. R. Falconi REV: 09-07-96
