Johnson Gas Appliance FV34-PF2 Installation Instructions Manual

Fullview rectangle direct vent gas fireplace heater
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

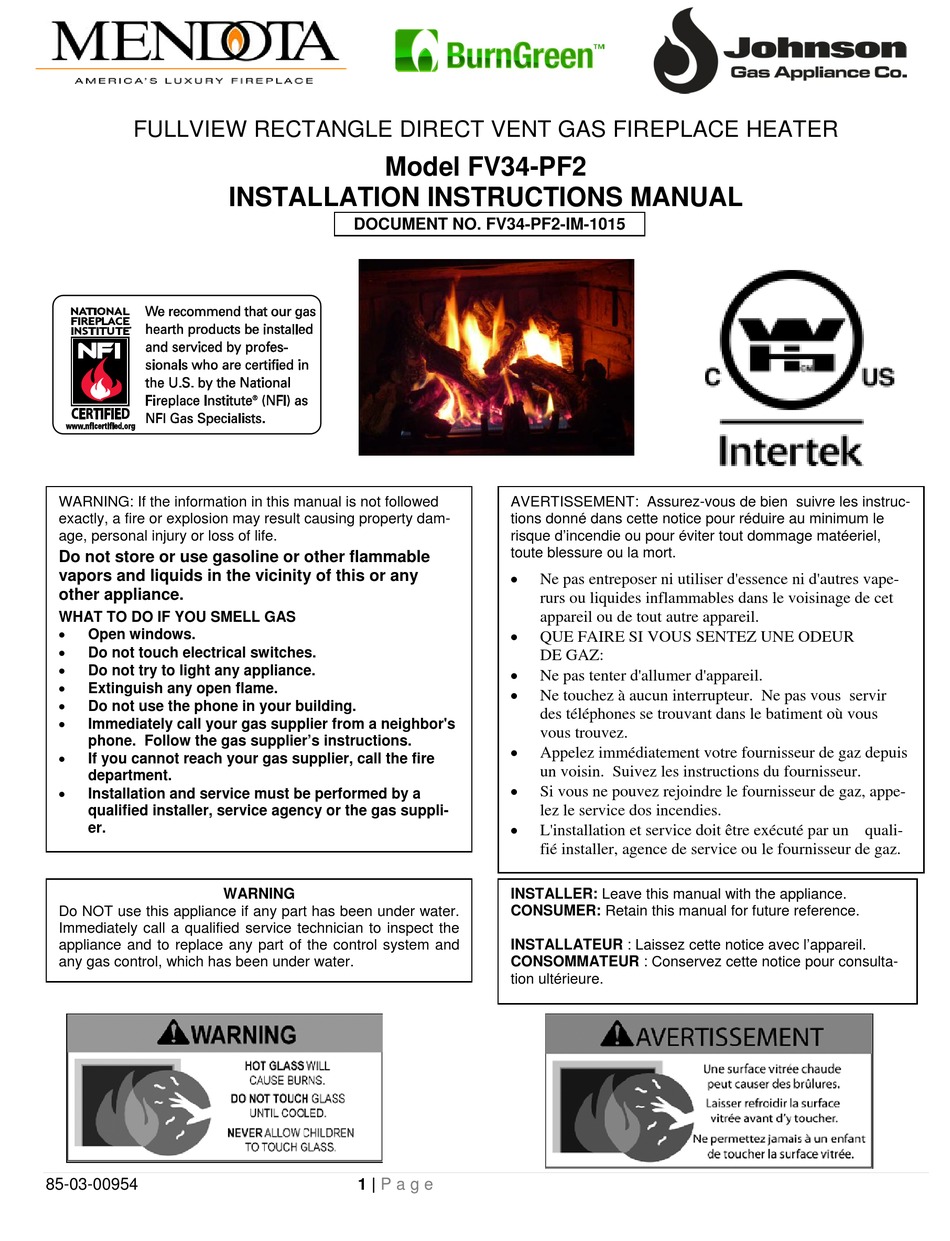

FULLVIEW RECTANGLE DIRECT VENT GAS FIREPLACE HEATER
WARNING: If the information in this manual is not followed
exactly, a fire or explosion may result causing property dam-
age, personal injury or loss of life.
Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
WHAT TO DO IF YOU SMELL GAS
Open windows.
Do not touch electrical switches.
Do not try to light any appliance.
Extinguish any open flame.
Do not use the phone in your building.
Immediately call your gas supplier from a neighbor's
phone. Follow the gas supplier's instructions.
If you cannot reach your gas supplier, call the fire
department.
Installation and service must be performed by a
qualified installer, service agency or the gas suppli-
er.
WARNING
Do NOT use this appliance if any part has been under water.
Immediately call a qualified service technician to inspect the
appliance and to replace any part of the control system and
any gas control, which has been under water.
85-03-00954
Model FV34-PF2
INSTALLATION INSTRUCTIONS MANUAL
DOCUMENT NO. FV34-PF2-IM-1015
1 |
P a g e
AVERTISSEMENT: Assurez-vous de bien suivre les instruc-
tions donné dans cette notice pour réduire au minimum le
risque d'incendie ou pour éviter tout dommage matéeriel,
toute blessure ou la mort.
Ne pas entreposer ni utiliser d'essence ni d'autres vape-
rurs ou liquides inflammables dans le voisinage de cet
appareil ou de tout autre appareil.
QUE FAIRE SI VOUS SENTEZ UNE ODEUR
DE GAZ:
Ne pas tenter d'allumer d'appareil.
Ne touchez à aucun interrupteur. Ne pas vous servir
des téléphones se trouvant dans le batiment où vous
vous trouvez.
Appelez immédiatement votre fournisseur de gaz depuis
un voisin. Suivez les instructions du fournisseur.
Si vous ne pouvez rejoindre le fournisseur de gaz, appe-
lez le service dos incendies.
L'installation et service doit être exécuté par un quali-
fié installer, agence de service ou le fournisseur de gaz.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
INSTALLATEUR : Laissez cette notice avec l'appareil.
CONSOMMATEUR : Conservez cette notice pour consulta-
tion ultérieure.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FV34-PF2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Johnson Gas Appliance FV34-PF2

  • Page 1 FULLVIEW RECTANGLE DIRECT VENT GAS FIREPLACE HEATER Model FV34-PF2 INSTALLATION INSTRUCTIONS MANUAL DOCUMENT NO. FV34-PF2-IM-1015 WARNING: If the information in this manual is not followed AVERTISSEMENT: Assurez-vous de bien suivre les instruc- exactly, a fire or explosion may result causing property dam- tions donné...

  • Page 2: Table Of Contents Initial Startup Information And Advice

    INITIAL STARTUP INFORMATION AND ADVICE INITIAL BURN CYCLE: During the first burn cycle (approximately for3 hours), it is normal for this appliance to emit visible smoke and some odor. The smoke generated is a mixture of paint curing, lubricating oils burn off, glass gasket adhesive curing and ceramic sealant gaskets curing.

  • Page 3: Listing Label Information

    LISTING LABEL INFORMATION When contacting your dealer for any cleaning service or warranty service, always provide the Model Number, Serial Number and Manufactured Date. This information will expedite the warranty verification process. INSTALLER: WRITE UNIT SERIAL NUMBER HERE FOR FUTURE REFERENCES.
  • Page 4 FOR YOUR SAFETY WARNING: Improper installation, adjustment, altera- A qualified installer, service agency, or the gas suppli- tion, service or maintenance can cause injury or proper- er must perform installation and service. ty damage. Refer to this manual. For assistance or additional information consult a qualified installer, ser- Do not store or use gasoline or other flammable va- vice agency or the gas supplier.
  • Page 5 DO NOT abuse the glass door by striking the glass, slamming the door shut, etc. Use only authorized parts and materials obtained from Johnson Gas Appliance Company when replacing defective or damaged glass.

  • Page 6: Safety And Warning Information

    DO NOT abuse the glass door by striking the glass, slamming the door shut, etc. Use only authorized parts and materials obtained from Johnson Gas Appliance Company when replacing defective or damaged glass.

  • Page 7: Fv34 Features - Quick Reference Information

    FV34 FEATURES - QUICK REFERENCE INFORMATION EXTERNAL DIMENSIONS: 39-5/8” Wide X 36-1/2” High X 14-1/2” Deep MINIMUM FRAMING DIMENSIONS: 40-5/8”” WIDE x 36-3/4” HIGH X 14-5/8” DEEP GLASS SIZE: NeoCeram Glass with non-reflective coating. Visible Glass measures 601 in (29-1/2” W x 20-3/8” H). MANTEL ALLOWANCE: 8”...

  • Page 8: Table Of Contents

    TABLE OF CONTENTS INITIAL STARTUP INFORMATION AND ADVICE ......................... 2 PROPER PAINT TYPES APPROVED FOR USE ........................2 LISTING LABEL INFORMATION ............................3 SAFETY AND WARNING INFORMATION ..........................6 FV34 FEATURES - QUICK REFERENCE INFORMATION ....................7 INITIAL STARTUP ADVICE ..............................7 SPECIFIC REQUIREMENTS FOR THE COMMON WEALTH OF MASSACHUSETTS ............

  • Page 9: Specific Requirements For The Common Wealth Of Massachusetts

    Specific Requirements for the Common Wealth of Massachusetts The information in this section applies to all installations performed in the Common Wealth of Massachusetts only. For all side wall horizontally vented gas fueled equipment installed in every dwelling, building or structure used in whole or in part for residential purposes and where the side wall exhaust vent termination is less than seven (7) feet above grade, the following requirements shall be satisfied: 1.

  • Page 10: Fv-34 Full View Gas Fireplace Dimensions

    FV-34 FULL VIEW GAS FIREPLACE DIMENSIONS OVERALL APPLIANCE DIMENSIONS AND FEATURES 85-03-00954 10 | P a g e...
  • Page 11 TECHNICAL SPECIFICATIONS FOR FV-34 MODEL FV34 High Fire - Adjustable to - Low Fire BTUH. (MODEL FV-34) NAT. GAS 32,000 9,260 BTUH. (MODEL FV-34) LP GAS 32,000 12,707 NOTE: LPG CONVERSION KIT, HA-30-00501, MUST BE PURCHASED SEPARATELY TO CONVERT TO BURN LPG IN THIS FIREPLACE. MAIN ORIFICE [0-2000ft (610 m)]: REAR BURNER: #44 NG [3/64”...

  • Page 12: Congratulations

    It is Johnson Gas Appliance Company's policy that no responsibility is assumed by the Company or by any of its employ- ees or representatives for any damages caused by an inoperable, inadequate, or unsafe condition which is the result, ei- ther directly or indirectly, of any improper operation, installation or servicing procedures.

  • Page 13: General Appliance Specifications

    FV34 DIRECT VENT GAS FIREPLACE GENERAL APPLIANCE SPECIFICATIONS HIGH ALTITUDE INSTALLATION INFORMATION: Prior to installing at altitudes higher than 7500, understand the need for gas input Deration. Contact Mendota Technical Service for support. " ROUGH FRAMING WIDTH " ROUGH FRAMING DEPTH 9 5 8 "...
  • Page 14 MANTEL CLEARANCES Mantel Clearances for this fireplace may be measured from the top of the convection air opening or the floor level of this fireplace. The location that is referenced normally to measure mantel clearances is the Top of the Convection Air Opening. For ease, however, measure up from the floor level of this fireplace.

  • Page 15: Planning The Installation

    PLANNING THE INSTALLATION When planning on appliance installation, it is necessary to determine the following information before installing:  Where the appliance is to be installed.  The vent system configuration to be used.  Gas supply piping.  Electrical Wiring. ...

  • Page 16: Rough Framing Dimensions

    ROUGH FRAMING DIMENSIONS Rough Framing Dimensions The Rough Framing Dimensions must be Minimum Rough Framing Dimensions maintained to allow this fireplace to slide into DESCRIPTION DIMENSION (INCHES) the framing cavity. Width 40-5/8”” Height 37” SPECIAL FRAMING NOTE: On the left side 14-5/8”...

  • Page 17: Backup Dc Power Inlet Port Installation

    BACKUP DC POWER INLET PORT INSTALLATION Under normal conditions when AC power is available, this appliance is designed to operate on 110 VAC power. During power outages, it is designed to operate using 6 V DC backup pow- er. This appliance is supplied with a DC power inlet harness, a single gang outlet box and two single cover plates.

  • Page 18: Framing Depth And Finishing Guides

    FRAMING DEPTH and FINISHING GUIDES The nominal framing depth for this fireplace is 14-5/8 inches. This is a fixed depth required for all installations, except a corner installation and for installations that use solid Granite or Marble slabs or thick natural stone materials as fascia ma- terials.

  • Page 19: Suitable Facing Backer Materials And Hearth Protection Materials

    SUITABLE FACING BACKER MATERIALS AND HEARTH PROTECTION MATERIALS It is important to select the proper Facing Backer Material and proper Hearth Protection Material when installing this appli- ance. Definitions Hearth Protection Pad: A non-combustible protective pad installed in front of this fireplace spanning the full width of the glass door and extending into the room to a depth determined using the supplied chart based on the distance this fire- place is raised up from the floor needing protection.

  • Page 20: Finishing Materials Installation

    FINISHING MATERIALS INSTALLATION All finishing materials that surround this fireplace’s rectangle profile must extend out from the face surface of this fireplace 1 inch minimum for most decorative Fronts to fit properly. A maximum finishing material thickness of 3” is allowed. FINISHING GUIDES This appliance arrives with the finishing guides factory installed.

  • Page 21: Hearth Protection Pad Requirements

    HEARTH PROTECTION PAD REQUIREMENTS Mineral/Ceramic Board Hearth Protection R Rating: MINIMUM R-1 IS REQUIRED. A ½” THICK (MINIMUM) with an R- Rating greater than R 1.0 is required as the backer material. You may use alternative materials that provide R-1 rating. All hearth pads must be non-combustible (metal, brick, stone, or mineral fiberboard).

  • Page 22: General Information

    GENERAL INFORMATION Your Mendota Gas Fireplace has a state-of-the-art co-axial direct vent, sealed combustion system. This advanced and highly efficient system brings in outside air for combustion, has a separate exhaust vent and efficiently heats and re-circulates room air. The Mendota system maintains high air quality, maximizes efficiency and assures proper operation in today's "air-tight" homes. SAFETY AND STRUCTURAL CONCERNS: The FV34 Fireplace must be installed and serviced by a Mendota approved serviceperson.

  • Page 23: Gas Supply Requirements

    GAS SUPPLY REQUIREMENTS Correct gas pressure and proper gas supply line sizing is imperative to the successful performance of your Mendota gas fireplace. Be sure the gas supplier or plumber carefully checks for correct gas pressure and gas line sizing when in- stalling the fireplace.
  • Page 24 GAS PRESSURE REQUIREMENTS One of the main causes of operating problems with gas appliances can be improper gas pressure! Problems such as changes in flame color or configuration, gas pilot or burner outages, intermittent operation, changes in heat output, excessive burner noise, etc. are nearly always the result of changes in gas pressure or improper gas pres- sure at the time of the installation.

  • Page 25: General Installation Instructions

    GENERAL INSTALLATION INSTRUCTIONS CAUTION: Each installation must conform to all local, state and national codes. Refer to the national fuel gas code and local zoning and code authorities for details on installation requirements. The Mendota Fireplace must be vented to the outside in accordance with the latest edition of the National Fuel Gas Code.

  • Page 26: General Flue Venting Instructions

    GENERAL FLUE VENTING INSTRUCTIONS The Mendota Fireplace must be vented using the Mendota approved vent system components. Approved brands of vent components include DuraVent, Amerivent, ICC, Selkirk and Security vent pipes and venting components. All warranties will be voided and serious fire, health or other safety hazards may result from any of the following actions: Installation by unauthorized personnel;...

  • Page 27: Exterior Vent Locations And Restrictions

    EXTERIOR VENT LOCATIONS AND RESTRICTIONS Exterior Vent ALL MEASUREMENTS FROM CENTERLINE OF VENT CAP  -  -  - Vent Terminal Air Supply Inlet Area where terminal is not permitted Clearance above grade, veranda, porch, deck, or balco- *Not to be installed above a meter/regulator assembly ny (*12 inches (30 cm) minimum).

  • Page 28: Flue Venting Components Identification

    FLUE VENTING COMPONENTS IDENTIFICATION DO NOT SEPARATE TELESCOPING SECTIONS. USE TELESCOPING SECTIONS AS COMPLETE ASSEMBLIES. HIGH ALTITUDE INSTALLATION INFORMATION: Prior to installing at altitudes higher than 7500, please contact the Mendota technical service department for specific venting requirements and venting restrictions. ITEM DESCRIPTION 6"...

  • Page 29: Fv-34 Master Flue Venting Requirements Chart

    FV-34 MASTER FLUE VENTING REQUIREMENTS CHART NOTE: THIS CHART IS APPLICABLE TO BOTH NATURAL GAS AND LPG INSTALLATIONS. IMPORTANT NOTES: See Figure 15, below. 1. 18 inches minimum vertical pipe run required to be connected directly to this fireplace’s flue starter collar. 2.

  • Page 30: Important Venting Configuration Notes

    IMPORTANT VENTING CONFIGURATION NOTES See [MASTER FLUE VENTING REQUIREMENTS CHART]. HIGH ALTITUDE INSTALLATION INFORMATION: Prior to installing at altitudes higher than 7500, understand the gas Deration requirement and adjust burner gas orifices accordingly. If unable, please contact the Mendota technical service department for specific venting requirements and venting restrictions.

  • Page 31: Approved Vent Systems

    APPROVED VENT SYSTEMS QUICK REFERENCE CHART Figure 1: Vent Systems STRAIGHT UP, VERTICAL VENTING ZERO VERTICAL HORIZONTAL TERMINATION VERTICAL RISE HORIZONTAL TERMINATION 40 FEET MAXIMUM NOT ALLOWED NOT ALLOWED APPROVED APPROVED VERTICAL RISE DUAL 90° ELBOWS HORIZONTAL TERMINATION VERTICAL RISE DUAL 90°...

  • Page 32: Minimum Rise (18") With Horizontal Termination

    MINIMUM RISE (18”) WITH HORIZONTAL TERMINATION The FV-34 Fireplace must be installed by a qualified Mendota approved serviceperson. A Maximum Horizontal Run allowed is 6 inches if an 18” vertical starter section and one 90-degree elbow is connected directly to this fireplace’s flue starter collar. When a 90-degree elbow is connected directly to this fireplace, the horizontal centerline of the 90ºelbow will be 49-1/2”...

  • Page 33: Vertical Rise Horizontal Termination

    VERTICAL RISE HORIZONTAL TERMINATION The minimum vertical section required to be connected directly to the starter adapter on this fireplace is 60 inches when used with a maximum horizontal run of 25 ft. If the total length of the vertical sections connected directly to the starter adapter on this fireplace is between 5 feet and 17 feet, you are allowed a maximum 25 feet horizontal run.
  • Page 34 APPROVED 85-03-00954 34 | P a g e...

  • Page 35: Vertical Through-The Roof Venting

    VERTICAL THROUGH-THE ROOF VENTING The maximum vertical run of vent pipe is 40 ft. from the top of the fireplace. The fireplace will support a run of a maximum of 40 ft. Maintain 1" air space clearances on all sides of vents (2" above horizontal runs). If an offset is required directly on top of the fireplace, two 45 elbows may be connected directly to the top of this fireplace to create a horizontal offset then to run upwards vertically.
  • Page 36 9,10 40 FEET 1,2,3,4,5 MAX. 85-03-00954 36 | P a g e...

  • Page 37: Vertical Through-The-Roof Venting Using Four 90 Elbows

    VERTICAL THROUGH-THE-ROOF VENTING USING FOUR 90 ELBOWS In extreme situations, Four 90 elbows may be required to reach a proper exit point for the vent system. Mendota has spent considerable time and effort in the design of this fireplace and its venting system. Through this effort, Mendota has been able to certify the use of Four 90 elbows when terminating Vertically.
  • Page 38 FV-34 DOOR OPERATION TO REMOVE DOOR 1. Use the glass latch tool to disconnect the spring latches from the glass frame. Insert tool into hole in latch, pull towards you and Rotate 90 degrees to disengage top latches. Remove tool. There are two spring latches on top of this gas fireplace.

  • Page 39: Installation Check Off List

    INSTALLATION CHECK OFF LIST  Co-axial vent rigid pipe, wall vent cap or roof vent cap must be installed by a Mendota approved person in accordance with instructions. All joints must be secured, "twist- locked" and leak-proof. 1000ºF sealant must be used on the inner pipe joints of all DuraVent pipe sections.

  • Page 40: Blower System Information

    BLOWER SYSTEM INFORMATION WARNING: Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous operation. Verify proper operation after servicing. This appliance is equipped with an internal three-wire (grounding) cable for protection against shock hazard and should be hard-wired directly to a properly grounded three-wire home power supply cable within an approved junction box or within this appliance body.

  • Page 41: Log Set Installation

    LOG SET INSTALLATION Open the box and, very gently and carefully, pull out the three foam packages and lay on the floor. Use a utility knife to cut tape strips that secure foam package tops to foam package bottoms. Lift off foam package top very slowly and carefully.
  • Page 42 PLACE LOG #1 (REAR LOG) ON REAR SHELF BEHIND REAR BURNER. CENTER LOG ON THE AIRBOX. PUSH LOG BACK SO IT TOUCHES REAR BRICK PANEL. LOG #1 85-03-00954 42 | P a g e...
  • Page 43 LOG #2 (MID EMBER BED) SITS BETWEEN REAR AND FRONT BURNER, FLAT DOWN ON THE SURFACE OF THE BURNER AIRBOX. ADJUST POSITION OF FRONT AND REAR BURNERS IF LOG #2 DOES NOT SIT BETWEEN REAR AND FRONT BURNER. PLACE LOG #2 BETWEEN THE TWO BURNERS AND SLIDE TO THE RIGHT UNTIL THE CURVATURE IN THE FRONT BURNER CONTACTS THE CURVATURE ON THE RIGHT FRONT TIP OF LOG #2.
  • Page 44 PLACE LOG #3 (LEFT LOG) ON TOP OF THE RECTANGLE AIR SHUTTER BOX ON THE LEFT SIDE. LOG #3 HAS A RECTANGULAR NOTCH ON ITS BOTTOM SIDE THAT ALLOWS THE LOG TO SIT SQUARELY ON THE BOX. ALSO, THERE IS A NOTCH THAT MATES WITH THE LEFT-MOST GRATE BAR. SET LOG #3 ON THE GRATE BAR AND THE RECTANGLE SHAPED AIR SHUTTER BOX TOP SURFACE.
  • Page 45 LOG #4 (RIGHT LOG) HAS A HOLE FOR THE PIN ON LOG #2. INSERT PIN IN LOG #2 INTO HOLE IN LOG #4. SET RIGHT END OF LOG #4 ON TOP OF THE FIRST GRATE BAR ON THE FAR RIGHT SIDE. SOME ROTATIONAL FLEXIBILITY IS ALLOWED TO LOG #4 AROUND THE PIN AND HOLE.
  • Page 46 LOG #5 (LEFT TOP LOG) SITS ON THE LEFT SHOULDER OF LOG #1 AND ITS TWO BRANCHES SIT ON TOP OF LOG #2 AND LOG #3. LOG #5 HAS A HOLE THAT ALIGNS WITH THE LEFT SIDE PIN ON LOG #1. THE V-NOTCH BETWEEN THE TWO BRANCHES MUST SIT DIRECTLY ON TOP OF THE REAR BURNER’S LEFT SIDE PORTS AND MUST ALLOW THE FLAMES TO RISE INTO THE V-NOTCH IN THIS LOG.
  • Page 47 LOG #6 (RIGHT TOP LOG) SITS ON TOP OF LOG #1 USING THE PIN THAT IS ON THE RIGHT SIDE OF LOG #1. LOG #6 HAS A HOLE IN ITS BACK-SIDE TO MATE WITH THIS PIN. PLACE LOG #6 ON TOP OF LOG #1’S PIN. THE OTHER END OF LOG #6 SITS ON TOP OF LOG #2 AS SHOWN, BELOW.
  • Page 48 LOG #7 (FAR RIGHT MID LOG) RESTS ON TOP OF THE FRONT BURNER’S REAR VISIBLE EDGE AND ON TOP OF LOG #4. THIS LOG IS DESIGNED TO HIDE THE PILOT LIGHT. PLACE THIS LOG SO IT PROVIDES CLEARANCE TO ALL BURNER FLAMES AND PILOT FLAMES, YET POSITIONED TO HIDE THE PILOT FLAMES.
  • Page 49 PLACE LOG #8 ( LEFT FRONT TWIG) IN THE POSTION SHOWN HERE. LOG #8 SITS ON TOP OF LOG #2 AND RESTS AGAINST THE GRATE BAR (2ND FROM LEFT). ATTEMPT TO POSITION LOG #8 AS SHOWN HERE FOR THE BEST GLOW EFFECT AND REALISTIC LOOK.
  • Page 50 PLACE LOG #10 (FAR RIGHT LOG) ON THE FIREBOX FLOOR NEXT TO LOG #4 GRATE LOG #10 LOG #10 FIREBOX FLOOR FIREBOX FLOOR GRATE 85-03-00954 50 | P a g e...
  • Page 51 SCATTER SMALL COALS ON THE FLOOR AND BETWEEN THE LOG GRATE’S HORIZONTAL BAR AND THE FRONT BURNER. A FEW COALS MAY SIT ON TOP OF THE FRONT BURNER TUBE BUT AVOID PLACING TOO MANY COALS ON TOP OF THE FRONT BURNER PORTS. USING A TOOTH BRUSH, BRUSH INSWOOL (GLOWING EMBERS) RANDOMLY OVER LOG #2, THE COALS AND IN AREAS WHERE YOU WISH TO SEE GLOWING EMBER EFFECTS.

  • Page 52: Flame Appearance Adjustment

    FLAME APPEARANCE ADJUSTMENT AIR SHUTTER ADJUSTMENTS Be sure burner and logs are properly installed (see FV-34 Log Set In- stallation Section in the Owner’s Manual). After burner has been properly installed and operated for 30 minutes, small additional ad- justments to the air shutter may be necessary for final flame appear- ance.

  • Page 53: Trouble Shooting The Fv-34 Fireplace & Maintenance Information

    TROUBLE SHOOTING THE FV-34 FIREPLACE & MAINTENANCE INFORMATION SYMPTOM PROBABLE CAUSES CORRECTIVE ACTION 1. Thin black coating A. Incorrect gas pressure Have gas supplier check for correct gas inlet pressure (7" W.C. Nat. Gas; 11" (soot) forms on viewing W.C. LP Gas). glass.

  • Page 54: Maintenance

    MAINTENANCE 1. ANNUAL MAINTENANCE OF MENDOTA UNITS IS REQUIRED. The following procedures must be performed each year by a Mendota approved service person. NOTE: Any adjustments to burner, pilot or logs must be done by a qualified Mendota service person. A.
  • Page 55 NATURAL TO LP GAS CONVERSION INSTRUCTIONS Motorized LP Pressure Kit # HA-30-00507 Mendota Model FV34 & DXV35 DT4 Regulator [10.0-5.5"WC] WARNING # 907.012 This conversion kit shall be installed by a qualified service agency in accordance with the manufacturer’s instructions and all applicable codes and requirements of the authority having jurisdiction.
  • Page 56 5. Using a ½” deep well socket wrench, remove Front and Rear Orifices. 6. Thread a new 3/64” drilled orifice to both Front and Rear Orifice mounting brass fittings. Tighten down orifices. 7. Remove the left-side access panel mounted to the left outer skin and lay down gently without disconnecting any wires of internal components.
  • Page 57 8. Before reinstalling burners, loosen the screw that secures the rotary air shutter on the Front Burner. Rotate the air shutter open to ¼” minimum. 9. Install both rear and front burners in their original locations and positions and secure down using screws you removed earlier.
  • Page 58 You must remove the left side Valve Access Panel to replace the pressure regulator. 11. Remove the left-side access panel mounted to the left outer skin and lay down gently without disconnecting any wires of in- ternal components. WARNING: DO NOT FORCE. EXCESSIVE FORCE MAY DAMAGE INTERNAL WIRING COMPONENTS! 12.
  • Page 59 LP PRESSURE REGULATOR CONVERSION INSTRUCTIONS WARNING: Failure to position the parts in accordance with these diagrams or failure to use only parts specifical- ly approved with this appliance may result in property damage or personal injury. 85-03-00954 59 | P a g e...

  • Page 60: Lp Gas Pressure Requirements

    LP GAS PRESSURE REQUIREMENTS Inlet and manifold gas pressure checking taps are located on gas valve. These ports are only accessible from the outer left side of the fireplace. A qualified installer shall take pressure measurements at these ports to verify and set the correct gas pressures during the LP Kit installation and before fascia materials are installed over the front of this fireplace.
  • Page 61 GAS INPUT RATE VERICATION REQUIREMENTS Natural Gas Applications Gas Input Rate Verification Procedures Verify Main Orifice Size. The main orifice body has the orifice hole size stamped on it. NG orifice size shall be #44” (Rear Burner) and # 49 (Front Burner) for all elevations. Verify that the Manifold Gas Pressure is within 3.5"...

  • Page 62: Before You Begin

    BEFORE YOU BEGIN Read this entire manual before you use your new fireplace (especially the section “Safety Precautions” on page 2). Failure to follow the instructions may result in property damage, bodily injury, or even death. Remote Control Transmitter Functions NOTE: The Ignition Module Receiver will “beep”...

  • Page 63: Remote Transmitter Operating Instructions

    REMOTE TRANSMITTER OPERATING INSTRUCTIONS TO TURN ON THE APPLIANCE: 1. Press the ON/OFF button. The transmitter display will show all active icons on the screen. 2. Select the Thermostat Mode by pressing the Thermostat Key: OFF (meaning Manual Mode), ON (meaning normal Thermostat) or Smart (meaning Smart Mode). a.

  • Page 64: Temperature Indicator ( F Or C)

    TEMPERATURE INDICATOR ( F or 1. Press the ON/OFF Key and Turn Off the Fireplace. 2. Simultaneously, Press both the MODE Key and the Thermostat Key. 3. Look at the LCD display to verify that your desired indicator ( F or C) is being displayed.

  • Page 65: First Time" Pilot Lighting Instructions

    “FIRST TIME” PILOT LIGHTING INSTRUCTIONS IMPORTANT: Be sure all items on "INSTALLATION CHECK OFF LIST" in the Installation Manual have been completed! CAUTION: If the pilot goes out, be sure to wait a minimum of five minutes before attempting to relight the pilot. 1.

  • Page 66: Intermittent Pilot Light And Standing Pilot Light Features

    IPI/STANDING PILOT SYSTEM INFORMATION REMOTE CONTROL IGNITION MODULE/ RECEIVER 4.5V (three 1.5V AAA batteries) 6.0V (four 1.5V AA batteries) Supply voltage Ambient temperature ratings 32 – 122 F (0 – 50 32 – 140 F (0 – 60 Radio Frequency 315 MHz 315 MHz ATTENTION!
  • Page 67 FV-34 VALVE ASSEMBLY REPLACEMENT PARTS ITEM  QTY  PART NUMBER  DESCRIPTION  1  1  HA‐97‐00028  VALVE HEAT SHIELD, FV34  2  1  05‐02‐00344  VALVE, 885 PROFLAME (NG) SIT# 0.885.001  3  1  05‐02‐00351  SPLIT‐FLOW, PROFLAME, SIT# 0.540.002  4  1  65‐07‐00744  Ball Valve  5  1  65‐14‐00045  ORIFICE, #45 17,072 BTU NAT  6  2  65‐07‐00012  BCF,3/8 TBE X 3/8MPT COMP ELBW  7  1  HA‐81‐00419  SHUTTER BOX SLIDER, FV33i  8  2  65‐06‐00577  CABLE NUT, ASSY ...

  • Page 68: Fv-34 Gas Ignition System Wiring Diagram

    FV-34 GAS IGNITION SYSTEM WIRING DIAGRAM The appliance must be electrically connected and grounded in accordance with local codes or, in the absence of local codes, with the current NFPA 70-National Electric Code or CSA C22.1-Canadian Electrical Code. Caution: Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and danger- ous operation”...

  • Page 69: Glass Frame Assembly Repair And Replacement

    4. Place glass and gasket assembly in glass frame and carefully bend down glass retainer tabs. Extra glass retainer tabs are provided should any originally used tabs break off. The glass frame assembly and its individual components are available through Johnson Gas Appliance Company. Con- tact your dealer for more detailed ordering information.

  • Page 70: Maintenance And Diagnostics Helpful Hints

    Maintenance and Diagnostics Helpful Hints Components Location: Manual Shutoff Ball Valve: A manual shutoff ball valve is located in the left air gap adjacent to the glass frame left edge. Use the glass latch tool to operate this ball valve. Main Gas Valve: The main gas valve is located on the left side of the firebox.
  • Page 71 NOTES 85-03-00954 71 | P a g e...

  • Page 72: Mendota Warranty Qualification & Service Reference Form

    Date of Purchase _______________________ Serial Number _______________________________ Purchaser's Signature _______________________________________________________________ MENDOTA FV-34 DIRECT VENT FIREPLACE CUT OUT PAGE AND MAIL TO: JOHNSON GAS APPLIANCE CO., 520 E AVE. N.W., CEDAR RAPIDS, IOWA 52405 PLEASE REGISTER AT OUR WEBSITE AT: WWW. http://mendotahearth.com/gas-fireplace-and-stove-registration.php 85-03-00954...
  • Page 73 TAPE SHUT -------------------------------------------------------------------------------------------------------------------------------------------------------- POSTAGE NEEDED JOHNSON GAS APPLIANCE COMPANY 520 E AVENUE N.W. CEDAR RAPIDS, IA 52405 85-03-00954 73 | P a g e...
  • Page 74 NOTES 85-03-00954 74 | P a g e...

  • Page 75: Mendota Extended Protection And Limited Warranty

    MENDOTA FV34 DIRECT VENT FIREPLACE Mendota Division of Johnson Gas Appliance Company, 520 E Avenue N.W. Cedar Rapids, Iowa 52405, extends this Extended Protection and Limited War- ranty to the original purchaser of a Mendota FV34 Fireplace, which is limited and used under normal home conditions.
  • Page 76 Johnson Gas Appliance Company 520 E Avenue N.W. - Cedar Rapids, IA 52405 Mendota Hearth Division WEBPAGE: www.johnsongas.com www.mendotahearth.com 85-03-00954 76 | P a g e...
