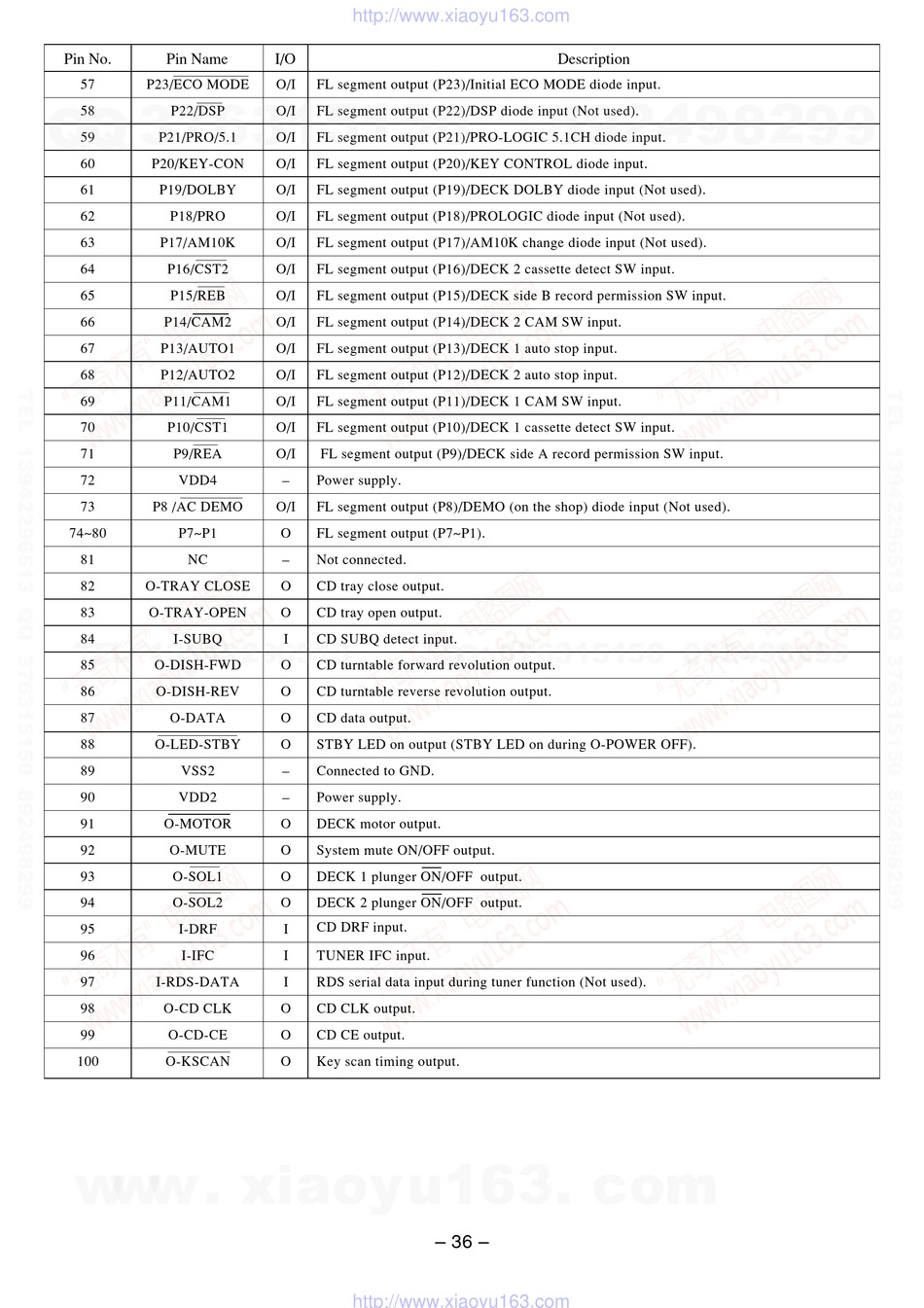

Aiwa NSX-WV89 Service Manual page 36

Pin No. Pin Name
QQ
3 7 63 1515 0
57 P23/ECO MODE
58 P22/DSP
59 P21/PRO/5.1
60 P20/KEY-CON
61 P19/DOLBY
62 P18/PRO
63 P17/AM10K
64 P16/CST2
65 P15/REB
66 P14/CAM2
67 P13/AUTO1
68 P12/AUTO2
69 P11/CAM1
70 P10/CST1
71 P9/REA
72 VDD4
73 P8 /AC DEMO
74~80 P7~P1
81 NC
82 O-TRAY CLOSE
83 O-TRAY-OPEN
TE
L 13942296513
84 I-SUBQ
85 O-DISH-FWD
86 O-DISH-REV
87 O-DATA
88 O-LED-STBY
89 VSS2
90 VDD2
91 O-MOTOR
92 O-MUTE
93 O-SOL1
94 O-SOL2
95 I-DRF
96 I-IFC
97 I-RDS-DATA
98 O-CD CLK
99 O-CD-CE
100 O-KSCAN
www
.
http://www.xiaoyu163.com
I/O
O/I FL segment output (P23)/Initial ECO MODE diode input.
O/I FL segment output (P22)/DSP diode input (Not used).
O/I FL segment output (P21)/PRO-LOGIC 5.1CH diode input.
O/I FL segment output (P20)/KEY CONTROL diode input.
O/I FL segment output (P19)/DECK DOLBY diode input (Not used).
O/I FL segment output (P18)/PROLOGIC diode input (Not used).
O/I FL segment output (P17)/AM10K change diode input (Not used).
O/I FL segment output (P16)/DECK 2 cassette detect SW input.
O/I FL segment output (P15)/DECK side B record permission SW input.
O/I FL segment output (P14)/DECK 2 CAM SW input.
O/I FL segment output (P13)/DECK 1 auto stop input.
O/I FL segment output (P12)/DECK 2 auto stop input.
O/I FL segment output (P11)/DECK 1 CAM SW input.
O/I FL segment output (P10)/DECK 1 cassette detect SW input.
O/I FL segment output (P9)/DECK side A record permission SW input.
– Power supply.
O/I FL segment output (P8)/DEMO (on the shop) diode input (Not used).
O FL segment output (P7~P1).
– Not connected.
O CD tray close output.
O CD tray open output.
I CD SUBQ detect input.
O CD turntable forward revolution output.
O CD turntable reverse revolution output.
O CD data output.
O STBY LED on output (STBY LED on during O-POWER OFF).
– Connected to GND.
– Power supply.
O DECK motor output.
O System mute ON/OFF output.
O DECK 1 plunger ON/OFF output.
O DECK 2 plunger ON/OFF output.
CD DRF input.
I
I TUNER IFC input.
I RDS serial data input during tuner function (Not used).
O CD CLK output.
O CD CE output.
O Key scan timing output.
x ao u163
y
i
http://www.xiaoyu163.com
Description
2 9
8
Q Q
3 6 7 1 3 1 5
co
.
– 36 –
