Dual analog
POWER CENTER
24-7 ALTERNATING TIMER
#100011732

SAFETY INSTRUCTIONS

WARNING
1. Never connect Power Center to electric outlet
while hands are wet.
2. Cut off power and discontinue use if unit was
submersed or dampened by water.
3. Always leave a drip-loop in power cord connected
to Power Center to prevent water from running
down length of cord and reaching power outlet.

PRODUCT SPECIFICATION

15 amp 120 volt 60 Hz (1875 watt max.)
circuit breaker.

SAFETY FEATURE

(1.0)
NOTE: Slide out safety cover
before using outlet.
CAUTION
1. For indoor use only. Do not install or store
the unit where it will be exposed to weather.
Keep unit dry.
2. For added safety, plug into a grounded
three-prong receptacle controlled by a GFI
(Ground Fault Interrupter) circuit breaker.

MANUAL CONTROL SWITCH

To manually switch between outlets, turn switch
to desired symbol to activate.
ALTERNATING TIMER - Manual Control Switch
(2.0)
NOTE: Blue and Black outlets alternate
power, both outlets cannot be on at the
same time (i.e. when Nighttime black outlets
are on, the Daytime blue outlets are off).
DAY-SHIFT TIMER- Manual Control Switch (3.0)
Setting THE TIMERS
1. Turn Manual Control Switch to timer-on
position.
2. Set current time of day by turning timer dial
clockwise until correct time faces arrowhead
NOTE: Manual Control Switch must be in
the
position for the timer to function
properly.
Current time
8:00 a.m.
http://waterheatertimer.org/GE-timers-and-manuals.html

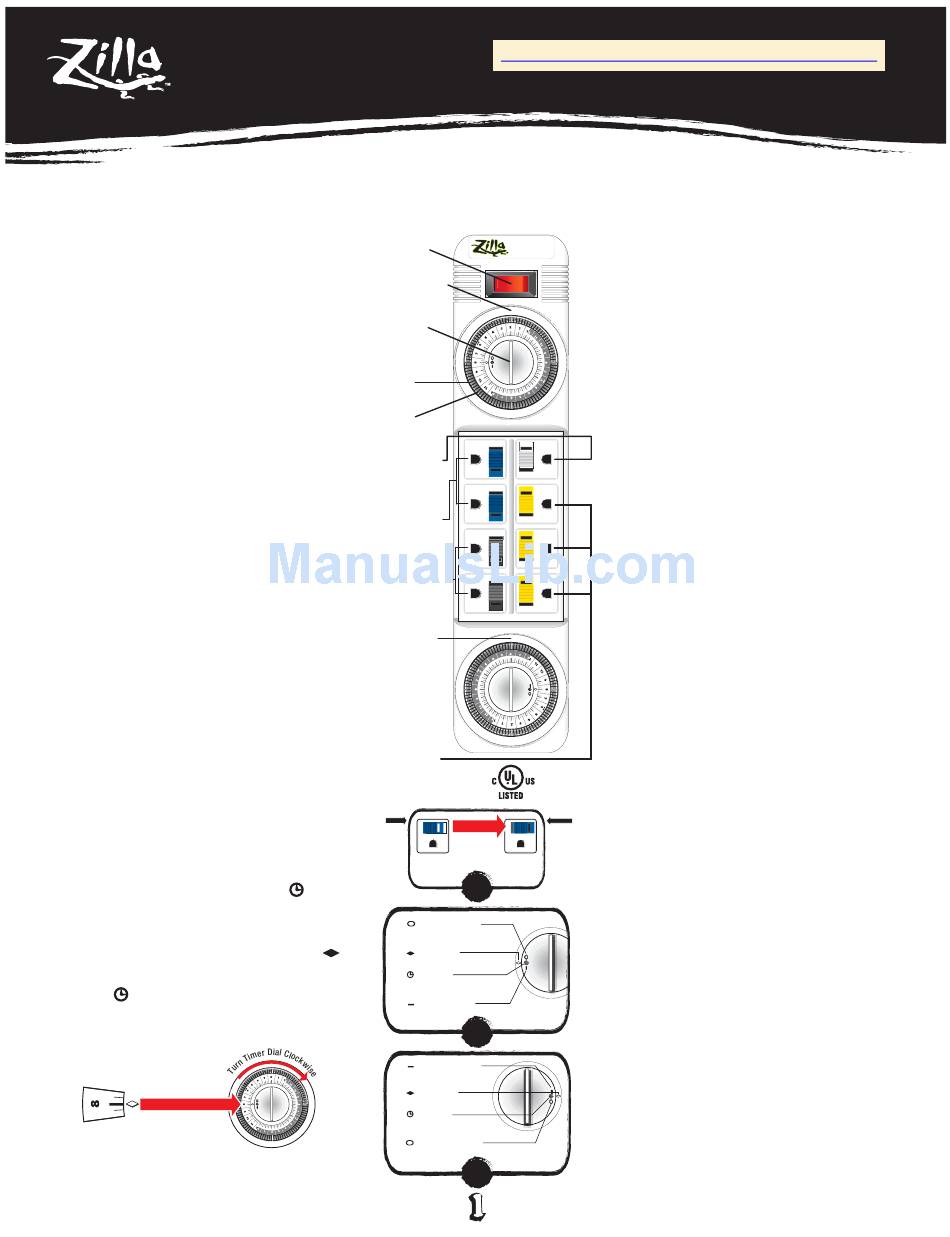

TIMER DIAGRAM
POWER
On/Off Switch
CENTER
Alternating Timer
Manual Control
Switch
Timer Dial
TimerTabs
Constant Power
1 - outlet (white)
Daytime Cycle
2 - outlets (blue)
Nighttime Cycle
2 - outlets (black)
Day-Shift Timer
Day-Shift Cycle
3 - outlets (yellow)
CLOSED
TO OPEN
1.0
Black outlets On
Arrowhead
.
Timer-On
Blue outlets On
2.0
Yellow outlets On
Arrowhead
Timer-On
Yellow outlets Off
3.0

POWER CENTER INSTALLATION

1. Once time cycle(s) are set, mount light fixtures
onto the terrarium.
2. Plug fixture power cords into the Power Center.
3. Plug Power Center into a grounded three-prong
receptacle controlled by a GFI (Ground Fault
Interrupter) circuit breaker.
4. Turn on the Power Center On/Off switch.
OPEN
