Moxi mate Hardware Manual

Media center extension
Hide thumbs Also See for moxi mate:
Table of Contents

Advertisement

Quick Links

Download this manual
10:35
OK
P O W E R
L I V E T V
M E N U
C H A N N E L
Hardware Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the moxi mate and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Moxi moxi mate

Summary of Contents for Moxi moxi mate

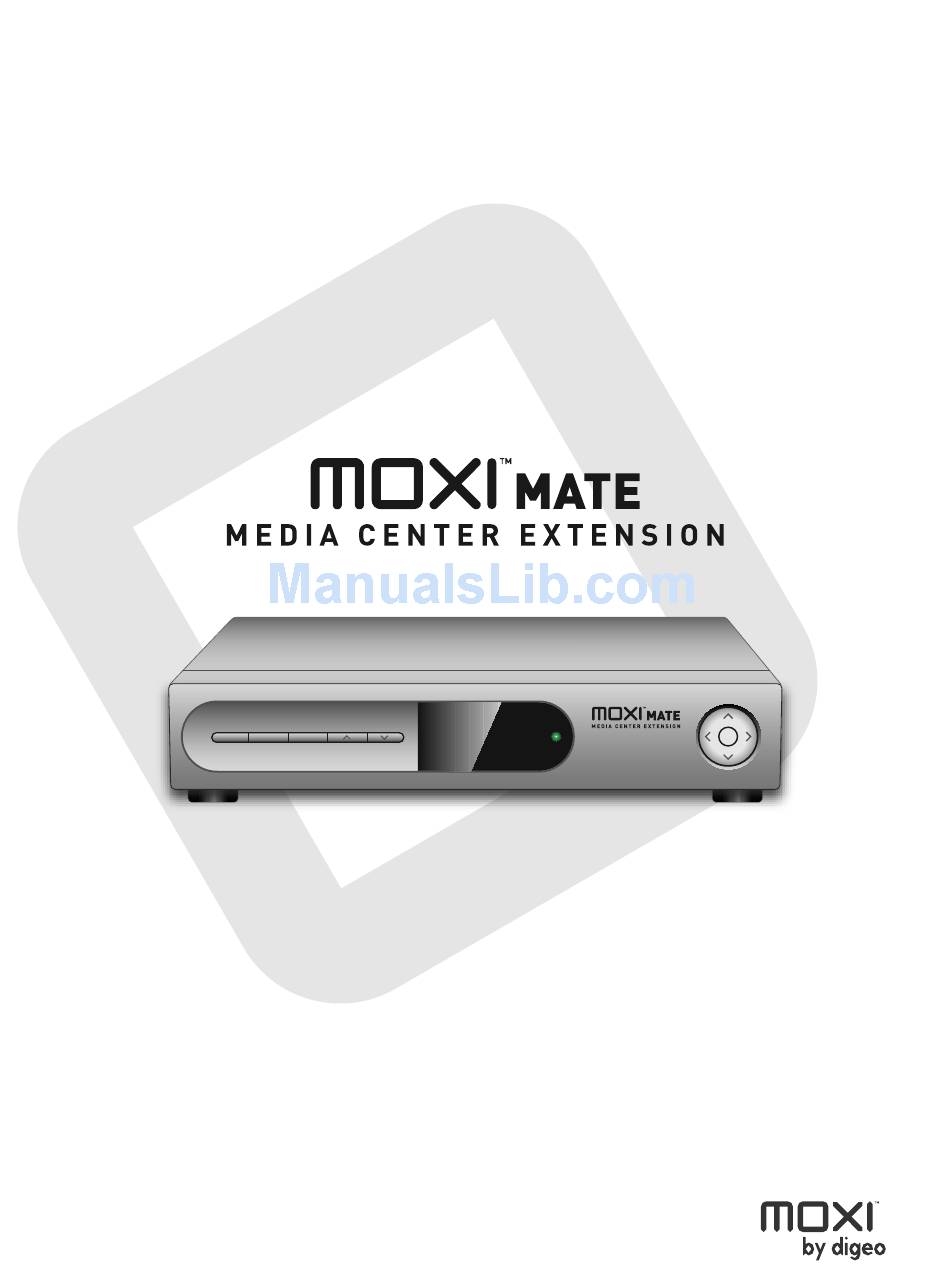

  • Page 1 10:35 P O W E R L I V E T V M E N U C H A N N E L Hardware Manual...

  • Page 2: Regulatory Information

    Copyright © 2005 Digeo, Inc. All rights reserved. Digeo, the Digeo logo, the Moxi logo and combinations thereof are trademarks of Digeo, Inc. in the USA and other countries. All other product, service or brand names are the property of their respective owners.

  • Page 3: Important Information

    WARNING To prevent fire or shock hazard, do not expose the Moxi Media Center Extension (Moxi Mate) to rain or moisture. Do not insert the Moxi Mate plug into an extension cord, receptacle, or outlet unless the blades can be fully inserted.

  • Page 4: Safety Precautions

    Attachments Use only attachments recommended by the Moxi Mate manufacturer. Other attachments may cause hazards. Care and Maintenance Unplug the Moxi Mate from the wall outlet before Never push objects of any kind into the Moxi Mate cleaning it.

  • Page 5: Table Of Contents

    Table of Contents Table of Contents Introduction ......................2 Moxi Mate Features ......................... 2 Power Modes........................... 2 Moxi Mate Diagrams........................3 Front View ........................... 3 Back View............................ 3 Installation ......................4 Ventilation Requirements ......................... 4 Equipment Required ........................5 Moxi Mate Connection Procedure....................5 Composite Video/Audio Connection....................

  • Page 6: Introduction

    Media Center. In most cases, the Moxi Mate should remain in On mode. However, if you want to watch a show on live TV at the same time you are recording two other shows, change the Moxi Mate to Passthrough...

  • Page 7: Moxi Mate Diagrams

    This allows you to use your TV's tuner to watch the show on live TV at the same time the two other shows are recording. In Passthrough mode, you do not have access to the Moxi Menu and will not be able to pause the show.

  • Page 8: Installation

    Warnings Do not connect the Moxi Mate unit to any switched power source. Use only the power cord supplied with the Moxi Mate and use that cord only for the Moxi Mate. Keep the Moxi Mate on, unless moving or servicing the unit.

  • Page 9: Equipment Required

    TV or audio device for specific information on what the device supports. 1. Before you begin, make sure both the second TV and the Moxi Mate are turned off and all connections are unplugged. Leave the multi-room enabled Media Center plugged in and turned 2.

  • Page 10: Composite Video/Audio Connection

    Basic RF Coaxial Video/Audio Connection 1. Attach one end of the coaxial cable to the To TV port on the Moxi Mate and the other end to the Cable/Antenna In port of the second TV. This connection provides both audio and video signals.

  • Page 11: Installation Wrap-Up

    Once the Moxi Mate is turned on, you do not need to press the Power button again. Unless you are moving the Moxi Mate, having it serviced, or if you want to watch a show on live TV at the same time you are recording two other shows, you should leave the Moxi Mate in On mode.

  • Page 12: Moxi Remote

    Programming by Code 1. Turn on the TV or receiver you want the remote to control. 2. On the Moxi remote, press and hold the MOXI and OK buttons simultaneously until the LED light on the top of the remote blinks twice.

  • Page 13: Television Codes

    Programming by Search 1. Turn on the TV or receiver you want the remote to control. 2. On the Moxi remote, press and hold the MOXI and OK buttons simultaneously, until the LED light on the top of the remote blinks twice.
  • Page 14 Moxi Mate Hardware Manual TV Brand Manufacturer Code TV Brand Manufacturer Code Fisher 0154, 0159 FlexVision 0713 Fujitsu 0179, 0683 Funai 0180, 0179, 0171 Futuretech 0180 0047, 0051, 0451, 0282, 0178, 0021, 0055, 0027, 0029, 0135, 0279, 0747, 1147, 1347...
  • Page 15 Moxi Remote TV Brand Manufacturer Code TV Brand Manufacturer Code Philco 0054, 0463, 0030, 0145, 0020, 0028, Philips 0054, 0037, 1354, 1454 0096, 0302 Pilot 0030, 0039 Pioneer 0038, 0166, 0172, 0679 Portland 0039, 0092 Princeton 0685, 0700, 0717 Prism...

  • Page 16: Audio/Video Receiver Codes

    Moxi Mate Hardware Manual Audio/Video Receiver Codes Receiver Brand Manufacturer Code Receiver Brand Manufacturer Code 3531 3375, 4157 Adcom 3002, 3304, 3319, 3616 Admiral 3182 Aiwa 4089, 4405, 3121, 3125, 3158, 3162, Akai 3076, 3115, 3151, 3224, 3450, 3189, 3249, 3284, 3301, 3361, 3544,...
  • Page 17 Moxi Remote Receiver Brand Manufacturer Code Receiver Brand Manufacturer Code Onkyo 3100, 3119, 3135, 3137, 3144, 3380, Optimus 4023, 3042, 3177, 3181, 3186, 3838, 3842, 4298 3219, 3229, 3286, 3440, 3531, 3622, 3670, 3690, 3738, 3744, 3754, 3797, 3801, 3803, 3849,...
  • Page 18 000-MCX-HWM-DGO (January 2005)
