SERVICE MANUAL
DL3103DC

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DL3103DC and is the answer not in the manual?

Questions and answers

Related Manuals for BBK DL3103DC

Summary of Contents for BBK DL3103DC

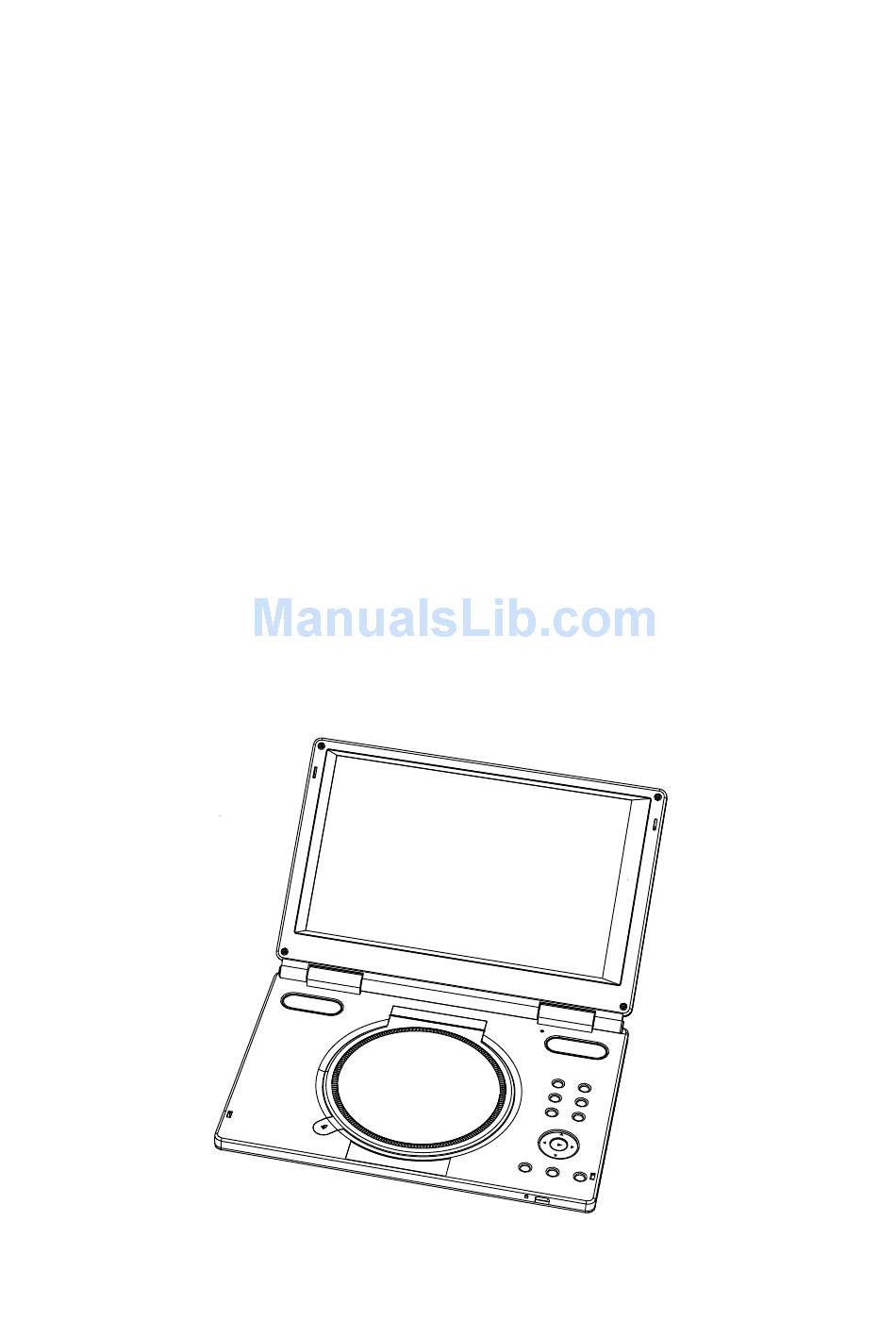

  • Page 1 SERVICE MANUAL DL3103DC...

  • Page 2: Table Of Contents

    C O N T E N T S S AF E T Y P R EC AUT IONS P R E V E NT ION OF E LE C T R O S TATIC DIS C HAR G E (E S D)TO E LE C T R OS TATIC ALLY S E NS IT IV E (E S )DE V IC E S C ONT R OL B UT T ON LOC AT IONS AND E XP LANAT IONS P R E V E R TION OF S TATIC E LE C T R IC IT Y DIS C HAR G E...

  • Page 3: S Af E T Y P R Ec Aut Ions

    1. SAFETY PREAUTIONS 1.1 GENERAL GUIDELINES 1. When servicing, observe the original lead dress. if a short circuit is found, replace all parts which have been overheated or damaged by the short circuit. 2. After servicing, see to it that all the protective devices such as insulation barrier, insulation papers shields are properly installed.

  • Page 6: P R E V E R Tion Of S Tatic E Le C T R Ic It Y Dis C Har G E

    4.PREVENTION OF STATIC ELECTRICITY DISCHARGE The laser diode in the traverse unit (optical pickup)may brake down due to static electricity of clothes or human body. Use due caution to electrostatic breakdown when servicing and handling the laser diode. 4.1.Grounding for electrostatic breakdown prevention Some devices such as the DVD player use the optical pickup(laser diode)and the optical pickup will be damaged by static electricity in the working environment.Proceed servicing works under the working environment where grounding works is completed.

  • Page 7: Electrical Confirmation

    5.Electrical Confirmation 5.1. Video Output (Luminance Signal) Confirmation DO this confirmation after replacing a P.C.B. Measurement point Mode Disc Color bar 75% DVDT-S15 Video output terminal PLAY(Title 46):DVDT-S15 PLAY(Title 12):DVDT-S01 DVDT-S01 Measuring equipment,tools Confirmation value 200mV/dir,10 sec/dir 1000mVp-p±30mV Purpose:To maintain video signal output compatibility. 1.Connect the oscilloscope to the video output terminal and terminate at 75 ohms.

  • Page 8: Ide O Out P Ut (C Hr Ominanc E S Ig Nal) C Onf Ir Mation

    5.2 Video Output(Chrominance Signal) Confirmation Do the confirmation after replacing P.C.B. Measurement point Mode Disc Color bar 75% DVDT-S15 Video output terminal PLAY(Title 46):DVDT-S15 PLAY(Title 12):DVDT-S01 DVDT-S01 Measuring equipment,tools Confirmation value Screwdriver,Oscilloscope 200mV/dir,10 sec/dir 621mVp-p±30mV Purpose:To maintain video signal output compatibility. 1.Connect the oscilloscope to the video output terminal and terminate at 75 ohme.

  • Page 9: Mpeg Board Check Waveform

    6.MPEG BOARD CHECK WAVEFORM 6.1 27MHz WAVEFORM DIAGRAM...

  • Page 10: Mt1389

    7.2 MT1389 MT1389 Progressive-Scan DVD Player SOC Specifications are subject to change without notice MediaTek MT1389 is a DVD player system-on-chip (SOC) which incorporates advanced features like high quality TV encoder and state-of-art de-interlace processing. The MT1389 enables consumer electronics manufacturers to build high quality, cost-effective DVD players, portable DVD players or any other home entertainment audio/video devices.
  • Page 11 MT1389 PRELIMINARY, SUBJECT TO CHANGE WITHOUT NOTICE MTK CONFIDENTIAL, NO DISCLOSURE General Feature List 1024-bytes on-chip RAM Super Integration DVD player single chip Up to 4M bytes FLASH-programming interface High performance analog RF amplifier Supports 5/3.3-Volt. FLASH interface Servo controller and data channel processing Supports power-down mode MPEG-1/MPEG-2/JPEG video Supports additional serial port...
  • Page 12 MT1389 PRELIMINARY, SUBJECT TO CHANGE WITHOUT NOTICE MTK CONFIDENTIAL, NO DISCLOSURE Audio Effect Processing TV Encoder Dolby Digital (AC-3)/EX decoding Six 108MHz/12bit DACs DTS/DTS-ES decoding Support NTSC, PAL-BDGHINM, PAL-60 MLP decoding for DVD-Audio Support 525p, 625p progressive TV format MPEG-1 layer 1/layer 2 audio decoding Automatically turn off unconnected channels MPEG-2 layer1/layer2 2-channel audio Support PC monitor (VGA)

  • Page 13: Hy29Lv160

    IC BLOCK DIAGRAM & DESCRIPTION HY29LV160 16 Mbit (2M x 8/1M x 16) Low Voltage Flash Memory KEY FEATURES Single Power Supply Operation 100,000 Write Cycles per Sector Minimum – Read, program and erase operations from Data# Polling and Toggle Bits 2.7 to 3.6 volts –...

  • Page 14: Block Diagram

    IC BLOCK DIAGRAM & DESCRIPTION HY29LV160 BLOCK DIAGRAM DQ[15:0] A[19:0], A-1 STATE C O N T R O L ERASE VOLTAGE I/O BUFFERS G E N E R A T O R A N D DQ[15:0] S E C T O R S W I T C H E S C O M M A N D W E # REGISTER...
  • Page 15 IC BLOCK DIAGRAM & DESCRIPTION HY29LV160 PIN CONFIGURATIONS 48-Ball FBGA (Bottom View) A[13] A[12] A[14] A[15] A[16] BYTE# DQ[15]/A[-1] A[9] A[8] A[10] A[11] DQ[7] DQ[14] DQ[13] DQ[6] W E # RESET# A[19] DQ[5] DQ[12] DQ[4] RY/BY# A[18] DQ[2] DQ[10] DQ[11] DQ[3] A[7] A[17]...

  • Page 16: Hy57V641620Hg

    HY57V641620HG 4 Banks x 1M x 16Bit Synchronous DRAM 7.4 HY57V641620HG DESCRIPTION The Hyundai HY57V641620HG is a 67,108,864-bit CMOS Synchronous DRAM, ideally suited for the main memory applications which require large memory density and high bandwidth. HY57V641620HG is organized as 4banks of 1,048,576x16. HY57V641620HG is offering fully synchronous operation referenced to a positive edge of the clock.
  • Page 17 HY57V641620HG PIN CONFIGURATION DQ15 DQ14 DQ13 DQ12 DQ11 DQ10 54pin TSOP II 400mil x 875mil 0.8mm pin pitch LDQM UDQM /CAS /RAS A10/AP PIN DESCRIPTION PIN NAME DESCRIPTION The system clock input. All other inputs are registered to the SDRAM on the Clock rising edge of CLK Controls internal clock signal and when deactivated, the SDRAM will be one...
  • Page 18 HY57V641620HG FUNCTIONAL BLOCK DIAGRAM 1Mbit x 4banks x 16 I/O Synchronous DRAM Self refresh logic Internal Row & timer counter 1Mx16 Bank 3 1Mx16 Bank 2 Row active Decoders 1Mx16 Bank 1 1Mx16 Bank 0 Memory refresh Cell Array Column Column Active UDQM...

  • Page 19: Schematic & P.c.b Wiring Diagram

    8.SCHEMATIC & P.C.B WIRING DIAGRAM DECODE BOARD...
  • Page 24 DECODE BOARD...
  • Page 25 BATTERY CHARGER...
  • Page 26 BATTERY CHARGER...
  • Page 27 MAIN FRONT PANEL...
  • Page 28 MAIN FRONT PANEL...
  • Page 29 LCD DRIVE BOARD LCD DRIVE BOARD LCD DRIVE BOARD LCD DRIVE BOARD LCD DRIVE BOARD...
  • Page 33 LCD DRIVE BOARD...
  • Page 34 BOOST BOARD...

  • Page 35: S P Ar E P Ar T S Lis T

    BOOST BOARD...
  • Page 36 BOOST BOARD...
  • Page 37 BOOST BOARD...
  • Page 38 9.DVDPX-I80S MATERIAL DL3103DC MATERIAL LIST LIST 1. CAR ADAPTER MATERIAL COD MATERIAL NAME SPECIFICATIONS UNIT UANTI LOCATION 1/2W0.1Ω±5% SHAPED VERTICAL 10303 METAL OXIDE FILM RESISTOR R1,R7 0090286 SMD RESISTOR 1/16W62Ω±5% 0603 0090181 SMD RESISTOR 1/16W 100Ω ±5% 0603 0090017 SMD RESISTOR 1/16W 2.2K ±5% 0603...
  • Page 39 0881535 S8232 SOP 1860067 POWER CONNECTOR 4P 2.5mm DC-C10399 1631816 B3103-0 1. MAIN PANEL MATERIAL COD MATERIAL NAME SPECIFICATIONS UNIT UANTI LOCATION 0090001 SMD RESISTOR 1/16W 0Ω ±5% 0603 R403 0310048 SMD CAPACITOR 50V 151 ±5% NPO 0603 C402,C403 0310084 SMD CAPACITOR 50V 104 +80%-20% 0603 C401...
  • Page 40 0160156 SMD ROTATED POTENTIOMETER W203-50K±20% VR201 0310185 SMD CAPACITOR 50V 5P ±0.25P NPO 0603 C163,C164,C172 310210 SMD CAPACITOR 50V 12P ±5% NPO 0603 C147,C175 C106,C108,C145,C165~C168,C173,C4 0310043 SMD CAPACITOR 50V 22P ±5% NPO 0603 07,C408 0310051 SMD CAPACITOR 50V 331 ±5% NPO 0603 C211 0310205 SMD CAPACITOR...
  • Page 41 R104~R106,R226,R228,R232,R239,R2 44,R249,R302,R303,R403,R405,R409, R425,R427,R440,R453,R506,R518,R61 0090001 SMD RESISTOR 1/16W 0Ω ±5% 0603 4,R629,R655,R656,R661,R662,R701,R 712,FB124,R722,R317,R338,R664,R66 8,R307,R309,FB117,FB126,FB721,FB7 0090536 SMD RESISTOR 1/8W0.27Ω±5% 1206 R638~R642 0090272 SMD RESISTOR 1/16W1Ω±5% 0603 R107~R109,R112,R113,R121,R122 0090106 SMD RESISTOR 1/16W 4.7Ω ±5% 0603 FB202,R114,R115,R421,R435 0090003 SMD RESISTOR 1/16W 10Ω ±5% 0603 R130,R609 R136,R209,R214~R216,R218,R219,R2 23,R230,R231,R236,R240,R241,R254,...
  • Page 42 R102,R110,R119,R124,R125,R220,R24 5,R250,R319~R324,R328,R344,R601,R 0090023 SMD RESISTOR 1/16W 10K ±5% 0603 604~R607,R618~R620,R624,R636,R72 1,R337,R404,R406,R418,R341,R221,R 331,R340,R353,R354,R355,R550,R551 0090304 PRECISION SMD RESISTOR 1/16W 10K±1% 0603 R138,R143,R615,R616 0090024 SMD RESISTOR 1/16W 15K ±5% 0603 R201,R246,R444,R458 0090188 SMD RESISTOR 1/16W 18K ±5% 0603 R247,R637 R111,R118,R120,R248,R146,R503,R51 0090025 SMD RESISTOR 1/16W 20K ±5% 0603 0,R525,R526,R538,R546 0090098...
  • Page 43 C101~C104,C106~C112,C114~C119,C 121,C123,C126~C129,C131,C132,C136 ,C137,C139,C142~C145,C147,C149,C2 01~C205,C208~C212,C214,C221~C223 ,C227,C228,C238~C253,C256,C259~C 264,C268~C281,C305,C311,C322,C323 ,C407,C409,C412,C414,C428,C429,C4 0310543 SMD CAPACITOR 50V 104±10% 0603 31,C432,C434,C435,C444,C451,C501~ C512,C514~C518,C526,C527,C542,C5 49~C552,C601~C603,C608,C610,C611, C613~C617,C619,C620,C623,C625,C7 03~C705,C728~C732,C735,C738~C742 ,C627,C151,C152,C303,C304,C307,C3 08,C315,C319,C325,C327,R556 310112 SMD CAPACITOR 16V 224 ±10% 0603 C138,C609 0310379 SMD CAPACITOR 25V 474 +80%-20% 0603 C220,C436,C437,C604,C605 C206,C217,C230~C232,C235,C236,R4 0310234 SMD CAPACITOR 16V 105 +80%-20% 0603 43,R456 0310566...
  • Page 44 FB201,FB203~FB212,FB214,FB216,FB 410,FB412~FB413,FB421,FB416,FB50 0390095 SMD MAGNETIC BEADS FCM1608K-221T05 1~FB508,FB701~FB706,FB717~FB720, FB404,FB418,FB423 VD102,VD405,VD406,VD501~VD505, 700007 SMD DIODE 1N4148 VD601,VD701 0700056 SMD DUAL DIODE MMBD4148SE SOT-23 VD401,VD403,VD404,VD702 0700063 SMD DUAL DIODE MMBD4148CA SOT-23 VD201 0680027 SMD SCHOTTKY DIODE SS34 VD101 0680049 SMD SCHOTTKY DIODE RB051L-40 VD101 680028 SMD SCHOTTKY DIODE...
  • Page 45 1870021 POWER SOCKET DC-023 JK101 1090049 ELECTRO-OPTIC TRANSFORMER GP1FD310TP JK501 1860068 BATTERY CONNECTOR 4P 2.5mm DC-C10398 JK601 1632013 23103-1 1990027 3-IN-1 CARD HOLDER SD/MS/MMC 23芯 H=4.2 TOP JK301 1860047 USB SOCKET CAM-B85-4Pin JK303 1940208 CABLE SOCKET 30P 0.5mm SMD WITH CLASP XS103 1940229 CABLE SOCKET...
