Pure Link HX-8200-U Owner's Manual

Hx series hdmi integrated matrix routers
Hide thumbs
Table of Contents

Advertisement

Quick Links

Owner's Manual
HX Series
HDMI Integrated Matrix Routers
TM
PureLink
535 East Crescent Avenue
Ramsey, NJ 07446
USA
Tel: +1.201.488.3232
Fax: +1.201.621.6118
E-mail:
sales@purelinkav.com
www.purelinkav.com
For order support, please contact your local dealer.
For technical support, please contact us at
support@purelinkav.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HX-8200-U and is the answer not in the manual?

Questions and answers

Summary of Contents for Pure Link HX-8200-U

  • Page 1 Owner’s Manual HX Series HDMI Integrated Matrix Routers PureLink 535 East Crescent Avenue Ramsey, NJ 07446 Tel: +1.201.488.3232 Fax: +1.201.621.6118 E-mail: sales@purelinkav.com www.purelinkav.com For order support, please contact your local dealer. For technical support, please contact us at support@purelinkav.com...

  • Page 2: Table Of Contents

    PureLink by Dtrovision ABLE OF ONTENTS Chapter 1. Product Overview 1.1 Safety Precautions --------------------------------------------------------------- 1.2 Declaration of Conformity --------------------------------------------------------------- 1.3 What’s in the Box --------------------------------------------------------------- 1.4 Product Introduction --------------------------------------------------------------- 1.5 Front View --------------------------------------------------------------- 1.6 Rear View --------------------------------------------------------------- 1.7 Installation Guidelines --------------------------------------------------------------- Chapter 2.

  • Page 3: Safety Precautions

    PureLink by Dtrovision Chapter 1. Introduction 1.1 Safety Precautions All safety instructions should be read and understood before the unit is operated. The owner’s manual and safety instructions should be retained for future reference. Unplug this unit from the wall outlet before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth only.

  • Page 4: Declaration Of Conformity

    Council Directive Low Voltage Equipment Safety. Each product marketed is identical to the representative unit tested and found to be compliant with the standards. 1.3 What’s in the Box Main Frame: HX-8200-U / HX-8400-U / HX-8800-U / HX-4200-U / HX-4400-U Power Adapter – D12V, 5A, 60W D12V, 6A, 60W (Only for HX-8800-U) RS-232C &...

  • Page 5: Product Introduction

    Matrix Switching for up to 8 HDMI™ Inputs to any 8 HDMI™ Outputs PureLink’s HX Series routers are available in the following models and configurations: HX-4200-U (4x2), HX-4400-U (4x4). HX-8200-U (8x2), HX-8400-U (8x4), and HX-8800-U (8x8) Supported Resolutions HDTV resolution up to 1080p @ 60Hz, and UHD (4K2K) PC resolution up to 1920x1200 @ 60Hz HDMI v1.4 Compatibility...

  • Page 6: Front View

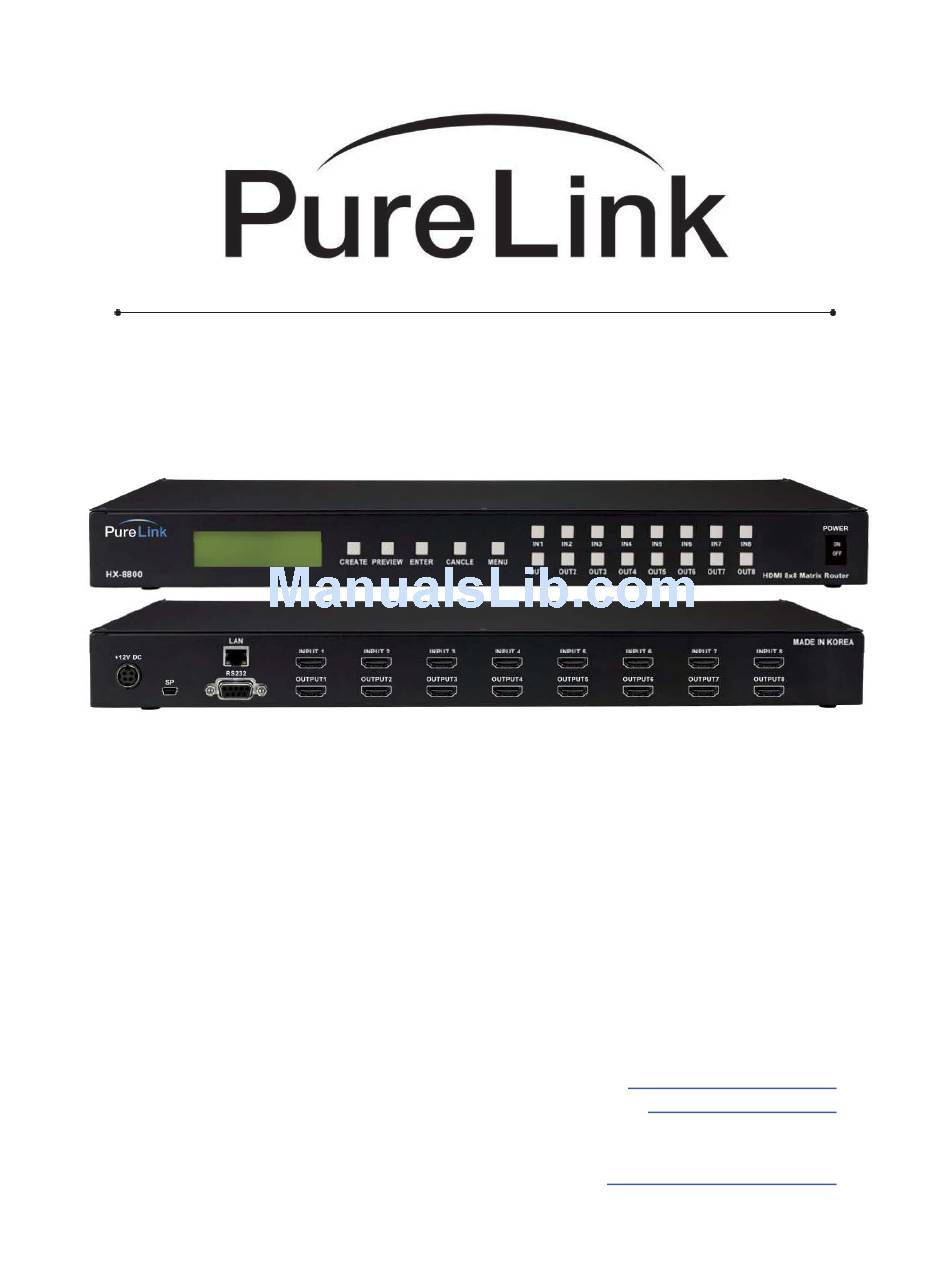

    PureLink by Dtrovision 1.5 Front View of HX-8800-U The HX-8800-U chassis is mountable on 19” standard rack with brackets. On front panel, there are some function keys, input-output buttons and a status display window placed as shown in Figure 1-1. <Front Panel>...
  • Page 7 PureLink by Dtrovision 1.7 Front View of HX-8400-U The HX-8400-U chassis is mountable on 19” standard rack with brackets. On front panel, there are some function keys, input-output buttons and a status display window placed as shown in Figure 1-1. <Front Panel>...
  • Page 8 PureLink by Dtrovision INPUTS : HDMI v1.4 Input ports 1~8 (Female type) OUTPUTS : HDMI v1.4 Output ports 1~8 (Female type) 1.9 Front View of HX-4400-U The HX-4400-U chassis is mountable on 19” standard rack with brackets. On front panel, there are some function keys, input-output buttons and a status display window placed as shown in Figure 1-1.
  • Page 9 PureLink by Dtrovision Mini USB: USB to Mini USB port. Mini USB Firmware Update Port INPUTS : HDMI v1.4 Input ports 1~4 (Female type) OUTPUTS : HDMI v1.4 Output ports 1~4 (Female type) 1.11 Front View of HX-4200-U The HX-4200-U chassis is mountable on 19” standard rack with brackets. On front panel, there are some function keys, input-output buttons and a status display window placed as shown in Figure 1-1.
  • Page 10 PureLink by Dtrovision INPUTS : HDMI v1.4 Input ports 1~4 (Female type) OUTPUTS : HDMI v1.4 Output ports 1~2 (Female type)

  • Page 11: Installation Guidelines

    PureLink by Dtrovision 1.13 Installation Guidelines The following installation settings are recommended for optimal performance. Operational temperature should be 30° C or below Operational humidity should be 60% or below Operational environment should be dust-free and well ventilated Stabilized AC input power (AVR-based power supply) is highly advised...

  • Page 12: Chapter 2. Product Features

    PureLink by Dtrovision Chapter 2. Product Features HX series Matrix Router receives signals from HDMI output ports or equipment compliant up to HDMI Ver. 1.4, and sends them to multiple displays. Compliant to HDMI v1.4, the next generation standard for A/V 19”...

  • Page 13: Chapter 3. Operational Guidelines

    PureLink by Dtrovision Chapter 3. Operational guidelines 3.1 Main Menu User Guide Turn the power switch on Once all channel indicator lights are on, the first step is completed. Channel View and Input Selection IN / OUT indicates connection status Press the IN / OUT KEY to display each channel’s connection status and video resolution Press the CANCEL KEY to return to the initial screen Create Menu...
  • Page 14 PureLink by Dtrovision EDID Burn i) Int EDID Burn - On this menu, select an EDID from the library and save it on to the Input EEPROM. HX series Matrix Router has 14 selectable most widely used EDID data pre-programmed and 6 empty slots that can be used to upload and save EDID data from any external display device.
  • Page 15 There are four values that need to be set for LAN communication; IP address, Gateway address, Subnet mask, and Mac address. Please use below button indication to configure LAN settings; (For HX-8800-U, HX-8400-U, HX-8200-U): * Input #1 : * Output #1 : 9...
  • Page 16 PureLink by Dtrovision (For HX-4400-U, HX-4200-U): * Input #1 : set.xxx.xxx.xxx) * Output #1 : To move cursor left * Input #2 : (xxx.2 set.xxx.xxx) * Output #2 : To move cursor right * Input #3 : (xxx.xxx.3 set.xxx) * Create button: Numbers going up * Input #4 : (xxx.xxx.xxx.4 set)
  • Page 17 PureLink by Dtrovision Factory Reset Factory reset will put the general setting back to the factory default mode. Factory default setting value: RS-232 Baud rate: 19200 Bps IP Address: 192.168.000.002 Gateway: 192.168.000.001 Input/output Connection: No Connection Product ID: All Video/Audio switching connection becomes clear Serial communication setting will be restored back to the factory default Baud Rate: 19200, Data Bits: 8, Parity: None, Stop Bits: 1 LAN Communication setting will be restored back to the factory default...

  • Page 18: Chapter 4. Communication Code Configuration

    16 - Ack value (Acknowledge value: Response from Pure Link device) will be echoed back to the terminal screen as the unit accepts them. When a command is successfully executed, all of the characters appear containing the character “s”...

  • Page 19: General Rules For Command Codes

    PureLink by Dtrovision 4.4 General Rules for Command Codes The commands are coded in ASCII and HEXA. Please refer to Table 3.1 on pg. 16 for detailed descriptions of keys and functions. A basic command code setup is shown below; Ex) *255CI01O01! Start (*) + Router ID (255) + Command (C) + Input number (I01) + Output number (O01) + End (!) + Enter ( )
  • Page 20 PureLink by Dtrovision Table 3.1 Command Codes Characters Table The table below shows command code characters (keys), which are used to generate control commands, their functions, and short function descriptions. Function Description and Example Byte ASCII 0x2A Start the command Header Code 0x21 End the command...

  • Page 21: Command Ack Value Response

    PureLink by Dtrovision 4.5 Command Ack (Acknowledge) Value Response When command codes are entered into a terminal emulation program (such as HyperTerminal) and are accepted by the system, they respond back to the terminal screen one at a time, as noted below in the table.

  • Page 22: Disconnecting Switches

    PureLink by Dtrovision For example, the command code *255CI01O01! can be interpreted as follows: (*) Starting the command code (255) Router ID is 255 (C) Create connection on (I01) Input 01 to (O01) Output 01 (!) take the command. For a complete list of command characters and their functions, see examples below.

  • Page 23: Connection Status Check

    PureLink by Dtrovision *255DALLIO! Disconnects all inputs and outputs 4.8 Connection Status Check A connection status can be checked to confirm that the switch has been correctly executed or to confirm correct routing to multiple outputs. The characters and numbers in a status command tell the system which input or output to check.
  • Page 24 PureLink by Dtrovision *255NMA00.00.C2.B0.20.05! Set Mac Address at 00.00.C2.B0.20.05 *255NPN3000! Set Port Number at 3000 Connection Checking: User can check the connection status. Example: Command Codes Action *255H000! Check connection status Function Key On/Off: User can enable or disable the function key located on physical router’s front panel. Example: Command Codes Action...

  • Page 25: Lan Code Configuration

    PureLink by Dtrovision 4.9 LAN CODE CONFIGURATION Using TELNET protocol with LAN(TCP/IP) The HX series Matrix Router can be controlled from remote locations through the LAN port using WINDOWS XP DOS prompts, hyper-terminal, or TELNET program (the control code is fully compliant with RS-232C).

  • Page 26: Chapter 5. Firmware Update Instruction & Warranty Information

    PureLink by Dtrovision Chapter 5. Firmware Update Instruction and Warranty Information 5.1 Firmware Update Instruction How to download new firmware: 1. Download ‘Firm Upload’ application 2. Connect the PC with the HX-4200 through USB 3. Load proper upgrade file and set com port to the correct setting. 4.
  • Page 27 PureLink by Dtrovision 5. Press Program to upload file...

  • Page 28: Chapter 6. Additional Information

    PureLink by Dtrovision Chapter 6. Additional Information 6.1 Manufacturer’s Warranty (2-Year) Dtrovision warrants this HX Series HDMI Integrated Matrix Router to be free from defects in workmanship and materials, under normal use and service, for a period of two (2) year from the date of purchase from Dtrovision or its authorized resellers.
