Summary of Contents for alatech Cyclaid 10

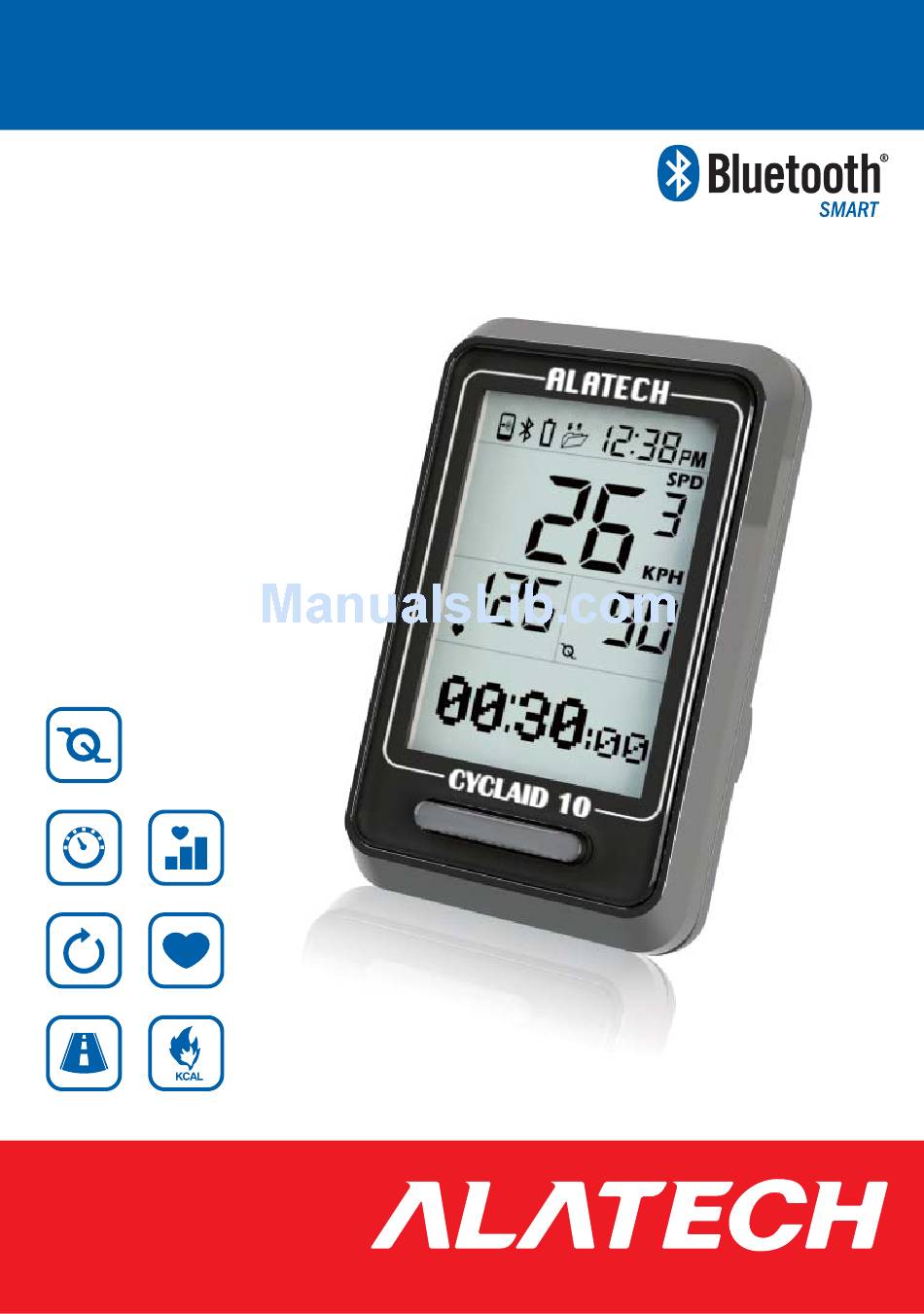

- Page 1 Bluetooth 4.0 Cycling Computer User Manual Cyclaid 10 w w w . a l a t e c h . c o m...
-
Page 2: About This Manual
Tips and remarks. For other information and battery replacement, please Appendix refer to appendix. • Please download and view the latest release of this manual at www.alatech.com. Items included with your product • Cyclaid 10 Bluetooth 4.0 Cycling Computer •... -
Page 3: Table Of Contents
Table of Contents 1 Getting to Know Your Cyclaid 10 1-1 Applications 1-2 Keys 1-3 Screen overview 1-4 Switch the function mode Function modes 2 Pairing with Sensor 2-1 Pair with your HRM 2-2 Pair with your Speed & Cadence Sensor... -
Page 4: Getting To Know Your Cyclaid 10
Bluetoot Smart Mobile Devices & Cadence Sensor •Note 1: Compatible with ALATECH Heart Rate Strap (model CS009/CS010/CS011/CS012) ALATECH Speed & Cadence Sensor (model SC001BLE/SC002) •Note 2: Compatible with any device running iOS 5.0 or Android 4.3 or later and featuring Bluetooth 4.0 (require installation of App: ALA COACH+). - Page 5 Getting to Know Your Cyclaid 10 1-1 Applications Application cross reference table: Exercise readings Recording method Application Slope and Heartbeat Calories Distance Speed Cadence Track Diagram Summary height Mobile Mobile Mobile Mobile phone phone phone phone Mobile Mobile phone phone...
-
Page 6: Keys
Getting to Know Your Cyclaid 10 1-2 Keys •OK •In the standby mode, this may be the: Exercise Hot Key or Smartphone Hot Key •Start bicycling •Turn backlight •Exit/Back •Right/Down arrow key •Stop bicycling •Press and hold the keys until the screen fully display to reset the Cycling Computer. -
Page 7: Screen Overview
Getting to Know Your Cyclaid 10 1-3 Screen Overview Current time Status bar Speed display Pedaling frequency display Heartbeat display Information display Symbol Name Symbol Name Connection to Speed Mobile Phone Connection to Heartbeat Sensor Battery Low Pedaling Frequency Indicator... -
Page 8: Switch The Function Mode
Getting to Know Your Cyclaid 10 1-4 Switch the Function Mode When using your product for the first time, press to turn on Cyclaid 10 and select to English, Deutsch, Français, Español, Italiano, Note 1 Português . After completing the language selected at the first... -
Page 9: Function Modes
Getting to Know Your Cyclaid 10 1-4 Switch the Function Mode Function modes: Function modes Description 1.Your Cycling Computer comes with low, moderate, and high exercise intensity and customizable training programs TRAINING including: target heart rate zone and target time, distance, PROG. -
Page 10: Pairing With Sensor
•Make sure HRM is set to ON in the Sensor Setup window. (Page 15) •Keep your heart rate sensor and Cycling Computer within 10cm from each other. Keep both away from other Bluetooth devices to prevent incorrect pairing. Cyclaid 10, Bluetooth Cycling Computer... -
Page 11: Pair With Your Speed & Cadence Sensor
Pairing with Sensor 2-2 Pair with Your Speed & Cadence Sensor 1.In standby mode, press to point to PAIRING SENSOR, press to enter. 2.Press to point to PAIRING SPD/CAD, press to create Bluetooth connection and start pairing. 3.Paired successfully, message OK prompts, press to exit. -
Page 12: Basic Setup
LIGHT 1900mm 1 KM Tire Circumference(L) Auto Lap Single Lap Distance Back Light TIME LANGUAGE MONTH YEAR 12:38 ENGLISH 2014 Language Settings Time Month Last two digits of year of 12-24 Hours the Gregorian calendar Cyclaid 10, Bluetooth Cycling Computer... -
Page 13: Tire Circumference (L) Cross Reference Table
Basic Setup 3-1 System Setup You can find the tire size indicated at both Tire size: sides of your wheel. For your reference, use the tire circumference (L) chart below. ETRTO Tire size L(mm) ETRTO Tire size L(mm) ETRTO Tire size L(mm) 12×1.75 26×7/8... -
Page 14: User Setup
It is highly recommended to change these settings only with more accurate values arrived with physicians and professional lab monitoring. •Note 1:If you are above your target heart rate zone limits, the heart rate value starts flashing. Cyclaid 10, Bluetooth Cycling Computer... -
Page 15: Hot Key Setup
Basic Setup Hot Key Setup, Sensor Setup Hot Key Setup 1.In standby mode, press to point to HOT KEY SET, Press to enter. 2.Press to switch between hotkeys: CONNECT PHONE (Smartphone Hot Key) or CONNECT SENSOR (Exercise Hot Key). 3.Press to exit after setup is completed. -
Page 16: Install The Cycling Computer
Install the Cycling Computer Accessories included with your product: Holder Fixing pad Cable Ties CR2032 button battery (Please refer to page 30 for battery installation.) Installation method: Stem Handlebar Cyclaid 10, Bluetooth Cycling Computer... -
Page 17: Exercise Mode
Exercise Mode 1.In standby mode, press to point to TRAINING PROG., press to enter. 2.Press to switch between training programs. 3.When pointed to training target area for manual setup (e.g. the green labeled area), press to point to flashing setup item, press to change settings. -
Page 18: Training Program Cross Reference Table
If you choose option NO, your Cycling Computer continues the timing without searching for the sensor. 6.If your Cycling Computer has not recieved a signal for 4 hours during bicycling, Cycling mode will automatically end and return to standby mode. Cyclaid 10, Bluetooth Cycling Computer... -
Page 19: Instant Exercise Screen
Exercise Mode Instant exercise screen: Current Time Note 1 Connection to the sensor Note 3 Speed Pedal Note 2 Heartbeat Note 3 frequency Note 4 Other information display Indicator Name Description •Kilometers (Miles) per hour Note 3 Speed •Display in metric unit: KPH (KM per Hour) •Display in Imperial unit: MPH (Mile per Hour) •Heartbeat per minute Note 2... -
Page 20: Log Function
• Note 1: You may get to view average speed/heartbeat/ Number of Laps pedaling frequency/time per laps. • Maximum number of laps: 50, lap equivalence: metric: one kilometer per lap. Imperial: one mile per lap. Cyclaid 10, Bluetooth Cycling Computer... -
Page 21: Upload File
Log Function 6-2 Upload File 1.Open ALA COACH+ App>Settings>My Sensors>Cycling Computer>Cycling Computer Data Import>SMART CYCLING. 2.In the Cycling Computer MEMORY FILE>desired file selection>UPLOAD FILE window, press to select YES, to confirm and create Bluetooth connection, connected, press App Start button. 3.After the uploading is completed, the App prompts OK, press App Save button and then press the button at upper left corner to exit the mobile device, press at your... -
Page 22: Exercise Statistics
- - - - - - - - RESET •Execute RESET to clear total exercise amount data. •The RESET function does not erase the exercise file. To delete it, go to MEMORY FILE, and select individual file for deletion. Cyclaid 10, Bluetooth Cycling Computer... -
Page 23: Connect To Smartphone Or Mobile Device
Supported OS: Apple iOS 5.0 or later, Android 4.3 or later Compatible mobile devices: •iPhone 4S or later •Please visit us at www.alatech.com to learn more •iPod Touch 5 or later about the latest information on compatible mobile •iPad 3 or later devices and supported accessories. -
Page 24: Pair Your Cycling Computer With Mobile Device
Cycling Computer. •Keep your mobile device and Cycling Computer within 10cm from each other and keep both away from other Bluetooth devices to prevent incorrect pairing. Cyclaid 10, Bluetooth Cycling Computer... -
Page 25: Smartphone Exercise Sync
Connect to Smartphone or Mobile Device 8-3 Smartphone Exercise Sync. STEP1 Open ALA COACH+ App>Homepage, scroll to Bike and press Start button. STEP2 Operation steps: 1.When Cycling Computer is in standby mode, press to create Bluetooth connection. 2.When the App prompts every device is discovered and ready, after countdown, the App and your Cycling Computer sync. -
Page 26: Synchronize With Smartphone
Synchronize to the system settings SYSTEM SET Synchronize to the training targets TARGET SET Synchronize to the system settings SYSTEM SET Synchronize to the user settings USER SET Synchronize to the sensor settings SENSOR SET Cyclaid 10, Bluetooth Cycling Computer... - Page 27 Connect to Smartphone or Mobile Device 8-4 Synchronize with Smartphone STEP3 Open ALA COACH+ App>Settings>My Sensors>Cycling Computer >User Setting Sync. >SMART CYCLING. STEP4 Synchronization steps: 1.When Cycling Computer Sync. completed, click to exit. is in standby mode, press to point to PHONE SYNC., press to create Bluetooth connection, after...
-
Page 28: S Specifications
•Receiving transmission distance: around 10 meters (line of sight) •Compatible accessories: ALATECH Bluetooth 4.0 Heart Rate Strap (Optional) ALATECH Bluetooth 4.0 Speed & Cadence Sensor (Optional) •Compatible devices: iOS 5.0 or later system version (iPhone 4S or later) Android 4.3 or later system version •Dimension: L60.5×W37.5×D13.5mm... -
Page 29: A Appendix
•DO NOT try to disassemble, repair or modify your Cycling Computer. Fail to do so may void the warranty. Fail to Connect to Bluetooth Devices •In case your Cyclaid 10 failed to connect to a Bluetooth device, please do the following: 1.Check battery power in your Cycling Computer and the mobile device. - Page 30 -10°C to 60°C (14°F to 140°F ) if it is not to be used for long time. •DO NOT use your device in environment with temperatures exceeding -10°C to 60°C (14°F to 140°F ). •Please check local regulations for disposal of your device / battery or contact local waste disposal agencies. Cyclaid 10, Bluetooth Cycling Computer...
- Page 31 Appendix Warnings on replaceable batteries: •DO NOT remove batteries with pointed object. •Keep batteries out of children's reach. •DO NOT disassemble, drill, or damage batteries. •Please replace batteries with correct ones. Fail to do so may lead to fire or explosion.
- Page 32 © 2014 ALATECH Technology Limited. All rights reserved. 2PF182128100004 (10/2015. Rev.G)
