Moni Vox MVX400 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

USER MANUAL
GENERAL CONFIGURATIONS
MONIVOX SMART DEVICE - MVX400

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MVX400 and is the answer not in the manual?

Questions and answers

Summary of Contents for Moni Vox MVX400

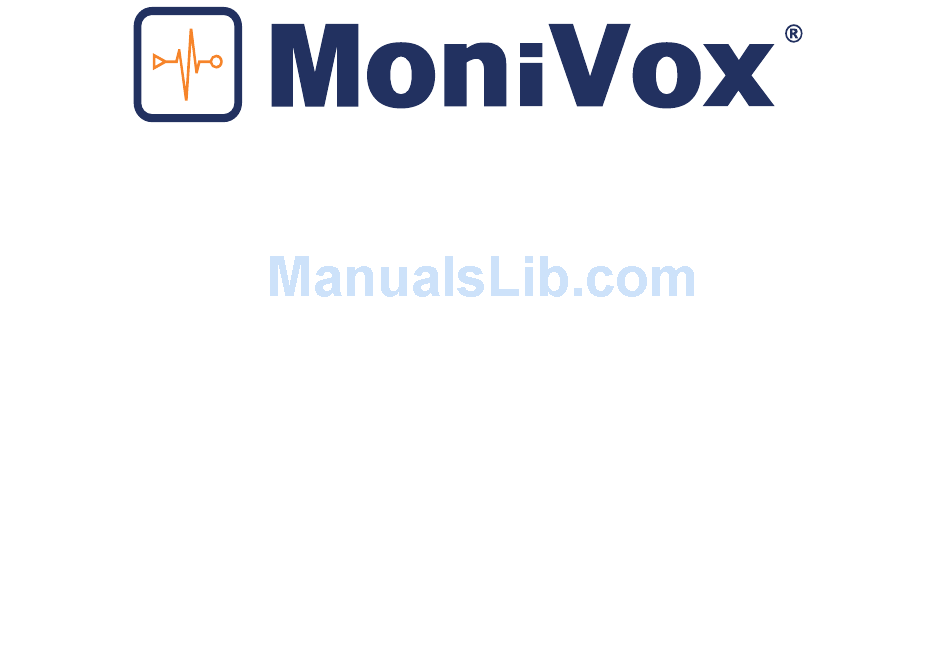

  • Page 1 USER MANUAL GENERAL CONFIGURATIONS MONIVOX SMART DEVICE - MVX400...

  • Page 3: Table Of Contents

    GENERAL DEFINITIONS Used Terms Shortcuts Dynamic use of the service buttons (top of the screen) BASIC CONFIGURATION OF YOUR MVX400 AT POWER UP FOR THE FIRST TIME 1. SELECT A LANGUAGE 2. TO LOG IN 3. CONFIGURATION SCREENS OF YOUR MVX400 4.

  • Page 4: Product Specifications

    PRODUCT SPECIFICATIONS EXTERNAL COMMUNICATION Digital radio MOTOTRBO™ Motorola (digital slot data port) GPRS quad band module (Telit GL865 QUAD) Ethernet (TCP/IP) PORTS RS232 (DB9) USB 2.0 external (host) USB 2.0 (DB15 to communicate with the digital radio) GPIO (programmable IN/OUT) Monitor (VGA 1024x768) External microphone (RJ45) Audio IN (DB15)
  • Page 5 MEMORY Mass memory Micro SD card (SD card not included) Memory SDRAM DDR3 1GB NAND eMMC 4GB GENERAL INFORMATION SIM Card RTC battery holder CR1220 (access through bottom lid) Watch dog timer LED indicator (On - Radio - App - Link - Fail) Buzzer External power DC 9~36VDC...
  • Page 6 Radio Connection RJ 45 MIC IN IP Link Power Boot Status Fail Status Reset Button USB port USB port...
  • Page 7 08 GPIO ports AUX PIN Power 9-36 VCD GPRS CNT to MOTOTRBO radio (use MVX-AU0012) to antenna (use MVX-AB0025) RJ 45 CNT 02 USB ports AUDIO OUT Ethernet port to speaker VGA monitor port RS323 port...
  • Page 8 CR1220 Battery Holder SIM CARD Micro SD CARD...

  • Page 9: Accessories Included

    Plug adaptador, BR MVX-AU0014 Antena magnetica GPRS 02 mts. MVX-AU0019 Parafuso borboleta MVX-AB0022 Porca auto travante inox M5 MVX-AB0023 Cabo PP conexão MVX400/Radio MVX-AB0025 Suporte MVX400 MVX-AB0020 Manual do usuário MVX-AB0026 Tampa de borracha power MVX-AB0024 Base de silicone moldado 3M clear...
  • Page 10 MVX-AB0025 MVX-AU0036 MVX-AU0019...
  • Page 11 MVX-AU0013 MVX-AU0014 MVX-AU0012...

  • Page 12: General Definitions

    Used Terms “Default” means “factory standard”. “App” means MoniVox Application in this manual. “Android™” is the operational system used in the MVX400. Shortcuts Left mouse button (one click) - move command (Enter). Right mouse button (one click) - command to go back.
  • Page 13 LEDS RADIO LINK FAIL After activation of the MVX400 and during the BOOT of Android After successfully BOOT of Android After unsuccessfully BOOT of Android without App service After unsuccessfully BOOT of Android with App service Active connection of MVX400 with MOTOTRBO™ base radio Inactive connection of MVX400 with MOTOTRBO™...

  • Page 14: Basic Configuration Of Your Mvx400 At Power Up For The First Time

    Enter username and Password User (default): MASTER Password (default): #mvx400 After their first session, the MVX400 will ask for a new password, click the “yes” button and change the MASTER password. Current Password: #mvx400 New password: Minimum of 6 characters with at least one letter and one number.

  • Page 15: Configuration Screens Of Your Mvx400

    3. CONFIGURATION SCREENS OF YOUR MVX400 Icon - Configuration MVX400 Network MVX400 Administration Ethernet Permissions Wi-Fi Backup GPRS test SIM card Bluetooth E-mail Destination of mass data storage System Idiom Dynamic DNS Date and time Local FTP MoniVox Application Manager MOTOTRBO™...

  • Page 16: Detailed Setting Screens Of Your Mvx400

    DNS 1: When you click the DSN 1, enter the address and click “OK”. If no DNS 1 address, enter the fixed IP address. DNS 2: Clicking DNS 2, enter the address and click “OK”. This option of DNS2 is an alternative if in case the MVX400 does not get connect to the DNS 1, optional.
  • Page 17 MVX400 Configurations > Network > GPRS Test Click the setting to test the GPRS connectivity. This feature requires the SIM Card is installed in the MVX400 and valid data packets and enabled by your operator. The MVX400 has been tested to work with the following operators, Claro, VIVO, TIM and Oi.
  • Page 18 Port (default): 2121 Enter the port and click “OK”. Root directory (default): /sdcard/ Enter the address of the root directory of the MVX400 you want to get the data and click “OK”. MVX400 Configurations > MOTOTRBO™ Administration > MOTOTRBO™ MOTOTRBO™ Configurations MOTOTRBO™...
  • Page 19 Input PTT Mic In: This field allows you to verify if the PTT MIC IN of the MVX400 is active or not. If enabled the settings in the PTT MIC IN is “enabled”, if inactive, “disabled”. CSQ In: This field indicates if there is a carrier from the MOTOTRBO™ base radio connected to the MVX400.
  • Page 20 MVX400 Configurations > MVX400 User Administration > SIM card This screen has the functionality to record the phone number of the SIM card, your configuration is not mandatory for the GPRS function to be activated in the MVX400. MVX400 Configurations > MVX400 User Administration > E-mail Configure E-mail SMTP Server: Enter the address and click “OK”.
  • Page 21 To select the USB/pen drive destination, click the “search” icon and “MNT” and “udisk” and select the USB where your pen drive is connected. Note: The USB ports are dynamic in the MVX400, click on the 4 options to find the port that the pen drive unit is connected.
  • Page 22 Displays the serial number of the MVX400. The sixth letter from left of the serial number identifies the year of manufacture of the MVX400, as follows: 2010-A, 2011-B, 2012-C , 2013-D, 2014-E , 2015-F, 2016-L, 2017-H, 2018-I, 2019-G , 2020-K ...

  • Page 23: Fcc Compliant

    The seventh letter from left of the serial number identifies the manufacturing month of the MVX400, as follows: JANUARY-A, FEBRUARY-B , MARCH-C , APRIL-D , MAY-E, JUNE-F , JULY-G, AUGUST-H, SEPTEMBER-I, OCTOBER-J, NOVEMBER-K, DECEMBER-L. MVX400 Configurations > MVX400 Information > Version Displays the build version of the MVX400.
  • Page 24 is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: .
  • Page 25 www.monivox.com Ver: i140116_01...
