SERVICE MANUAL
Ver 1.0 2004.06
USB memory player
Supported audio file format
MP3 Bit rate: 8 - 320 kbps*
Sampling frequencies: 24/22.05/16/12/
11.025/8/32/44.1/48 kHz
* 128 kbps or higher bit rate is recommended.
Frequency response
20 - 20,000 Hz (single signal measurement)
Radio
Frequency range
FM 1/FM 2: 87.5 - 108.0 MHz
Output
Headphones: Stereo mini-jack
Operating temperature
5°C - 35°C (41°F - 95°F)
Power source
One LR03 (size AAA) alkaline battery:
1.5 V DC × 1
Battery life*
Music data playback: Approx. 10 hours
Radio reception: Approx. 10 hours
* When using a Sony LR03 (size AAA) alkaline
battery
• This set is not serviceable, and only the main unit and the part of exterior
parts and accessories are serviceable.
Sony Corporation
9-877-960-01
Personal Audio Company
2004F05-1
Published by Sony Engineering Corporation
© 2004.06
AZ-RS1/RS128

SPECIFICATIONS

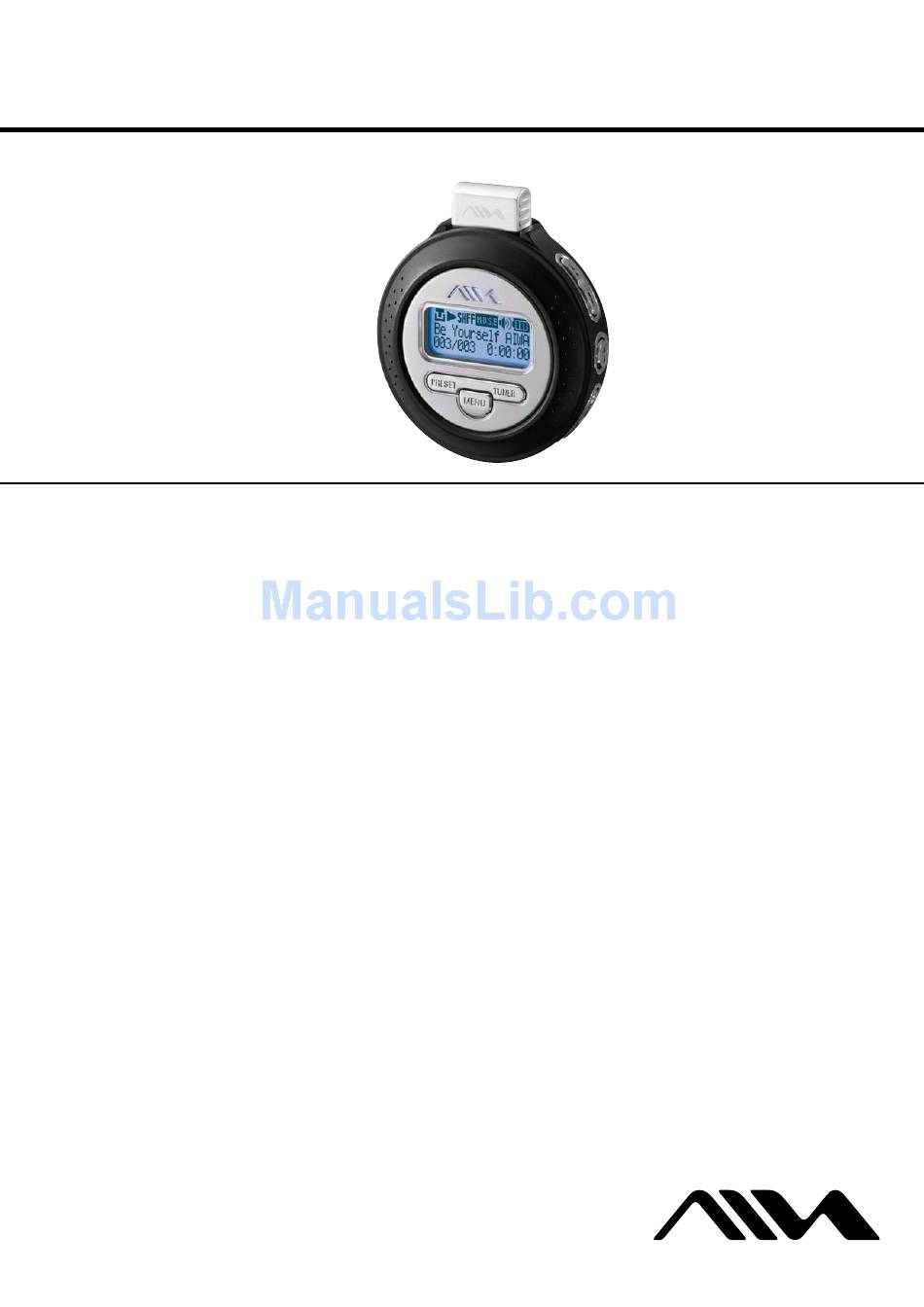

PORTABLE USB MEMORY PLAYER WITH FM RADIO
Dimensions
Approx. 67 × 67 × 21.7 mm
× 2
×
3
3
7
(2
/
/
/
in.)
4
4
8
(w/h/d, excluding projecting parts)
Approx. 68 × 77.5 × 30.7 mm
× 3
× 1
3
1
1
(2
/
/
/
in.)
4
8
4
(w/h/d, including projecting parts)
Mass
Approx. 79.9 g (2.8 oz) (including battery)
Accessories
•
Portable USB memory player with FM radio
(1)
•
USB storage media "pavit"* (1)
•
Stereo headphones (1)
•
CD-ROM (Music Transfer pavit Edition) (1)
•
Headphone extension cord (1)
•
Arm band (1)
•
Operating instructions for the Portable USB
Memory Player with FM Radio (1)
•
Operating instructions for the application
software Music Transfer pavit Edition (1)
•
Quick start guide (1)
Supplied with AZ-RS128.
*
Design and specifications are subject to change
without notice.
US Model
AZ-RS128
AEP Model
AZ-RS1
