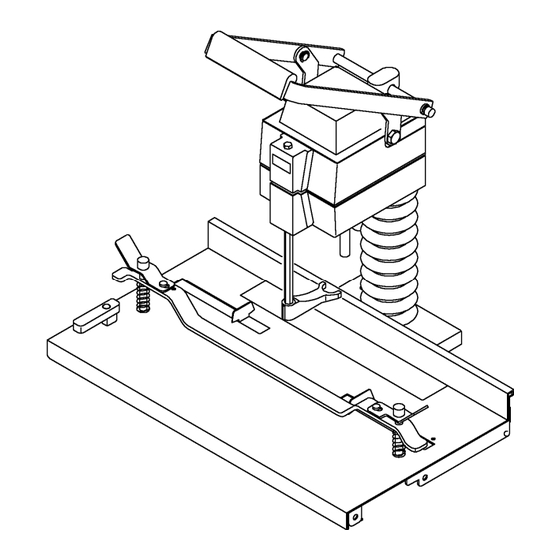

UCHIDA VS-15 Operation Manual

Paper drilling machine
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
www.WhitakerBrothers.com
VS-15 / VS-25
OPERATION MANUAL
Use the machine properly after reading the "Safety Instructions"
given below carefully.
These safety instructions are given to ensure that the machine will
be used safely and properly and to prevent operators from
sustaining harm and injuries.
UCHIDA YOKO CO., LTD., TOKYO, JAPAN
V.02
www.WhitakerBrothers.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VS-15 and is the answer not in the manual?

Questions and answers

Related Manuals for UCHIDA VS-15

Summary of Contents for UCHIDA VS-15

  • Page 1 Use the machine properly after reading the "Safety Instructions" given below carefully. These safety instructions are given to ensure that the machine will be used safely and properly and to prevent operators from sustaining harm and injuries. UCHIDA YOKO CO., LTD., TOKYO, JAPAN V.02 www.WhitakerBrothers.com...

  • Page 2: Safety Instructions

    SAFETY INSTRUCTIONS Definition of Symbols and Notes In this manual following names and signs stand for possible dangers. Danger This symbol stands for immediate danger threatening the life and health of persons. Disregarding these instructions may cause severe damage to health and even serious injuries.

  • Page 3: Before Use

    Introduction Read this "Operation Manual" carefully before use. In particular, be sure to read "Safety Instructions" (page 1) to ensure that the machine will be used properly. Keep the manual at an appointed place with care so that it may be accessible whenever necessary. The specifications of this product are subject to change for improvement.
  • Page 4 (2) Exterior features Clutch stopper handle Clutch stopper Chip receptacle Handle Paper clamp Switch Adjuster bolt Upper lever Lower lever Adjuster Up to unclamp Down to unclamp Program pitch bar Paper guide Back margin Centering scale adjusting bolt Hexagonal wrench Hollow drill bit ３...

  • Page 5: Operating Instructions

    Push down both sides of the paper clamp to secure the paper. Clamping pressure should be set according to the type of the paper. VS-15: Do not try to punch more than 30mm of paper. VS-25: Do not try to punch more than 50mm of paper.
  • Page 6 (4) Setting the back margin (Distance between the edge of the paper and the center of the holes) The back margin can be set at any value from 6mm to 35mm by turning the back margin adjusting bolt (use the scale on the table as a guide). (5) Distance of the holes The program pitch bar can be set to select any of six pitches.
  • Page 7 Caution Don't put a hand under the hollow drill bit. There is a danger of receiving an injury. Don't touch any rotating part. There is a danger of receiving an injury. Don't bring a hand, face, hair, sleeves of clothes and the like close to the rotating parts of the machine.

  • Page 8: Product Specifications

    When transmitting this product to another person, be sure to attach this “Operation Manual” to the product. UCHIDA YOKO CO., LTD. 9-15, Shiomi 2-chome, Koto-ku, Tokyo, Japan...

This manual is also suitable for:

Vs-25
