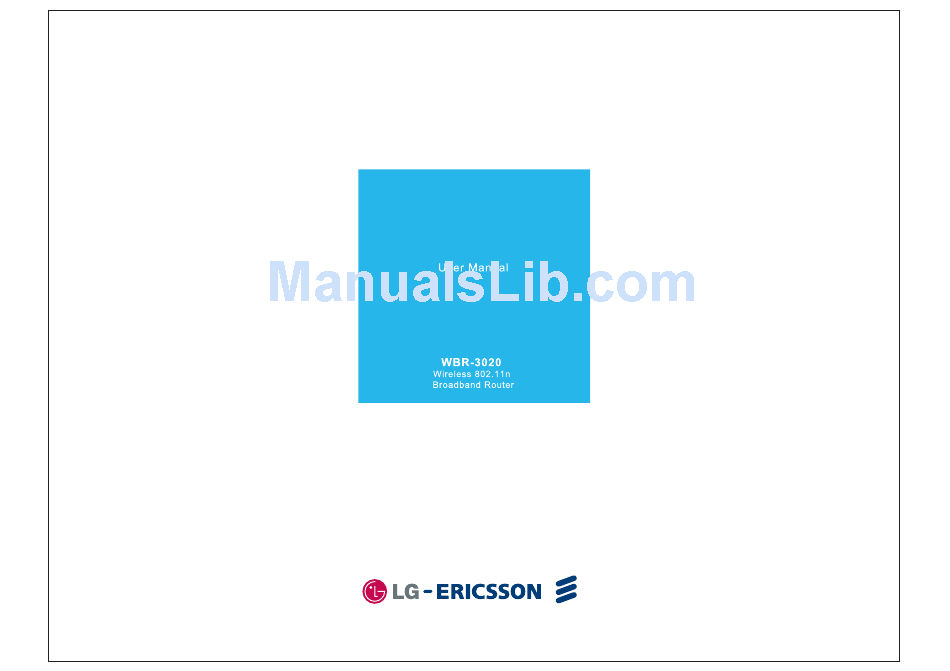

LG-Ericsson WBR-3020 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WBR-3020 and is the answer not in the manual?

Questions and answers

Summary of Contents for LG-Ericsson WBR-3020

  • Page 2: Table Of Contents

    Introduction ................................5 1.1. Package Contents.............................5 1.2. System Requirements............................5 1.3. Introduction ..............................6 1.4. LED Overview ..............................7 1.5. Before you Begin..............................8 Configure PC/Laptop Network Interface ........................9 2.1. Windows XP/Vista ............................9 2.2. Windows 7 ..............................12 2.3. Apple MacOS ..............................14 Setup your Router..............................15 Manually enter Setup Wizard............................18 System ..................................30 5.1.
  • Page 3 Internet ..................................46 6.1. Status ................................46 6.2. Dynamic IP Address (DHCP) ...........................47 6.3. Static IP Address ............................49 6.4. PPP over Ethernet (PPPoE)..........................50 6.5. Point-to-Point Tunneling Protocol (PPTP) ......................52 Wireless ..................................54 7.1. Status ................................54 7.2. Advanced ...............................57 7.3. Security ................................59 7.4. Filter ................................65 7.5.
  • Page 4 8.7. URL Filter................................78 Advanced..................................79 9.1. Network Address Translation (NAT) .......................79 9.2. Port Mapping ..............................80 9.3. Port Forwarding ............................82 9.4. Port Trigger ..............................83 9.5. Application Layer Gateway (ALG) ........................84 9.6. Universal Plug and Play (UPnP) ........................85 9.7. Quality of Service (QoS) ..........................86 9.8.
  • Page 5 Revision History Version Date Notes 2011/04/25 First Release...

  • Page 6: Introduction

    1. Introduction 1.1. Package Contents • The LG-Ericsson WBR-3020 Wireless 802.11n Broadband Router • AC Power Adapter • RJ-45 Ethernet LAN Cable • CD-ROM with User Manual • Quick Installation Guide If any of these items are incorrect, missing, or damaged, contact your reseller or distributor. Keep the original package contents in case you need to return the product for repair or replacement.

  • Page 7: Introduction

    The LG-Ericsson WBR-3020 Wireless 802.11n Broadband Router is the ideal solution for providing high speed 802.11N to your home or home office. The WBR-3020 allows you to connect your PCs, wireless printers, gaming consoles, and other Wi-Fi devices at transfer speed up to 300Mbps. MIMO (Multiple-In, Multiple-Out) antenna technology provides enhanced wireless coverage so you can enjoy wireless connectivity anywhere in your home.

  • Page 8: Led Overview

    1.4. LED Overview LED Lights Icon Description Off – The wireless radio is off. Wireless LAN Solid Blue - The wireless radio is activated and is available. Blinking Blue – The wireless radio transmitting or receiving data. Off – The router is not connected to the Internet (DSL/Cable modem). Internet Solid Blue –...

  • Page 9: Before You Begin

    1.5. Before you Begin The operating distance or range of your wireless connection can vary significantly depending on the placement of the Router. For best performance: Place the Router near the center of the area where your computers and other network devices will operate. Keep the number of walls and ceilings between the Router and the wireless devices to a minimum.

  • Page 10: Configure Pc/Laptop Network Interface

    2. Configure PC/Laptop Network Interface 2.1. Windows XP/Vista Click Start button and open Control Panel. Windows XP Windows Vista...
  • Page 11 Windows XP, click [Network Connection] Windows Vista, click [View Network Status and Tasks] then [Manage Network Connections] Right click on [Local Area Connection] and select [Properties].
  • Page 12 Make sure the boxes “Client for Microsoft Networks”, “File and Printer Sharing”, and Internet Protocol (TCP/IP) are checked. If not, please install them. Select “Internet Protocol (TCP/IP)” and click [Properties] Select Obtain an IP Address automatically and Obtain DNS server address automatically Click OK to complete...

  • Page 13: Windows 7

    2.2. Windows 7 In the Start menu search box, type: ncpa.cpl The Network Connections List appears. Right-click the Local Area Connection icon and click Properties.
  • Page 14 In the Networking tab of the Local Area Connection Properties dialog box, click either Internet Protocol Version 4 (TCP/IPv4) or Internet Protocol Version 6 (TCP/IPv6), and then click Properties. Internet Protocol Version 4 (TCP/IPv4) Properties Button Select Obtain an IP Address automatically and Obtain DNS server address automatically Click OK to complete...

  • Page 15: Apple Macos

    2.3. Apple MacOS Go to System Preferences > Network Under Network setting, select Using DHCP. Click Apply when done.

  • Page 16: Setup Your Router

    Follow the instructions below to setup your Router. Or, you may follow the instructions on the LG-Ericsson Installation Wizard for basic setup: Insert the Installation CD into the CD-ROM drive on your desktop or laptop. The CD will automatically start. The LG-Ericsson Installation Wizard...

  • Page 19: Manually Enter Setup Wizard

    4. Manually enter Setup Wizard 1. Open a web browser (Internet Explorer/Firefox/Safari) and enter the address http://192.168.2.1 Note: If you have changed the default LAN IP Address of the WIRELESS ROUTER, make sure that you enter the correct IP Address 2.
  • Page 20 3. You will see the following webpage if login successful.
  • Page 21 4. Click Wizard on the left menu to open the Setup Wizard. Click Next to begin the Wizard.
  • Page 22 5. Select the Operation Mode. Make sure you have the proper cables connected as described in the Hardware Installation section.
  • Page 23 AP Router Mode a) The Router will now automatically search for the correct WAN (Internet) settings. b) The most appropriate WAN type will be determined and selected automatically. If the detected type is incorrect, select Others to set up the WAN settings manually. Note: DHCP is for Cable connections.
  • Page 24 c) There are many WAN service types available. Obtain the correct settings from your Internet Service Provider (ISP). Note: Choose Dynamic IP Address (DHCP) if you have a Cable connection. Choose PPP over Ethernet (PPPoE) if you have a DSL connection. Static IP Address Select this option if your Internet Service Provider (ISP) has assigned you a permanent, fixed (static) IP address.
  • Page 25 Dynamic IP Address (DHCP) Select this option if your ISP assigns an IP address dynamically by DHCP (i.e. Cable connections). Typically, you can leave the Hostname and MAC address fields empty. However, some ISPs register the Ethernet MAC address of the network interface card in your computer when your account is first opened.
  • Page 26 PPP over Ethernet (PPPoE) This protocol is used by most DSL services worldwide. Select this option if you have a DSL connection. Enter the username and password provided by your ISP. PPP over Ethernet Username: Username assigned to you by the ISP Password: Password for this username.
  • Page 27 Point-to-Point Tunneling Protocol (PPTP) PPTP is used by a few ISPs. It is used primarily in Austrian DSL services.
  • Page 28 PPTP WAN Interface Settings WAN Interface Select whether the ISP is set to Static IP or Dynamic IP Type: addresses. Hostname: This is optional. Only required if specified by ISP MAC: The MAC Address that is used to connect to the ISP. PPTP Settings Login: Username assigned to you by the ISP...
  • Page 29 Setup the level of wireless security to be used. LG-Ericsson recommends the Highest level of security to be used (WPA2 PSK as the Encryption method and AES as the Authentication type) Note: 802.11n wireless speeds may not be achievable if the security is setup as the Lowest and Low levels.
  • Page 30 e) Make sure the settings are correct. Click Reboot to apply the settings.

  • Page 31: System

    5. System 5.1. Status This page allows you to monitor the status of the Router. Status Model: Description of the Router. Mode: Operation mode of the Router. Uptime: The duration of time that the Router has been operating. Current Date/Time: The system time of the Router.
  • Page 32 WAN Settings Attain IP Protocol: Method used to connect to the Internet. This is your WAN connection type. IP address: The WAN IP Address of the Router. Subnet Mask The WAN Subnet Mask of the Router. MAC address The WAN MAC address of the Router. Primary and Secondary The IP addresses of the Primary and Secondary DNS servers assigned DNS:...
  • Page 33 LAN Settings IP address: The LAN IP Address of the Router. Subnet Mask The LAN Subnet Mask of the Router. DHCP Server Whether the DHCP server is Enabled or Disabled.
  • Page 34 WLAN Settings Channel: The wireless channel currently in use. ESSID: The SSID (Network Name) of the wireless network. (The WBR-3020 supports up to 4 SSIDs) Security: The type of wireless encryption enabled. BSSID: The MAC address of this SSID. Associated Clients:...

  • Page 35: Lan (Local Area Network)

    5.2. LAN (Local Area Network) This page allows you to modify the LAN settings of the Router.
  • Page 36 LAN IP IP address: The LAN IP Address of the Router. IP Subnet Mask: The LAN Subnet Mask of the Router. 802.1d Spanning Tree: When Enabled, the Spanning Tree Protocol (STP) will prevent network loops in your LAN network. Default: Disabled.
  • Page 37 DHCP Server DHCP Server: The DHCP Server automatically allocates IP addresses to your LAN devices. Default: Enabled. Lease Time: The amount of time that a computer may have an IP address before it is required to renew the lease. Default: Forever. Start / End IP: The range of IP addresses that the DHCP server will allocate to LAN devices.
  • Page 38 Two DNS servers can be assigned for use by your LAN devices. There are four modes available. DNS Servers From ISP: The DNS server IP address is assigned by your ISP. User-Defined: The DNS server IP address is configured manually. DNS Relay: When DNS Relay is enabled, the Router plays the role of a DNS server.

  • Page 39: Dhcp

    5.3. DHCP This page shows the status of the DHCP server and also allows you to control how the IP addresses are allocated.
  • Page 40 The DHCP Client Table displays a list of clients that have been allocated IP addresses from the Router’s DHCP Server. DHCP Client Table IP address: The LAN IP address of the client computer. MAC address: The LAN MAC address of the client computer. Expiration Time: The time that the allocated IP address will expire.
  • Page 41 You can also manually specify the IP address that will be allocated to a LAN client by associating the IP address with its MAC address. Enter the IP address you would like to manually assign to a specific MAC address and click Add to add the condition to the Static DHCP Table.

  • Page 42: Schedule

    5.4. Schedule This page allows you to schedule times that the Firewall and Power Saving features will be activated / deactivated. Click Add to create a Schedule entry.
  • Page 43 Schedule Schedule Description: Assign a name to the schedule. Service: Type of service Days: Define the Days to activate or deactivate the scheduled service. Time of day: Define the Time of day to activate or deactivate the scheduled service. Note: Use 24-hour clock format.

  • Page 44: Log

    5.5. Log This page displays the system log of the Router. When powered down or rebooted, the log will be cleared. Save: Save the log to a file. Clear: Clears the log. Refresh: Updates the log.

  • Page 45: Monitor

    5.6. Monitor This page displays histograms of the WAN and Wireless LAN traffic. The information is automatically updated every five seconds.

  • Page 46: Language

    5.7. Language This page allows you to change the Language of the User Interface.

  • Page 47: Internet

    6. Internet The Internet section on the left menu allows you to manually configure the WAN connection type and related settings. 6.1. Status This page shows the current status of the Router’s WAN connection.

  • Page 48: Dynamic Ip Address (Dhcp)

    6.2. Dynamic IP Address (DHCP) Select this option if your ISP assigns an IP address dynamically by DHCP (i.e. Cable connections). Typically, you can leave the Hostname and MAC address fields empty. However, some ISPs register the Ethernet MAC address of the network interface card in your computer when your account is first opened.
  • Page 49 Dynamic IP Address Hostname: This is optional. Only required if specified by ISP MAC address: The MAC Address that is used to connect to the ISP. DNS Servers Two DNS servers can be assigned for use by your LAN devices. There are two modes available: From ISP: The DNS server’s IP address is assigned by your ISP.

  • Page 50: Static Ip Address

    6.3. Static IP Address Select this option if your Internet Service Provider (ISP) has assigned you a permanent, fixed (static) IP address. Enter the IP address assigned by your ISP, subnet mask, default gateway IP address, and the IP address of your ISP’s primary DNS server. If a secondary DNS server address is available, also enter it here.

  • Page 51: Ppp Over Ethernet (Pppoe)

    6.4. PPP over Ethernet (PPPoE) This protocol is used by most DSL services worldwide. Select this option if you have a DSL connection. Enter the username and password provided by your ISP.
  • Page 52 PPP over Ethernet (PPPoE) Username: Username assigned to you by the ISP Password: Password for this username. Service: You can assign a name for this service. (Optional) MTU: The maximum size of packets. Do not change unless mentioned by the ISP. Authentication type Select whether the ISP uses PAP or CHAP methods for authentication.

  • Page 53: Point-To-Point Tunneling Protocol (Pptp)

    6.5. Point-to-Point Tunneling Protocol (PPTP) PPTP is used by very few ISPs. It is used primarily in Austrian DSL services.
  • Page 54 Point-to-Point Tunneling Protocol (PPTP) WAN Interface Select whether the ISP is set to Static IP or will allocate Dynamic IP addresses. Type: Hostname: This is optional. Only required if specified by ISP MAC address: The MAC Address that is used to connect to the ISP. Login: Username assigned to you by the ISP Password:...

  • Page 55: Wireless

    7. Wireless The Wireless section allows you to configure the wireless settings. 7.1. Status The Status page displays the current wireless settings of the Router.
  • Page 56 Basic Radio: Enable or Disable wireless. Mode: Select from Access Point (AP) or Wireless Distribution System (WDS) modes. (Default: AP) Band: Select the types of wireless clients that the device will accept. Example: 2.4 GHz (B+G+N): All 802.11b/g/n clients will be allowed. 2.4 GHz (B+G): Only 802.11b/g clients will be allowed.
  • Page 57 Wireless Distribution System (WDS) When WDS is enabled, the Router functions as a wireless repeater and is able to wireless communicate with other APs via WDS links. WDS allows you to connect Access Points wirelessly and extend a wired infrastructure to locations where cabling is impossible or difficult to implement.

  • Page 58: Advanced

    7.2. Advanced This page allows you to configure advanced wireless settings. It is recommended that default settings are used unless you have experience with these advanced functions.
  • Page 59 Advanced Fragment Specifies the size of the packet per fragment. Selecting a smaller Threshold: number can reduce the chance of packet collision. However, when the value is set too low, increased overhead will likely result in poor performance. RTS Threshold: When the packet size is smaller than the RTS Threshold, the packet will be sent without RTS/CTS handshake which may result in incorrect transmission.

  • Page 60: Security

    7.3. Security This page allows you to configure the wireless security settings. Select the SSID to which you want to apply the security settings, and select your preferred security type from the Encryption drop-down list. We recommend choosing WPA-PSK as the Encryption type and WPA2 (AES) as the WPA type for your home network. Enter a passphrase (security key) for your wireless network and click Apply.
  • Page 61 Encryption: The encryption method to be applied. You can choose from WEP, WPA pre-shared key or WPA RADIUS. Disabled - no data encryption is used. LG-Ericsson strongly recommends that you set • up wireless security. WEP - data is encrypted using the WEP standard.
  • Page 62 802.1x Authentication RADIUS Server IP The IP Address of the RADIUS Server. Address: RADIUS Server The port number of the RADIUS Server. port: RADIUS Server The RADIUS Server’s password. password:...
  • Page 63 WEP Encryption: WEP Encryption Authentication Please ensure that your wireless clients use the same authentication type. Type: Key type ASCII: Regular text (recommended) HEX: For advanced users (uses 0~9 and A~F) Key Length: Select the desired option, and ensure the wireless clients use the same setting. 64-bit - data is encrypted, using the default key, before being transmitted.
  • Page 64 You must enter a Key Value for the Default Key. Encryption Key #: Enter the key value or values you wish to use. Only the Key selected as Default is required. The others are optional. WPA Pre-Shared Key Encryption: WPA Pre-Shared Key Encryption Authentication Type: Please ensure that your wireless clients use the same authentication type.
  • Page 65 WPA RADIUS Encryption: WPA RADIUS Encryption WPA type: Select the preferred WPA encryption type. Make sure your wireless clients use the same settings. RADIUS Server IP Enter the IP address of the RADIUS Server. address: RADIUS Server Port: Enter the port number used for connecting to the RADIUS server. RADIUS Server Enter the password required to connect to the RADIUS server.

  • Page 66: Filter

    7.4. Filter This page allows you to create filters to control which wireless clients can connect to the Router. When Wireless Access Control is enabled, only wireless clients with the MAC addresses entered into the Filtering Table are allowed to connect.
  • Page 67 Wireless Filter Enable Wireless Check the box to enable Wireless Access Control. Access Control: When Enabled, only wireless clients on the Filtering Table will be allowed. Description: Enter a name or description for this entry. MAC address: Enter the MAC address of the wireless client allowed. Add: Click this button to add the entry.

  • Page 68: Wi-Fi Protected Setup (Wps)

    7.5. Wi-Fi Protected Setup (WPS) The WPS feature is based on the Wi-Fi Alliance WPS standard. The goal is to simplify the set up of security-enabled wireless networks in the home and small office environments. The WPS function simplifies the steps required to connect to a secured wireless network. Two WPS methods are supported: WPA via Push Button (PBC) and WPS via PIN (PIN).
  • Page 69 Wi-Fi Protected Setup (WPS) WPS: Check the box to enable the WPS feature. WPS Button: Check to Enable the WPS push button. Wi-Fi Protected Setup Information WPS Current Status: Shows whether the WPS function is Configured or Unconfigured. Configured means that WPS has been used to authorize connection between the device and wireless clients.
  • Page 70 1. Push Button Method (PBC – Push Button Connect) Press the WPS button on your wireless adapter and press the WPS button on the top panel of the Router to establish the connection. Or – a. Log into the browser utility of the Router (see “Manually enter Setup Wizard” in section 4). b.

  • Page 71: Client List

    7.6. Client List This page shows the wireless clients that are connected to the Router.

  • Page 72: Firewall

    8. Firewall The Firewall section allows you to configure Firewall and Access Control settings. 8.1. Enable This page allows you to Enable / Disable the Firewall features. When Enabled, Denial of Service (DoS) and SPI (Stateful Packet Inspection) features are also be enabled.

  • Page 73: Advanced

    8.2. Advanced You can choose whether to allow VPN (Virtual Private Network) packets to pass through the Firewall.

  • Page 74: Dmz (Demilitarized Zone)

    8.3. DMZ (Demilitarized Zone) If you are operating a web server, a mail server, or a web camera, you may want to expose that device to the Internet so anybody can access it. When the DMZ function is enabled, the DMZ computer is exposed to all users on the Internet. It can be accessed by both users on the Internet as well as users in the Local Network.

  • Page 75: Denial Of Service (Dos)

    8.4. Denial of Service (DoS) Denial of Service (DoS) is a type of Internet attack that sends a high amount of data to you with the intent to overload your Internet connection. Enable the DoS firewall feature to automatically detect and block these DoS attacks.

  • Page 76: Mac Filter

    8.5. MAC Filter You can choose whether to Deny or Allow only those devices listed in the MAC Filtering table to access the Internet. MAC Filter Enable MAC filtering: Check this box to enable the MAC filtering feature. Deny all clients with MAC addresses When selected, the computers listed in the MAC Filtering table will be Denied to listed below to access the network: access the Internet.

  • Page 77: Ip Filter

    8.6. IP Filter You can choose whether to Deny or Allow only devices with those IP Addresses listed on the IP Filtering Table from accessing certain ports. This can be used to control which Internet applications the computers can access. Note - You will need to have knowledge of what Internet port numbers each application uses.
  • Page 78 IP Filter Enable IP filtering: Check this box to enable the IP filtering feature. Deny all clients with IP addresses When selected, the computers with IP addresses specified on the table will be Denied listed below to access the network: access to the indicated Internet port range.

  • Page 79: Url Filter

    8.7. URL Filter You can deny access to certain websites by blocking keywords in the URL web address. For example, “test123” has been added to the URL Blocking Table. Any web address that includes “test123” will be blocked.

  • Page 80: Advanced

    9. Advanced The Advanced section allows you to configure the Advanced settings of the Router. 9.1. Network Address Translation (NAT) This page allows you to Enable / Disable the Network Address Translation (NAT) feature. The NAT feature is required to share one Internet account with multiple LAN users.

  • Page 81: Port Mapping

    9.2. Port Mapping Port Mapping allows you to redirect a particular range of ports to a computer on your LAN network. This helps you host servers behind the NAT and Firewall. In the example below, there is a FTP Server that requires ports 21 to 22. When there is a connection from the Internet on those ports, it will be redirected to the FTP Server at IP address 192.168.2.150.
  • Page 82 Port Mapping Enable Port Mapping Check this box to enable the Port Mapping feature. Description: Enter a name or description for this entry. Local IP: The local IP address of the computer the server is hosted on. Protocol: Select to apply the feature to TCP, UDP or Both types of packet transmissions. Port range: The range of ports that this feature will be applied to.

  • Page 83: Port Forwarding

    9.3. Port Forwarding Port Forwarding allows you to redirect a particular public port to a computer on your LAN network. This helps you host servers behind the NAT and Firewall. In the example below, there is a Web Server running on port 80 on the LAN.

  • Page 84: Port Trigger

    9.4. Port Trigger If you use Internet applications which use non-standard connections or port numbers, you may find that they do not function correctly because they are blocked by the Wireless Router's firewall. Port Trigger will be required for these applications to work. Port Trigger Enable Port Check this box to enable the Port Trigger feature.

  • Page 85: Application Layer Gateway (Alg)

    9.5. Application Layer Gateway (ALG) Certain applications may require the use of the ALG feature to function correctly. If you use any of the applications listed on the table below, select the feature and click Apply.

  • Page 86: Universal Plug And Play (Upnp)

    9.6. Universal Plug and Play (UPnP) The UPnP function allows automatic discovery and configuration of UPnP enabled devices on your network. It also provides automatic port forwarding for supported applications to seamlessly bypass the Firewall. Universal Plug and Play (UPnP) Enable the UPnP Feature: Check this box to enable the UPnP feature to allow supported devices to be visible on the network.

  • Page 87: Quality Of Service (Qos)

    9.7. Quality of Service (QoS) QoS allows you to control the priority that the data is transmitted over the Internet, or to reserve a specific amount of Internet bandwidth. This is to ensure that applications get enough Internet bandwidth for a good user experience.
  • Page 88 Priority Queue Method Bandwidth priority is set to either High or Low. The data transmissions in the High Priority queues will be processed first. Unlimited Priority Queue Local IP Address: The computer with this IP Address will not be bound by the QoS rules. High / Low Priority Queue Protocol: The type of network protocol.
  • Page 89 Bandwidth Allocation Method You can set the maximum amount of bandwidth a certain protocol will use at one time. Or you can set a minimum amount of bandwidth that will be guaranteed to a certain protocol. Bandwidth Allocation Type: Set whether the QoS rules apply to transmission that are Download, Upload or Both directions. Local IP range: Enter the IP address range of the computers that you would like the QoS rules to apply to.

  • Page 90: Routing

    9.8. Routing If your wireless router is connected to a network with different subnets, this feature will allow the different subnets to communicate with each other. Note: The NAT function needs to be disabled for the Routing feature to be enabled. Static Routing Enable Static Routing: Check this box to enable the Static Router feature.

  • Page 91: Tools

    10. Tools This section allows you to configure the Router’s system settings. 10.1. Admin This page allows you to change the Router’s password and to configure remote management. Change Password Old Password: Enter the current password. New Password: Enter your new password. Repeat New Password: Enter your new password again for verification.

  • Page 92: Time

    10.2. Time This page allows you to configure the system time. Time Time Setup: Select the method you want to set the time. Time Zone: Select the time zone for your current location. NTP Time Server: Enter the address of the Network Time Protocol (NTP) Server to automatically synchronize with a server on the Internet.

  • Page 93: Dynamic Dns (Ddns)

    10.3. Dynamic DNS (DDNS) This free service is very useful when combined with the Virtual Server feature. It allows Internet users to connect to your Virtual Servers using a URL, rather than an IP Address. This also solves the problem of having a dynamic IP address. With a dynamic IP address, your IP address may change whenever you connect, which makes it difficult to connect to you.

  • Page 94: Diagnosis

    10.4. Diagnosis This page allows you to determine if the Router has an active Internet connection. Diagnosis Address to Ping: Enter the IP address you would like to see if a successful connection can be made. Ping Result: The results of the Ping test.

  • Page 95: Firmware

    10.5. Firmware The firmware (software) used by the Router can be upgraded using your Web Browser. To perform the Firmware Upgrade: 1. Click the Browse button and navigate to the location of the firmware file. 2. Select the firmware file. Its name will appear in the Upgrade File field. 3.

  • Page 96: Back-Up

    10.6. Back-up Back-up Restore to factory Restores the Router to its factory default settings. default: Backup Settings: Saves the Router’s current configuration settings to a file. Restore Settings: Restores a previously saved configuration file. Click Browse to select the file. Then click Upload to load the settings.

  • Page 97: Reset

    10.7. Reset This page allows you to reset (restart) the Router. The current configuration settings will not be lost.

  • Page 98: Appendix A - Fcc Interference Statement

    Appendix A – FCC Interference Statement Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 99 FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator &...

  • Page 100: Appendix B - Ic Interference Statement

    Appendix B – IC Interference Statement Industry Canada statement: This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
