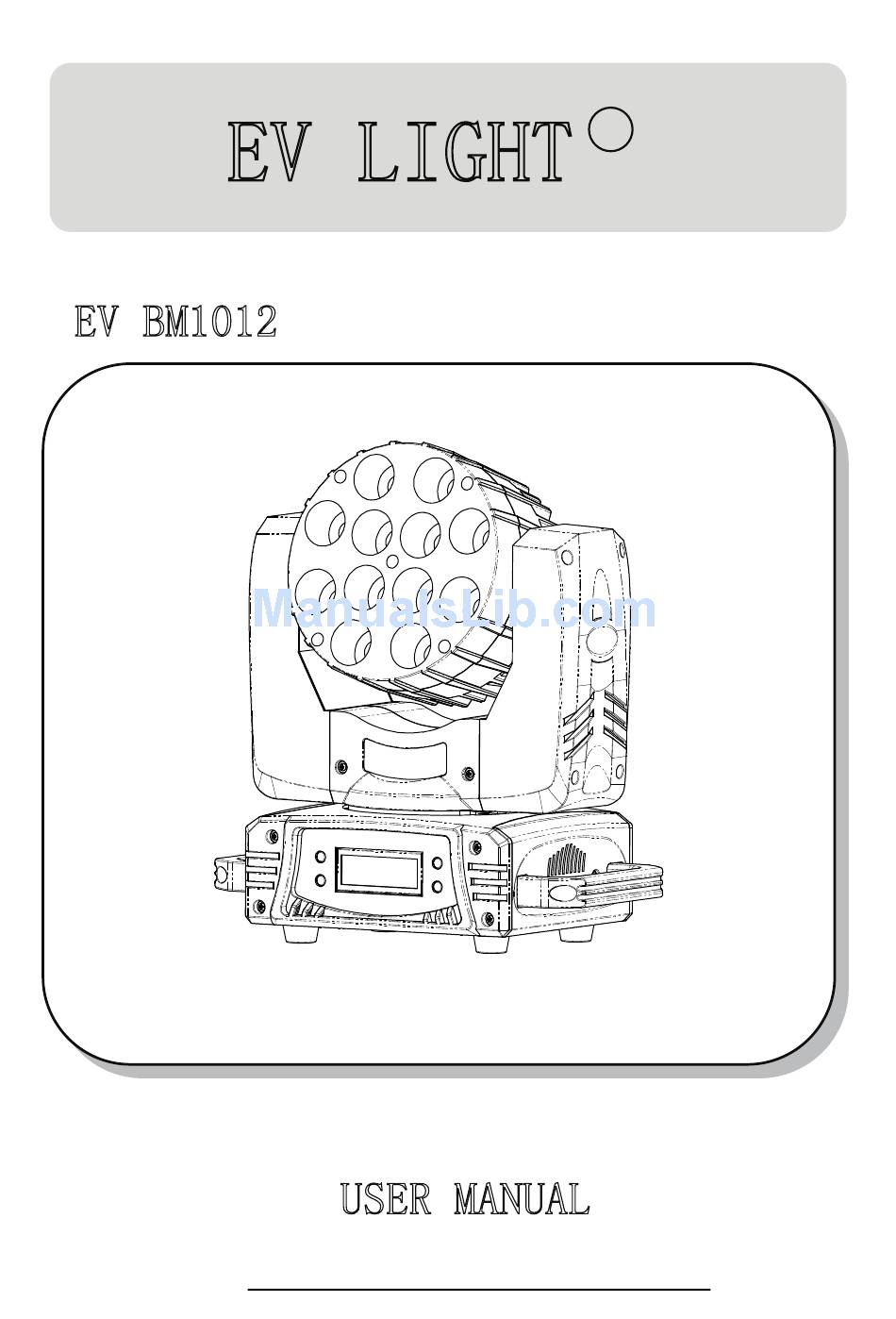

- Page 1 EV LIGHT EV BM1012 13211072211 01010107210 7par3108 Appearance patent No.:201330085957.7 USER MANUAL Please read it carefully...
-
Page 2: Table Of Contents
INDEX SAFETY GUIDELINE ··················································································· - 2 - 1、 TECHNICAL PARAMETER ·········································································· - 3 - 2、 LIGHTING INSTALLATION ·········································································· - 4 - 3、 POWER SUPPLY-CONTROL SIGNAL CONNECTIONS ···································· - 5 - 4、 OPERATION MENU ··················································································· - 6 - 5、 ························································································ - 7 - CONTRL PANEL 6、... -
Page 3: Safety Guideline
１、SAFETY GUIDELINE Please keep this manual in a safe place for further reference. Please make sure they also have this user manual if you sell this lighting to other users. Every unit is packed properly by the manufacturer. Please operate this lighting according to the user manual. -
Page 4: Technical Parameter
２、TECHNICAL PARAMETER Input Voltage： AC100V-AC240V， 50/60HZ； Power Consumption： 135W ; Lamp Specifications： 12 pcs four in one (RGBW) CREE 10W LED,rated life 50000 hours; Lens Angle：8 º Spot Angle：15º； Color：RGBW linear color mixing； Color Temperature：color cast calibration setting、color temperature output inside device； Dimmer：... -
Page 5: Lighting Installation
LIGHTING INSTALLATION 3、 LAMP HOOK SAFETY RING SAFETY CORD PICTURE TWO PICTURE ONE The lighting can be hanged on the high place with using the lamp hooks (as showed in picture 1). Use the safety cord provided to pass through the bottom safe ring and hang it as a second safety fixing. -
Page 6: Power Supply-Control Signal Connections
POWER SUPPLY-CONTROL SIGNAL CONNECTIONS 4、 Make the XLR signal line connect with the lighting, one port connects with the output port of lighting, another one connects with the input port of another lighting. Due to the output and input of the lighting keep connecting all the time, so the DMX circuit still can be keep connecting when the power of certain unit occurs turn-off. -
Page 7: Operation Menu
OPERATION MENU 5、 Level 1 Level 2 DMX address 001-512 Pan invert Yes/No Tilt invert Yes/No P/T swap Yes/No P/T Feedback Yes/No Option Dimmer mode Dimmer1-4 CH mode 10CH/13CH X -127-128 (Calibrate XY) Y -127-128 Language English Display Lightness 01-30 Backlight Permanently on/2 Minutes off 0-255... -
Page 8: Contrl Panel
6、CONTRL PANEL DISPLAY SCREEN Display function menu and selection menu BUTTON OPERATION MENU：Return to previous menu. ENTER：Enter to the next menu or save. UP：Menu selection or increasing the parameter. DOWN：Menu selection or decreasing the parameter. POWER INPUT Supply power SINGNAL INPUT Connect forward lighting with 3 XLR signal wire , then input DMX512 signal. -
Page 9: Maintenance
7、 MAINTENANCE o prolong the life of lighting, it is very important to do the maintenance work. If the lighting is idle for a long time, damp, dust can cause greater accumulation of dirt on its cover or housing. So it should be cleaned to maintain an optimum light output and at the same time to prevent it from corrupted by dust and acid gas. -
Page 10: Dmx Protocol
9、DMX PROTOCOL 10CH 13CH Value Function 0-255 Dim all 0-255 0-255 Green 0-255 Blue 0-255 White 0-10 No strobe 11-90 Strobe，slow->fast 91-170 Random Strobe，slow->fast 171-255 Electronic Squarewave，slow->fast Virtual colour wheel 0-10 No effect Blue (Blue=full, Red+Green+White=0)(step) 12-50 Red=0, Green->up,Blue =full, White=0(proportional) Light Blue (Red=0, Green=full, Blue =full, White=0)(step) 52-90 Red=0, Green=full, Blue->down, White=0(proportional) - Page 11 EV LIGHT(GUANGZHOU) CO.,LTD. ADD:ＥＶ ＩＮＤＵＳＴＲＩＡＬ ＰＡＲＫ，８ ＣＨＵＡＮＧＹＥ ＲＯＡＤ， ＴＡＩＰＩＮＧ ＤＥＶＥＬＯＰＭＥＮＴ ＺＯＮＥ， ＧＵＡＮＧＺＨＯＵ TEL:＋８６－２０－３７９２９６７８ FAX:＋８６－２０－３７９２９２９８ WEBSITE: Ｈｔｔｐ：／／ｗｗｗ．ｅｖｌｉｇｈｔｐｒｏ．ｃｏｍ ...
