Divine Lighting

Hyper 363P RGB

USER MANUAL

v2.0

Table of Contents

Need help?

Do you have a question about the Hyper 363P RGB and is the answer not in the manual?

Questions and answers

Summary of Contents for Divine Lighting Hyper 363P RGB

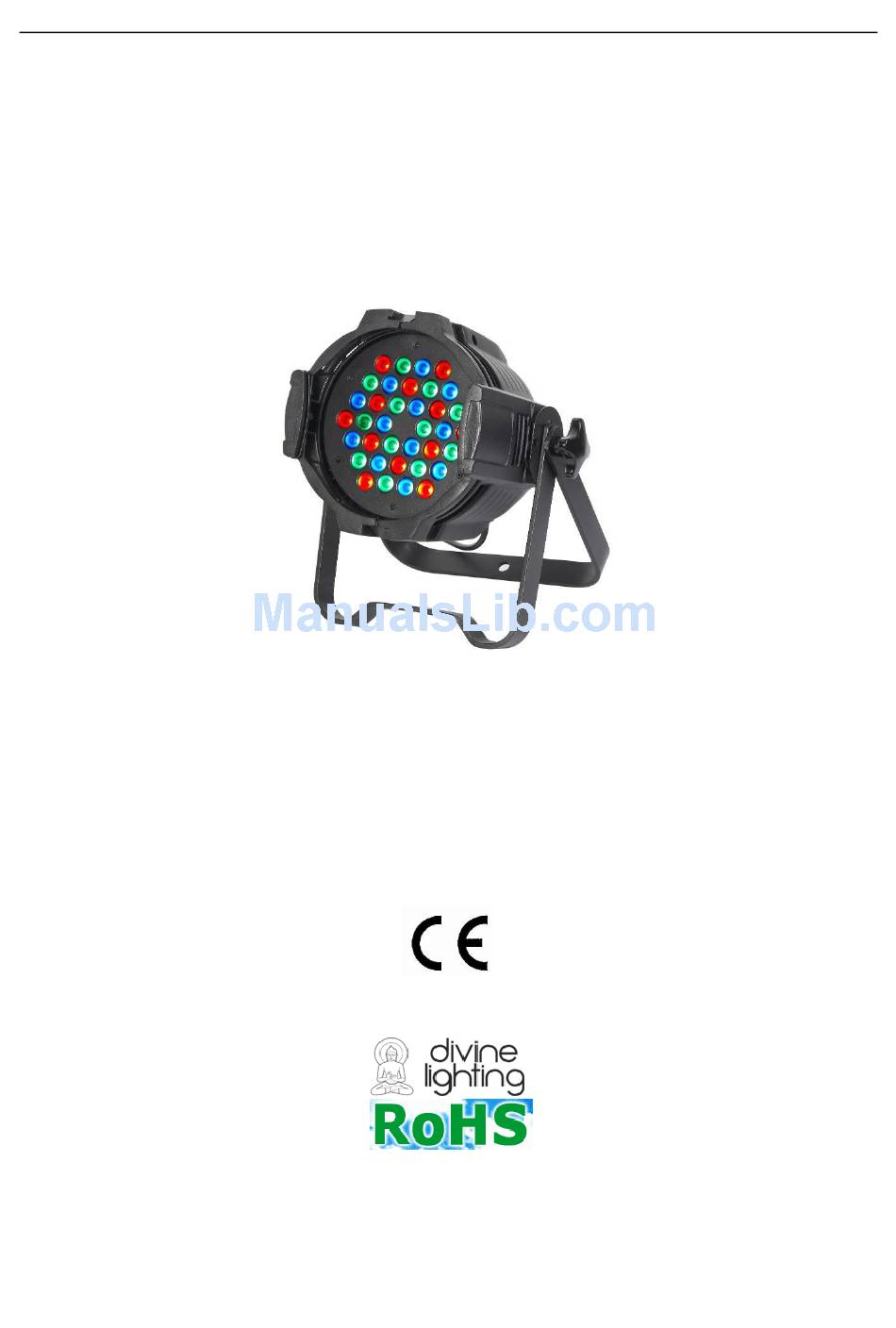

Page 1 Divine Lighting Hyper 363P RGB USER MANUAL v2.0...
Page 2: Table Of Contents
Divine Lighting Catalog Summary… ......................1 Safety Information ....................1 Outside Dimensions ....................2 Features ........................3 DMX Controller Functions ..................3 Control Panel Instructions ..................7 Manual instructions ....................7 Operating Mode Instruction ..................9 XRL Cable Connection .................... 10 Cable Connection Diagram ..................
Page 3: Summary
WWW.DIVINELIGHTING.COM 1. Summary  Summary Thank you for purchasing our LED PAR lighting. Please read these instructions carefully before starting and operate the fixture according to these instructions in order to avoid any possible damages and accidents caused by misuse. ...
Page 4: Outside Dimensions
WWW.DIVINELIGHTING.COM have arrived in good condition and without damage. ● This light is designed for indoor use only. Ambient temperature should not exceed 105 degrees Fahrenheit (40 degrees Celsius). ● This fixture may be mounted in any position provided there is adequate room for ventilation.
Page 5: Features
WWW.DIVINELIGHTING.COM 4. Features  High quality LEDs: low consumption, high brightness, stable output, and long life  Each color LED capable of 256 discrete levels, RGB can make over 16.7 million colors  Linear dimming 0-100%, strobe, color change by either fading or snapping ...
Page 6 WWW.DIVINELIGHTING.COM 6 Channel Operation Channel Control Remark Priority Value Function 0-255 Master dimmer You must use channel 1 along with 2, 3, or 0—100% 4, otherwise no output. 0-255 Red Dimming 0-255 Green Dimming 0-255 Blue Dimming 0-14 Not used Speed adjustment when channel 6 is set between 32 - 223 15-255...
Page 7 WWW.DIVINELIGHTING.COM 7 Channel Operation Channel Control Remark Priority Value Function 0-255 Master dimmer You must use channel 1 along with 2, 3, or 0—100% 4, otherwise no output. 0-255 Red Dimming 0-255 Green Dimming 0-255 Blue Dimming 0-14 Not used Speed adjustment when channel 6 is set between 32 - 223 15-255...
Page 8 WWW.DIVINELIGHTING.COM 8 Channel Operation Channel Control Remark Priority Value Function 0-255 Master dimmer You must use channel 1 along with 2, 3, or 0—100% 4, otherwise no output. 0-255 Red Dimming 0-255 Green Dimming 0-255 Blue Dimming 0-14 Not used Speed adjustment when channel 6 is set between 32 - 223 15-255...
Page 9: Control Panel Instructions
WWW.DIVINELIGHTING.COM 6. Control Panel Instructions DMX IN/OUT DMX IN DMX OUT LED display MENU ENTER UP DOWN 4 button  MENU : access the menu or return to a previous menu option  ENTER: select the current menu option  UP: menu selection or parameter increases ...
Page 10 WWW.DIVINELIGHTING.COM  ”ASC-”: Colors jumping（AC00-AC15）  ”Pr--”: Built-in program （Pr00-Pr15）  ”SP--”: Built-in program speed change model (SP00-SP15)  “SLAU”: Slave mode (SL.AU)  “CHnd”: DMX Channel mode(3CH/6CH/7CH/8CH) 2. Examples Press ENTER to access the further menu setting. This process can be saved automatically; that means you will enter the process saved previously when you activate the light next time.
Page 11: Operating Mode Instruction
WWW.DIVINELIGHTING.COM To use the built-in program (Pr- -)  Press MENU, go back to the initial setting  Press UP / DOWN until Pr- -  Press ENTER to choose. The display will start blinking  Press UP / DOWN to change the address code. ...
Page 12: Xrl Cable Connection
WWW.DIVINELIGHTING.COM 9. XLR cable connection  XLR cable： XLR/DMX connections are connected male to female as shown below: pin 1: Ground, pin 2: Negative, pin 3: Positive Noted：In order to avoid failures and interference signal transmission，we connect a resistance120Ω （ 1/4W ） at the end of the DMX connecting as below: ...
Page 13: Cable Connection Diagram
WWW.DIVINELIGHTING.COM 10. Cable Connection Diagram  Cable connection diagram...
Page 14 WWW.DIVINELIGHTING.COM  Electrical wiring diagram DSLM-PAR575-5A 显示板 Display board DC 24V IN 16P 电脑显示排线 16pin computer cable V+ R G B POWER IN DISPLAY 34063 STC12C5404 LM358 DMX IN/OUT 75176 控制主板 Control board DSLM-PAR575-5408 DMX IN LED 铝基灯板 LED Aluminum Light Panel 灯板连接线...
Page 15: Exploded View
WWW.DIVINELIGHTING.COM 11. Exploded View...
Page 16: Illuminance List
WWW.DIVINELIGHTING.COM 12. Illuminance List...
Page 17: Troubleshooting
WWW.DIVINELIGHTING.COM 13. Troubleshooting Problem Possible Cause/Solution  Check that the power plug is fully inserted  Check that the power switch to the lights is on Cannot turn light on  Check for blown fuse on circuit  Check that the DMX cable is connected to the lights ...
Page 18: Technical Specifications
WWW.DIVINELIGHTING.COM 14. Technical Specifications ● Input voltage: AC 100V-264V/47-63HZ ● Output voltage: DC24V ● Power Consumption: 108W ● Lamp Type: LED (3W) ● Lamp Spec: Red (12pcs), Green (12pcs), Blue (12pcs) ● Control Signal: DMX512, Sound activated, Auto run ● Control mode: Stand-alone/Sound activated ●...
