Summary of Contents for Sam SAM-EK1

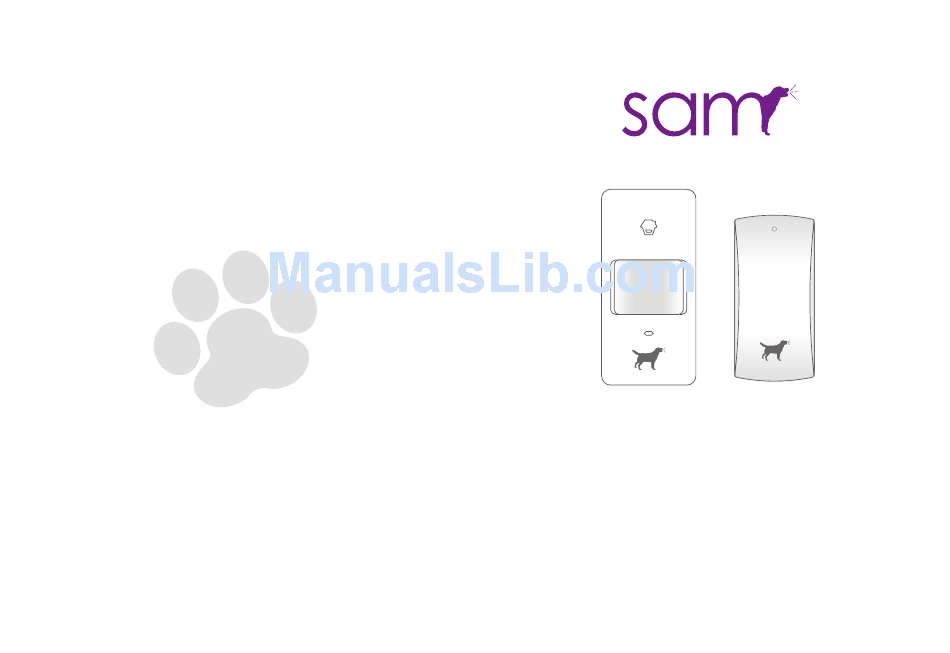

- Page 1 Model No. SAM-EK1 self activated monitoring Wireless Security Made Easy. Accessory Kit User Manual securedbysam www. .com SAM Security, LLC. J1308-1...
- Page 2 - Installation motion detector, designed to detect human - Door/Window Sensor Specifications movement within an approximate range of 26ft from the detector. The SAM-900 includes fuzzy 13-15 About SAM Security, LLc. logic to minimize false alarms from unwanted heat sources. The detector includes a battery...
- Page 3 Wireless PIR Motion Detector PCB Layout Appearance LED ON/OFF INFRARED SENSOR 1. Detection Window 2. LED Indicator 3. Bracket TAMPER SWITCH Detects the infrared rays released by human Infrared Sensor: body motion. Do not touch the surface. Tamper Switch: Once the case is opened in the detector’s working state, the tamper switch will be LED Indication triggered, generating an alarm signal.
- Page 4 Installation Note: The detector is more sensitive to cross-movement than to - Activate the PIR detector by removing the battery activation direct movement. The performance of the detector is optimal strip. The PIR detector will immediatly self-test. After one when the detection direction is across the walking direction minute of self-testing, install the PIR detector.
- Page 6 Wireless Door/Window Contact Features LED Indication The SAM-DW1 is a Door/Window Contact that can be installed on Door/window is opened and transmitter LED Flashes Once: doors, windows, and any other objects that open and close. The sends signal to the control panel.
- Page 7 - Remove the battery activation strip. Specifications - Mount the transmitter on the door frame and the magnet on the door. Make sure the SAM logo is at the bottom. Power Supply DC 1.5V (AA 1.5V LR6 Battery x 1pc) - Make sure the magnet is on the right side of the transmitter.
- Page 8 Visit www.securedbysam.com or contact toll free at 1.855.325.5005 to register and activate your system. Once activated, you are ready to SAM C5 is wireless DIY security made easy and affordable. SAM is a wireless monitor your home! self-activated monitoring security system which provides security without costly, long-term contracts.
-
Page 9: Limited Warranty
SAM-selected non-expedited It is our mission to place SAM in every home – no one should have to opt surface freight within the contiguous United States and Canada. Alaska and out when it comes to the safety and security of your home and loved ones. - Page 10 This limited warranty is the sole and exclusive warranty provided by SAM in connection with your SAM product and is, where permitted by law, in lieu of all 1. Package the unit safely, preferably using the original box and packing other warranties, conditions, guarantees, representations, obligations and materials.
- Page 11 Notes...
