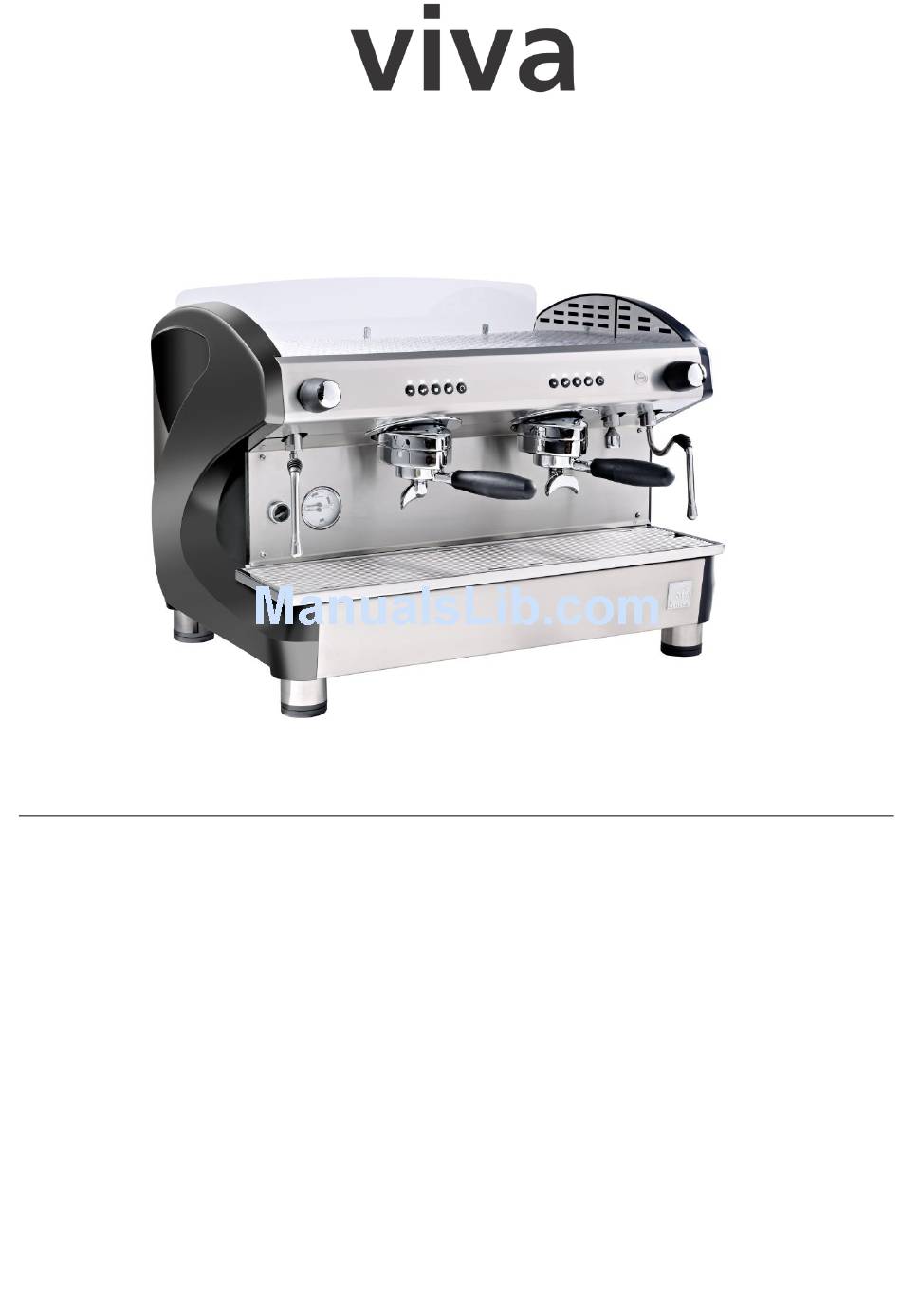

Summary of Contents for Iluv VIVA 1
-
Page 1: Table Of Contents
User Manual SUMMARY Declaration of CE conformity Water pressure test Introduction Technology Recommendations and Security Use of softened water VIVA Features General layout Technical features General features Programming the doses Producing other hot drinks ... - Page 2 Erklärt dass das Produkt Cafetera exprés Certifica que el producto Avec la désignation With the type designation VIVA 1, VIVA 2, VIVA 3 Mit der Typbezeichnung Con designacion 73/23/CEE Objet ce cette déclaration, est conforme aux directives européennes ci-dessous :...
-
Page 3: Water Pressure Test
CONTRÔLE PRESSION CHAUDIERE WATER PRESSURE TEST WASSERDRUCKPRUEFUNGSBESCHEINIGUNG Nous certifions que la chaudière de cette machine a été testée en pression d'eau à 2.6 bar, conformément aux prescriptions du paragraphe 9.4 du TDR 801. We certify that the boiler of this machine has been subjected to water pressure of 2.6 Bar complying with the paragraph 9.4 of TDR 801. -
Page 4: Introduction
INTRODUCTION Thank you for choosing a I Luv coffee machine! We are sure that your new machine will meet with your satisfaction. The I Luv Coffee machines are designed and manufactured to the most up-to-date processes in compliance with stringent quality standards in order to provide reliable and durable service. Please read the instructions for use contained in this brochure very carefully. -
Page 5: Use Of Softened Water
Use the machine for the purpose it is intended . Room temperature should be between 5°C and 45°C to allow proper operation of the machine. Avoid all contact with the hot zones (cup tray, brewheads, hot water and steam outlets). The machine should not be exposed to freezing, in case of danger of frost, place the machine away from freezing area. -
Page 6: General Layout
GENERAL LAYOUT... -
Page 7: Technical Features
TECHNICAL FEATURES VIVA 1 group 2 groups 3 groups 230V / 50Hz 230V / 50Hz Voltage 230V / 50Hz 400V / 50Hz 400V / 50Hz Heating element 2100W 3100W 4000W power (230 V mono) Heating element power (400 V 3 3800W 6000W phases) -
Page 8: General Features
GENERAL FEATURES 1. Keyboards : T1 = 1 short coffee button T2 = 2 short coffees button T3 = 1 long coffee button T4 = 2 long coffees button T5 = ‘Continuous’ button Producing coffee : HOW TO MAKE A GOOD ESPRESSO The coffee : Two types of coffee : Arabica : beans are flat, elongated. -
Page 9: Programming The Doses
ou … Select the desired dose. Place the cup(s) under the pouring spouts. The cycle can be interrupted at any time by pressing the selected button. It is advisable to leave the filter holder connected to the brewhead (after emptying it) until the next preparation, in order to retain the heat. -
Page 10: Producing Other Hot Drinks
3. PROGRAMMING OF TEMPERATURE OF BARISTA STEAM Place a container with fresh milk (or water) under the Barista Steam nozzle. Immerge the thermometer in the liquid Turn the machine OFF, and while pressing on the BARISTA STEAM button turn the machine and wait that there is a “Pscht”... - Page 11 Espresso too light Temperature too low (insufficient pre-heating, scale). Not enough coffee or old or coarse coffee. Espresso bitter Too much coffee, temperature too high, dirty filters. Cream too light Machine too cold, coffee too coarse, cold cups. Cream too dark ...
- Page 12 Cleaning procedure : Place the obturator in Remove the brewhead the two-cup filter- filter-holder and empty holder. the remains of the previous preparation. Place a tablet of Connect the filter-holder. reneka detergent on the obturator. Perform 5 cycles of Discon nect an d reconnect the filter-holder while arou nd 3 seconds each.
- Page 13 Perform a long cycle to rinse. Replace the filter-holder. Restart these operations with all the brewheads. Filter holder : Clean the whole filter unit and the filter holder by soaking overnight in hot water with two tablets of reneka detergent (ref. 1011014). Do not soak the handles. Rinse afterwards with warm water. Shower : ...
- Page 14 After about 2 minutes the Put the cleaner (for milk) Start the cleaning cycle by pressing cleaning cycle stops (indicated in a pitcher. the button T5 right of the keyboard by the buzzer). Fill the pitcher Place the pitcher under and the button on the B.S.
- Page 15 GENERAL CONDITIONS 1 Guarantee : I Luv Coffee guarantees all machines and equipment bearing the reneka Trademark against manufacturing defects for a period of 12 months from the date of its delivery to the User. 2. Exclusions : The general conditions of the guarantee will not apply to parts subject to normal wear and tear such as tape seals, control pads and o-rings and in general way, against breakdowns related to the presence of lime scale in the machine, as well as the losses and accessories thefts.
- Page 16 1 Year Limited Warranty...
- Page 17 I Luv Coffee 1 Year Limited Warranty WARRANTY PERIOD This is a genuine I Luv Coffee Warranty. If you have purchased a separate warranty from a third party, please refer to that particular warranty for terms and conditions, as these warranties are sold independently from I Luv Coffee. This warranty is for a period of 1 year from the date of installation on all original parts and limited to 90 days for labour costs.
- Page 18 LIMITATION OF LIABILITY (NEW ZEALAND) Where the Consumer Guarantees Act 1993 does not apply to the supply of the Product, I Luv Coffee will not be liable for any direct, indirect or consequential loss or damage of any kind arising from the Product or the consumer’s use of the Product including any loss or damage arising from the negligence of I Luv Coffee’s employees, agents or subcontractors.
-
Page 19: Cleaning And Maintenance
CLEANING & MAINTENANCE OF YOUR COFFEE MACHINE IT IS YOUR RESPONSIBILITY TO CLEAN & MAINTAIN YOUR MACHINE TO AVOID VOIDING YOUR WARRANTY Empty and wash the Drip Tray daily and wipe up any spillage with a dampened cloth.aaron NEVER USE ABRASIVES OR SCRATCH THE SHINY SURFACES PLEASE SEE FOLLOWING PAGES FOR ILLUSTRATED INSTRUCTIONS... - Page 20 Filter Holders: Clean the whole filter unit and the filter holder by soaking in hot water with coffee cleaner. Do not soak handles. Rinse afterwards with warm water. Steam Wand Steam Wand After each use: After each use: ...
- Page 21 Connect the filter holder Hold down both buttons simultaneously on the ends of the desired group to start the cleaning cycle. The LED’s will flash from left to right. When the LED’s stop flashing from left to right remove the filter holder.
- Page 22 Cleaning Barista Steam Wand: Cleaning the barista steam wand takes approx. 3 minutes and should be carried out at the end of each service. The cleaning solution must be cold (max temp 25 C). Once started the only way out of the cleaning cycle is to turn the machine off and then back on.
- Page 23 BEFORE CALLING FOR SERVICE CHECK POWER SUPPLY Is Front Panel light on? Is LCD Read-out on front panel functioning? CHECK WATER SUPPLY Is Mains Water turned on, or supply Tank full? Check Water supply hoses for kinks and blockages. Clean Water filters and replace if Water contaminated or pressure reduced.
-
Page 24: Contact Information
CONTACT INFORMATION: Please contact your local distributor Please contact your local distributor. AUSTRALIA 1300 758 744 AUSTRALIA 1300 324 111 NZ 0800 377 733 NZ 0800 458 826 Head Office Head Office I Luv Coffee Coffee I Luv PO Box 2661 PO Box 2661 Burleigh BC QLD 4220 Burleigh BC QLD 4220...
