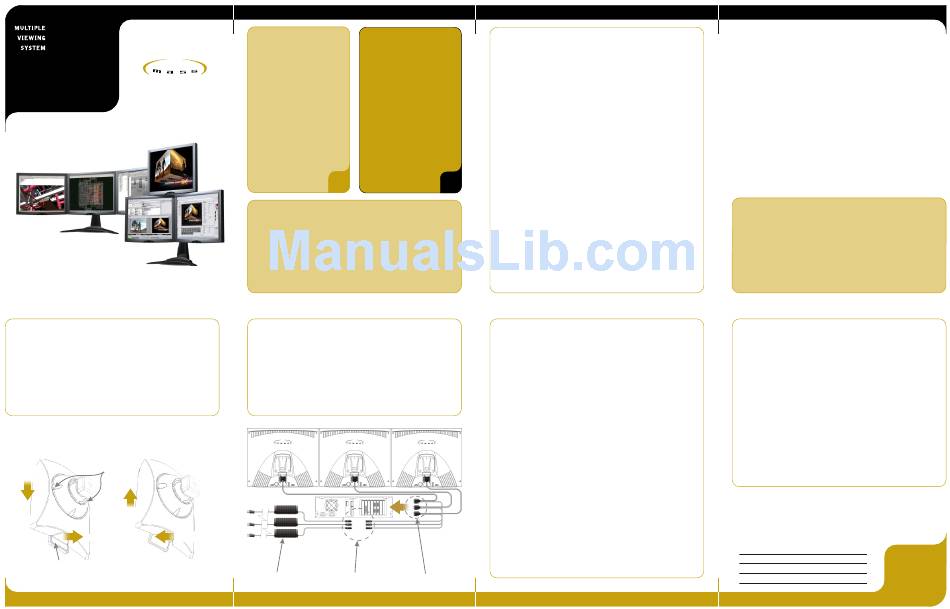

Mass C3H19 User Manual

C3 19 series

Advertisement

Quick Links

C3
19
series
TRIPLE FORMAT
DOCKING YOUR LCD AND TIGHTENING BALL JOINT
1. To dock the LCD match the 'dove tail' to ensure that the LCD unit sits flat against the 'ball
and socket' assembly. Simply slide the two interlocking parts, while ensuring that the unit is
locked in place. CAUTION: Unit may tip, ensure you counter balance during assembly.
Once LCD units are secure you can proceed and install the connectors.
2. To unlock/remove the LCD unit you must depress the 'quick release' latch. Ensure a proper
grip on the LCD to prevent damage. When removing the LCD panels ensure you counter
the weight of the opposite LCD, this will prevent the unit from tipping. Lift the LCD
panel and place on a flat surface.
4. To tighten 'ball joint' simply turn two
Phillips
screws (A), turn a quarter turn until desired
position is achieved. Review detail of Quick Release System (below) for the location of the
Phillips screws (A) and quick release' latch.
To unlock LCD
To lock LCD
(A) Phillips screws
slide LCD
in place
lift LCD
depress latch to
locked position
release LCD
'quick release' latch
Note: remove connector
before depressing latch
U S I N G T H E Q U I C K R E L E A S E
C O N T E N T S
CONTENTS
LOCATION OF CONTROLS
INTERFACE DESCRIPTION
GETTING STARTED
ANALOG OSD OVERVIEW
STARTING THE FIRST TIME
MAINTENANCE
DIGITAL OSD OVERVIEW
PRECAUTIONS
LIMITED WARRANTY
UNPACKING YOUR
CUSTOMER SUPPORT
MULTIPLES™
OTHER LCD INFORMATION
TROUBLESHOOTING
USING THE QUICK RELEASE
CONNECTING YOUR
MULTIPLES™
OPERATION
SPECIFICATIONS
FCC INFORMATION
A
PACKAGE CONTENTS
(1) Support Structure fasteners
(3) C19 LCD monitors
(1) Registration Card
(1) Triple head monitor system (structure)
with integral video cables
Macintosh adapter (optional)
(3) Universal input power supplies
complete with power cord
(1) User manual, Support Structure
assembly instructions
OPERATION
1. Ensure power is off before proceeding with the installation.
2. Connect the video cable marked with "A" to the first video output of your computer. Similarly
connect the video cable marked with "B" to the second video output of your computer and
connect the video cable marked with "C" to the third video output of your computer.
4. Connect the output cables of the power supplies to the five pin DIN connectors.
5. Connect the power cords.
6. Turn the screens on by pressing the power button located on the lower back of each
monitor. Power indicator will light.
C
B
A
Power supplies
(3) DIN connectors
VGA connectors
C O N N E C T I N G Y O U R M U L T I P L E S ™
G E T T I N G S T A R T E D
STARTING THE FIRST TIME
In a multiple screen configuration, most video cards will boot one screen first, thus allowing you to
configure your system as you see fit. Once the appropriate drivers have been loaded, the system
will re-boot and bring up both screens. You may then proceed to arrange your desktop, configure
any particular environment characteristics you wish, and start up your applications.
MAINTENANCE
Liquid Crystal Displays are highly sophisticated pieces of equipment. Avoid touching the screen
surface with any sort of hard object, as this may result in scratches, which will reduce the
effectiveness of the display and are not covered by your warranty.
Always handle your monitor with care when moving. If you move the screens around on a frequent
basis, it is also good idea to periodically check to ensure that all fittings and screws are tight.
PRECAUTIONS
B
Avoid touching or applying pressure to the screen with your fingers as damage to the liquid crystal
layer may occur. Wipe marks from the screen with absorbent cotton or a soft cloth. Do not use
chemical cleaners.
The monitor contains high voltage parts.
You may suffer serious injury if you touch these parts.
Avoid exposing the monitor to direct sunlight or another heat source. The monitor s hould be
facing away from direct sunlight to reduce glare.
Do not place anything on the monitor that blocks the flow of air through the vent which may prevent
adequate dissipation of heat.
Ensure the area around the monitor is clean and free of moisture.
Do not place heavy objects on the monitor, video cable or power cord.
If smoke, abnormal noise, or strange odor is present, immediately switch the monitor off and call
your dealer. It is dangerous to continue using the monitor.
PROPERTY
DESCRIPTION
Monitor Type
Integrated triple LCD screens
Size and Weight (H x W x D)
52 cm x 123 cm x 33.0 cm (horizontal)
87 cm x 83 cm x 33.0 cm (pyramid)
approx 41.35 lbs. (18.76 kg)
Power Requirements
Line Voltage: 100 to 240 VAC, 50 - 60 Hz
Power
45 W / display panel
Resolution (per screen, multi-scan)
640 x 400, 720 x 400, 640 x 480, 800 x 600,
832 x 624, 1024 x 768, 1280 x 1024
Resolution (aggregate max.)
3840 x 1024 (C3H19) each sold separately
(1280 x 1024) + (2560 x 1024) (C3P19)
Pixel Pitch
0.294 (H) x 0.294 (V)
Response Time
8ms (typical)
Color Depth
16.7 million colors
Viewing Angle
H +75°/-75° V +75°/-60° typical
2
Brightness
300 cd/m
Contrast Ratio
700:1 (typical)
Screen Size and Type
19" diagonal active matrix TFT
Surface Treatment
Anti-glare and hard coatings 2H
User Controls
Power on/off
On Screen Control - Menu
Approvals
FCC, CE, Entela, Energy Star
Input Connections
Three x 15-pin D-sub RGB for analog
Three x DVI-I 29-pin HD for digital
Support Structure
Aluminum
S P E C I F I C A T I O N S
U N P A C K I N G Y O U R M U L T I P L E S ™
Carefully unpack the LCD monitors.
IMPORTANT:
Handle the monitors with care so that pressure is not placed on the front surface of the LCD panel
as this may result in permanent damage to the panel. Don't rest any objects on top of the screens.
Unpack the structure carefully.
If base needs to be assembled refer to Support Structure assembly procedure on how to assemble
base using wing nut and washers provided.
If a base tray is available use this to prevent the unit from tipping during installation. Place the
structure and base tray on a level surface.
Caution: secure base when installing LCD screens. To prevent the unit from tipping assemble
screens from center out. If base tray is available simply slide from assembly.
Once you've located the structure at a desired location then simply slide the LCD monitors onto
patented 'quick release' system. Ensure that the LCD panel locks in place.
After confirming that all the LCD panels are secured, feel free to adjust the panels to the desired
position. Hold the LCD screen without applying pressure on the LCD surface, and adjust. Proceed
to connect the display system to your computer as detailed in this user manual. Connect monitor to
appropriate cables provided.
TROUBLESHOOTING
Problem
No image on one or more screens
Screen viewing order is incorrect.
Colors are not clear.
Screens will not stay in one position.
FCC INFORMATION
This equipment has been tested and found to comply with the limits for a Class B digital devices,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instruction manual, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one of more of the following measures:
Reorient or relocate the receiving antenna
Increase the separation between the equipment and receiver
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected
Consult the dealer or an experienced radio/TV technician for help.
Ensure the area around the monitor is clean and free of moisture
FCC WARNINGS:
Changes or modifications not expressly approved by MASS Engineered Design Inc. could void
the user's authority to operate the equipment.
FOR YOUR RECORDS
The serial number of this product is on the back of the monitor. Write the serial number of this unit in
the space below and keep this booklet as a permanent record of your purchase to aid in
identification in the event of theft or loss.
Select up/down
Increment / decrement
Product Name: TRIPLE FORMAT M.V.S.
Model: C3H19 or C3P19 (digital or analog)
Purchase Date / Serial Number(s):
Suggested remedies
Make sure cables are properly fastened.
Check power to monitors.
Check video connection from computer to
monitors.
Check seating and bus location of video card.
Use known working monitor to check for signal.
Re-boot the computer.
Re-install driver software.
Use driver software to re-tile monitor order.
Check color settings within the O/S controls..
Check to make sure screen mounting pivots
are properly fastened and tightened.
