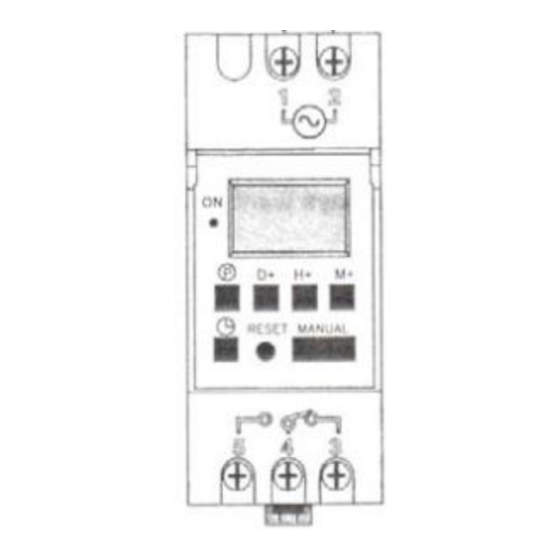

WEEKLY PROGRAMMABLE ELECTRONIC TIMER
• DIN Rail Installation
• Advanced pre-setting one week before
• Latest technology COMS quartz Mico-controller
• Digital electronics general purpose time switch with daily and weekly programs
• Repeat programs with 8ON/OFF settings
• To-the-minute setting accuracy
• LCD displays real time to Hour/Minute and ON/AUTO/OFF
TECHICAL DATA
Voltage Limit:
AC180V ~ 264V (60/60Hz)
Number of circuits:
1c
Hysteresis:
< 2s/d (at 25°C)
Load capacity:
16A 250VAC (ohmic load cos Ø=1)
On/off operation:
8 on & 8 off
Service life:
Mechanically: 10^7
Minimum interval:
1 minute
DIMENSIONS:
Electrically: 10^5
Weight:
Approx. 150g
Ambient temperature:
-10~55°C
Display:
LCD
Storage temperature:
-20~70°C
Battery Backup:
150h
Power consumption:
5VA
CONNECTIONS
Advertisement
Table of Contents
Summary of Contents for Toptronic TDDT7
- Page 1 WEEKLY PROGRAMMABLE ELECTRONIC TIMER • DIN Rail Installation • Advanced pre-setting one week before • Latest technology COMS quartz Mico-controller • Digital electronics general purpose time switch with daily and weekly programs • Repeat programs with 8ON/OFF settings • To-the-minute setting accuracy •...
-
Page 2: Programming
OPERATING INSTRUCTIONS: 1. When the timer is put into use for the first time, connect it to the electrical power supply and the battery recharge. Once the battery is fully charged, press the reset key. 2. The timer switch is set to 24h mode in the factory. Should you wish to change to 12h mode, press the “”...
