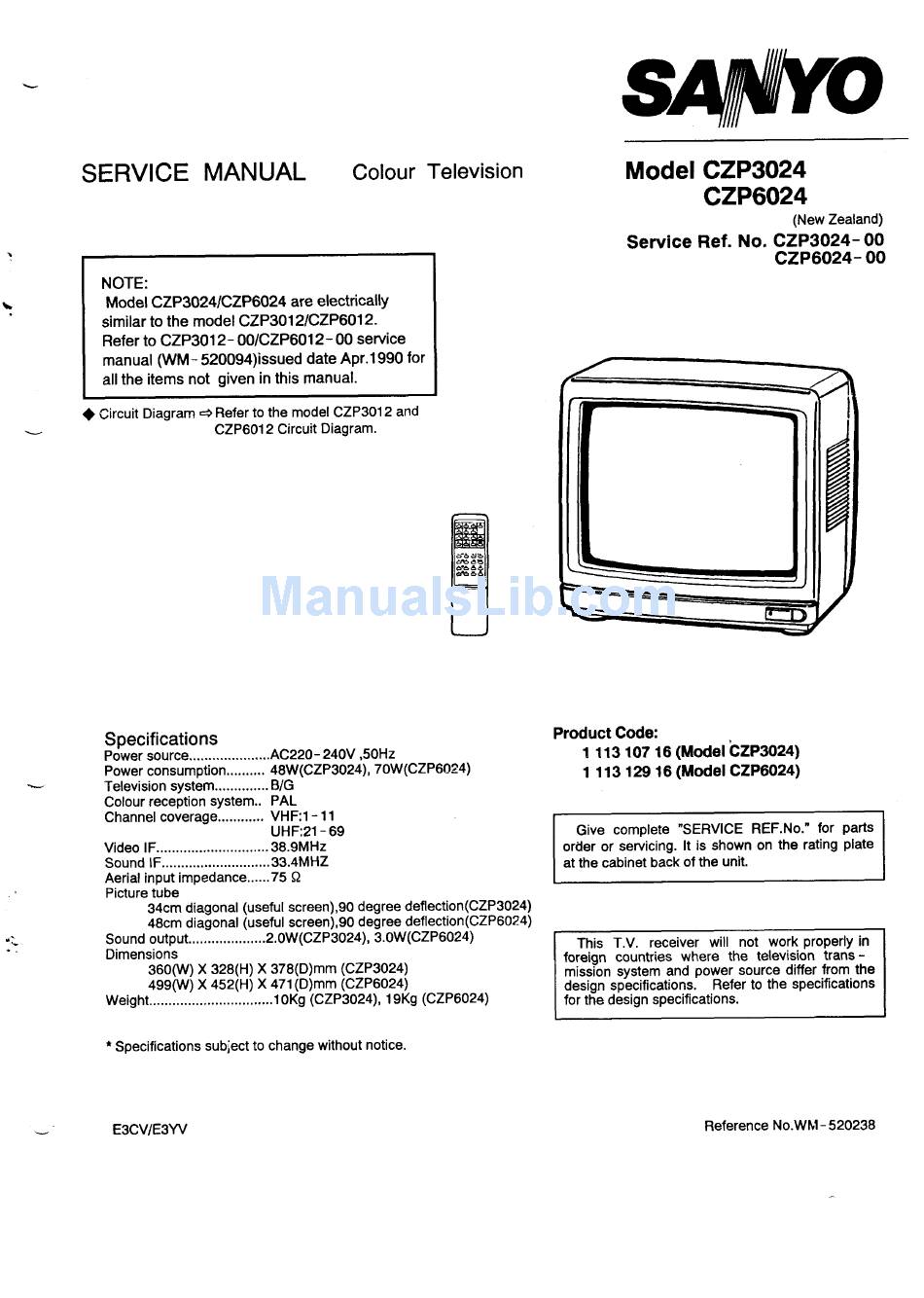

Instruction Manual
SERVICE
MANUAL
Coiour Television
NOTE:
b
Model CZP3024/CZP6024
are electrically
.
similar to the modelCZP3012/CZP6012.
Refer toCZP3012-
00/CZP6012-
00 service
manual (WM - 520094) issued date Apr.1 990 for
all the items not given in this manual.
Circuit Diagram+ Refer to the modelCZP3012
and
-
CZP6012
Circuit Diagram.
Specifications
power source .....................AC22O- 240V ,50Hz
Power consumption .......... 48W(CZP3024),
70W(CZP6024)
Television
system .............. B/G
Colour reception system..
PAL
Channel coverage ............ VHF:l -11
UHF21
-69
Video IF .............................38.9 MHz
Sound IF ............................33.4MHZ
Aerial input impedance ......75 Q
Picture tube
34cm diagonal (useful screen),90
degree deflection(CZP3024)
48cm diagonal (useful screen),90
degree deflection (CZP6024)
Sound output .................... 2.0W(CZP3024),
3.0W(CZP6024)
Dimensions
360(W)
X 328(H) X 378(D)mm
(CZP3024)
499(W)
X 452(H)
X 471 (D)mm (CZP6024)
Weight ................................ 10Kg (CZP3024),
19Kg (CZP6024)
Specifications
subject to change without notice.
E3CVIE3YV
Model CZP3024
CZP6024
(New Zealand)
Service
Ref. No, CZP3024-
00
CZP6024-
00
1
Product Code:
411310716
(Model CZP3024)
111312916
(Model CZP6024)
~
Give complete
"SERVICE
REF.No."
for parts
order or servicing
It is shown on the rating plate
This
T.V.
receiver
will not work properly in
foreign
countries
where
the television
trans -
mission system and power source differ from the
design specifications.
Refer to the specifications
for the design specifications.
Reference
No.WM -520238
.
