GE Profile TBX22PABCC Dimension Manual

TM
TBX22PABCC - GE Profile

Dimensions (in inches)

Front View
A B
Specification Created 5/00

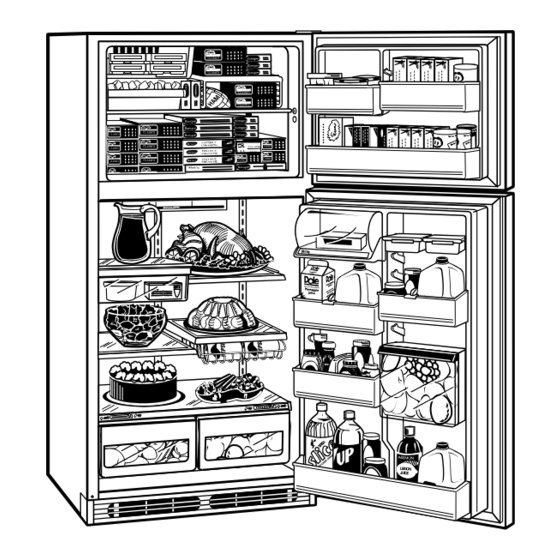

21.6 Cu. Ft. Top-Mount No-Frost Refrigerator
™
Top View
H
G
C
D
Height with hinge (in.) A
Height without hinge (in.) B
Depth without Doors (in.) C
Depth with Doors (in.) D
Depth plus Handle with Doors Closed (in.) E
Depth with Doors open 90° (in.) F
Width with Doors Closed (in.) G
E
Width with Doors open 90° (in.) H
Each side (in.)
F
Top (in.)
Back (in.)
Note: Right-Hand Refrigerator Door—As you face the front of the
refrigerator, the handle is on your left and the hinges are on your right.
Left-Hand Refrigerator Door—As you face the front of the refrigerator,
the handle is on your right and the hinges are on your left.
For answers to your Monogram,
GE Profile Performance Series,
GE Profile ™ or GE appliance questions, call
GE Answer Center
®
™
service, 800.626.2000.
®
®
C US
67
66
27-1/2
31
32-3/4
59-7/8
31-1/4
32-5/8
3/4
1
1
