Summary of Contents for Ferguson rtyx k

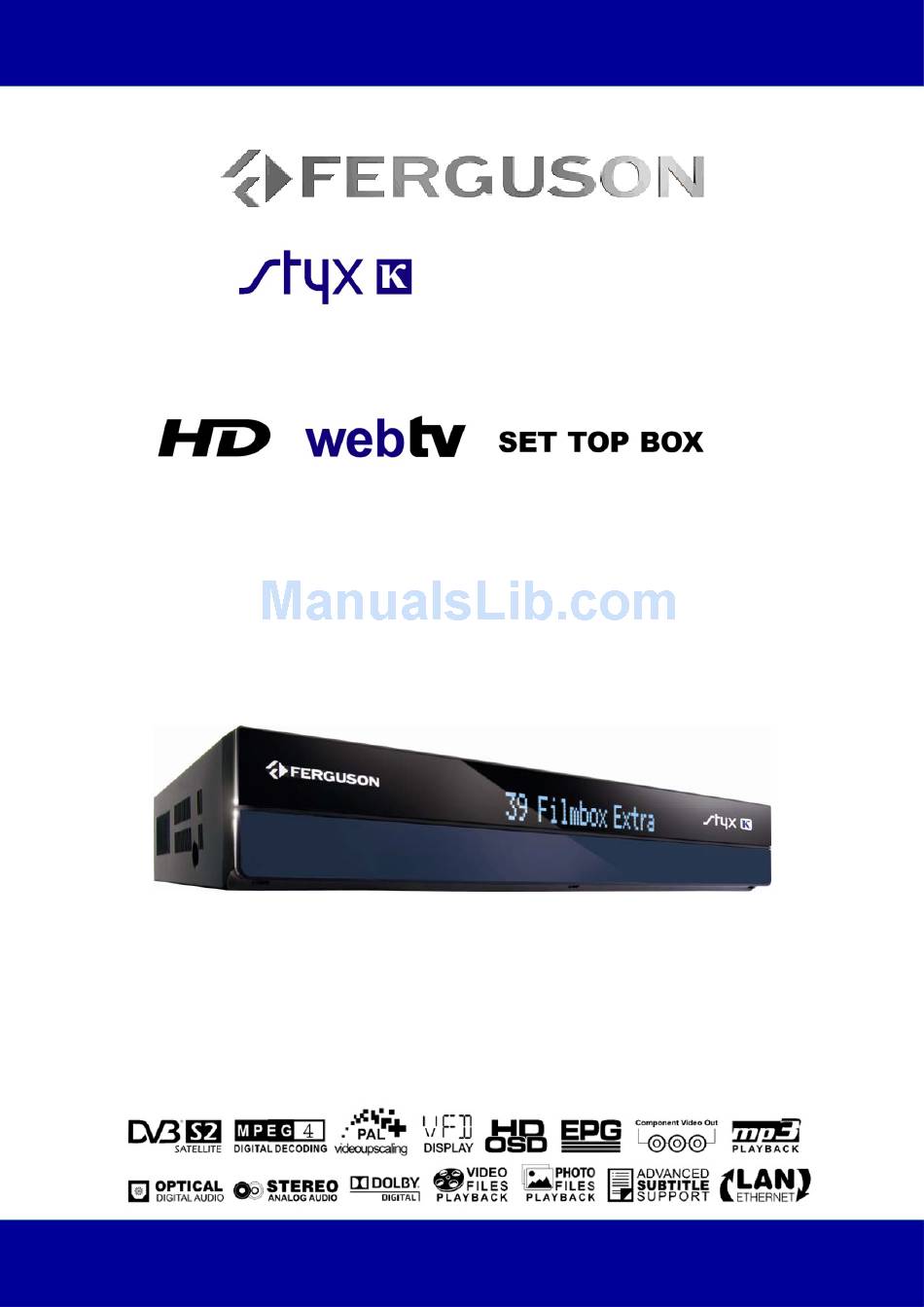

- Page 1 - WEB TV - MULTIMEDIA CENTER - SATELLITE RECEPTION IN HIGH DEFINITION PERSONAL VIDEO RECORDER (PVR) ready User’s manual...
-
Page 2: Table Of Contents
INDEX I. GENERAL INFORMATION Safety instructions .................... 5 Package contents .................... 5 Front panel ...................... 6 Common interface .................... 6 Rear panel ...................... 7 Connecting your device 6.1 Connecting the antenna .................. 7 6.2 Connecting to your television ................ 8 6.3 Connecting audio .................... 10 6.4 Connecting USB 2.0 .................. 10 6.5 Connecting to your network ................ 11 Inserting the batteries .................. 11 Powering On/Off .................... 11 Remote control functions ... - Page 3 INDEX VI. MENU 1. Operating the menu .................. 21 Installation 2.1 Antenna ...................... 21 2.2 Satellite search .................... 21 2.2.1 Edit satellite .................. 22 2.2.2 2.2.3 Transponder search .............. 22 2.3 DiSEqC/USALS‐Multi search .............. 22 2.2.4 Edit PID .................... 23 2.3 DiSEqC 1.2 ....................... 23 2.4 USB update ..................... 23 2.5 Network update .................... 24 2.6 Factory reset .................... 24 Settings 3.1 Network connection .................. 24 3.2 styx share ...................... 25 3.3 Television ...................... 25 3.4 Software version ...
- Page 4 INDEX 9.2 Jamendo TOP 100 .................. 32 10. Arcade games .................... 32 VIII. styx WEB 1. Operating the menu ................... 33 styx news ...................... 33 RSS ........................ 33 Twitter ...................... 33 Weather ...................... 33 Advertising ...................... 33 World Time ....................... 33 IX. styx TV 1. Operating the menu ................... 34 YouTube & XXX (YouPorn) ................. 34 moviebox & styx net .................. 34 3.1 Download guide .................... 34 3.2 moviebox ...................... 35 3.3 styx net ...................... 35 VLC Media Player .................... 35 4.1 Operating the menu .................. 35 4.2 Playlist ...
-
Page 5: General Information
GENERAL INFORMATION Safety instructions Please read the following safety precautions carefully. Ensure that any repairs to your unit are carried out by qualified personnel. Opening the unit and attempting to repair it yourself voids all warranty claims! Do not interrupt the booting process this can lead to data loss and corruption of the software. -
Page 6: Front Panel
GENERAL INFORMATION Front panel USB 2.0 host connector. POWER ON/OFF To power off and to reboot. CHANNEL -,+ KEYS To change programs. LCD DISPLAY Displays the channel name/number & functions, in standby the time & date. CARD READER To insert a subscriber’s card. Always insert the card with the chip facing up. -
Page 7: Rear Panel
GENERAL INFORMATION Rear panel LNB IN Input to connect a satellite antenna. LNB OUT Output to connect another digital receiver. VIDEO Composite Video output for television sets (CVBS). AUDIO Stereo audio outputs Left/Right. MAINS Mains ON/OFF switch. RJ-45 port 10/100Mbit. ETHERNET HDMI Digital Audio/Video output for high definition television sets. -
Page 8: Connecting To Your Television
GENERAL INFORMATION Connecting to your television HDMI Connect your device to a high definition television set using a HDMI (High Definition Multimedia Interface) cable to output digital video and audio. If you have an amplifier with an HDMI Out/Input, which supports also audio over HDMI, connect the devices by two HDMI cable. - Page 9 GENERAL INFORMATION Component (Y/Pb/Pr) Connect your device to a high definition television set using a component video cable (Y-green, Pb-blue, Pr-red) to output video. To output audio connect the audio cable (red-audio right, white-audio left) from your device to the television or audio system. Video (Composite CVBS) Connect your device to a standard television set using a video cable to output video (CVBS).
-
Page 10: Connecting Audio
GENERAL INFORMATION Connecting audio To enjoy Dolby digital audio, your television or audio system must be able to decode Dolby digital audio. Connect your device to your television or audio system with an optical S/PDIF cable. Connecting USB 2.0 Your device has 3 USB 2.0 (1 x rear, 1 x front, 1 x internal) host ports to connect memory devices (memory stick, external hard disk) formatted in FAT32, EXT2, EXT3, NTFS. -
Page 11: Connecting To Your Network
GENERAL INFORMATION Connecting to your network Ethernet RJ45 connector Connect your device to the network with an Ethernet cable. NOTE: To operate all features of your device connect your device to your network via a Router which is connected to the Internet. If you cannot connect to your network or if ‘Connection failed!’... -
Page 12: Remote Control Functions
GENERAL INFORMATION Remote control functions STANDBY UP/DOWN Switch between operation and TV : Change channels (next/previous). standby/deep standby mode and to boot. MENU: Navigate in the menus. VOL+/VOL- LEFT/RIGHT Adjust the audio volume. : Adjust the audio volume. ... - Page 13 GENERAL INFORMATION styx TV Change the screen resolution. Enter/exit styx FEED Select a Multifeed. styx WEB Enter/exit styx web. LANG Select audio languages and encode the text EDIT & CI for movie subtitles. Enter/exit the edit menu. SUBT Select subtitle languages for programs and EJECT display the subtitle for movies.
-
Page 14: First Installation
II. FIRST INSTALLATION First installation After you turned on your device for the first time or after a factory reset, the installation wizard will start automatically. Operating the menu Select an option with the , keys. ... -
Page 15: Daily Usage
III. DAILY USAGE Volume control Press VOL+/VOL- or keys (while watching a program) to adjust the Volume volume. Mute Press MUTE key to turn the sound On and Off. Changing channels Press CH. UP/DOWN, keys or enter the channel number with the 0-9 Change numeric keys to change channels. -
Page 16: Screen Resolution
III. DAILY U USAGE Info ormati ion ba Press I INFO key t to display t the channe el number & name, li st name, ti ime. The cu urrent and next pro gram infor rmation, if f available e, will be d displayed. -
Page 17: Teletext
III. DAILY USAGE Teletext Press TEXT key to display Teletext, if available. Operate the menu with the 0-9 numeric and coloured ( ) keys. Edit channels, Common Interface, event list Press key to display detail information about the channel. Lock Select On to lock the channel. -
Page 18: Edit/Search Window
IV. PROGRAM GUIDE (EPG) Edit/search window Select the edit/search window to rename (user lists, channels, recordings), to insert (address, password, username) and to enter a search term. Select a letter with the /OK keys. Letter Delete Press key to delete a letter. A/a/…... -
Page 19: Recording
V. RECORDING Recording guide USB memory To record programs an USB memory 2.0 must be connected formatted in FAT32, EXT2, EXT3. To format an USB memory larger than 32GB with your windows PC in FAT32, download the Fat32Formatter program from the internet to your PC. ... -
Page 20: Instant Recording
V. RECORDING Instant recording Press RECORDING key to start the recording. Recording The duration as set in Multimedia (User menu) is displayed. Duration Press the keys to change the duration (max. 240 min.) in 10 min. steps. Stop Press STOP/EXIT keys to stop a recording. -
Page 21: Menu
VI. MENU Operating the menu Select an option with the , keys. Menu Enter an option with the OK key. Change values with the keys. Values Insert values with the 0-9 numeric keys. ... -
Page 22: Edit Satellite
VI. MENU Search options All/FTA/NIT/FAST SCAN Select an option to start the search. Transponder Select this option to add, edit or search transponders. DiSEqC/USALS Select this option to search all installed satellites (DiSEqC, DiSEqC 1.2 & USALS) at one time. ... -
Page 23: Edit Pid
VI. MENU 2.2.4 Edit PID Satellite Select a satellite. Transponder Select a transponder. Channel Rename/name the channel. Video PID Enter the Video PID. Audio PID Enter the Audio PID. PCR PID Enter the PCR PID. Save Press MENU key to save the changes. DiSEqC 1.2 Select a satellite. -
Page 24: Network Update
VI. MENU Network update Update your device with the latest system software via the Internet. Network update Select Network update to update your device with the latest software version. Select a Patch (game patch, link patch, charts patch) to Patch download. -
Page 25: Styx Share
VI. MENU styx share Stream movies, MP3s, photos (only supported formats) from your PC Shared Documents Folder to the device in your local network. Enter styx share (Settings menu) to connect. Windows Select the PC Windows system (XP/Vista/Windows7). PC IP address Enter the IP address of your PC. -
Page 26: Common Interface
VI. MENU Common interface View information about the Conditional access module. Slot The installed modules for Slot 1 (bottom) and Slot 2 (top) are displayed. Menu Enter the card menu for details. USER Menu & audio language Menu language Select the menu language. Audio language Select the standard audio language for programs. -
Page 27: Create & Edit
VI. MENU CREATE & EDIT Edit channel Delete Press key delete a channel. Lock/unlock Press key to lock/unlock a channel. Move Press key to move the position of a channel or multiple channels at once. Press key to select a channel or multiple channels. ... -
Page 28: Styx-I
VI. MENU styx-i styx–i is an interface to connect your device via network with your PC. Edit satellite & user lists from your PC. Browse the directories of the connected USB memories to copy & delete files. Stream live channels from your device to your PC (coming soon). - Page 29 VII. s styx M MEDIA erating g the m menu with the keys. lect a men u option w e /OK lect an opt tion file/fold der with the K keys. Press t y to chang e between styx sha and US...
-
Page 30: Styx Media
VII. styx MEDIA Details Press INFO key to display the title, present & total playtime. Edit movies/recordings & folders Sort Press key to sort (A-Z/Z-A, Date). Delete Press key to delete. Lock Press key to lock/unlock a folder or a recording. ... -
Page 31: Shoutcast
VII. styx MEDIA Edit Photos & folders Sort Press key to sort (A-Z/Z-A, Date). Delete Press key to delete. Shoutcast Shoutcast Stream more than 25.000 Internet radio stations. Streaming Select a station and press OK key. Press STOP key to stop. List Press key to display the genre. -
Page 32: Jamendo Top 100
VII. styx MEDIA Charts Press key to select the Top charts of a country. Select a Song and press OK key to start the download. Press PLAY key to play the Song. Press STOP key to stop. musicbox provides links to other sites/servers on the Internet to download NOTE... -
Page 33: Styx Web
VIII. styx WEB Operating the menu Select an option with the , / OK keys. Scroll pages with the and PAGE keys. To enter styx web your device must be connected with the internet. styx news Information about latest updates and other news are displayed. -
Page 34: Styx Tv
IX. styx TV Operating the menu Select an option with the keys and OK key to enter. Select an option, file/folder with the /OK keys. Enter a value with the the 0-9 numeric keys. NOTE To enter styx TV... -
Page 35: Moviebox
IX. styx TV Status 100% is displayed when the download is complete. Delete Press key to delete. Playback Press PLAY key to start playback during download. Press STOP/EXIT keys to stop. Pause Press PAUSE key to pause. Details Press INFO key to display the title, present & total playtime. Screen Press RES key to change the screen format of a movie. -
Page 36: Playlist
IX. styx TV Streaming Press PAUSE key to pause and PLAY key to resume streaming. Press STOP/EXIT keys to stop. Press RES key to change the screen format. Screen Playlist Activate the VLC Web interface to display the playlist with your device. View Add interface Web Interface... -
Page 37: Streaming Internet Tv
IX. styx TV Select a Frame Rate of 25 fps. Audio codec Select the audio codec and bitrate. Select Save. Options - Generated stream output string Insert the Video and Audio PID {pid-video=100,pid-audio=101} after mux=ts Select Stream to complete the setting. Add DVDs and IPTV streams the same way. -
Page 38: Feature & Specification
FEATURES & SPECIFICATION styx TV Watch YouTube & YouPorn Videos moviebox: Play & Download Movies from the web styx net: Play & Download Movies, MP3s, Photos from PC & FTP Servers of family and Friends Stream P2P Internet TV (TVants, Sopcast, etc.), DVD’s, Movies, Web Cams from a PC with VLC Media Player ... - Page 39 FEATURES & SPECIFICATION Transport stream A/V Decoding A/V & Data In/Out Aspect Ratio 16:9, 4:3, Letterbox USB 2.0 3 x USB Host connector Video Resolution 576i, 576p, 720p, 1080i HDMI Digital Video/Audio Output Profile Level MPEG-2 MP@ML, MP@HL, Component Y/Pb/Pr Video Output (RCA) MPEG-4 H.264/AVC HP@L4 S/PDIF Optical Output Frame Rate...
