User's Manual

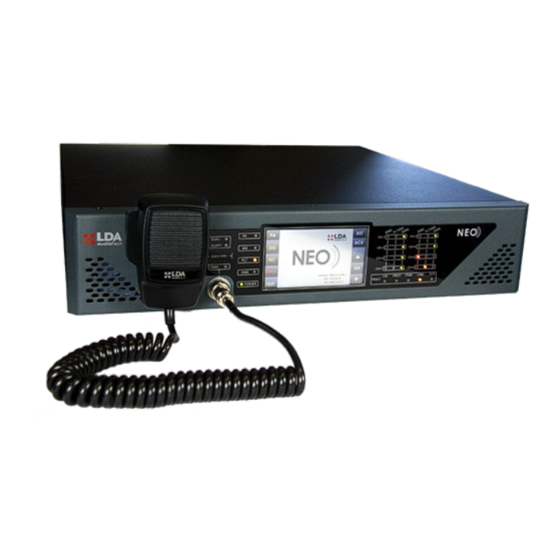

Model: LDA NEO 8060

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NEO 8060 and is the answer not in the manual?

Questions and answers

Related Manuals for LDA NEO 8060

Summary of Contents for LDA NEO 8060

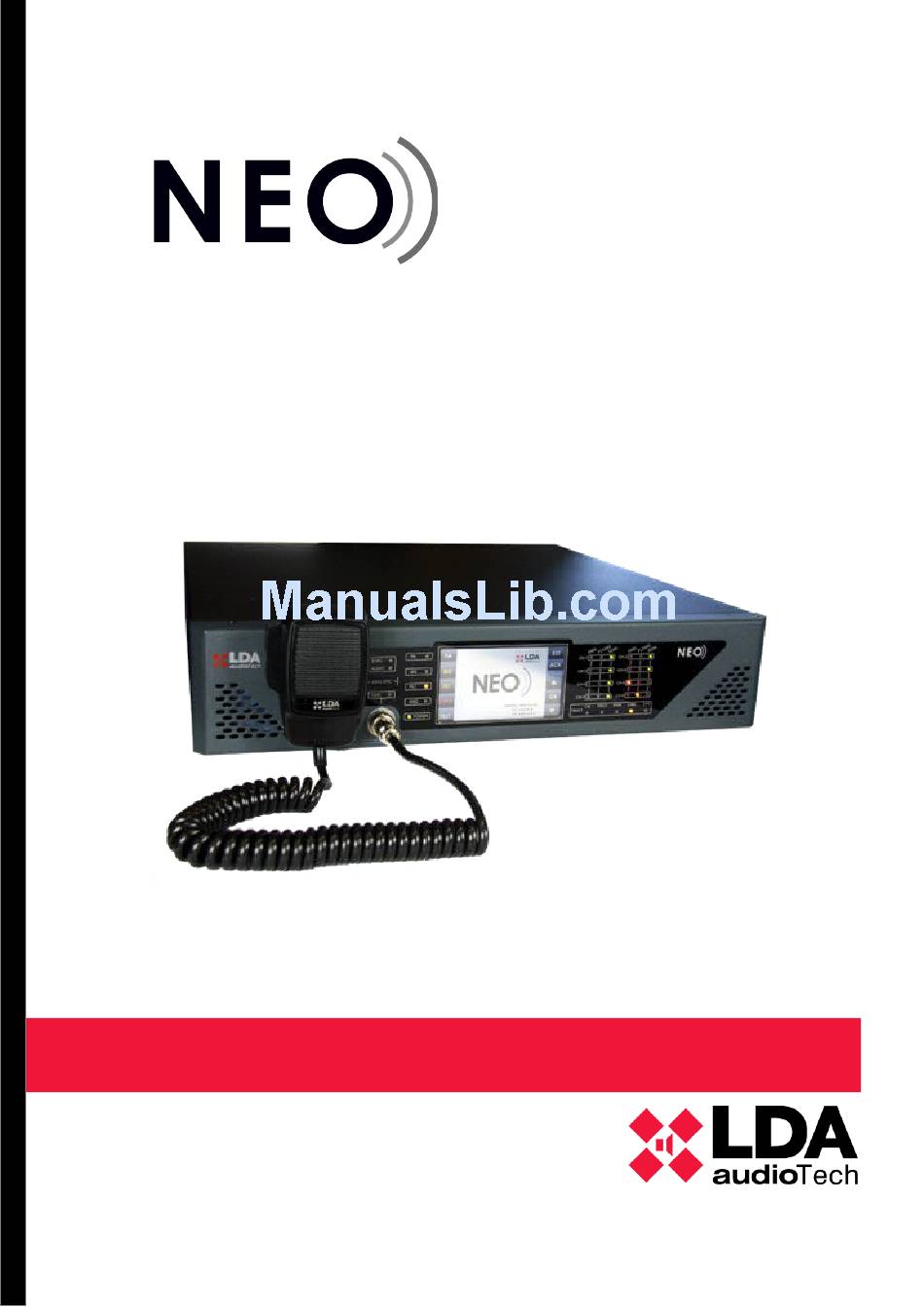

  • Page 1 User's Manual Model: LDA NEO 8060...

  • Page 2: Table Of Contents

    Table of Contents 1. INTRODUCTION..........................1 2. SAFETY INSTRUCTIONS......................1 3. DESCRIPTION..........................2 3.1. INDICATORS..........................3 3.1.1GENERAL STATUS INDICATORS ....................3 3.1.2. STATUS INDICATORS PER CHANNEL..................4 3.1.3. SUPERVISED FUNCTION INDICATORS..................4 3.1.4. EMERGENCY SOURCE INDICATORS..................5 3.2. CONTROLS........................... 5 3.2.1. DIRECT ACCESS CONTROLS...................... 6 3.2.2.
  • Page 3 5.5 BACK-UP AMPLIFICATION......................43 5.6 SPEAKER LINES..........................44 5.6.1 LINE CABLE FOR SPEAKER...................... 44 5.6.2 CABLING SYSTEM MODE AB..................... 44 5.6.3 SUPERVISION OF SPEAKER CONNECTIONS................45 5.6.4 END OF LINE DEVICES........................ 45 5.7 VOLUME CONTROLERS ......................48 6. FAILURE DETECTION ....................... 48 6.1.SPEAKERS LINE .........................49 6.2.

  • Page 4: Introduction

    US ER' S MA N UA L : N EO 8 06 0 1. INTRODUCTION 2. SAFETY INSTRUCTIONS 1. Please read carefully these safety instructions. 2. Keep this User Manual for future reference. 3. Unplug the equipment from the AC before cleaning. 4.

  • Page 5: Description

    7. Control output for attenuators 8. Input Parametric Equalizer with 7-band per channel 9. Output Parametric Equalizer with 7-band per channel 10. Loudness Compensation LDA Audio Tech - 31 st Severo Ochoa St.- 29590 MÁLAGA, SPAIN. Tl: +34 952028805. www.lda-audiotech.com...

  • Page 6: Indicators

    US ER' S MA N UA L : N EO 8 06 0 3.1. INDICATORS Picture 1: Indicators 3.1.1GENERAL STATUS INDICATORS Status indicators show at all times the operating condition of the equipment or system. They are located at the left of the screen. (a) POWER : "POWER"...

  • Page 7: Status Indicators Per Channel

    Active (on) when there is a power failure in the system. It may be due to a failure at the main power supply or at the emergency power supply. Restart the fault condition. Amber color. LDA Audio Tech - 31 st Severo Ochoa St.- 29590 MÁLAGA, SPAIN. Tl: +34 952028805. www.lda-audiotech.com...

  • Page 8: Emergency Source Indicators

    US ER' S MA N UA L : N EO 8 06 0 (l) LINK: “LINK” Active (on) when there is a link failure between the equipment, and some elements of the distributed system. Restart the fault condition. Amber color. (m) SYSTEM: “SYSTEM”...

  • Page 9: Direct Access Controls

    During the testing process all manual controls will be inactive. If they receive a signal from the CIE, for the activation of an emergency warning, the test will end. LDA Audio Tech - 31 st Severo Ochoa St.- 29590 MÁLAGA, SPAIN. Tl: +34 952028805. www.lda-audiotech.com...

  • Page 10: Reset

    US ER' S MA N UA L : N EO 8 06 0 3.2.4. RESET The "RESET" button is located on the top right side of the screen. The "RESET" button resets the operating condition of the equipment when it is in a state of emergency or failure. 3.2.5.

  • Page 11: Zone Selection Window

    Selection-band on the right side. In Picture 4, zones 1, 2, 3, 4 y 7 (c) ZONE INDICATING FAILURE Yellow box on the left side of the zone button. In Picture 4 zone 4 LDA Audio Tech - 31 st Severo Ochoa St.- 29590 MÁLAGA, SPAIN. Tl: +34 952028805. www.lda-audiotech.com...

  • Page 12: User Profiles - Access Level

    US ER' S MA N UA L : N EO 8 06 0 (d) NO SELECTED ZONE Without selection band. In Picture 4, 5 and 6 zones, where zone 8 can not be selected by default once turned off (see 4.4 ). (e) DISABLED ZONE Disabled zone.

  • Page 13: Access Level 2

    The wire size range for each pole of this connector is: 0.14 1.5 mm2 (30 AWG). Picture 7: Emergency supplier monitor Input LDA Audio Tech - 31 st Severo Ochoa St.- 29590 MÁLAGA, SPAIN. Tl: +34 952028805. www.lda-audiotech.com...

  • Page 14: Emergency Activation Interface

    US ER' S MA N UA L : N EO 8 06 0 Marking Description Type Signals Activation Contact closure free of voltage between ┴ NO Failure in the main power supply. Input NC ┴ NO Open contact closure free of voltage between ┴...
  • Page 15 → unit). The wire size range for each pole of this connector is: 0.14 1.5 mm2 (30 14 AWG). Picture 11: System State Outputs LDA Audio Tech - 31 st Severo Ochoa St.- 29590 MÁLAGA, SPAIN. Tl: +34 952028805. www.lda-audiotech.com...

  • Page 16: Speaker Line Devices Interface

    US ER' S MA N UA L : N EO 8 06 0 Marking Description Type Signals Activation Voltage-free contact closure Active Emergency State Output Output between terminals Close (max 350mA / 350V dc) Voltage-free contact closure Active Failure State Output Output between terminals Close...
  • Page 17 Activation ┴ A Voltage-free contact closure ┴ A B End-of-line device input Input CH-x ┴ B Voltage-free contact closure Table 6: End-of-line device input LDA Audio Tech - 31 st Severo Ochoa St.- 29590 MÁLAGA, SPAIN. Tl: +34 952028805. www.lda-audiotech.com...

  • Page 18: External Systems Slot Interface

    US ER' S MA N UA L : N EO 8 06 0 3.4.4. EXTERNAL SYSTEMS SLOT INTERFACE The equipment has a slot where the ETX-1 module can be integrated, which allows connection to other public address systems, and integration with third-party systems. The ETX-1 module is delivered as part of the equipment.
  • Page 19 (k) SYTEM CONNECTION CONFIGURATION SWITCH The equipment has a switch for configuring the behavior of the system ports. Depending on their position. Picture 19: System Connection Configuration Switch LDA Audio Tech - 31 st Severo Ochoa St.- 29590 MÁLAGA, SPAIN. Tl: +34 952028805. www.lda-audiotech.com...

  • Page 20: Equipment Power Supply

    US ER' S MA N UA L : N EO 8 06 0 Marking Description Type Signals Activation Port A Control Data Config. Position 00 ↓ ↓ Port B Audio Data Port A control + audio Data ↓ ↑ Data VLAN1, audio VLAN2 Config.
  • Page 21 The wire size range for each pole of this connector is 0.2 6mm2 (24 8 AWG). Picture 23: Emergency Power Supply Input LDA Audio Tech - 31 st Severo Ochoa St.- 29590 MÁLAGA, SPAIN. Tl: +34 952028805. www.lda-audiotech.com...

  • Page 22: Speakers Lines

    US ER' S MA N UA L : N EO 8 06 0 Markin Description Type Signals Activation 20 - 24V DC Emergency Power Supply Input Input Maximum Power: see technical data (Chapter 4) Table 13: Emergency Supply Input 3.4.6.SPEAKERS LINES (p) SPARE CHANNELS INPUT The equipment has 8 inputs for redundant amplifier channels.

  • Page 23: Inputs And Outputs Of Audio Source

    → → with the unit). The wire size range for each pole of this connector is: 0.14 1.5 mm2 (30 AWG). Picture26: Record Output LDA Audio Tech - 31 st Severo Ochoa St.- 29590 MÁLAGA, SPAIN. Tl: +34 952028805. www.lda-audiotech.com...
  • Page 24 US ER' S MA N UA L : N EO 8 06 0 Marking Descrition Type Signals Activation Message from emergency microphone Balanced Audio at line level Ouput broadcasted by any zone through ┴ voice evacuation ┴ M Recording output activation Ouput 0V DC Table 16: Recording Output...

  • Page 25: System Integration Ports

    The equipment has 14 GPIO ports for system events, programmable thought the configuration software. GPIO ports work with TTL-level logic signals (0 - 5V DC). LDA Audio Tech - 31 st Severo Ochoa St.- 29590 MÁLAGA, SPAIN. Tl: +34 952028805. www.lda-audiotech.com...

  • Page 26: Functioning

    US ER' S MA N UA L : N EO 8 06 0 Picture 30: I/O Ports General Purposes (GPIO) The connection is made using 7 female connectors euroblock type with 3 contacts and pitch 3.81 mm (supplied with the unit). The wire size range for each pole of this connector is: 0.14 →...

  • Page 27: Emergency

    If a zone is assigned with an an evacuation message is broadcasted, the alert message will immediately cease . LDA Audio Tech - 31 st Severo Ochoa St.- 29590 MÁLAGA, SPAIN. Tl: +34 952028805. www.lda-audiotech.com...

  • Page 28: Stopping Voice Alarm

    US ER' S MA N UA L : N EO 8 06 0 Click on the desired option and a selection band will appear in the button. Then select the zone or zones for which the message will be played, as indicated in section 3.2.7 . After the selection of the zones, press "OK "...

  • Page 29: Voice Evacuation Zone Volume Adjustment

    4.4. DEACTIVATED The equipment / system provides features to disable voice alarm zones that will not be LDA Audio Tech - 31 st Severo Ochoa St.- 29590 MÁLAGA, SPAIN. Tl: +34 952028805. www.lda-audiotech.com...

  • Page 30: Deactivating/ Activating A Zone

    US ER' S MA N UA L : N EO 8 06 0 used. Once disabled, these will be displayed in the menus, as described in section 3.2.7 (e). You can not perform any operation on a disabled zone. The information provided for the states of emergency or failure will not be displayed .

  • Page 31: Zone Volume Setting

    1dB , 5dB , 10dB. (c) MUTE BUTTON The mute button allows a radical decrease of the volume of the zone / zones to a minimum. LDA Audio Tech - 31 st Severo Ochoa St.- 29590 MÁLAGA, SPAIN. Tl: +34 952028805. www.lda-audiotech.com...

  • Page 32: Sound Source Assign

    US ER' S MA N UA L : N EO 8 06 0 When disabled, the zones will recover the volume they had before being silenced. If you turn the mute button, on a zone / zones which was not selected , there will be no setting on it. (d) VOLUME INDICATOR The volume indicator goes from -100dB to 0dB, minimum and maximum respectively zone volume.

  • Page 33: Avanced Options

    To return, press the "BACK" button. Overcome the access control, the level of access authorization, will change to "Level 3" and access the menu, which contains the options: LDA Audio Tech - 31 st Severo Ochoa St.- 29590 MÁLAGA, SPAIN. Tl: +34 952028805. www.lda-audiotech.com...
  • Page 34 US ER' S MA N UA L : N EO 8 06 0 Picture 34: Advanced Menu Window (a) AUDIO INPUT Access window settings for the audio inputs. For more detail see 4.5.4 (b) AUDIO OUTPUT Access settings window for audio outputs. For more detail see 4.5.5 (c)MONITOR Access audio monitor window.

  • Page 35: Avanced Options. Audio Input

    The setting step button, allows you to select the following increment/decrement to be performed when you press on the buttons. You can select from the following, pressing consecutively : 1dB , 5dB , 10dB. LDA Audio Tech - 31 st Severo Ochoa St.- 29590 MÁLAGA, SPAIN. Tl: +34 952028805. www.lda-audiotech.com...

  • Page 36: Avanced Options. Audio Output

    US ER' S MA N UA L : N EO 8 06 0 (g) SETTING BUTTONS The window has two buttons to adjust gain , " +" and "- ", each time you press one of them, it will be increased or decreased, as many decibels as the " Pass Set" is displaying. (h) MUTE BUTTON The mute button allows to lower the input volume to a minimum.
  • Page 37 " OK" . To cancel, press the " BACK" button. LDA Audio Tech - 31 st Severo Ochoa St.- 29590 MÁLAGA, SPAIN. Tl: +34 952028805. www.lda-audiotech.com...

  • Page 38: Avanced Options. Monitor

    US ER' S MA N UA L : N EO 8 06 0 4.5.6. AVANCED OPTIONS. MONITOR Picture 37: Monitor Window (a) SELECTION BUTTONS On the left side of the screen there are buttons for selecting the element to be monitored. Click on the desired item.

  • Page 39: Avanced Options. Messages

    If the operation is in progress, a recording time indicator will display a count up, indicating the recording time. LDA Audio Tech - 31 st Severo Ochoa St.- 29590 MÁLAGA, SPAIN. Tl: +34 952028805. www.lda-audiotech.com...
  • Page 40 US ER' S MA N UA L : N EO 8 06 0 (c) STOP BUTTON The stop button allows to stop playback or recording completely. Life indicator shows the length of the selected message. Once the action has stopped, both the playback and recording should be started from the beginning of the message.

  • Page 41: Avanced Options. Preset Loading

    To load a preset, select it by clicking on it. To confirm press "OK". By applying settings you can create, edit and delete the preset. LDA Audio Tech - 31 st Severo Ochoa St.- 29590 MÁLAGA, SPAIN. Tl: +34 952028805. www.lda-audiotech.com...

  • Page 42: Avanced Options. System

    US ER' S MA N UA L : N EO 8 06 0 4.5.9 AVANCED OPTIONS. SYSTEM. Picture 40: System Window (a) SYSTEMS EQUIPMENT BUTTONS In the left column, are shown the different units in the system. If the progress indicator appears (see 3.2.6), use the scroll control to display the other available equipment.

  • Page 43: Connection And Setup

    The requirements of the emergency power supply can be found in chapter 7. The Picture 43 shows the connection diagram of the emergency power supply. LDA Audio Tech - 31 st Severo Ochoa St.- 29590 MÁLAGA, SPAIN. Tl: +34 952028805. www.lda-audiotech.com...

  • Page 44: Paging Microphones And Pa Elements (Acsi Bus)

    US ER' S MA N UA L : N EO 8 06 0 Picture 43: Emergency power supply diagram The emergency supply system must be able to provide emergency power supply to the system for at least 30 minutes in operation and at least 24 hours in standby mode. Select certified batteries, follow the set up instructions and maintenance instructions specified by the manufacturer.

  • Page 45: Flexnet Connection

    Picture 45 and make sure all the devices are part of the same network (see chapter 5.1). Picture 45: FlexNet LDA Audio Tech - 31 st Severo Ochoa St.- 29590 MÁLAGA, SPAIN. Tl: +34 952028805. www.lda-audiotech.com...

  • Page 46: Voice Evacuation Zones

    US ER' S MA N UA L : N EO 8 06 0 The maximum band width that FlexNet occupies in the standard Ethernet network is of 25Mb/s, with a maximum latency time of 5ms. On Ethernet network of 100Mb/s, it admits a routing at network level 2.

  • Page 47: Speaker Lines

    This wiring format can be used with or without end of line devices (see 5.6.4). This way, the channel power amplification is distributed on both output lines. LDA Audio Tech - 31 st Severo Ochoa St.- 29590 MÁLAGA, SPAIN. Tl: +34 952028805. www.lda-audiotech.com...

  • Page 48: Supervision Of Speaker Connections

    US ER' S MA N UA L : N EO 8 06 0 Picture 45: Speakers Line. AB wiring 5.6.3 SUPERVISION OF SPEAKER CONNECTIONS Every speaker connection is supervised independently. There are two complementary ways by which the supervision of a speaker connection is done: line impedance and end of line devices. Using the line of impedance, the device emits a signal periodically every 30 seconds, in a non audible frequency.
  • Page 49 Dimensions (A x H x P) 66,3mm x 20mm x 50mm / 2,61in x 0,79in x 1,97in Accessories Male Euroblock connectors Views (Measurements in mm) LDA Audio Tech - 31 st Severo Ochoa St.- 29590 MÁLAGA, SPAIN. Tl: +34 952028805. www.lda-audiotech.com...
  • Page 50 US ER' S MA N UA L : N EO 8 06 0 Picture 45: Speaker Lines Terminator Views Line Terminator installation 1. Connect the two wires from the en of the speaker lines to the line terminator input. 2. Connect the two output cables of the end of line device to the line of input correspondent to the “END OF LINE INPUTS”...

  • Page 51: Volume Controlers

    NOTE: After a volume controller you must not connect an end of line device, as it can cause a failure in the failure detection system of speaker line. 6. FAILURE DETECTION LDA Audio Tech - 31 st Severo Ochoa St.- 29590 MÁLAGA, SPAIN. Tl: +34 952028805. www.lda-audiotech.com...

  • Page 52: Speakers Line

    US ER' S MA N UA L : N EO 8 06 0 6.1.SPEAKERS LINE The system will indicate a failure in the speaker line in case a short circuit or an open circuit has been detected. If this error occurs, check the specified line in the system error log. To do this, disconnect the line and measure the impedance between the cable terminals through an impedance measuring equipment.

  • Page 53: Link

    Clean the entrance and exit ports of air with a vacuum cleaner. – Check the connections of the equipment and the ground connection. 8. TECHNICAL FEATURES LDA Audio Tech - 31 st Severo Ochoa St.- 29590 MÁLAGA, SPAIN. Tl: +34 952028805. www.lda-audiotech.com...
  • Page 54 US ER' S MA N UA L : N EO 8 06 0 Model Power Supply 115 / 230V~ 50/60Hz. Protected by a fuse (8A) Power consumption 550W max / 100W a 1/8 output power Frecuency Response 20 - 20.000Hz +/-1dB Signal to noise ratio >98dB, A-weighted Distortion factor...

  • Page 55: Appendix A: Definitions

    EMG POWER FLT • MAIN POWER FLT • CIE PATH FLT • NETWORK FLT • PROTECT FLT Amp Ch X • PROTECT FLT Fuse X LDA Audio Tech - 31 st Severo Ochoa St.- 29590 MÁLAGA, SPAIN. Tl: +34 952028805. www.lda-audiotech.com...

  • Page 56: State Of Deactivation Log

    US ER' S MA N UA L : N EO 8 06 0 • EMIC FLT • LINE X FLT Open Circuit • LINE X FLT Close Circuit • SYSTEM FLT Safe Mode • SYSTEM FLT Configuration 10.3. STATE OF DEACTIVATION LOG •...
  • Page 57 AWG (American Wire Gauge): American Wire Gauge. Classification according to USA standard diameters.  – mm cable diameter in millimeters – : Cross-sectional area in square millimeters cable LDA Audio Tech - 31 st Severo Ochoa St.- 29590 MÁLAGA, SPAIN. Tl: +34 952028805. www.lda-audiotech.com...
  • Page 58 US ER ' S MA N UA L : N EO 8 06 0 Er. 0.7b...
