Summary of Contents for MIRACLED LED-747

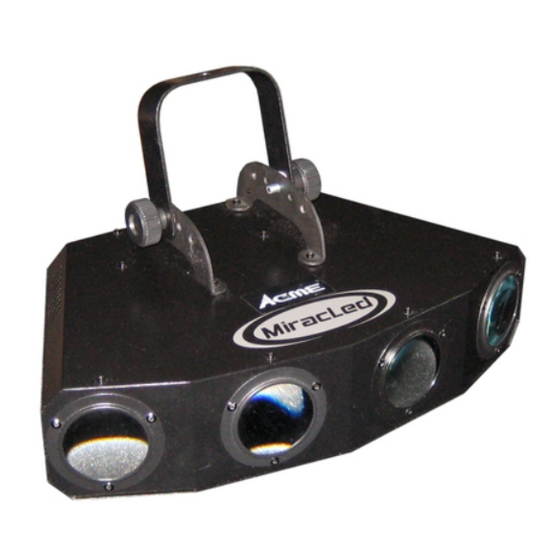

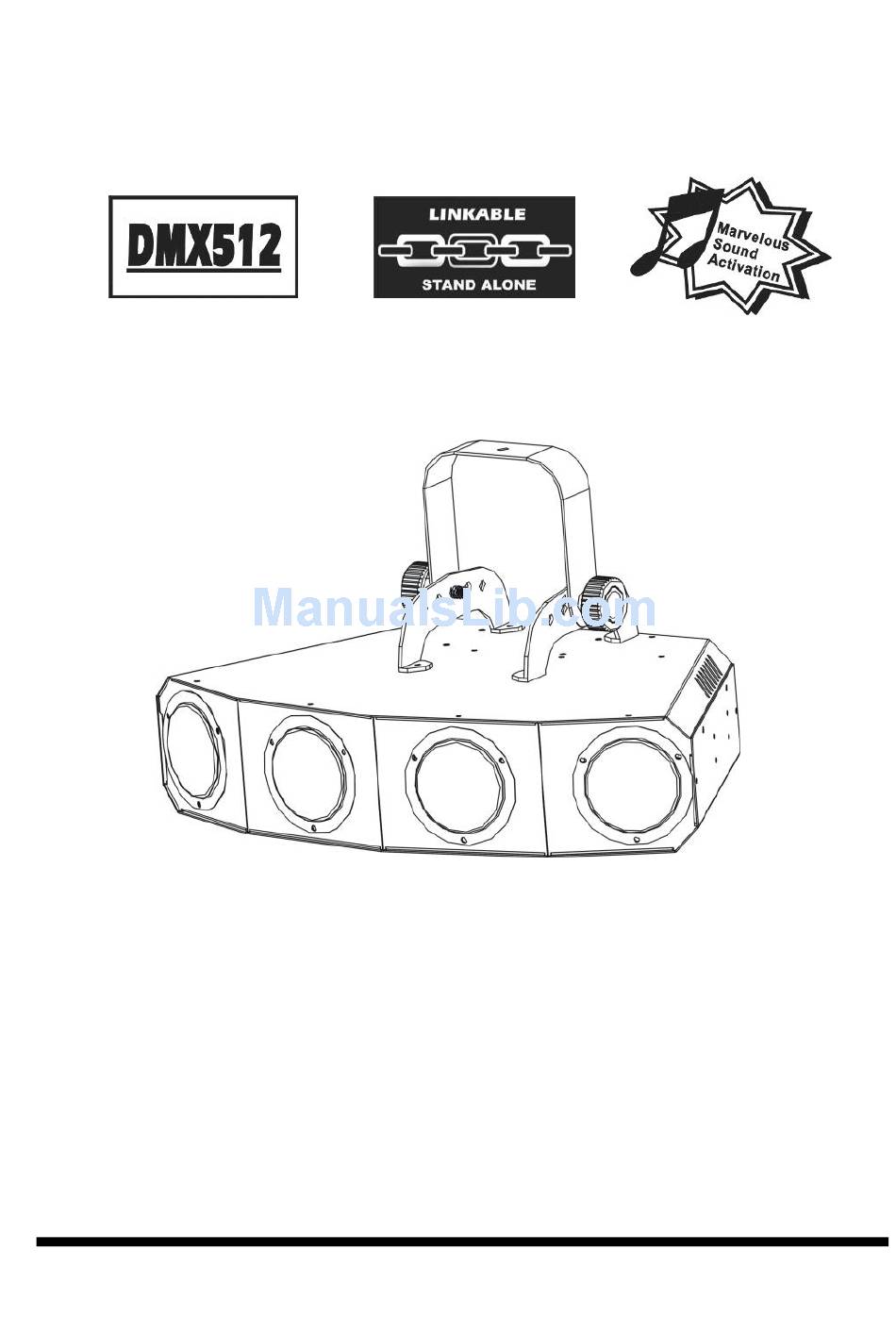

- Page 1 MIRACLED LED-747 User Manual Please read the instructions carefully before use...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Safety Instructions 2. Technical Specifications 3. Main Function 4. How to control the fixture 5. DMX 512 Configuration 6. DMX 512 Connections 7. Troubleshooting 8. Fixture Cleaning... - Page 3 1. Safety Introductions Please read the instructions carefully which includes important information about the installation, operation and maintenance. WARNING Please keep this User Manual for future consultation. If you sell the fixture to another user, be sure that they also receive this instruction booklet. ...
-
Page 4: Technical Specifications
2. Technical Specifications It can be operated by DMX512 control or can be used as an individual unit without controller. It can be linked together as many as required in master/slave mode, and perform the great built-in programmed lighting shows triggered by music. ... - Page 5 DMX 512 Address Setting Press the MENU button up to when the is shown on the display. Pressing ENTER button and the display will blink. Use DOWN and UP button to change the DMX 512 address. Once the address has been selected, press ENTER button to setup or automatically return to the main functions without any change after 10 seconds.
- Page 6 Slave Mode Press the MENU button up to when the is shown on the display. Pressing ENTER button, Use DOWN and UP button to select the (Slave Mode 1and 2). Back to the previous functions without any change press MENU button. Press the MENU button up to when the is shown on the display.
- Page 7 No need to turn the unit off when you change the DMX address, as new DMX address setting will be effected at once. Every time you turn the unit on, it will show the type on the display and move all the motors to their ‘home’ position and you may hear some noises for about 20 seconds.
-
Page 8: Dmx512 Configuration
4.3 DMX Controller An universal DMX controller to control the units, you have to set DMX address from 1 to 512 channel so that the units can receive DMX signal. Press the MENU button up to when the is showing on the display. Pressing ENTER button and the display will blink. -
Page 9: Dmx512 Connections
6. DMX512 Connections The DMX512 is widely used in intelligent lighting control, with a maximum of 512 channels. Connect the fixture together in a “daisy chain” by XLR plug cable from the output of the fixture to the input of the next fixture. The cable cannot be branched or split to a “Y” cable. -
Page 10: Troubleshooting
7. Troubleshooting Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: A. The fixture does not work, no light and the fan does not work 1. Check the connection of power and main fuse. 2. -
Page 11: Fixture Cleaning
8. Fixture Cleaning The cleaning of internal must be carried out periodically to optimize light output. Cleaning frequency depends on the environment in which the fixture operates: damp, smoky or particularly dirty surrounding can cause greater accumulation of dirt on the fixture’s optics. ... - Page 12 EC - Declaration of Conformity We declare that our products (lighting equipments) comply with the following specification and bears CE mark in accordance with the provision of the Electromagnetic Compatibility (EMC) Directive 89/336/EEC. EN55014-2: 1997 A1: 2001, EN61000-4-2: 1995; EN61000-4-3: 2002; EN61000-4-4: 1995;...
