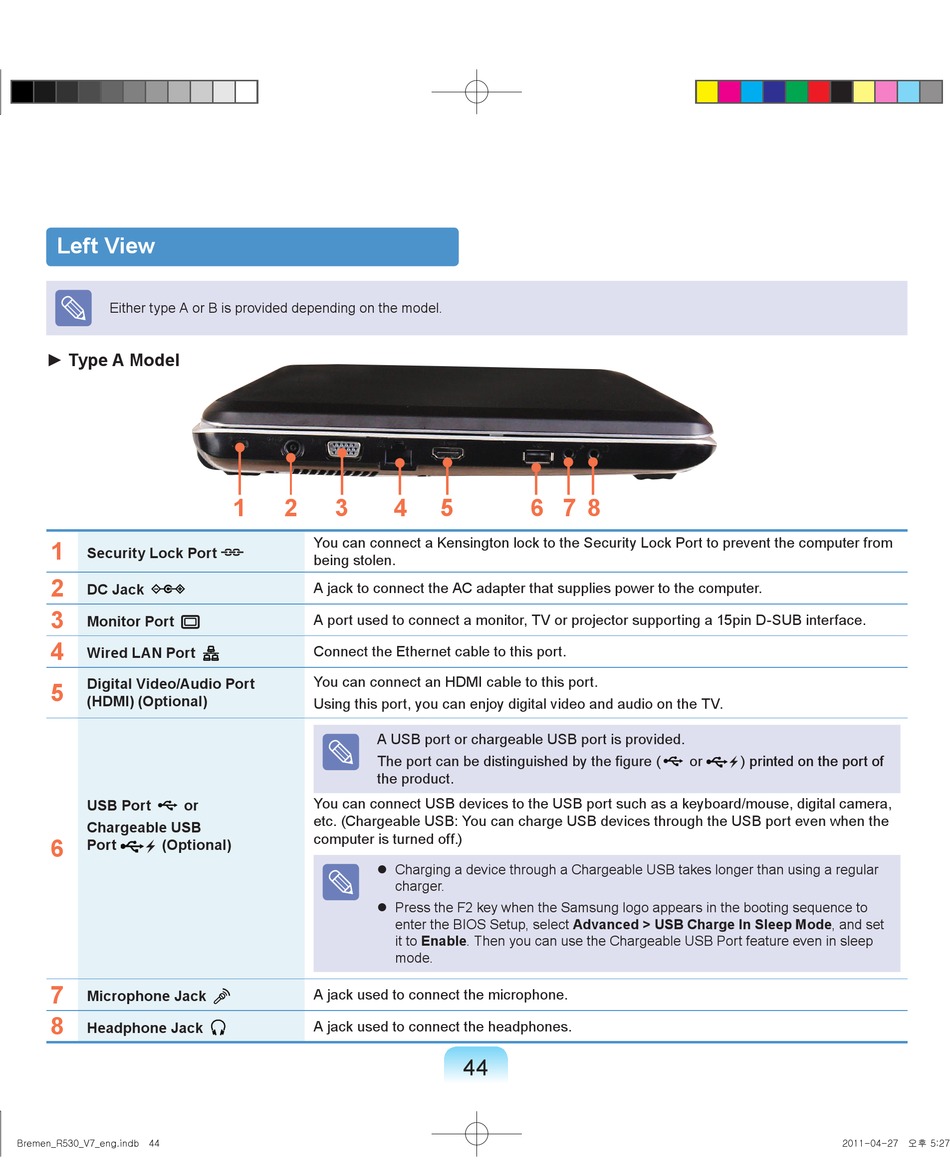

Left View
Either type A or B is provided depending on the model.
► Type A Model
1
Security Lock Port
2
DC Jack
3
Monitor Port
4
Wired LAN Port
Digital Video/Audio Port
5
(HDMI) (Optional)
USB Port or
Chargeable USB
6
Port (Optional)
7
Microphone Jack
8
Headphone Jack
1 2 3 4
You can connect a Kensington lock to the Security Lock Port to prevent the computer from
being stolen.
A jack to connect the AC adapter that supplies power to the computer.
A port used to connect a monitor, TV or projector supporting a 15pin D-SUB interface.
Connect the Ethernet cable to this port.
You can connect an HDMI cable to this port.
Using this port, you can enjoy digital video and audio on the TV.
A USB port or chargeable USB port is provided.
The port can be distinguished by the figure (
the product.
You can connect USB devices to the USB port such as a keyboard/mouse, digital camera,
etc. (Chargeable USB: You can charge USB devices through the USB port even when the
computer is turned off.)
 Charging a device through a Chargeable USB takes longer than using a regular
charger.
 Press the F key when the Samsung logo appears in the booting sequence to
enter the BIOS Setup, select Advanced > USB Charge In Sleep Mode, and set
it to Enable. Then you can use the Chargeable USB Port feature even in sleep
mode.
A jack used to connect the microphone.
A jack used to connect the headphones.
5 6 7 8

or ) printed on the port of printed on the port of
