SpeedStream 5260 Installation Manual

Adsl lan modem

Advertisement

Quick Links

SpeedStream
5260
ADSL LAN Modem
Installation Guide
Part No. 007-5260-002, Rev B

Advertisement

loading
Need help?

Need help?

Do you have a question about the 5260 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for SpeedStream 5260

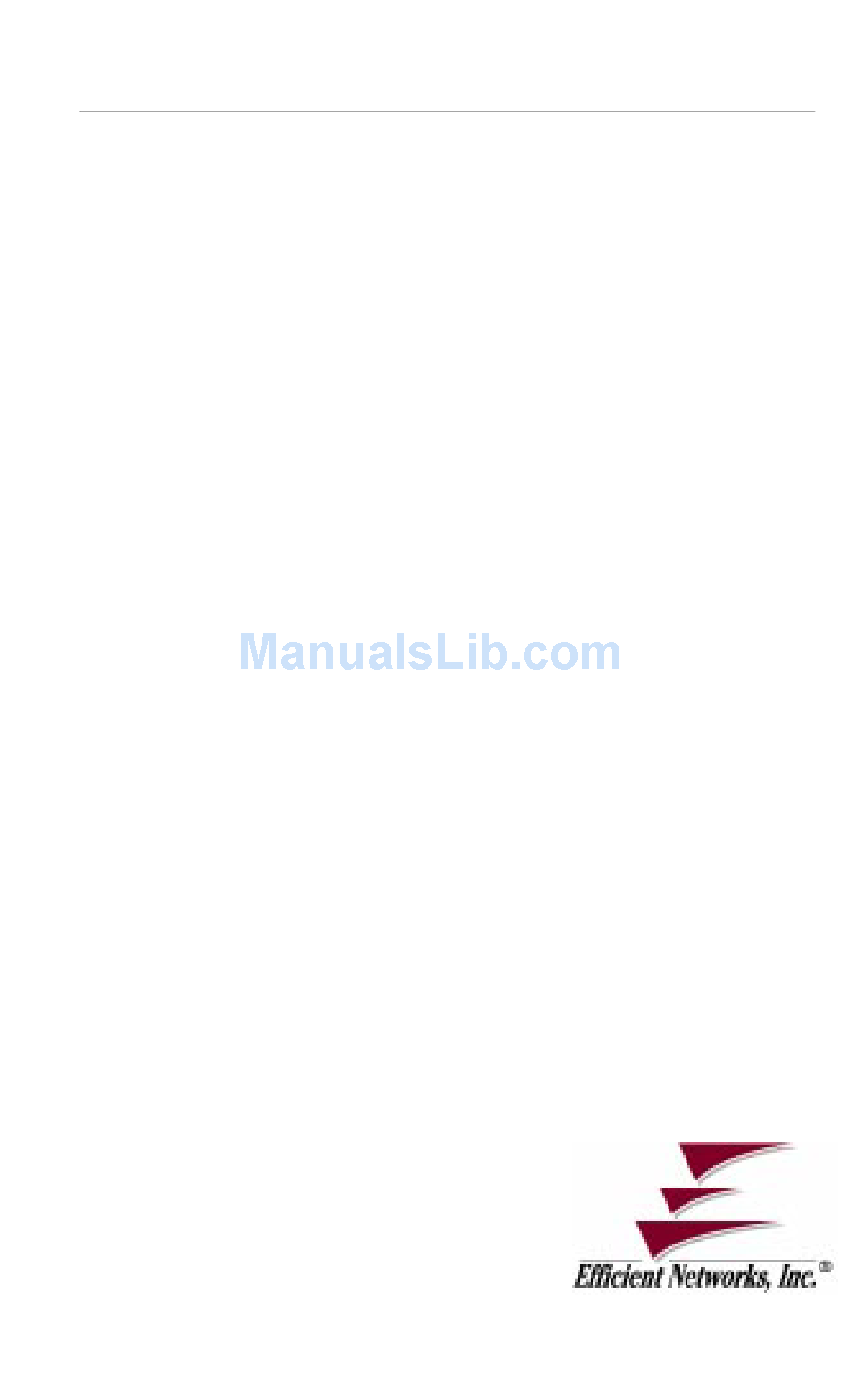

  • Page 1 SpeedStream 5260 ADSL LAN Modem Installation Guide Part No. 007-5260-002, Rev B...
  • Page 2 © Copyright 1999-2000, Efficient Networks, Inc. All rights reserved. Printed in the U.S.A. Product names mentioned herein may be trademarks and/or registered trademarks of their respective companies. Ef- ficient Networks, Inc. shall not be liable for technical or editorial errors or omissions in this document; nor for inci- dental or consequential damages resulting from the furnishing, performance, or use of this material.
  • Page 3 rights of ENI. 8. Licensee Responsibility And Indemnification. The End User understands and acknowledges that it is solely re- sponsible for the use it makes of the Software. Accordingly, the End User agrees to indemnify and hold ENI harmless from any demands, claims or suits by a third party for loss, damages or expenses (including attorney’s fees) arising out of or related to use of the Software by the End User.
  • Page 4 (ATM) permanent virtual circuit (PVC) used for connectivity to Wide Area Network (WAN) devices. The 5260 is designed to “plug and play.” Setup of the 5260 is as simple as connecting it to a PC that is equipped with an Ethernet adapter card or to a hub on an Ethernet LAN and then connecting it to a DSL wall jack.
  • Page 5 5260 Configuration Settings The following table shows the factory-default configuration of the 5260. These settings are not user-configurable. ATM Interface • One Permanent Virtual Circuit supported • F4/F5 looback cells supported • Logical Link Control (LLC)/ Subnetwork Access Protocol (SNAP) encapsulation over ATM per RFC...
  • Page 6: Hardware Installation

    Hardware Installation Installation Requirements To install the 5260 ADSL LAN modem, you will need the following: A computer equipped with an Ethernet network interface card (NIC) or • an Ethernet hub A DSL-ready telephone line installed at the desired installation site •...
  • Page 7: Installation Instructions

    Installation Instructions NOTE: The labels for the back panel of the 5260 are located on the underside of the unit. Be sure the Power button is in the OFF position. Plug the power cable into the power connection on the back of the unit;...
  • Page 8 5260 Front Panel The 5260 is equipped with four LEDs on the front panel: the System LED (sys), ATM LED (atm), DSL LED (dsl), and Ethernet LED (enet). First, the sys LED will come on. It turns solid green when the unit has finished passing diagnostic tests.
  • Page 9 Table 1 5260 LED Indicator Descriptions Unlit Yellow Green Power not applied Power on self test Power on self test Normal system (POST) error (POST) in progress operation occurred; call customer support to report problem • Power not applied ATM diagnostic...
  • Page 10: Technical Reference

    Standard Compliant) Connector Eight-contact, shielded RJ45 DSL Interface Connector Two-contact, shielded RJ11 (pins 3 & 4) isolation per IEC 950 Operating distance 18,000 feet maximum on standard 26 AWG copper pair wire Efficient Networks, Inc. SpeedStream 5260 LAN Modem Specifications 9...
  • Page 11 SpeedStream 5260 LAN Modem Specifications Efficient Networks, Inc.
