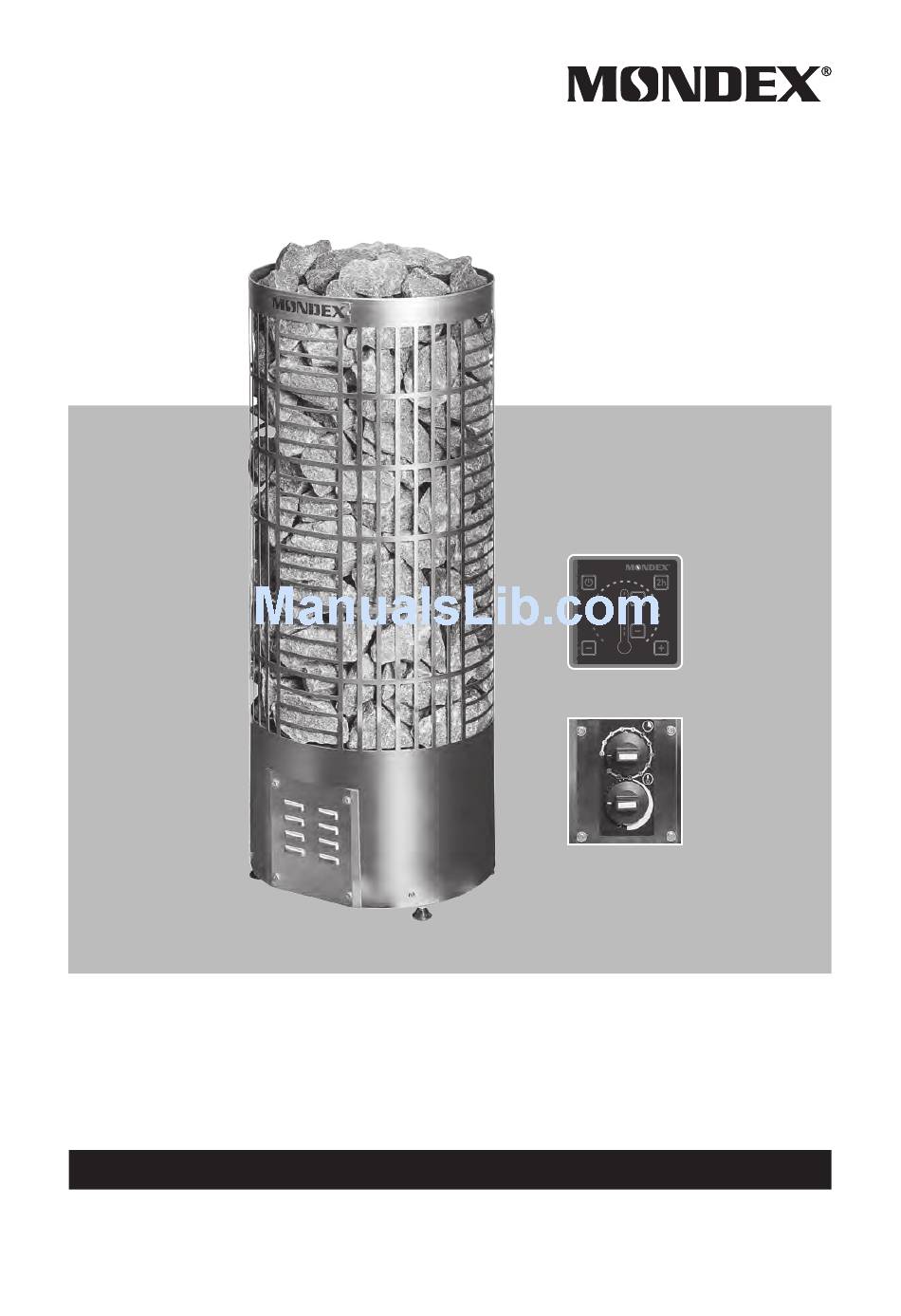

- Page 1 InstallatIon and oPeratIng InstructIons Pipe C- and E-types 10/2015...
-
Page 2: Table Of Contents
Contents 1 general safety information 2 Pipe c- and e-types 3 the assembly and installation of the heater Stacking of the stones 4 technical information The power and connections of the heater Heater dimensions Amount of heater stones Minimum distances to flammable material 5 general instructions for the Pipe heater users Attention Installation cable... -
Page 3: General Safety Information
Electrical connections can only be done by an electrician authorized to installation according to the current regulations. The MONDEX electric heater is suitable for use in a family sauna, one (1) heater/sauna room. Keep the installation and operating instructions for further reference. -
Page 4: Pipe C- And E-Types
2. Pipe C- and E-types C-type E-type Installation and Operating Instructions Pipe... -
Page 5: The Assembly And Installation Of The Heater
Heater stones are not included. 2) Inspect the heater visually. If you notice any discrepancies, please contact the store from where you purchased the heater or info@mondex.fi 3) The sauna’s floor surface should be properly protected before beginning of the installation. -
Page 6: Technical Information
4. Technical information The power and connections of the heater Heater Pipe 6,6 Pipe 9,0 Pipe 10,5 Power kW 10,5 Voltage 400 V 3N 400 V 3N 400 V 3N Connecting cable 5 x 1,5 mm² 5 x 2,5 mm² 5 x 2,5 mm²... -
Page 7: Minimum Distances To Flammable Material
Minimum distances to inflammable material (mm) Model size of the sauna Pipe 6,6 1900 6-9 m³ Pipe 9,0 1900 8-15 m³ Pipe 10,5 2000 12-22 m³ Table 4.4 Minimum distances to inflammable material (mm) Installation and Operating Instructions Pipe... -
Page 8: General Instructions For The Pipe Heater Users
5. General instructions for the Pipe heater users Attention! The electrical connections may only be done by an electrician authorized to installation according to the current regulations. The Pipe electric heater is suitable for use in a family sauna, one (1) heater per sauna room. -
Page 9: Sauna Room Structure
Sauna room structure The sauna, and especially its roof, should have good thermal insulation, as the steam tends to escape through the roof. Due to moisture we recommend using aluminium foil. The heater is dimensioned according to the sauna space. In addition to the conventional sauna structure (wool insulation, foil, timber), the power consumption is also affected by the following;... -
Page 10: The Operation Of The Clock Timer And Thermostat Of The C-Type
8. The operation of the clock timer and thermostat of the C-type Time switch Thermostat Overheat protectors reset switch The time switch (4+8 h) operates as the heater’s main switch. After the desired time the time switch automatically turns the power off from the heater. If you wish the heater to warm up after a set time, you can set the timer to start the warm-up after 1-8 hours. -
Page 11: Installation Instructions E-Type
9. Installation instructions E-type Controller Sensor Supply cable 5 x 1.5 mm / 5 x 2.5 mm ca. 250 mm ca. 250 mm Controller Installation and Operating Instructions Pipe... -
Page 12: Installation Of The External Control And Sensor
Installation of the external control and sensor E-type heater includes: External control Sensor Drill a 3,5 mm hole to the panel and then bring it to the wiring panel. The sensor should remain visible for ca 10 mm. When needed, the sensor can be fixed into the hole, for instance with a small drop of silicone adhesive. -
Page 13: Wiring Diagram E-Type
10. Wiring diagram E-type OVERHEATING PROTECTION connecting the controller card in the connecting the controller card in heater the controller Prepared quick connector White Grey To the controller Green Blue To the overheating protection White White To the thermal sensor Black Black Installation and Operating Instructions Pipe... -
Page 14: Control And Operation Of The Heater E-Type
11. Control and operation of the heater E-type Power switch Quick start Temperature control Operating time Temperature Operating time adjustment The heater is operated by adjusting its operating time and temperature, and then by switching the heater on from the power switch. normal start: Select the operating is calibrated. -
Page 15: Troubleshooting
- Do not go to a hot sauna under the influence of narcotic substances (alcohol, drugs, narcotics, etc.). Warranty For heaters and control units in private use, the manufacturer Mondex Oy, grants a warranty of two (2) years from date of purchase. The warranty is limited to (1) year if these products are in commercial use. -
Page 16: Service History
The heater’s service history We recommend replacing the heater stones every 1-2 years. date action The heater’s manufacturer: Mondex Oy Rantakatu 14 A 67100 Kokkola Finland tel. +358 6 8244 333 fax. +358 6 8322 355 info@mondex.fi www.mondex.fi...
