Atins HAS-HE304 Operating Instructions

HDMI Extender
Dual UTP HDMI Extender New series 30M with IR
Operating Instructions
Dear Customer
Thank you for purchasing this product. For optimum performance and safety, please read these
instructions carefully before connecting, operating or adjusting this product. Please keep this manual for
future reference.
FEATURES


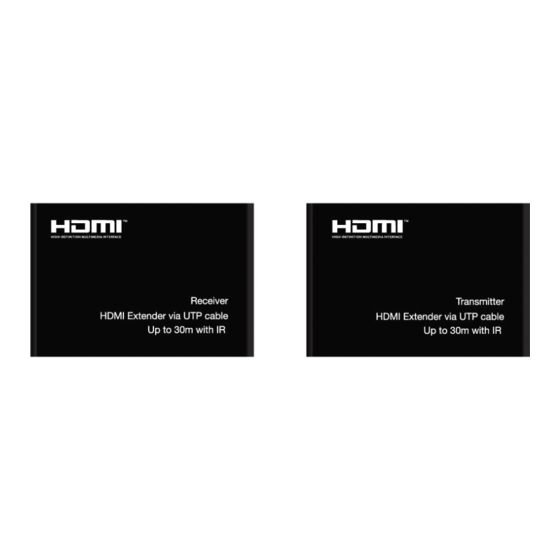

Each set includes one transmitter and one receiver

One pair as a full functional module, no need of setting.

With IR Control function, it allows you control back the source at the end of destination.

Use Dual UTP cables（Cat5E/6）to substitute HDMI cable to achieve long distance transmission, the
UTP Cable follows the standard of IEEE-568B.

Transmission distance reaches up to 30 meters under the video format of 1080P.

Auto-adjustment of feedback, equalization and amplify

Signaling rates up to 2.25Gbits in support of 1080P display.

With ESD protection inside.
NOTICE
Our company reserve the right to make changes in the hardware, packaging and any accompanying
documentation without prior written notice.
1
Operating Instructions
