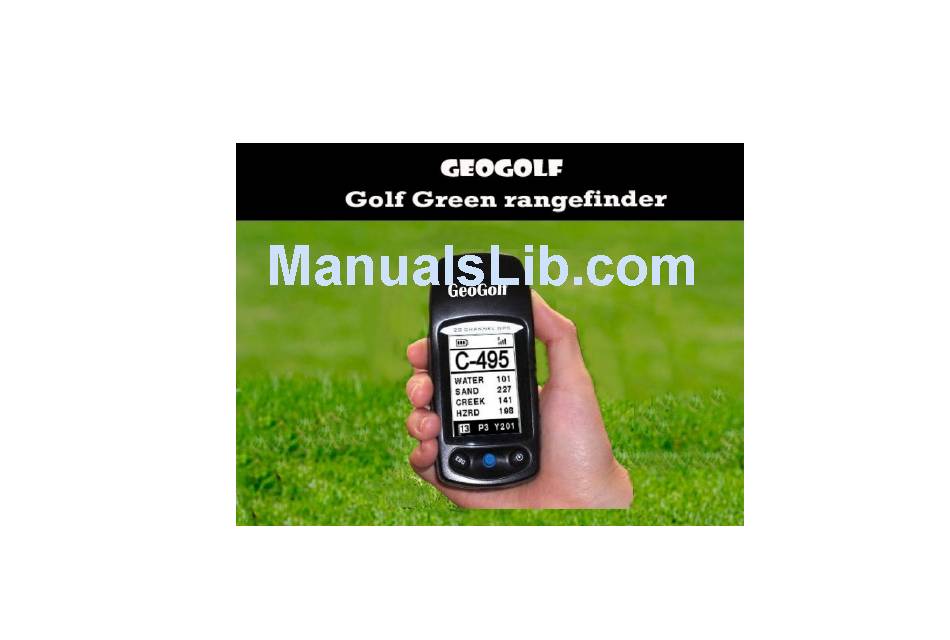

GeoGolf Golf Green Rangefinder
GF-2000 User manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GF-2000 and is the answer not in the manual?

Questions and answers

Related Manuals for GeoGolf GF-2000

Summary of Contents for GeoGolf GF-2000

  • Page 1 GeoGolf Golf Green Rangefinder GF-2000 User manual...

  • Page 2: Package Contents

    Thank you for purchasing our Golf GPS product, and wish you have the best experience in using. Knowing the exact distance for each shot will help you lower your score and enhance your overall golfing experience. Package Contents G-Golf main device Belt clip CD (including User Manual) USB Sync-Cable...

  • Page 3: Table Of Contents

    Contents Device Introduction ------------------------------------------------- 4 Battery Installation ------------------------------------------------- 5 Keypad Function ------------------------------------------------- 6 Start-up ------------------------------------------------- 7 Main Menu -------------------------------------------------8 Map Course ------------------------------------------------- 11 About Setting --------------------------------------------------16 How to use Google earth to create new Golf course file ---------- 21 Edit the information of Golf course --------------------------------- 31 How to install the course-data file from PC to Device ------------ 32 How to transfer the data from device to PC as backup ------------ 35...

  • Page 4: Device Introduction

    • Device Introduction Belt Clip Water-resistant construction Large Display USB Synchronization Water-resistant Connector construction ESC/EXIT 4 way toggle Power / backlight easy-grip sides...

  • Page 5: Battery Installation

    Battery Installation Battery life varies due to a variety of factors, including temperature and back-light usage. While changing batteries, an internal lithium battery will retain saved data. 1.Access battery compartment by turning the battery cover screw counterclockwise. 2.Lift up on the cover by using fingernail to break - - - - + + + + airtight seal.

  • Page 6: Keypad Function

    Keypad Function Escape • Switches between screens. • Cancels current operation. • Backs up to previous step or screen. Toggle/Enter • Scroll up, down, left and right. • Highlights menu options and enters data. • Press down to enter •Switches between screens Power •...

  • Page 7: Start-Up

    Start-up Power On • Press and hold Power button until the welcome screen appears. Power Off • Press and hold Power button until the screen goes blank (about 3 seconds). Back-light On/Off • From any screen, press Power button to turn back-light on. •...

  • Page 8: Main Menu

    Main menu: The Main Menu displays all the features available to the user, which are explained in detail in subsequent sections of this User Manual. To begin using the device, scroll to highlight any feature and press Enter. Map Course: Select to create and customize course files. Delete Course: Select to delete files from the device Satellite: View GPS data and signal strength.

  • Page 9: Play Golf

    Play Golf 1. This feature is the main interface to display scorecard and distance information. 2. Golf Course feature. If GPS data is available, distances to the front, center and back of the green and up to eight custom points per hole will be displayed upon satellite acquisition. Power ON: Press and hold Power button until the welcome screen appears.
  • Page 10 Screen Operation • Right/Left toggle Move between holes • Up/Down toggle Move between screens • Enter Activate Shot Distance • ESC Go to Play Menu...

  • Page 11: Map Course

    Map Course This feature is used to manually input course information and map GPS data points. Existing course files may be customized or new files created using the device. Revisions to course name, course data and GPS points all are made using this feature.
  • Page 12 1. Select Course Highlight “Map Golf Course” on the Main Menu and press Enter. Scroll to highlight the desired new or existing golf course and press Enter. 2. Course Name Highlight “Course Name” and press Enter. Names are limited to 12 characters and should be distinguishable from other golf courses entered.

  • Page 13: Course Data

    Course Data： • Highlight “Course Data” and press Enter. Highlight desired tee box and • press Enter. Select the desired hole and press Enter. Input par and distance • information using the toggle button to select values and move between options.
  • Page 14 Map GPS Point： • Highlight “Map GPS Point” and press Enter. Select the desired hole and press Enter. • Stand at desired location, confirm satellite strength and select “Front ,Center or Back”, then press Enter to register point. • Do not move until process is completed. Repeat these instructions for all desired points.
  • Page 15 As following process, please register the 3 locations (Front , Center and Back ) of one course in Device.

  • Page 16: About Setting

    About Setting： This feature provides various configuration settings to personalize the device, such as screen contrast, distance measurement, GPS performance and power management. Highlight “Settings” on the Main Menu and press Enter. Contrast: Allows the user to adjust the contrast of the screen to aid viewing in various light conditions.

  • Page 17: Battery Type

    Settings (continued) Stabilizer Allows the user to select the rate at which the device refreshes GPS position. With “Stabilizer” ,the device will not refresh GPS position once movement has ceased. This is useful to users who experience fluctuating distance readings, even though they are stationary.
  • Page 18 Settings (continued) Backlight Allows the user to select the length of time for the backlight remaining illuminated. If “Auto Shut-Off” selected, backlight will remain on for 10 seconds. The default setting is “Normal” and the backlight will remain on until the Power button is pressed again.
  • Page 19 Settings (continued) Reset Unit Allows user to return device to factory default settings. All data, including course files, will be permanently deleted. It is recommended all files are saved to computer prior to accessing this setting.

  • Page 20: Delete Course

    Delete Course Select course. Press Yes.

  • Page 21: How To Use Google Earth To Create New Golf Course File

    How to create new Golf course with Google earth 1. Install USB Driver：Please run “UDriver_98_2000_xp “ in CD。 2. Connect the device with min USB cable. (the battery must be taken out before connecting) 3.Select “Sync Handheld” in Device to connect with PC.
  • Page 22 Installation Golf Sync software To install Golf Sync on a Windows 98/2000/XP computer: 1.Insert Golf Sync software CD into your computer’s CD-ROM. 2.Open drive folder on computer to view CD contents. 3.Open Setup file to launch Windows Installer Wizard. 4.Follow on-screen instructions to install USB driver and Golf Sync.
  • Page 23 Run ” Gps Sync” Software , you will see main menu as below.
  • Page 24 Please set up the right COM Port , Baudrate.
  • Page 25 Create a new Golf course database 1.Please push “Create “ and go into following menu. 2.Input the Golf Course Name. 3.Select the scorecard scales. 4.Highlight “Create Holes” and go to next step.
  • Page 26 Select ”Run Google earth” and press “ ok”...
  • Page 27 In this column, input the name of Golf course and press “Search”. And the Golf course will be found out automatic.
  • Page 28 1.Find the desired Golf course. 2.Use scorecard to find out each Hole. 3.Highlight “Front” column. 4.Highlight ”Get data from Google earth” and move the cursor to desired point , press enter and get the GPS data in the column. 5.Repeat these instructions for all desired holes.
  • Page 29 •According the ScoreCard provided by Golf Course, input the information of each hole. •To change the column, please push “ Tab” key.
  • Page 30 • Repeat these instructions to complete all data for 18 holes. • If the user will loge out the system by creating data , please follow the system instructions to store the data. • If Google earth can not show the course , maybe the computer memory is not enough.

  • Page 31: Edit The Information Of Golf Course

    Edit the information of Golf course： ： ： ： Highlight “Edit” to get into “edit” function. Press “BOWSE” to find out the file of golf course, and then select the hole to edit the data.

  • Page 32: How To Install The Course-Data File From Pc To Device

    How to install the course-data file from PC to Device Step1: 1.Select “Sync Handheld” in Device to connect with PC. 2.Highlight “Courses Send” icon by Sync software. 3.Make sure that the device is connected with PC. GO TO NEXT PAGE.
  • Page 33 Step2:Keep the device on and connect with PC,press “Next “...
  • Page 34 Step 3 : Select the file which you need and press “Send “.
  • Page 35 Step 4: Then you have completed to set up a golf course in device via “Google earth “. You can log out the system and restart the device. You can see the course information in the device.

  • Page 36: How To Transfer The Data From Device To Pc As Backup

    How to transfer the data from device to PC as backup Select “Sync Handheld”. Press “Courses Backup” icon. Make sure that the device is connected with PC. Create a new file to make the backup of the course data in the computer. To set up the save path in PC.
  • Page 37 You can recheck if there is the backup in the computer. If not , please repeat the procedure.
