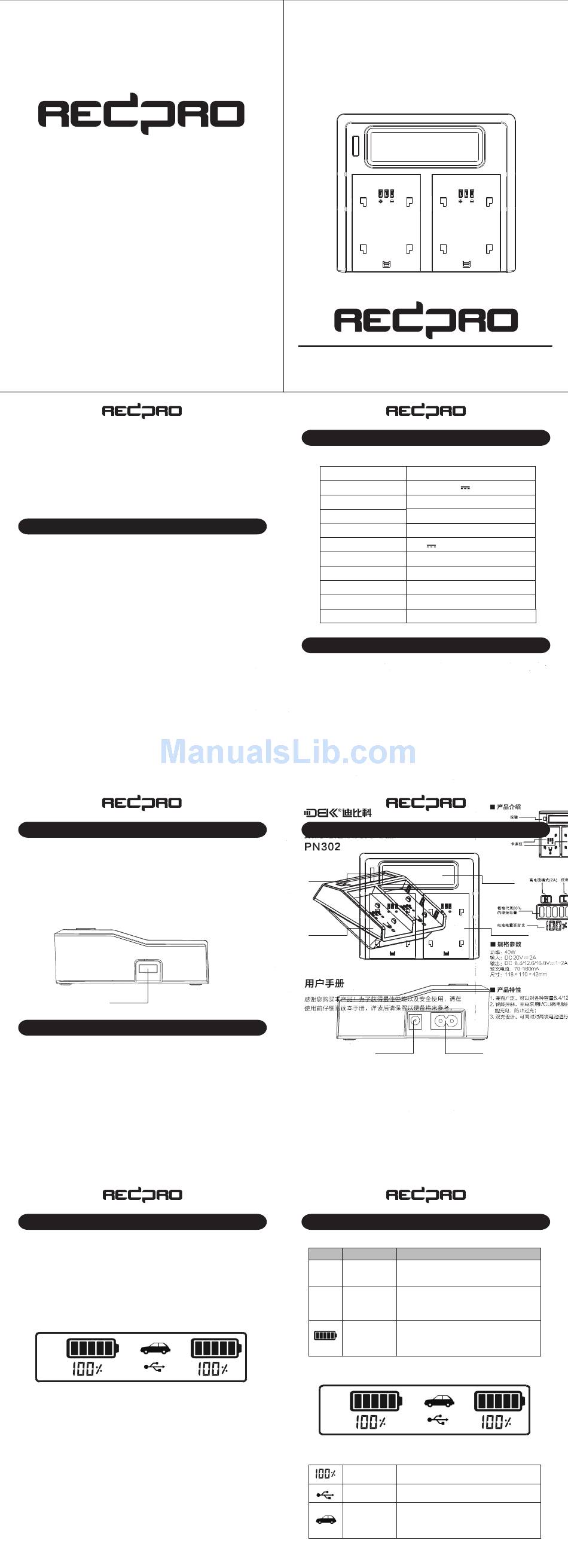

Redpro RP-DC50 User Manual

www.red-pro.com
Thank you for your purchasing of the Dual Battery Charger.
This charger for Digital Camera and Camcorder Batteries was
designed with advanced switching power source technology
allowing you to charge your batteries at home or on the road.
The charger is compatibile with Li-Ion rechargeable batteries.
For optimum performance and safety, please read these
instructions carefully before operating the Charger RP-DC50.
Please keep this manual for future reference.
Product Features
1. Wide range compatibility, It can charge Li-ion battery with
16.8 Voltage and with any capacity.
2. Intelligent Control.Control MCU can automatically identify
the voltage of the battery, and prevent overcharge.
3. Dual charging port design. It can charge two batteries at
the same time of the same type.
4. Specially Designed for all REDPRO Battery Packs.
5. LCD displays the charging status, Battery Capacity the
percentage of power level, and current mode.
6. Charging type is CC/CV with well reliability and high
efficiency, with over charging protection, short circuit
protection and over temperature protection.
7. With the function of pre-charging and lithium battery 0V
activation which can effectively extend battery life.
8. Flexible operation with advanced micro computer chip
contolling detect, switch and display the voltage or
capacity automatically.
9. Adopted the latest advanced charging power management
technology, creating new life idea for consumer.
USB
You can use your Dual Digital Battery Charger to charge USB
devices while you're also charging your Digital Camera or
Camcorder Batteries. Plug the USB end of the devices's
charging cable in to the USB output jack on the side of the
RP-DC50 Dual Charger. The USB output is display on the LCD
screen. USB can work with LOW Current or no Battery Mode.
USB Output
Switch Button
RP-DC50 Digital Dual Battery Charger have two charging
modes LOW and HIGH. When you turn on the charger, default
charging mode is LOW (on Dispaly show L), in this mode
charger provide 1000mA current to one battery slot. If you
want simultaneously to charge two (2) batteries at once in
LOW mode, charger will provide charging current power of
500mA per charging Slot. If you want to use HIGH charging
mode and to speed up the charging time, press the Switch
Button ( on Dispaly show H) and the charger will provide
1500mA to one battery slot. If you simultaneously charge two
(2) Batteries at once in HIGH mode charger will provide
charging current power of 500mA per charging Battery Slot.
Operation
1 . C o n n e c t t h e A C c a b l e t o C a r c h a r g e r D C i n p u t . T h e L C D
d i s p l a y w h i t e l i g h t w h e n p o w e r o n .
2 . I n s t a l l t h e B a t t e r y w h i c h n e e d c h a r g i n g t o t h e p l a t e ,
a l i g n t h e m e t a l c o n t a c t s o f t h e b a t t e r y w i t h c o n t a c t s o n t h e
C h a r g e r. A f t e r i n s t a l l i n g t h e B a t t e r y, t h e c h a r g e r d e t e c t t h e
l o a d a n d s t a r t p r e - c h a r g i n g , L C D g r a p h i c s w i l l b l i n k g r a d u a l l y.
H
L
Note:
1. The default charging mode is Low current mode
2. Shortly push the button, you will change the current mode
from Low to High
3. When the Battery is fully charged, please take out the
battery from the charger, and turn off the power.
4. USB can work with Low current or no Battery mode
5. When chargers power is on, the LCD show the power
level of the installed Battery and Battery Capacity.
DUAL BATTERY CHARGER
RP-DC50

USER MANUAL

Specification
I n p u t A C
I n p u t D C
O u t p u t Vo l t a g e
O u t p u t C u r r e n t L
O u t p u t C u r r e n t H
U S B O u t p u t
C h a r g i n g Ti m e
O p e r a t i n g Te m p
S t o r a g e Te m p
S i z e
We i g h t
Caution
1. Do not store, place or use the charger where it may come
into contact with excess heat, water or moisture.
2. Charge only on a vibration-free, dry surface at room temp.
3. Do not short-circuit the terminals of your battery or charger.
4. Do not attempt to disassemble any part of the charger.
5. Use this charger with the specified types of batteries only.
6. The charger, adapters and batteries may feel warm during
the charging process. This is normal.
Overview
Switch
Button
Plate Slot
1
D C I n p u t
1. Don't charge unmatched battery otherwise will damage
battery, leak even explode.
2. Charger will be damaged if not using correctly.
5. Avoid falling or placing heavy object on it.
6. Children should use it at the supervision of adult.
9. Take out rechargeable battery when don't use charger
for charging.
LCD Information
Icon Definition
H
High current
charging mode
L
Lower current
charging mode
Battery icon
H
L
Battery capacity
It display the battery capacity percent rate。
percent rate
Display 5V USB Power out.
USB power
When blinking, show that the battery cannot fit with car
charger input, please change to AC input or switch to
Car Charger Icon
car charger with 24V input.
A C 1 0 0 V- 2 4 0 V / 5 0 - 6 0 H z
D C 1 2 - 2 4 V 3 0 0 0 m A ( m a x )
D C 8 . 4 V / 1 2 . 6 V / 1 6 . 8 V
1 0 0 0 m A x 1 / 5 0 0 m A x 2
1 5 0 0 m A x 1 / 8 0 0 m A x 2
5 V 2 1 0 0 0 m A
2 - 6 H o u r s
0 C t o 4 0 C
- 2 0 C t o 6 0 C
1 0 0 x 11 0 x 1 2 0 m m
2 1 0 g
L C D D i s p l a y
Plate Slot
2
A C I n p u t
Function Declaration
When occurred this H icon, that means high current
charging mode , charging 1 battery, the current is
1.5A， 2 batteries, the current is 0.8A
When occurred this L icon, that means lower current
charging mode , charging 1 battery, the current is
1.0A， 2 batteries, the current is 0.5A
Full chequer means full power, when being charging,
the icon will be displayed one by one.
