Disassembly - JVC KD-ADV7380J Service Manual

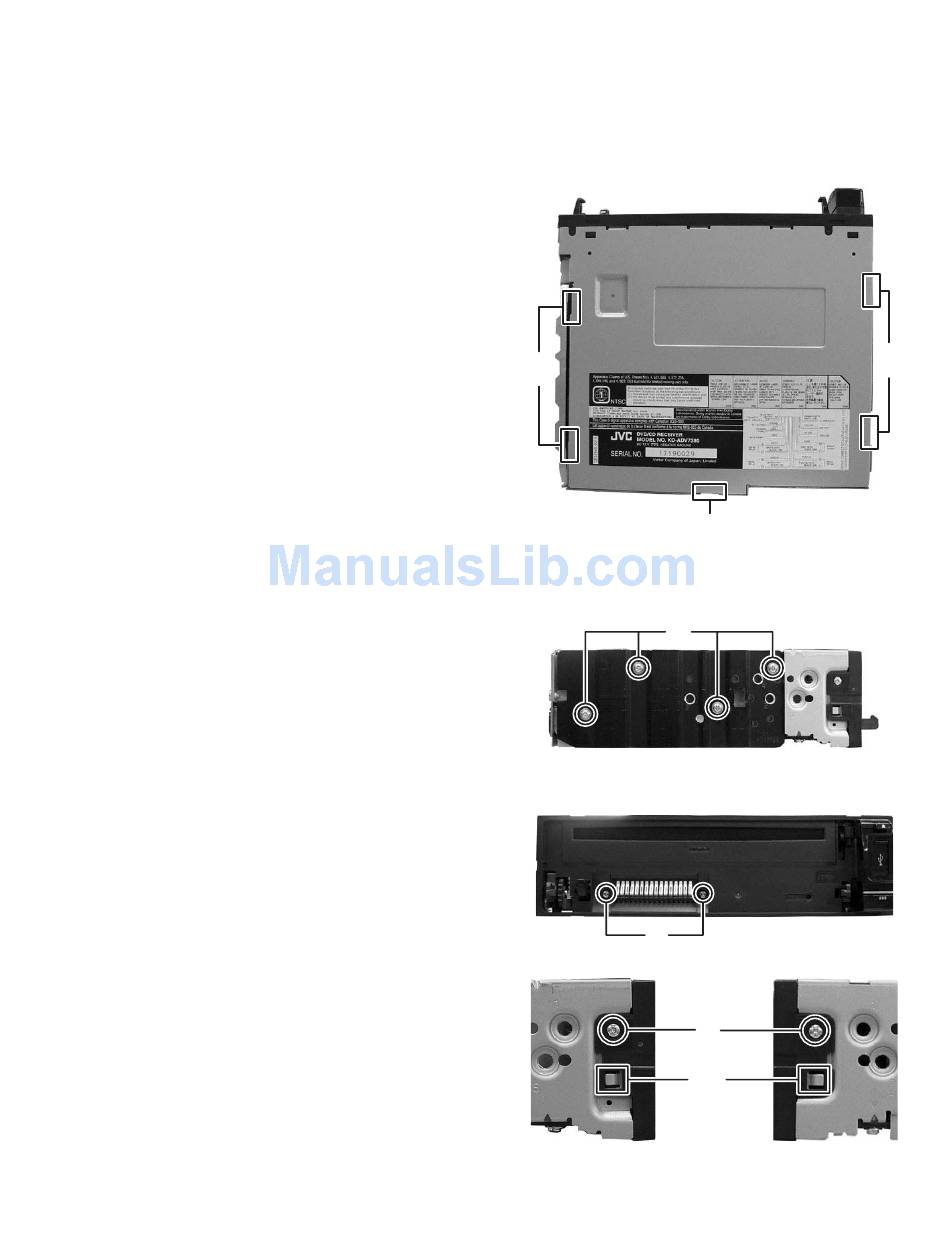

3.1 Main body
3.1.1 Removing the BOTTOM CHASSIS
(See Fig.1)
(1) Disengage the five hooks a engaged BOTTOM CHASSIS.
3.1.2 Removing the HEAT SINK
(See Fig.2)
(1) Remove the four screws A attaching the HEAT SINK.
3.1.3 Removing the FRONT CHASSIS
(See Fig.3, 4)
(1) Remove the two screws B attaching the FRONT CHAS-
SIS. (See Fig.3)
(2) Remove the two screws C attaching the both side of
FRONT CHASSIS. (See Fig.4)
(3) Disengage the two hooks b engaged both side of the
FRONT CHASSIS. (See Fig.4)
SECTION 3

DISASSEMBLY

hook
a
hook
a
Fig.1
A
Fig.2
B
Fig.3
C
hook
b
Fig.4
(No.MA312)1-13
hook
a
