NSTALLATION

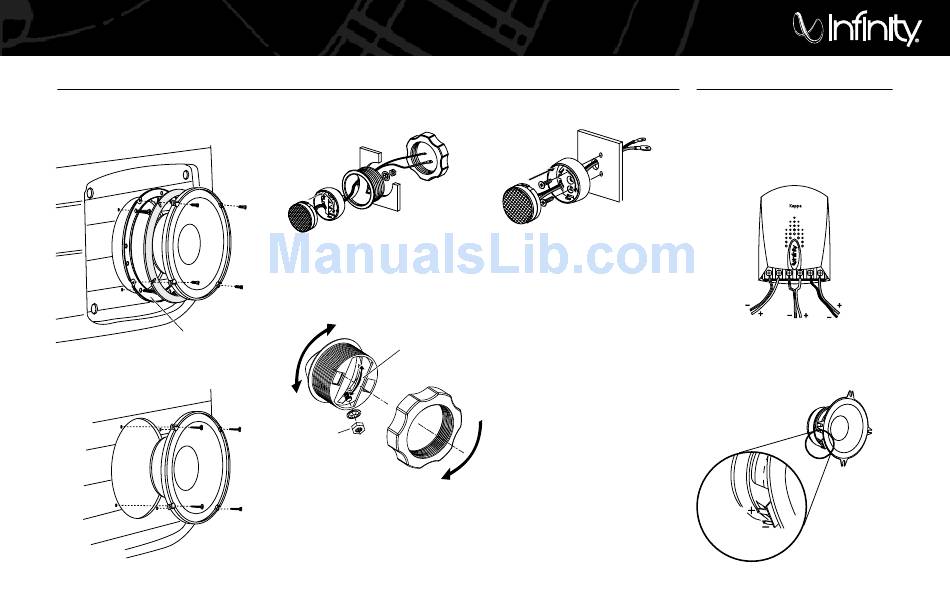

Figure 3. Mounting the 60.3cs woofer in a standard
speaker location. A variety of adapter rings are
supplied to fit many installation configurations.
ADAPTER RING(S)
Figure 4. Mounting the 65.3cs in a 165mm
speaker location.
Figure 5A. Mounting the tweeter using the
I-Mount
™
flush-mounting kit.
–
blk
+
red
1
2
Figure 5B. Aiming the tweeter at a desired
listening position.
3
ROTATE TO AIM
ANGLED TWEETER
TOWARD LISTENER.
1
SLIDE SCREW UP OR
DOWN TO ADJUST
TWEETER ANGLE.
2
TIGHTEN NUT AND
WASHER TO LOCK
ANGLE SETTINGS.
4
SECURELY TIGHTEN
THE LARGE HAND NUT.
Figure 6. Mounting the tweeter using the
I-Mount™ surface-mounting kit.
blk
–
+
red
1
2
C
ONNECTIONS
Remove the cover and mount the crossover
network. Observing proper polarity, connect the
speakers and amplifier, as shown in Figures 7A
and 7B. When done, replace the cover.
Figure 7A. Wiring connections on the crossover
network (shown with cover on).
p/s 050
2ohm
5.4uF
6.8uF
2ohm
0.22mH
+ -3dB
-
IN
+
-
WF
+
-
TW
Red
To AMPLIFIER
To TWEETER
SPEAKER OUTPUTS
To WOOFER
Blk
Figure 7B. Locating wiring connections on the
50.3cs woofer. Other woofers are wired similarly.
Big Lug =
Small Lug =
