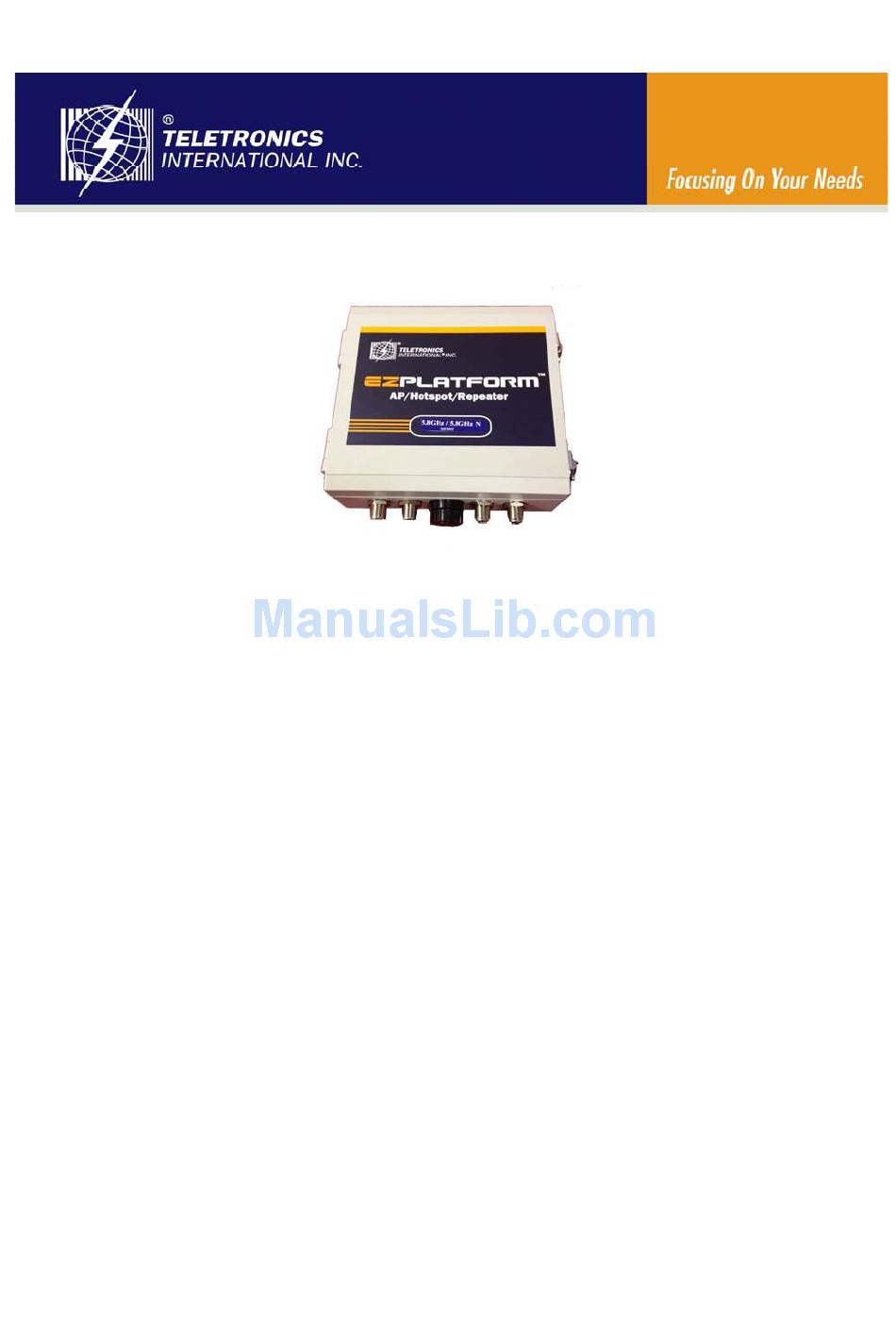

- Page 1 Teletronics EZPlatform Plus™ AP/Hotspot/Repeater User Manual 2014.5 Version 1.0.0.5...
-
Page 2: Table Of Contents
Table of Contents 1. PRODUCT OVERVIEW .................... 3 1.1 O .......................... 3 VERVIEW 1.2 F ....................3 EATURES AND ENEFITS 1.3 O ............... 4 PERATION ODES AND ONNECTION XAMPLES 1.3.1 Access Point and Access Point WDS Mode .............. 4 1.3.2 Access Point WDS Mode ................... -
Page 3: Product Overview
1. Product Overview 1.1 Overview Teletronics’ EZPlatform™ Plus AP/Hotspot/Repeater is designed for high-power access point, hotspot and repeater applications. A powerful end-to-end system for a wireless Internet network can be built by integrating the EZPlatform™ Plus with Teletronics TT™ subscriber units and other radios. The simplicity of use of the EZPlatform™ Plus allows operators to quickly bring service to their customers, and with its two serial ports two Ethernet and 2 USB ports the unit can easily incorporate GPS, GPRS, RFID, VoIP, 3G/4G network, surveillance cameras, field meters, motion sensors and data networks for multiple... -
Page 4: Operation Modes And Connection Examples
secure methods like EAP-TTLS and EAP-PEAP, in order to obtain access to the network. EzManager™ Utility The exclusive EzManager utility allows users to access the user-friendly Web configuration interface of the access point without having to change the TCP/IP setup of the workstation. Telnet Telnet allows a computer to remotely connect to the access point CLI (Command Line Interface) for control and monitoring. -
Page 5: Access Point Wds Mode
1.3.2 Access Point WDS Mode This is mode is generally use for point-to-point or point-to-multi-point connection. It is mainly use with Station WDS to build the point and multi-point connections. 1.3.3 Station Mode In Station mode the device acts as a wireless client. When connected to an access point, it creates a network link between the Ethernet network connected at this client device, and the wireless Ethernet network connected at the access point. -
Page 6: Station Wds Mode
1.3.4 Station WDS Mode Station WDS mode is similar to Station mode. The difference is Station WDS must connect to access point configured to Access Point WDS (or RootAP) mode. Station WDS is mainly use for point-to–point connection between 2 buildings or locations as far as several kilometer away. -
Page 7: Specifications
1.4 Specifications Hardware Specifications Ethernet IEEE 802.3af 100BASE-T/1G BASE-TX with autonegotiation Networking Bridging mode, NAT gateway, static routing. DHCP client, DHCP server. VLAN, IEEE 802.1Q, SSID-based tagging. PPPoE, DDNS, STP, QoS, IPv6 Wireless 802.11a/b/g /n (2.4/5.8 GHz), turbo mode. Four SSIDs per interface, AP/Station mode, WDS. -
Page 8: Hardware Setup And Status Leds
2. Hardware Setup and Status LEDs 2.1 Hardware Setup Figure 4 shows how to connect the EZPlatform Plus™ Figure 4. Network and power connections The purpose of this setup is to connect the EZPlatform™ so that it can be configured with a... -
Page 9: Status Leds
allows you to send/receive data and power the EZPlatform™ with a single cable. When connecting the antennas, care must be taken so that the antennas are properly mounted to avoid mutual interference, especially if both wireless interfaces will be operated in the same 802.11 mode. - Page 10 Loads firmware to the EZPlatform Plus Opens the web interface of the EZPlatform Plus . The computer needs to be in the same subnet as the EZPlatform Plus Reboots the EZPlatform Plus Application Settings Resets all settings of the EZPlatform Plus...
-
Page 11: Web Interface Configuration1
Note: Click the Settings button, and display the Configurations dialoge, please enter theadmin’s password . After that , you can set parameter in EZManger. 4. Web Interface Configuration The EZPlatform™ can be conveniently configured using its web interface. The web interface provides intuitive navigation and options for you to easily configure the unit. -
Page 12: Status
To log in to the web interface, enter the user name and password in the prompt that appears, as shown in Figure 4. Figure 4. User name and password The default user name is “admin“ and the default password is “password“. The password can be changed once you have logged in. -
Page 13: Firewall Status
4.2.2 Firewall Status... -
Page 14: Routes List
5.2.3 Routes list This page shows the Route list and ARP list. 4.2.4 System Log This page shows you important events that have been logged by the EZPlatform™ Plus . Events are displayed chronologically, with the most recent ones displayed at the bottom of the list. -
Page 15: System
Display the Equipment type, Firmware, Hostname etcs. 4.3 System 4.3.1 System 4.3.1.1 General Settings In this page , you can change the Timezone , Local Time, Hostname,and the NTP server. Click the button , the time of EZPlatform will synchronize to your PC. - Page 16 4.3.1.2 System In this Page , you can config the logbuffer size, log server etcs. Language and Style Page...
-
Page 17: Administration
Languages: Select the Chinese/English 4.3.2 Administration Router Password Password: enter the new password that you wish to use. Confirmation: enter once again the new password that you wish to use SSH Access Interface: The interface that SSH listen for connection. Port: Specifies the listening port. -
Page 18: Led Configuration
4.3.3 LED Configuration LED Configuration Name: Define the name of LED. 4.3.4 Backup/ Flash firmware The Backup and Flash Firmware page is shown in Figure 21. -
Page 19: Reboot
Figure 21. Backup and Flash Firmware Page Backup / Restore Generate archive: click on this link to download the current configuration of the EZPlatform™ Plus to your computer so that you can restore it later if needed. Perform reset: click on this button to restore all the settings of the EZPlatform™ Plus to factory default, including the IP address. -
Page 20: Network
Perform reboot: clicking on this button reboots the EZPlatform™ Plus. 4.5 Network 4.5.1 Interface Interfaces - LAN User can add/delete/edit/stop/connect LAN or WAN. - Page 21 LAN Interface can use pope, static IP, DHCP Client, L2TP, PPP etc. Switch the DHCP On/Off.
- Page 22 User can Enable/disable STP service and Interfaces.
-
Page 23: Wifi Configure
Firewall configure, User can select the ZONE of Firewall and create new one. 5.2 WiFi Configure User can add/delete/start/off the Radio , and Edit the Radio, and Create Vitual Wireless SSID etc. When click the Scan button , the device will display the Wireless SSID. User can Click the “Join Network”... -
Page 27: Frequently Asked Questions
5. Frequently Asked Questions 1). What is the default IP address, user name and password of the EZPlatform™ Plus? - Page 28 IP address: 192.168.1.124 User name: admin Password: password 2). How do I know if the EZPlatform™ Plus has finished booting up? Normaly the EZPlatform™ Plus takes about 30 seconds to bootup. You can ping 192.168.1.124 in Console to confirm the connection of the EZPlatform™ Plus. 3).
