Atis AW-CAR40VF Manual

Number Plate Capture Camera
AW-CAR40VF

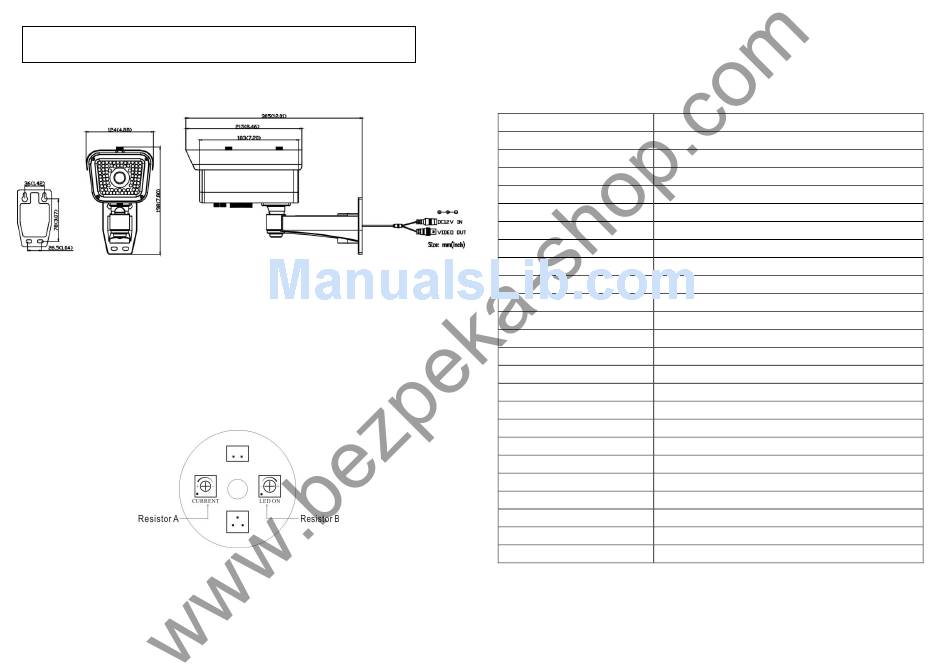

 Caution for Installation
1. Resistor A: If you want to change the intensity of the IR light, please open the
cover at the bottom of the camera(As showed in the following picture), you can
adjust the IR light intensity.
2. Resistor B: If you want to change the working time of IR Led, please open the
cover at the bottom of the camera(As showed in the following picture), you can
adjust the IR LED working time." – "refers to the IR LED will start working under
the darker situation. "+" refers to the IR LED will start working under the brighter
situation.
 Packing
1. Camera
2. User Manual
3. Screw
4. Plastic-Conical-Anchor
X1
X1
X4
X4
5. Mounting drawing paper
6. Hexagonal Wrench
 Specification
IP66
IP Rating
Monochrome
Type
NTSC/PAL
Signal System
1/3" 760H CCD
Pick Up Device
NTSC:811H×508V; PAL:795H×596V
Picture Elements
550TVL
Resolution
0Lux（80 Pieces IR LED ON）
Min Illumination
NTSC:60Hz; PAL:50Hz
Vertical Frequency
NTSC:15.734KHz; PAL:15.625KHz
Horizontal Frequency
NTSC:28.636MHz; PAL:28.375MHz
Clock Frequency
2:1 Interlace
Scanning System
≥50dB
S/N Ratio
9-22mm Varifocal Auto iris IR Lens
Lens
AUTO Tracking
White Balance
ON
Back Light
ON
Auto Gain Control
0.45
GAMMA
1V p-p,75Ω
Video Out-put
DC12V ±10%
Power Supply
200mA(Max)
Current Consumption
2~15m（6.56~49.18ft）(Outdoor)
IR Effect Distance
305×124×198mm (12.01"×4.88"×7.79")
Dimension
1750g (61.72oz)
Weight
-30～+60℃ (-22～+140℉)
Storage Temperature
-30～+40℃ (-22～+104℉)
Operating Temperature
Remark: Non-regulative adaptor may cause camera damaged.
X1
X1
