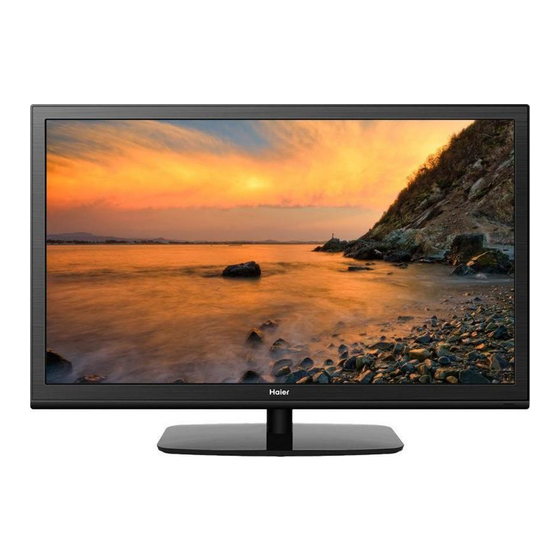

- Page 1 LCD TV OWNER' S MANUAL MODEL: L E 3 9 B 5 0 Please READ this manual carefully before operating your TV, and retain it for future reference...
-
Page 2: Table Of Contents
Contents 1、 Safety and warnings......................2-3 2、 Introduction........................4 3、 Installation........................5-8 4、 Remote Controller......................9 5、 TV Operation........................10-13 6、 Trouble shooting......................14... -
Page 3: Safety And Warnings
SAFETY AND WARNINGS IMPORTANT SAFETY INSTRUCTION 1) Read these instructions. CAUTION 2) Keep these instructions. RISK OF ELECTRIC SHOCK DO NOT OPEN! 3) Heed all warnings. CAUTION 4) Follow all instructions. TO REDUCE THE RISK OF ELECTRIC SHOCK, DO 5) Do not use this apparatus near water. NOT REMOVE COVER (OR BACK).NO USER 6) Clean only with dry cloth. -
Page 4: Safety And Warnings
SAFETY AND WARNINGS High voltages are used in the operation of this television Never stand on, lean on, or suddenly push the television or receiver. Do not remove the cabinet back from your set. its stand. You should pay special attention to children. Refer servicing to qualified service personnel. -
Page 5: Introduction
INTRODUCTION Accessories Main features ① Used as Television, display terminal, PC display； Infrared Remote Controller.... 1 ② High luminance, wide viewing angle； Battery(AAA).......2 ③ Can store 200 TV programs； User’ s M anual.......1 ④ HDMI interface； AV OUT/AV2 IN Cord....1 ⑤... -
Page 6: Installation
INTRODUCTION KEYBOARD Front panel SOURCE MENU VOL- VOL+ STANDBY SOURCE MUTE 1．SOURCE： PICTURE AUDIO ASPECT SLEEP Display the input source menu. 2．MENU： MENU VOL- VOL+ Display main MENU. 3．CH+/CH- CH.LIST DISPLAY EXIT RECALL In TV mode，press“CH+”or“CH-”to change the channel up and down. In MENU mode, press “CH+”or“CH-”to select items. - Page 7 INTRODUCTION Note: Aerial connections: IEC(female). Input impendance: 75 unbalanced. Please don’t rotate the TV. STEPS: Be sure both the TV and computer are set to Power off. 1.Connect VGA and audio cable. 2.Connect the power cord. 3.Power on the TV, switch to PC mode. 4.Power on the PC.
- Page 8 INTRODUCTION VIDEO AC-INPUT 100-240V~50/60Hz PRESET MODE (PC) V.Freq.(Hz) H.Freq.(KHz) RESOLUTION 800*600 37.88 1024*768 48.36 1280*768 47.3 1360*768 47.7 1920*1080 67.5 NOTE: PC V.Freq.(Hz) not more than 60Hz. PRESET MODE (HDMI) V.Freq.(Hz) H.Freq.(KHz) RESOLUTION 800*600 37.88 1024*768 48.36 1360*768 47.7 1280*768 47.3 1920*1080 67.5...
- Page 9 INTRODUCTION AV EQUIPMENT This TV provides two group of AV, one group of YPbPr for convenient connection to VCR, DVD or other video equipment. Please refer to the owner's manual of the equipment to be connected as well. You can use the input terminals on TV set rear as follows. HDMI2 HDMI1 AV OUT/AV2 IN...
-
Page 10: Remote Controller
REMOTE CONTROLLER The remote control cannot be operated unless the batteries are properly loaded inserted. When using the remote control, aim it at the remote control sensor on the TV. Function introduction 1.Press to turn on and off the TV. 2.USB:Press to launch the USB multimedia mode MUTE 3.Switches the TV sound on or off. -
Page 11: Tv Operation
TV OPERATION 1. CHANNEL MENU Delete Delete The first item of the MENU is channel menu ( for TV source only). Press to choose the program. You can search channels and edit programs here. Press red button , the program will delete. Press to move, press OK button to confirm, and press... - Page 12 TV OPERATION 3. SOUND MENU The third item of the MENU is the SOUND MENU. OSD Language English Restore Factory Default You can adjust the sound effect here such as Blue Screen sound mode balance etc. OSD Blend Press to move, press OK button to confirm, <...
- Page 13 TV OPERATION Press to select the function icon, press OK button to confirm the function. Press or EXIT button to exit the control bar. NOTE: You can adjust the audio track, subtitle, or program in the Info menu while Playing the video file. Choose the Info icon and press OK can display the Info MENU.
-
Page 14: Tv Operation
TV OPERATION Hotel Mode: Please press source key first,and then press number key “1001” to enter into Hotel Mode. Hotel Mode Operation Hotel Mode Operation Panel key lock Max volume Start Source Start Channel Setup Menu display Input source change Save To USB Load Volume default... -
Page 15: Trouble Shooting
TROUBLE SHOOTING Trouble phenomenon Picture Audio Inspection antenna position, direction Snow Noise or connection antenna position, direction Ghost Normal audio or connection electronic equipment,car/ Interfere Noise motorcycle,fluorescent light Volume(inspect wether the mute function on the remote Normal Picture Mute control are started , or audio system are correct or not) Power cord is not inserted Power switch is not opened...
