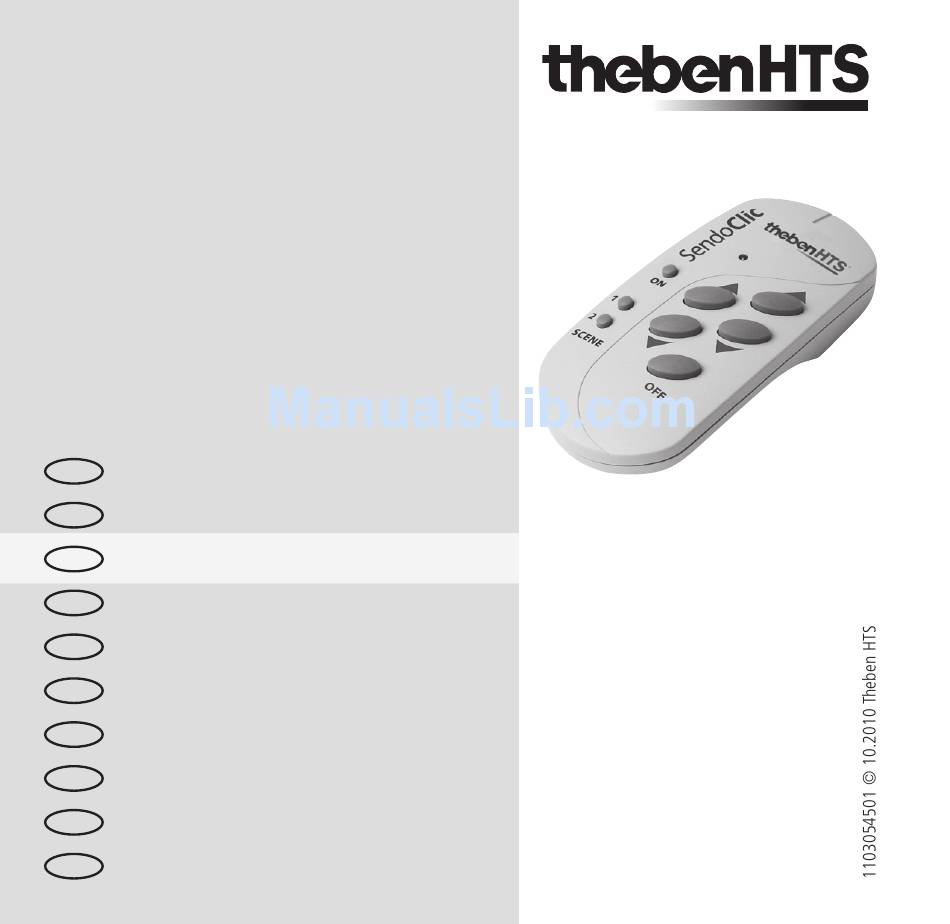

Page 1 User remote control SendoClic Art. Nr. 907 0 690 Bedienungsanleitung Notice d'utilisation Operating instructions Manual de instrucciones Istruzioni per l'uso Gebruikershandleiding Bruksanvisning Bruksanvisning Käyttöohje Betjeningsvejledning...
Page 2: Table Of Contents
English Operating instructions User remote control SendoClic Table of contents 1. Use ........... . . 43 2.
Page 3: Use
Thank you for purchasing a Theben HTS device and putting your trust in us. 1. Use The remote control is exclusively intended for the use as contractually agreed be- tween the manufacturer and the user. Any other use is considered to be unaccept- able.
Page 4: Operation
3. Operation For channels 1 and 2 together: Switches lighting on Switches lighting off Scene 1 Calls up Scene 1, programming Scene 2 Calls up Scene 2, programming For channels 1 and 2 separately: switching on, increasing light level  switching off, decreasing light level ...
Page 5 ● The detector confirms a valid command with a flicker of the red LED for a half seconds. ● An invalid command or an incompatible IR-group-address are indicated by the LED briefly lighting up once.  ● If the presence detector does not react - this means that the remote control has not been adjusted to the detector accurately enough - or that the detector cannot be remotely operated using...
Page 6 3.3 Lighting scenes A „lighting scene“ is the term used to describe a lighting situation in a room. When a scene is called up, both lighting groups change intensity to the predefined values or switche to the preset condition. SendoClic enables two frequently used lighting scenes to be stored and reproduced at any time by pressing a key.
Page 7 Ending a scene Automatic switching off of lighting using the presence detector when the room is unoccupied or manual switching off using SendoClic ends the lighting scene. Automatic operation is reactivated. Presence detectors with dimming and switching functionality ● Automatic switching off of lighting when the room is unoccupied or manual switching off ends the lighting scene control.
Page 8: Lighting Groups
 The following operations should only be carried out by a qualified electrician or the technical support service: 4. Lighting groups There are often several lighting groups in one room. Up to two lighting groups can be allocated to SendoClic's two channels. This allows two neighbouring lighting groups to be separated and controlled individually.
Page 9 PlanoCentro 101-A-230V PlanoCentro 101-A-230V IR-group-address SCENE PlanoCentro A-KNX PlanoCentro A-KNX Channel IR-group-address SCENE Channel 1 Channel 2...
Page 10: Programming
Factory setting The SendoClic channels are set to the IR-group-address I + I I (coding switch position 2) on delivery. The factory setting of the presence detector can be found in the relevant operating instructions. When is adjustment required? In some cases this setting has to be changed: ●...
Page 11 5.2 Programming IR-group-addresses in the presence detector Three different IR-group-addresses are available: ( I , I I , I I I ). Presence detector channel A is programmed via channel 1 on the SendoClic, see table below. Presence detector channel B is programmed via channel 2 on the SendoClic, see table below.
Page 12 Examples If the coding switch is set, for example, to position 1, both presence detector chan- nels (A + B) are allocated to IR-group-address I. With this program setting, both SendoClic channels switch both channels on a presence detector. If the coding switch is in position 2 ( I + I I ) , the left row of keys (channel 1) as- signs channel A of the presence detector IR-group-address I, the right row of keys (channel 2) assigns channel B of the presence detector IR-group-address I I.
Page 13 In order to prevent inadvertent programming of neighbouring  presence detectors, the output is reduced in programming mode. The remote control should be pointed at the desired detector from a short distance. After pressing the program button, the remote control remains in program mode for 20 seconds.
Page 14 Procedure: Set the coding switch (see table below) in the way that allocated IR-group-address- es to the SendoClic channels correspond wiht previously programmed IR-group- addresses to the presence detector channels. 5.4 Scene buttons The scene commands apply to the selected IR-group-addresses as per the coding switch setting.
Page 15 5.5 Examples of programmed IR-group-addresses Situation 1 In an office with two presence detectors (each with one lighting group) a remote control has an unwanted affect on the neighbouring lighting group. Solution In the first presence detector, channel A and SendoClic 1 are IR-group-address I allocated.
Page 16 Situation 2 Two lighting groups in an office are to be dimmed separately via a user remote control. Solution In first presence detector, channel A is allocated to IR-group-address I. In the other presence detector, channel A is allocated to IR-group-address I I. i = interior Master w = window...
Page 17: Technical Data
6. Technical data SendoClic user remote control Supply voltage 2 x 1.5V Batteries Type LR03 / AAA Transmission medium Infrared Range approx. 10 m Emission angle ± 15º Dimensions 120 x 57 x 24 mm Ambient temperature 0º to 50º C Colour Light grey Item no.
Page 18: Guarantee
7. Guarantee Theben HTS devices are manufactured and quality-tested with the utmost care using state-of-the-art tech- nologies. Theben HTS therefore guarantees perfect function, provided the detectors are used as intended. However, should a defect occur, Theben HTS offers the following warranty within the scope of its General Terms and Conditions of Business: Please bear in mind the following points: ●...
Page 19: Troubleshooting
8. Troubleshooting Fault Cause Detector does not respond to the Battery discharged. The battery must be replaced; remote control Distance between remote control and detector too great. Remote must be pointed directly at the detector; Channel incorrectly set; Detector cannot operate with the remote control Scenes are not correctly stored The scene key was not pressed long enough.
Page 20 Theben AG Hohenbergstrasse 32, DE-72401 Haigerloch Tel. +49 (0) 74 74 692 - 0 Fax +49 (0) 74 74 692 - 150 Hotline Tel. +49 (0) 74 74 692 - 369 Fax +49 (0) 74 74 692 - 207 hotline@theben.de Switzerland Theben HTS AG Im Langhag 11, CH - 8307 Effretikon...
