1.0 Introduction
The following provides instructions for the installa-
tion and operation of the Stone Age Fireplace,
manufactured by Stone Age Manufacturing, Col-
linsville, Oklahoma.
Three generations of fireplace knowledge and ex-
perience have gone into the design and construc-
tion of the NA 36, 42, 48, 60 and 72 fireplaces. The
New Age Fireplace is certified UL127 for the US
and ULCS610 for Canada. They are also certified
in accordance with ICC-ES AC156 meeting struc-
tural design requirements for Earthquake Testing at
a compliance level of Sds = 2.5g. The ICC-ES
AC156 complies with 2010 American Society of
Civil Engineers (ASCE) 7-10, 2009 International
Building Code (IBC), 2010 California Building
Code and 2012 ICC-ES AC156. Assembly of an
NA 48 fireplace is shown in Figure 1.

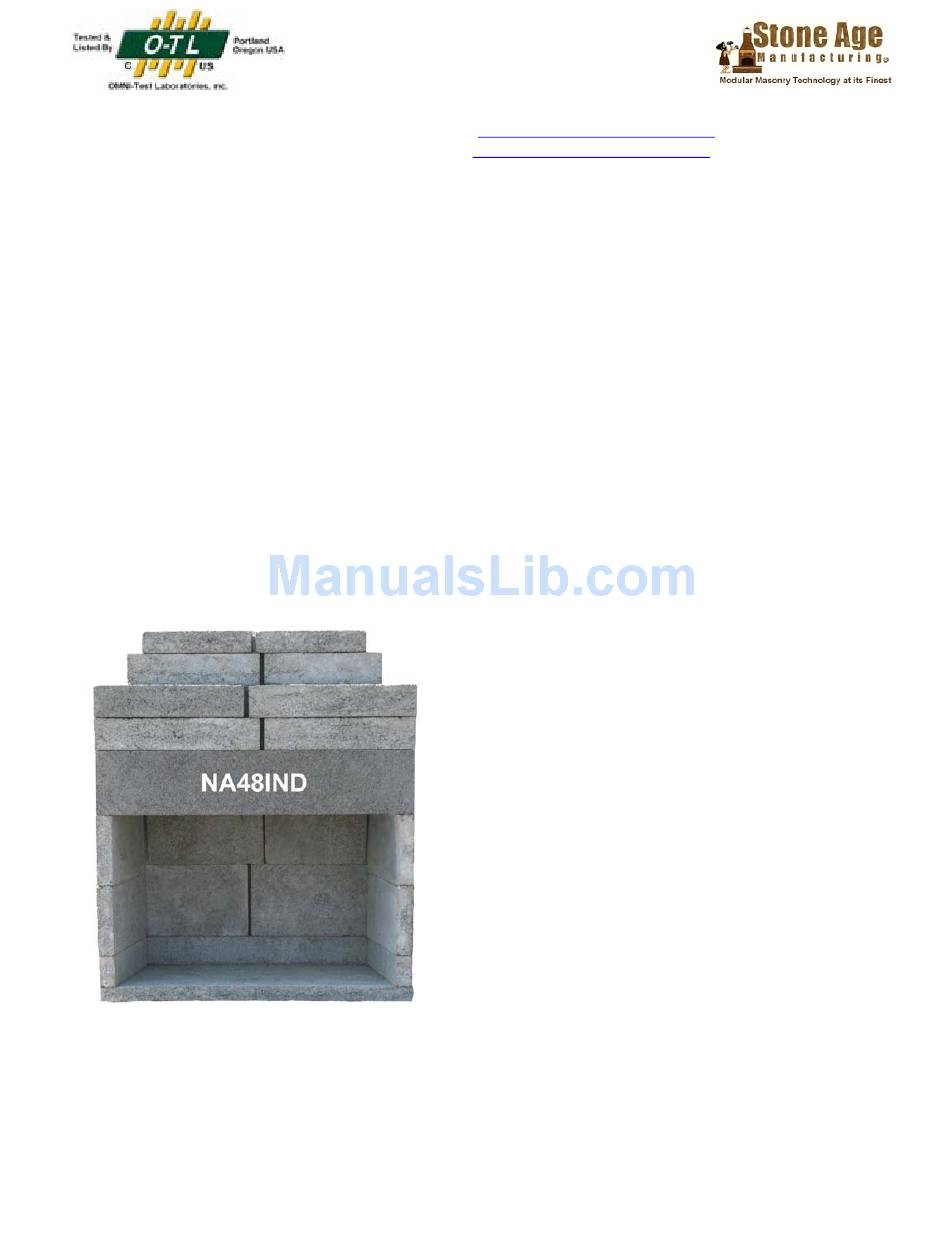

Figure 1. NA 48 Fireplace Assembly
Because of structural modifications required in an
existing home, it is recommended that this fireplace
be installed by a professional installer, or by a
builder in new construction. Installation by a non-
qualified person may negate the warranty.
Installation and Operation
Instructions
Stone Age Indoor Fireplace
Keep these instructions for future use.
2.0 Description
The fireplace is delivered as a kit with all compo-
nents necessary to complete the installation. The kit
is configured for a flue chimney, but a special
adapter is available for a metal chimney. Compo-
nent arrangement, some of which is optional, is
shown in Figure 2. Components are shown in Table
1. Specifications and installation dimensions are
shown in Table 2.
Contents of the kit include the following:
A. Fireplace items are shown in Figure 2 and
listed in Table 1.
B. Vestal Cast Iron Damper (sold separately)
(Shown in Figure 5).
C. Chimney Cap (sold separately) (Shown in
Figure 8).
D. Stone Age Fireplace Grate (sold separately)
(Shown in Figure 12).
E. Smithfield Medium Duty firebrick (sold sepa-
rately)
F. Stone Age All Purpose Ready Mix Cement
(sold separately).
The Stone Age Fireplace has been tested and listed
in accordance with UL 127 and ULC S610 stand-
ards and is listed by OMNI-Test Laboratories, Inc.
for installation and operation in the United States
and Canada as described in this manual.
This fireplace is designed to supplement your cur-
rent heating system. It is not designed to be used as
a primary heat source.
Make sure that appropriate building permits re-
quired by local codes are obtained before installa-
tion in an existing home.
