  • Page 1 User´s manual...

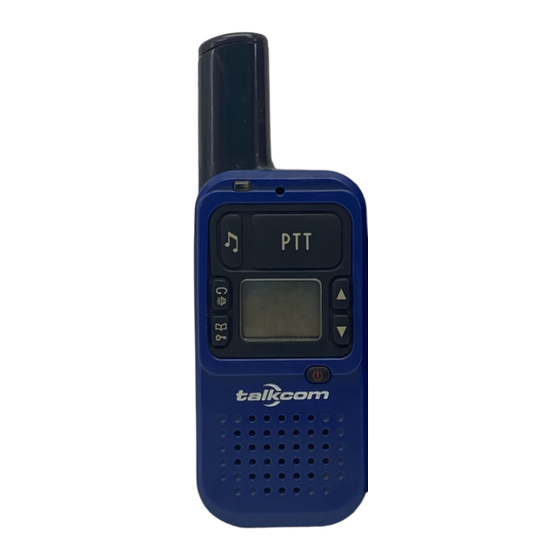

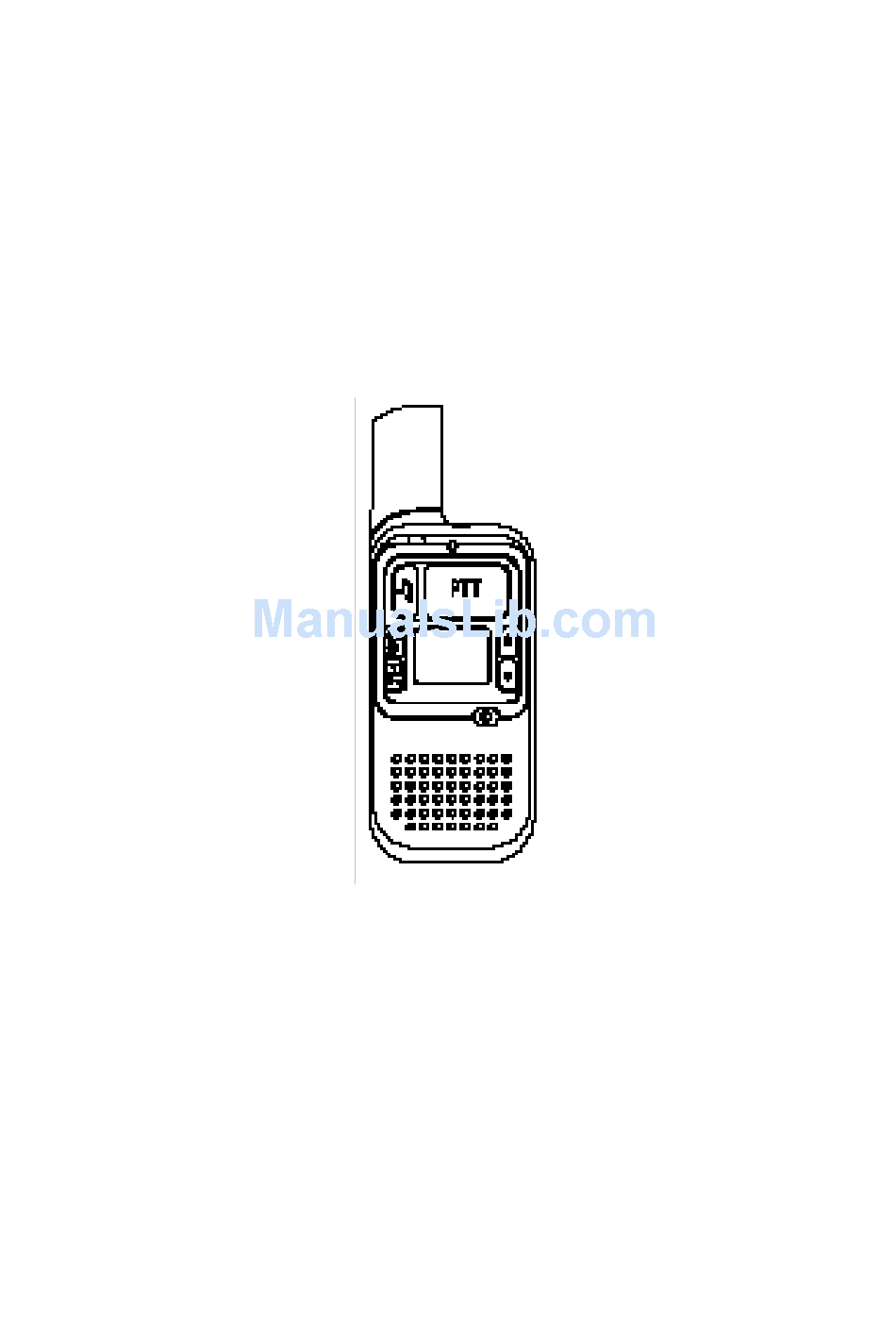

  • Page 2 INGLÉS TC-500 2-Way Radio user’s guide 446MHz PMR 2-Way Radio Model: TC-500 FEATURES 1. 8 Channel – PMR version 2. 38 CTCSS code 3. VOX ( 3 Levels of Sensitivity) 4. 10 Group Call Tone Selection 5. Key Lock 6. Scan 7.
  • Page 3 INGLÉS CAUTION AVOID PLACING THE 2-WAY RADIO FOR PROLONGED PERIODS OF TIME IN DIRECT SUNLIGHT OR TEMPERATURES BELOW OR ABOVE 60 . KEEP THE ANTENNA AT 1 INCH (2.5cm) AWAY FROM YOUR HEAD AND BODY. DO NOT USE YOUR 2-WAY RADIO WITH A DAMAGED ANTENNA.

  • Page 4: Battery Installation

    INGLÉS Turn off the radio wherever posted notices restrict the use of radios or cellular telephones. Facilities such as hospitals may use equipment that is sensitive to RF energy Turn off the radio on board aircraft when requested to do so Do not place your radio in front of a vehicle's air-bag.
  • Page 5 INGLÉS 3. Follow "This side out" and +/- direction to install the Li-ION battery pack into the compartment. 4. Press slightly & hold the battery door knob 5. and then push up the battery door to close Warning: A. Reverse the polarities of battery would damage the unit and the battery.

  • Page 6: Talk Range

    INGLÉS MAKING COMMUNICATIONS The Radio has 8 main channels & 38 CTCSS code. You can communicate with any other user who is using the same main channel & CTCSS code. Speak to other radio 1. Press & hold the PTT key, transmit LED turn 2.

  • Page 7: Menu Flow Chart

    INGLÉS MENU FLOW CHART Press" " once to enter main channel selection press " " again for next function selection. Menu Main channel CTCSS Call tone VOX sensitivity VOX overtime Dual Watch SELECT CHANNEL You can communicate with any other user who is using the same channel.

  • Page 8: Scanning Channel

    INGLÉS SCANNING CHANNEL 1. Press "Scan / Monitor " Key, LCD display icon. It will start to scan channel automatically. Note: If press and hold the button over 2 seconds, it will break the squelch noise and listen to the current channel.

  • Page 9: Dual Watch

    INGLÉS Use VOX with earphone 1. Press" "key to power off the radio. 2. Plug the earphone into the earphone jack 3. Press" "key to power on the radio, LCD display icon. 4. Set the earphone microphone close to your mouth (1~3 cm) and speak to the microphone, radio will...
  • Page 10 INGLÉS With AC/DC Adaptor: 1. Plug the adapter into the wall socket and another end plug into the earphone jack 2. The display battery Level icon flashing when it under charging. 3. Charge arrange 3 hours, the battery Level display full bar and red LED will on.

  • Page 11: Safety Instructions

    INGLÉS CTCSS Code CTCSS Freq. (Hz) CTCSS Freq. (Hz) CTCSS Freq. (Hz) CTCSS Freq. (Hz) 67.0 97.4 136.5 192.8 71.9 141.3 203.5 74.4 103.5 146.2 210.7 77.0 107.2 151.4 218.1 79.7 110.9 156.7 225.7 82.5 114.8 162.2 233.6 85.4 118.8 167.9 241.8 88.5...
  • Page 12 INGLÉS Batteries As batteries can cause property damage and/or bodily injury such as burns if conductive material such as jewelry, keys or beaded chains touches exposed terminals. The material may complete an electrical circuit (short circuit) and become quite hot. Exercise care in handling any charged battery, particularly when placing it inside a pocket, purse or other container with metal objects.

  • Page 13: Care And Maintenance

    INGLÉS CARE AND MAINTENANCE To clean the unit, wipe with a soft cloth dampened with water. Don’t use a cleaner or solvents on the unit; they can harm the case and leak inside, causing permanent damage. Battery contacts may be wiped with a dry lint-free cloth.
  • Page 14 Relevant Specifications: Radio: EN 300 296-2 V1.1.1 (2001-03) ; EMC: EN 300 279 V1.2.1 (1999-02) Seguridad: EN 60065:2000 A copy of a signed and dated Declaration of Conformity is available on request via your Talkcom help desk: www.talkcom.es / Tel: +34 902 111 446 / Fax: +34 91 103 30 10...

  • Page 15: Declaration Of Conformity

    DECLARES UNDER ITS SOLE RESPONSIBILITY THE CONFORMITY OF THE PRODUCT: PMR446 portable transceiver , with equipment type number PMR446 TALKCOM, Model TC-500 WT-202, manufactured by Daxian-Windsor Technology Limited, in P. R. of China, to which refers this declaration, with the following norms: Radio: EN 300 296-2 V1.1.1 (2001-03)
