Summary of Contents for Microframe Corporation Series 160

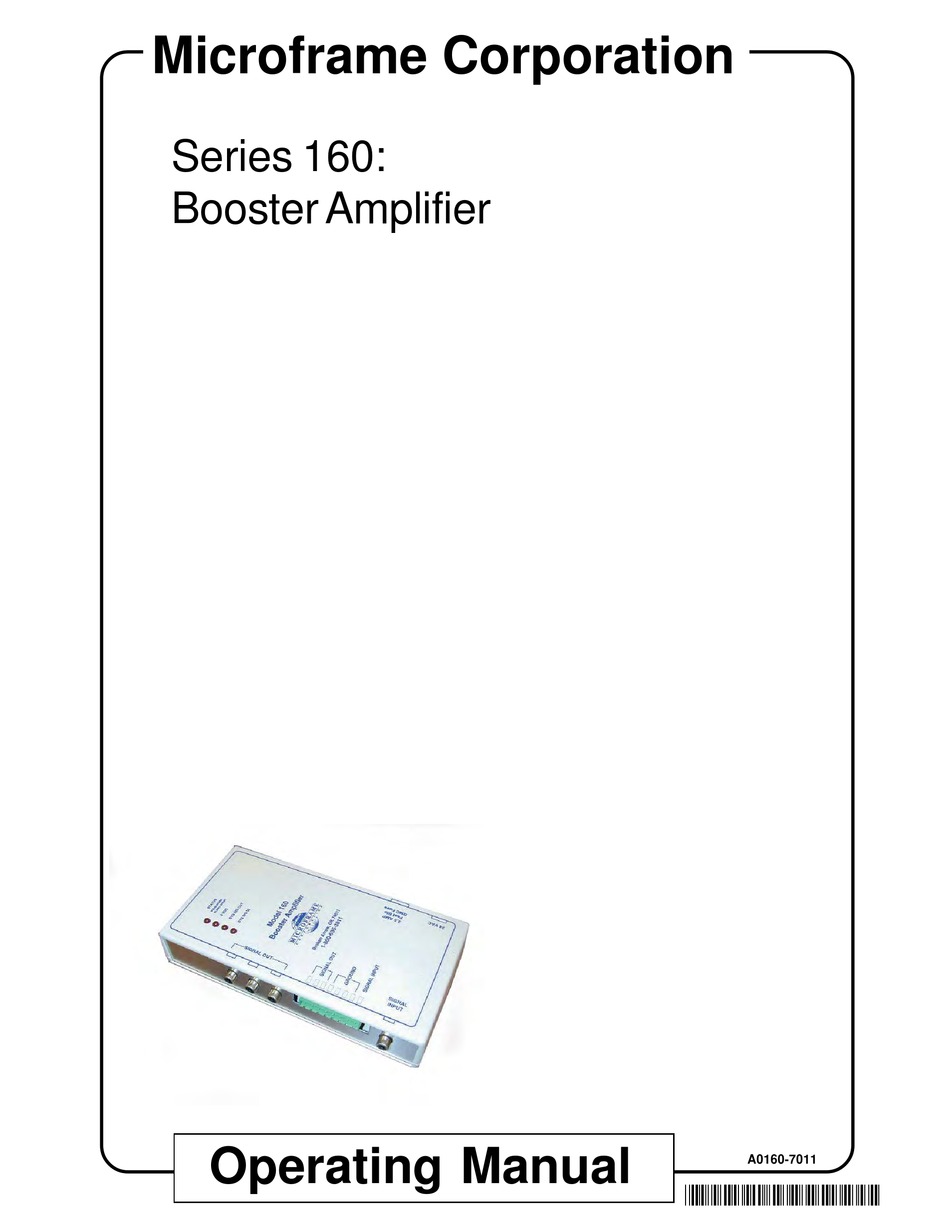

- Page 1 Microframe Corporation Series 160: Booster Amplifier Operating Manual A0160-7011 *A0160-7011*...
- Page 3 SERIES 160 INSTALLATION & SPECIFICATION GUIDE ITEM NO: A0160-7011 REVISION DATE: 04/02 Microframe Corporation 604 S. 12th Street Broken Arrow, OK 74012 Tel: (918) 258-4839 Toll Free: 1-800-635-3811 Website: www.microframecorp.com E-mail: support@microframecorp.com...
- Page 4 If it becomes necessary to return your Unit to the tems without the express written approval of the factory, please observe the following. president of Microframe Corporation. As used herein: 1. Place Unit in a sturdy box with sufficient packing 1. Life support devices or systems are defined as material.
-
Page 5: Table Of Contents
TABLE OF CONTENTS MODEL 160 SPECIFICATIONS .........6 1 PRODUCT DESCRIPTION/PRE-INSTALLATION .7 1.1 BOOSTER AMPLIFIER ........7 1.2 PRE-INSTALLATION ........7 2 INSTALLATION PROCEDURES ......8 2.1 DETERMINE CONFIGURATION ......8 2.2 ROUTING THE CABLES .........8 2.3 DISPLAY INSTALLATION.........8 INSTALLATION DIAGRAM ........9 TROUBLESHOOTING CHART .........10... -
Page 6: Model 160 Specifications
Microframe Corporation Series 160 MODEL 160 SPECIFICATIONS Booster Amp Features The Model 160 Booster Amplifier is designed to provide the capability to power additional Visual Pagers. Each Model 160 can power up to 45 digits of any combination of Remote Displays depending on distance. -
Page 7: Product Description/Pre-Installation
Microframe Corporation Series 160 1 PRODUCT DESCRIPTION/PRE-INSTALLATION SIGNAL LEDs located on the front of the Model 1.1 BOOSTER AMPLIFIER 160 are ON. The Model 160 Booster Amplifier is de- THIRD, connect a cable from the Output signed to provide the capability to power addi-... -
Page 8: Installation Procedures
Microframe Corporation Series 160 2 INSTALLATION PROCEDURES 2.1 DETERMINE CONFIGURATION The Model 160 Booster Amp will operate effectively at any point along the cable path connected to the Keypad. However, to maxi- mize the number of Displays that the Model 160 Booster will drive, locate it within 200 feet of the Remote Displays it is driving. -
Page 9: Installation Diagram
Microframe Corporation Series 160 INSTALLATION DIAGRAM... -
Page 10: Troubleshooting Chart
Microframe Corporation Series 160 TROUBLESHOOTING CHART SYMPTOM POSSIBLE CAUSE CURE Sys Sig In light OFF Turn ON Model 904. Model 904 Keypad adaptor is not connected to AC or is not turned Check cable and connections. Bad or no cable or cable connection from the Keypad to Booster. - Page 11 Microframe Corporation Series 160...
