OWNER'S MANUAL
- - 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D 11.0 Performance and is the answer not in the manual?

Questions and answers

Osvaldo Guerrero
January 23, 2025

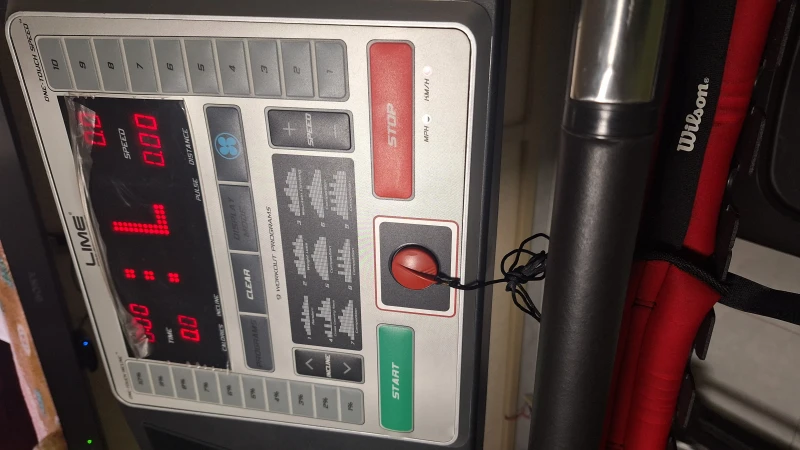

La caminadora prende, pero presiono cualquier botón y no hace nada, solo esta prendido el displacía como lo muestro en la foto

User image 6791b3233c23c
1 comments:
Mr. Anderson
February 10, 2025

The Lime Pro-Equipment D 11.0 Performance treadmill may turn on but not respond to button presses due to the following possible reasons:

1. The START key is not pressed – Ensure that the START key is pressed correctly.
2. The safety pull pin is not inserted properly – Check if the safety pull pin is securely in place.
3. The control motor wire is loose or not connected properly – Verify that the control motor wire is securely plugged in.
4. The motor plug is loose or the motor is faulty – Test the motor and replace it if necessary.

Checking and addressing these issues should help resolve the problem.

This answer is automatically generated

Israel
June 19, 2025

No se como bajar la plataforma para usarla

Subscribe to Our Youtube Channel

Summary of Contents for Lime Pro-Equipment D 11.0 Performance

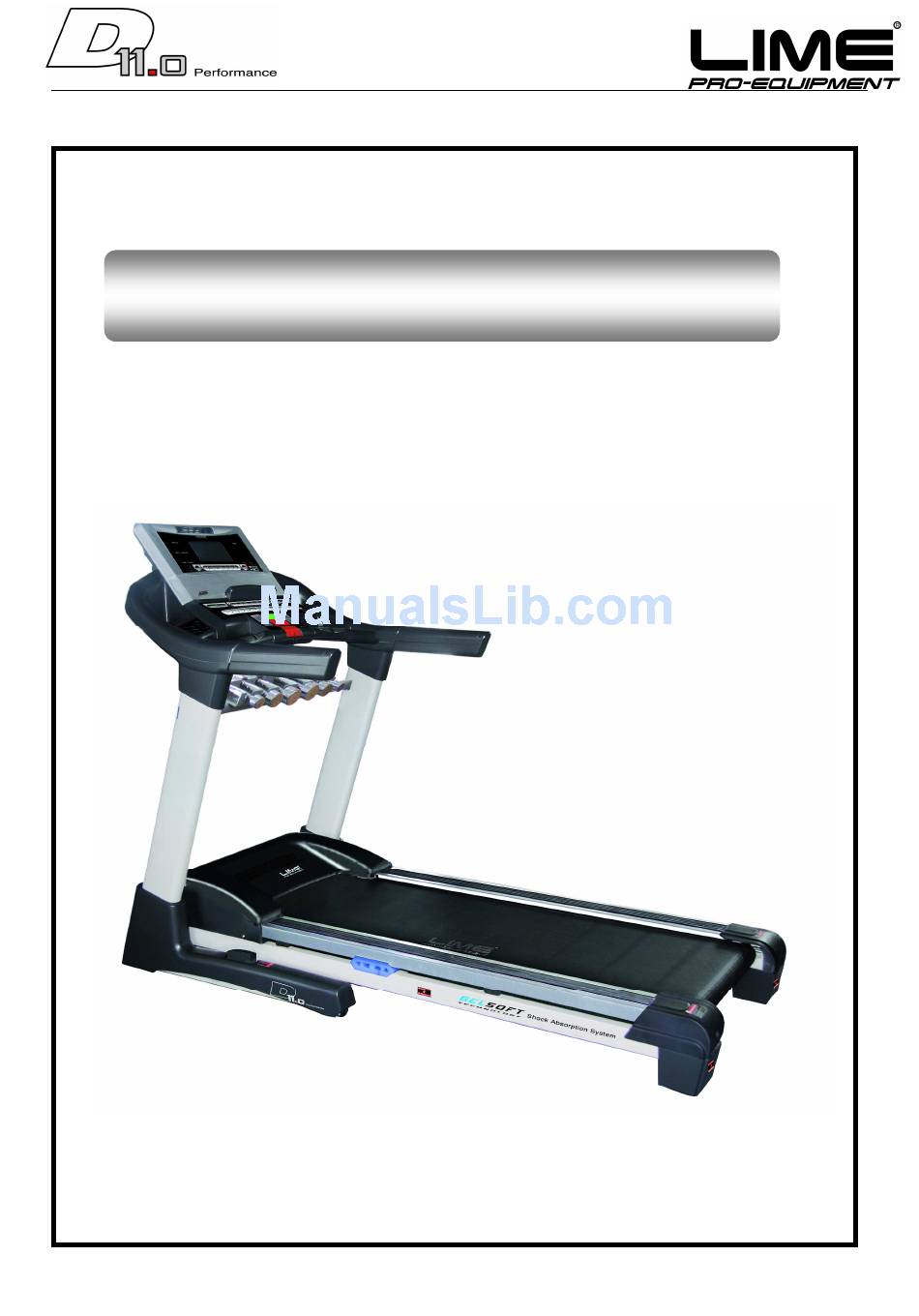

  • Page 1 OWNER'S MANUAL - - 1...
  • Page 2: Table Of Contents

    CATALOG CATALOG_____________________________________ WARNING_____________________________________ ATTENTION____________________________________ IMPORTANT SAFETY PRECAUTIONS_______________ ASSEMBLY INSTRUCTION________________________ TECHNICAL PARAMETER________________________ OPERATION GUIDE______________________________ TROUBLESHOOTING GUIDE_______________________ MAINTENANCE INSTRUCTIONS____________________ EXPLODED DRAWING____________________________ PARTS LIST_____________________________________ - - 2...
  • Page 3: Warning

    WARNING Read all instruction carefully before use this product. Retain this owner’s manual for the future’s reference. ----When using this treadmill,keep attaching the safety pull pin rope to your clothes. ----When you are running, keep your hand swinging natural,stare front, never look at the bottom of your foot.
  • Page 4: Important Safety Precautions

    IMPORTANT SAFETY PRECAUTIONS 1. Plug the power cord of the treadmill directly into a dedicated grounded circuit carrying 10 amps. Grounding Instructions: This product must be grounded. If it should breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. 2.- Position the treadmill on a clear, level surface.
  • Page 5 14.- The power cable of treadmill is special. if the power cable is damaged, please don't change by yourself, you must contact the local dealer ASAP. 15.- When the treadmill is not being used, please pull out the safety lock and store it in a safe location. In order to avoid the unauthorized use by others, specifically children.
  • Page 6: Assembly Instructions

    ASSEMBLY INSTRUCTIONS When you open the carton, you will find the below spare parts: SPARE PARTS LIST: SPEC. QTY(pcs) SPEC. QTY(pcs) DES. MAIN FRAME BOLT M5*10 LEFT UPRIGHT SCREW ST4.2*12 TUBE RIGHT UPRIGHT DUMBBELL BRACKET TUBE COMPUTER 2LB DUMBBELL LEFT 3LB DUMBBELL HANDLEBAR BOTTOM COVER...
  • Page 7: Assembly Instruction

    ASSEMBLY INSTRUCTION: 1. Open the carton; take out the spare parts, STEP 1: and put the MAIN FRAME (#1) on the ground. STEP 2: 2. Connect the signal line (#145) at the end of the LEFT UPRIGHT TUBE (#3) and the signal line (#146) at the bottom of the MAIN FRAME (#1), then insert the LEFT UPRIGHT TUBE (#3) into the unit.
  • Page 8 STEP 4: 6. Insert the PLASTIC BOTTOM COVER (#38, #39) into the UPRIGHT TUBE (#3, #4), vertically. Notice: Please do not tighten the bolts and nuts until assembly steps completed. STEP 5: 7. Insert the HANDLEBAR BOTTOM COVER (#13, #14) into the UPRIGHT TUBE (3, 4) separately.
  • Page 9 STEP 7: 12. Put the BOLT (#153) and the WASHER (#61) together, then lock the DUMBBELL BRACKET (#126) onto the LEFT AND RIGHT UPRIGHT TUBE (#3, #4) with #5 ALLEN WRENCH. STEP 8: 13. Put the DUMBBELL (#127, #128, #129) on the DUMBBELL BRACKET (#126).
  • Page 10: Technical Parameter

    Notice: Please don’t tighten the bolts and nuts until all the assembly steps are completed. The following operation is based on the good assembled of the above operation. TECHNICAL PARAMETER 1950 X 920 X 1.0-20 Km/h BUILT UP SIZE SPEED RANGE (mm) 1500 0.8-12 mph...
  • Page 11: Operation Guide

    OPERATION GUIDE Keys define: 1-1. Speed up: control the speed and input the data. 1-2. Speed down: control the speed and input the data. 1-3. Incline up: control the motorized incline up and input the data. 1-4. Incline down: control the motorized incline down and input the data. 1-5.
  • Page 12 Program profile and setting 3-1. Manual profile: speed / incline. Default: min. 3-2. User Profile: Default: min. When the default is set, it will be stored; when the incline is regulated, it will get back to default=min. 3-3. In the profile window, the speed and incline of each program will display automaticly, the interval time is 5s.
  • Page 13 Speed profile 3 Segment EEPROM 2.0 4.0 4.0 6.0 6.0 4.0 7.0 7.0 7.0 4.0 7.0 7.0 4.0 4.0 4.0 2.0 4.0 5.0 3.0 2.0 Incline profile 4 Segment EEPROM Speed profile 4 Segment EEPROM 3.0 5.0 5.0 6.0 7.0 7.0 5.0 7.0 7.0 8.0 8.0 5.0 9.0 5.0 5.0 6.0 6.0 4.0 4.0 3.0 Incline profile 5 Segment EEPROM...
  • Page 14 Speed profile 10 Segment EEPROM 2.0 3.0 3.0 6.0 7.0 5.0 4.0 5.0 7.0 8.0 6.0 7.0 5.0 5.0 6.0 3.0 4.0 4.0 3.0 2.0 Incline profile 11 Segment EEPROM Speed profile 11 Segment EEPROM 2.0 5.0 8.0 10.0 7.0 7.0 10.0 10.0 7.0 7.0 10.0 10.0 6.0 6.0 9.0 9.0 5.0 5.0 4.0 3.0 Incline profile 12 Segment EEPROM...
  • Page 15 Time → Calories → Distance When we choose the other programs, except the MANUAL, press the MODE in its stand by state, we can only set TIME, but CAL, DIST are not available. 4-5.2. Press the up, down key of the speed / Incline to change the data. 4-5.3.
  • Page 16 are showed in the middle of dot matrix. The computer will be open too, the details are: 3 (bi) – 2 (bi) -GO - START. 5-3. Scan function: 5-3-1. In the START MODE, it will display cycledly “incline / speed profile, multi-data (incline / pulse, cal / dist) for each 5s.
  • Page 17 5-8-2. When calories is calculated by Count up, the counting range is 0~999, it will be clear and calculate once more if it is beyond the range. When calories is calculated by Count down, the setting range is 5.0~995, step ±5. When count down to zero, alarming twelve times and jump to setting state, motor stop.
  • Page 18 6-4. Manual playground: the distance of per loop is 400m. (1 point=20m) 6-5. Manual: The user can set all of the work line, the program will display M, the dot matrix will show the revolving lamp. 6-6. The time default will show 0:00 if the user don’t press the mode key of the Manual or program. When we press the start key, the program will begin to calculate the data and the signal will output as per the program profile.
  • Page 19 of each segment is 1min. Manual profile display: 8*8 profile area: Error message: display on speed window. 8-1. E1: The program will stop automatically when press “start” key but no speed program input within 10s. 8-2. E2: Either the EEPROM nor the ID code is wrong, or can not reading; this action won’t accept unless it last for 5s.
  • Page 20 Picture displayed speed-> Picture displayed usage->Music repeating mode->Movie repeating mode-> Picture displayed proportion->Automatic player->Default setting” (See picture 3). You can choose or switch the items by , then press /ENTER to confirm. If you select “language”, you can choose the “Sample Chinese->Espanol->English” circularly by ;...
  • Page 21 Picture 1. 9-7. If you select “PHOTO”, press the /ENTER to preview the photos, as shown by Picture 6. Select your favourite photos ▼, ▲, ,then press /ENTER to get a full screen display of all the “PHOTO” files. It also can be paused by /ENTER when it is playing, the toolbar will be shown under the photos, you can choose the playing mode by .
  • Page 22: Troubleshooting Guide

    TROUBLESHOOTING GUIDE: TROUBLESHOOTING GUIDE PROBLEM CAUSE CHECKING CORRECTION 1.If the plug and the line is 1. Checking the plug and 1. Insert the plug and the line well. Treadmill loosen. the line is connected well. will not 2. Checking the power start.
  • Page 23 3. Put the both hands to The hand pulse do not touch bedew a litter or scrub 3. Reset to test. well with both hands. 1. The connected wire is 1. Use the multimeter to test the wrong. wire is stand or fall. Message failure 2.
  • Page 24: Maintenance Instructions

    MAINTENANCE INSTRUCTIONS WALKING BELT CENTERING AND TENSION ADJUSTMENT The walking belt may occasionally need to be centered and tightened. TO ADJUST WALING BELT TENSION: ● Run treadmill at approximately 3.5 mph. ● Using Allen wrench, turn both the right and left adjustment bolts ONE full turn clockwise.
  • Page 25 WARNING: ALWAYS UNPLUG THE TREADMILL FROM THE ELECTRICAL OUTLET BEFORE CLEANING OR SERVICING THE UNIT. CLEANING General cleaning or the unit will greatly prolong the treadmill. Keep treadmill clean by dusting regularly. Be sure to clean the exposed part of the deck on either side of the walking belt and also the side rails.
  • Page 26: Exploded Drawing

    EXPLODED DRAWING - - 26...
  • Page 27: Parts List

    Part list DESCRIPTION REMARK DESCRIPTION REMARK MAIN FRAME PLASTIC BOTTOM COVE(L) BASE FRAME 39 PLASTIC BOTTOM COVE(R) LEFT UPRIGHT MAGNETIC SENSOR RIGHT UPRIGHT INCLINE MOTOR DISPLAY BOARD TAPER CUSHION COMPUTER TOP COVER ADJUST BRACKET COMPUTER BOTTOM COVER STRENGTH TUBE LEFT COMPUTER COVER SUPPORTING ASSEMBLY ¢38*¢33*16 RIGHT COMPUTER COVER...
  • Page 28 SCREW M5*8 AMPLIFIER MIDDLE WIRE SCREW ST4.2*13 AMPLIFIER LOWER WIRE SCREW ST4.2*13 SCREW ST4.2*16 SPRING WASHER SAFETY LOCK BOLT M8*45 BIG WASHER BOLT M8*50 END CAP SPRING φ1.5*34 SCREW BIG WASHER SCREW BELT FUNCTION PLAYING BOARD OILINESS AXIS COVER MINI HEADPHONES AC SINGLE LINE SCREW ST4.2*13...
  • Page 29 COMPUTER MIDDLE WIRE COMPUTER LOWER WIRE LEAD STRAP DRAW SCREW ST4.2*19 BOLT M8*15 FOOT PAD BOLT M5*25 WASHER...
