Summary of Contents for CamDiscovery A1

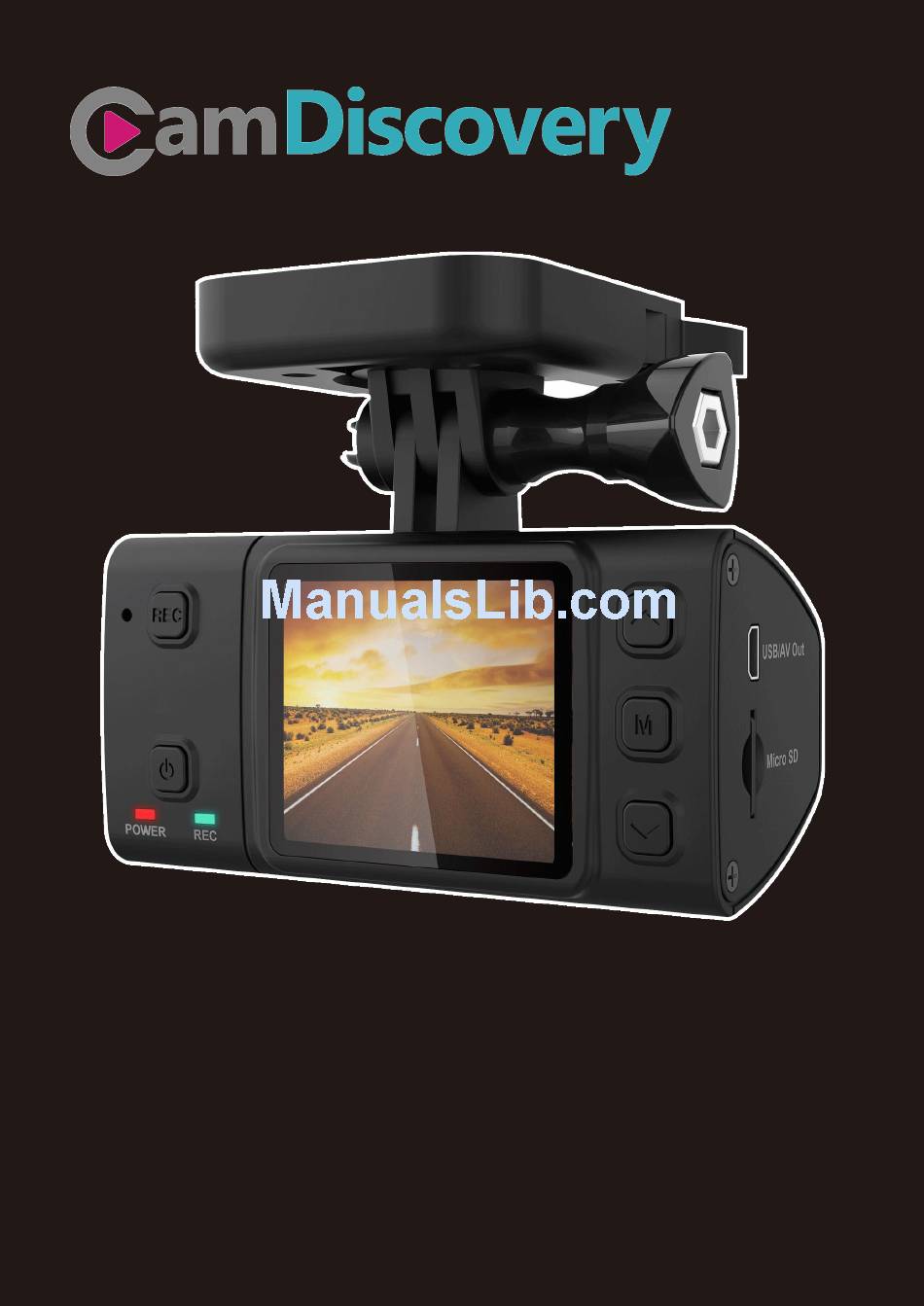

- Page 1 A1 User Manual Please read the user manual clearly for avoiding any wrong opeartion, current manual is not the newest and not complete, please contact us if any query. ~ 1 ~...
-
Page 2: Table Of Contents
Catalog Main Feature ..........................4 Install and Use ..........................5 1. Camera buttons ........................5 2. Install Memory Card ......................6 3. Install the Mounts ....................... 6 4. Connect to cigar lighter ...................... 7 5. Video record and Capture....................7 6. - Page 3 4. Sharpness ......................... 18 5. Color Effect ........................18 6. ISO Setting ........................19 7. Anti-Shaking of Hands ...................... 19 8. Date & Time stamp ......................20 System Setting ........................21 1. Exposure Setting ......................21 2. White balance ........................21 3.
-
Page 4: Main Feature
Main Feature 480 x 240，1.5”TFT LCD Screen 3MP HD COMS Sensor 135º Wide angle FHD 1080p ; H.264 Compression into MOV Video format G-Sensor reaction, Save the current video compulsively when the accident occurred. Zero second leakage REC function, save all datum . ... -
Page 5: Install And Use
Install and Use 1. Camera buttons 1, REC/Confirm 8， Menu 2,Reset 9， Down 3,Power/Mode 10，MIC 4, Power indicator 11， Lens 5, REC indicator 12，USB Port / Video output 6, LCD Screen 13，TF card slot 7, Up 14-15，Mount /3M adhesive ~ 5 ~... -
Page 6: Install Memory Card
2. Install Memory Card a ，Please install the TF Card according the graphic: b ，This camera without build in storage, support 1GB~32GB TF Card external memory expand. c ， After install the TF card ,rest available memory could be checked on the screen. Attention: Please use the original TF card for good using experience. -
Page 7: Connect To Cigar Lighter
4. Connect to cigar lighter Mini 8pin side insert to camera , car charger side insert to cigar lighter. 5. Video record and Capture a ,Camera will power on and start video record automatically while starting the car or connecting the power source, a red icon will flash on left corner of screen during this time. -
Page 8: Video Playback
6. Video Playback Press POWER button to enter the video file, press < or > to browse the videos and photos Press REC to play or pause the video, press < or > to fast forward or fast rewind. Press < or > to browse next photo 7. -
Page 9: Connect To Television
Lock Current : Current file will not effected by loop record and will not be deleted. Unlock Current: Current file would be deleted if the memory card is full under loop record mode. Lock All: All video and picture files will not effected by loop record and will not be deleted. Unlock All : All video and picture files would be deleted if the memory card is full under loop record mode. -
Page 10: Connect With Computer
9. Connect with Computer Connect the camera with computer via USB cable, available for data transfer, update the camera firmware and charge. After connect with the computer, option menu will be display on the screen, press < or > to make a choice. -
Page 11: System Icons
System Icons REC Mode Capture Mode Scan Mode REC setting Capture setting System setting MIC on Loop REC / 5 Minutes per video clip Exposure Value Full HD 1080p 30FPS Anti-Shaking ON White Balance Photo pixel Photo quality TF Card condition Battery Charging No SD card installed ( Use internal memory) -
Page 12: Rec Setting
REC Setting REC Mode Press MENU under REC mode to enter main menu, press < > to select setting content, press REC to confirm operation. 1. Video Resolution : Press < > to select suitable resolution , press REC to confirm , save and quit. 2. -
Page 13: Motion Detection
3. Motion Detection Press < > to select motion detection under REC mode , press REC to confirm operation . Press < > to select off or on, press REC to confirm setting , save and quit. ON: REC mode will turn to motion detection mode directly and Auto Record model will not available any more. -
Page 14: Date & Time Stamp
5. Date & Time stamp Press MENU to enter the main menu of the camera , press < > to select time stamp Press REC to confirm and enter to select menu, press < > to select , press REC to save and quit. OFF: Video clip without Date &... -
Page 15: Fatigue Driving Warning
Note: This function is useful for saving current file when vehicle suddenly stop or traffic accident happen. 7. Fatigue driving Warning Press MENU to enter main menu, press < > to select Fatigue driving Warning Press < > to select Warning icon：... -
Page 16: Video & Picture Setting
Video & Picture Setting 1. Picture Capture Mode Press POWER to select Capture Mode, press MENU to enter main menu ,press < > to select Press < > to select capture mode, press REC to confirm and enter select menu Single : Press REC button once to take one picture immediately 2S / 5S / 10S timer : Delay 2s/5s/10s to take picture after press REC button ~ 16 ~... -
Page 17: Image Size
2. Image size Press < > to select the image size , press REC to enter the select menu. Press < > to select suitable image size according to personal need, press REC to save and quit . 3. Still Picture Quality Press <... -
Page 18: Sharpness
4. Sharpness Press < > to select sharpness ,press REC to enter select menu Press < > to select suitable sharpness option, press REC to save and quit. Remark: Default setting is Normal. 5. Color Effect Press < > to select the effect of color Press REC to enter setting Press <... -
Page 19: Iso Setting
6. ISO Setting Press < > to select ISO under capture mode, press REC to confirm and enter option menu. Press < > to select suitable ISO according to different enviroment Press REC to save selection and quit. Remark: Default Setting is Auto 7. -
Page 20: Date & Time Stamp
8. Date & Time stamp Press < > to select date stamp ,press REC to enter the option menu. Press < > to select turn on or turn of the date stamp. Press REC to confirm , save and quit. Off: Picture without date display Date : Picture with date display Date / Time : Picture with time and date display... -
Page 21: System Setting
System Setting Press the “ MENU “ button twice to enter the system setting menu. 1. Exposure Setting Press MEMU to enter the current setting ,press menu again to enter system setting menu. Press < > to select exposure Press REC to enter setting menu Select suitable exposure according to different environment Press REC to save setting and quit Remark : Default setting is +0.0... -
Page 22: Date/Time Setting
Press REC to confirm, save and quit Remark: Default setting is auto 3. Date/Time Setting Press < > to select Date/ Time, press REC to correct time and date Press REC to confirm and enter， Press < > to adjust time and date, press REC to confirm ,save and forward to next setting. Press REC to save and quit. -
Page 23: Beep Sound
4. Beep Sound Press < > to select beep sound ,press REC to enter setting . Press < > to select turn on / off the button sound Press REC to confirm setting and quit 5. Language Press < > to select language ,press REC to setting Press REC to confirm and press<... -
Page 24: Tv Mode Output
6. TV mode output Press < > to select TV mode Press REC to confirm and select , press < > to select PAL system Press REC to confirm and quit NTSC： 60Hz for Europe , America, Japan, etc. PAL： 50Hz for China and some Asia countries Most TV compatible with NTSC / PAL automatically ,could be used directly without external setting Remark : Default setting is NTSC system 7. - Page 25 Note: The frequency here means Power Frequency. 8. Image Rotation Press < > to select Image Rotation Press REC to confirm and select Off：Normal picture On : 180° Rotated picture 9. Screen Saver 10. Press < > to select Screen Saver Press REC to confirm and select Press REC to confirm , save and quit Off: Screen will not turn OFF...
-
Page 26: Format
5minutes : Screen will turn OFF automatically after 5 minutes if without any operation. 10 minutes : Screen will turn OFF automatically after 10 minutes if without any operation 11. Format Press < > to select format Press REC to confirm and select Press <... -
Page 27: Default Setting
12. Default setting Press < > to select default setting Press REC to confirm and select ,press < > to select whether return menu to default setting or not. Press REC to confirm and quit. Cancel : Cancel operation and system will not be reset OK: Reset to factory setting 13. -
Page 28: Firmware Update
14. Firmware Update Download the firmware package from the official website or local distributers website , the package as below After released: Copy the file “ FW96650A.bin” to the root directory of TF card Install the TF card to the camera and turn on , update process will run automatically. ~ 28 ~... -
Page 29: Specifications
Specifications ITEM SPEC REMARK Build in storage 32MB TF card 1-32GB Support 32GB SDHC Size 1.5inch resolution 480x240 size 1/3inch CMOS sensor image pixel 2304H x1536V Main Spec Video output port USB/RCA Microphone built in Audio Output port USB/RCA speaker built in Interface USB 2.0... - Page 30 Specifications REMARK ITEM SPEC File protected while lower power Full HD1920x1080 30FPS HD1280x720 30FPS Video HD1280x720 60FPS optional record HD1280x720 30FPS Video & QVGA 848x480 60fps 4032x3024 12MP Picture optional 3648 x 2736 10MP Capture 3264 x 2448 Sound record slid show Thumbnail browse support...
- Page 31 Please login www.jeasun.net for more product information. ~ 31 ~...
