Attez ZN62 Quick Start Manual

Portable plug-n-play wi-fi camcorder
Hide thumbs

Advertisement

Quick Links

Download this manual
Attez

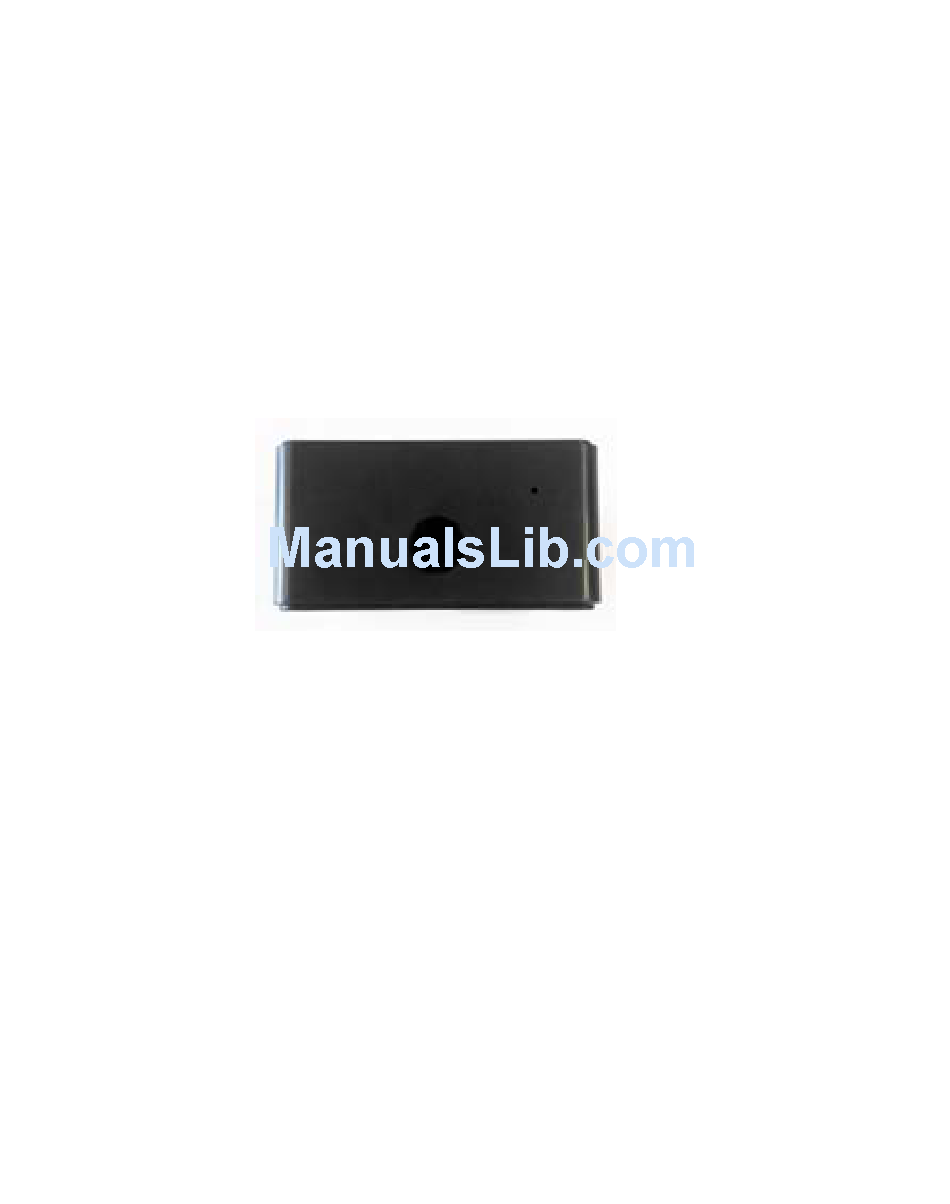

ZN62 Portable Plug-n-Play Wi-Fi Camcorder
Quick Start Guide

Advertisement

loading
Need help?

Need help?

Do you have a question about the ZN62 and is the answer not in the manual?

Questions and answers

Summary of Contents for Attez ZN62

  • Page 1 Attez ZN62 Portable Plug-n-Play Wi-Fi Camcorder Quick Start Guide...
  • Page 2 Wi-Fi Camcorder！The ZN62 requires no setup and installation. It uses Wi-Fi for real-time surveillance and is able to record video and audio on the microSD card locally. You can use the smartphone to access ZN62 anytime anywhere. ZN62 has a built-in rechargeable battery which can operate up to 8 hours.

  • Page 3: Package Content

    ZN62 connects to a router. The user can access ZN62 anytime anywhere through the Internet Import cam You can invite another user to connect to ZN62 by giving the Cam ID, username and password to the user Smartphone Requirement Android 4.2.2 or later, iOS 8.3 or later version...
  • Page 4 ZN62 comes with an internal rechargeable battery. It can be charged by Connecting to the USB port of a PC or 5V DC adapter. If it is the first time using ZN62 or ZN62 is not used for a long period, please charge the battery for 4 hours before use.
  • Page 5 Please ensure ZN62 is turned off smartphone connection before connecting ZN62 to a PC. Green LED flashing: Connected to Green LED will be on and ZN62 smartphone successfully can be used as a removable drive. 1b. ZN62 is in router mode...
  • Page 6 Step1：Power on ZN62 1. When using the ZN62 for the first time, hold the power button until the green LED is on. Then, the orange LED will be on. ZN62 is in AP mode now. Step2：Install the app “Attez” Method 1 (Andriod only): 1.
  • Page 7 Method 2 (Andriod / iPhone / iPad): Go to Android Play Store / Apple App Store, search for “Attez”, download and install the app “Attez”. When installation finishes, the “Attez” icon will be shown. Step3: Add new cam 3.1 Open Attez...
  • Page 8 3.3 Please go to 3.4 Press “Add new 3.5 You can assign a Settings -> Wi-Fi cam”, it will get the cam name to ZN62. If and enable Wi-Fi to cam ID from ZN62 you want to connect connect automatically, through the Internet, Attez_xxxxxx.
  • Page 9 3.6 Router mode Configure ZN62 to connect to a wireless router nearby. You can access the ZN62 through the Internet anytime anywhere. 3.6.1 Click “Click to select 3.6.2 Select your 3.6.3 Fill in the Wi-Fi the router”. router from the list.
  • Page 10 ZN62 to AP mode by: while ZN62 is powered on, press and hold the MODE key (at the back of ZN62) until the orange status LED is on. Delete the cam from the app and repeat step 3 to install again.
  • Page 11 “Attez” directory Remark: (1) The files will be in the “Attez” directory. If there is an external media on your smartphone, please check if the file will be saved into the external memory. (2) Please use the latest video player to play the video (Android: Andriod Video Player / iOS: Quick Time Player) (3) If the file size is larger than 5MB, it can only be downloaded via Wi-Fi.
  • Page 12 2. Run “Attez”, then click “Import cam”, fill in all the information and assign a name to the Cam name. 3. If ZN62 is in AP mode, the user needs to enable Wi-Fi to connect to Attez_xxxxxx. 4. If ZN62 is connected to the router, the user’s smartphone needs to be...

  • Page 13: Connection Setting

    Copy Cam ID, to share the cam ID with others. 2. Connection setting If ZN62 is in AP mode, you can change to router mode to connect to the Internet by inputting the router information. For details, please see setup procedure 3.6.
  • Page 14 Remark: Please ensure ZN62 is ON and a formatted microSD card is inserted. For details, please visit www.atteztech.com -> Support -> Knowledge Base. 4. Change user password Default password is 888888. Please change the password for better security. Password is case-sensitive.

  • Page 15: Frequently Asked Question (Faq)

    If the cam setting is wrong, you can delete the cam in the app and restore the ZN62 to factory default by: while ZN62 is powered on, press and hold the MODE key (at the back of ZN62) until the orange status LED is on. Repeat step 3 to install again.
  • Page 16 Q3: How to reset to factory default? While ZN62 is powered on, press and hold the MODE key (at the back of ZN62) until the orange status LED is on. Delete the cam from the app and repeat step 3 to install again.
  • Page 17 Q15: Why the PC cannot read the SD card? Please make sure ZN62 is turned off before connecting ZN62 to your computer. Tips of Use 1. If you cannot connect ZN62 for a long time, please reboot the ZN62 and the...

  • Page 18: Fcc Regulation

    Attez app or force to stop the app and run the app again. 2. Optimal operating temperature is 32˚F to 113˚F (0˚C to 45˚C). ZN62 cannot be exposed directly under sunlight. 3. If the file size is larger than 5MB, it can only be downloaded via Wi-Fi.
  • Page 19 1. Increase the separation between the equipment and ZN62. 2. Connect the equipment to a different outlet so that the equipment and ZN62 are on different branch circuits.
