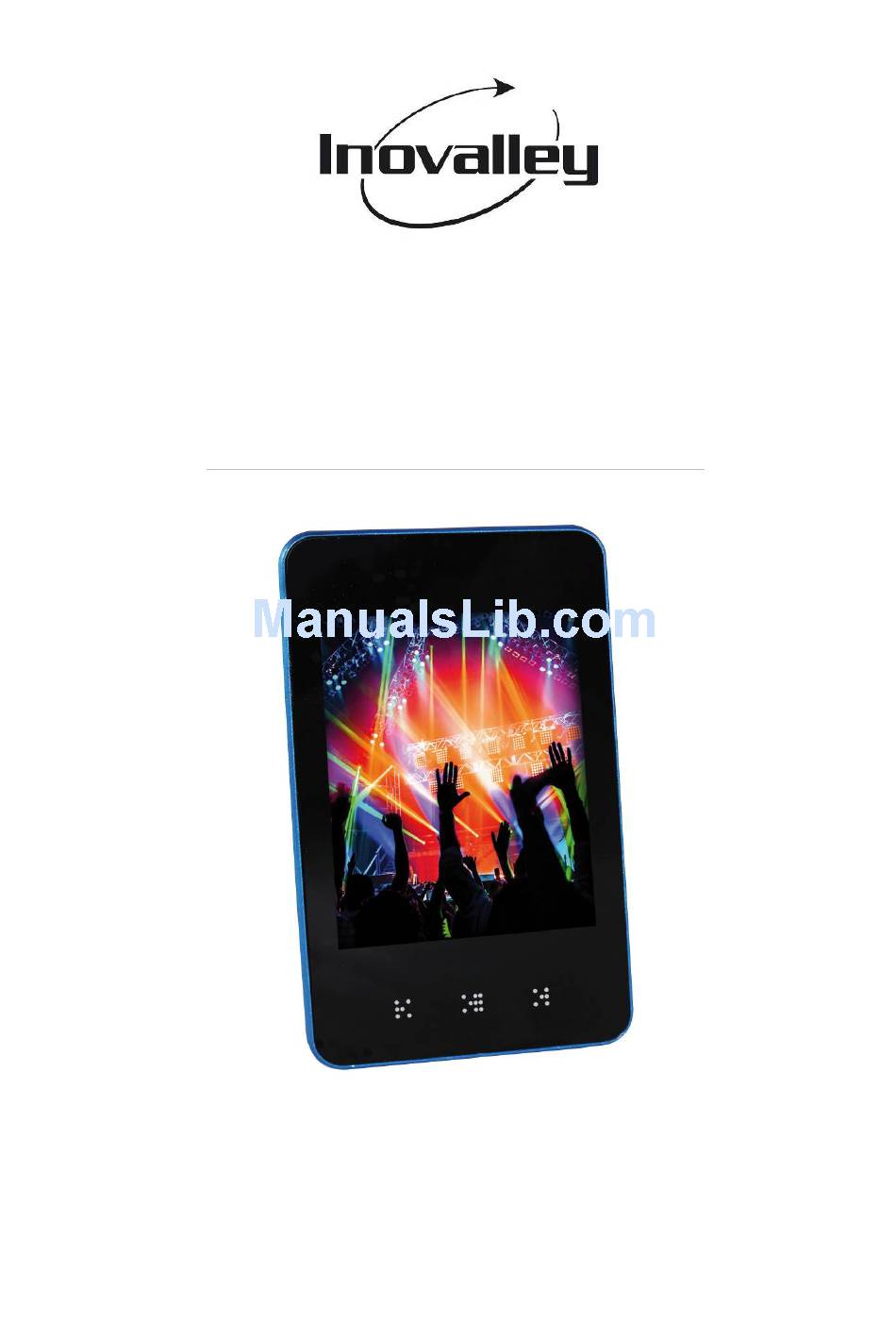

- Page 1 MP4 PLAYER Ref.: MP61 ...
- Page 2 Thanks so much for purchase our MP4 player. Please read this manual carefully before you using this unit. We will not contact individuals with any changes of this player and not responsible for the problems caused by wrong printing. ********************* PRECAUTIONS & WARNING • Please read all instructions and guidelines before starting device. • Keep this guide for future reference. • Utilization and security guidelines must be respected. • Do not put the player in the condition of high temperature, humidity or dust. • Do not place the device near a heat source (e.g. radiator) or in high temperature place (over 40°C). • Do not expose it to direct sunlight. • Do not place on the device any dangerous object such as lit candles. • The device must not be used near water and away from moisture. • The device must not be exposed to water drops, and never put on it any object containing water. • Make sure that no liquid is spilled on device and inside device openings. • Do not block the openings of the device. • Do not close to strong magnetic field, electric field etc. • Move device carefully, and avoid shocks; especially do not shake TFT screen in order to avoid TFT being damaged or displayed abnormally. ...
- Page 3 uploading and downloading, otherwise, it will cause the program error. • We will not be responsible for any obligation for any memory loss caused by product damage, repair or other reasons. Please operate correctly as per the manual. • The player, no matter is powered on or not, once connected with the USB port of started computer, can be charged. • Do not dismantle the player personally or use alcohol, thinner or benzene to clean the surface of the player. • Do not use the player in the electronics‐prohibited area, such as in the plane. • Do not use the player when driving or walking in order to avoid traffic accidents. • This device contains a rechargeable lithium battery, which is not accessible to the user, and therefore not serviceable. • Do not expose the battery to excessive heat such as sunlight, fire, radiator or similar sources. • Please charge in the following conditions: A. Battery electricity icon displays no electricity. B. Further power on the player when the system is powered off automatically, but it powers off soon. C. No response with the pressing keys. • The user shall not try to use the device beyond what is described in this guide, in order not to void the guarantee. PRECISE DETAILS AND PRECAUTIONS OF THE LISTENING OF THE DEVICE WITH AN EARPHONES OR AUDIO HELMET: ‐ In order to prevent hearing damage, please do not expose too long your ears to high noise levels. ...
-
Page 4: Basic Functions
‐ Hearing at a too high sound volume can impair your hearing. ‐ You risk a permanent hearing impairment. ‐ Limit the volume: always adjust the volume so as to listen to a clear and safe quality of sound. WITH FULL POWER, THE PROLONGED LISTENING CAN DAMAGE THE EAR OF THE USER. “Only the earphones supplied with the device guarantee the respect of the maximum power to you. Using headphones other than the supplied ones can generate hazardous sound levels, which can impair your hearing abilities”. BASIC FUNCTIONS 240x320, 260,000 full‐color, high‐speed TFT touch screen 2.8 Inch ... -
Page 5: Basic Operation
BASIC OPERATION TOUCH OPERATION AND KEY DEFINITIONS No. Name Function definition (1) long press to turn on/off 1 HOME (2) When display is off, short press this key to highlight the display (1)Short press to increase the volume 2 Vol+ (2) When display is off, short press this key to highlight the display 3 Vol‐ (1)Short press to decrease the volume 4 ... -
Page 6: System Requirements
(2) When display is off, short press this key to high light the display 4 USB USB cable slot 5 ON/OFF Power ON/OFF 6 TF TF card slot (micro SD) 7 Headphone Headphone jack 3.5mm 8 Microphone 9 Touch pen Touch pen slot 10 Camera SYSTEM REQUIREMENTS Operating system: Windows XP/2K/ME/98(need installing driver) above Linux9/Mac OS 10 CPU: Pentium‐133MHz at least Ram: 32MB at least Video Card: above 640x480 model, at least for enhanced color (16 bit) BOOT Switch the player power dialing ON direction 3 seconds to boot. The system will display the welcome interface, then enter the main menu directly. ... -
Page 7: Volume Control
Vol+/Vol‐ key to regulate volume. Vol+ is increasing the volume, Vol‐ is decreasing the volume. CONNECT THE COMPUTER AND DATA FILE TRANSFER Use the random supplied USB cables to connect PC and player; the player will show entering the U disk. At present, pressing the MENU key or deleting U disk in PC safely will enter USB charging. On the interface of USB charging, touching the screen or pressing MENU key will enter the application main interface. CHARGING IMPORTANTE NOTE : TO CHARGE, PUT MP61 IS IN POWER ON STATUS ! If not, battery no charge. The machine uses the Li‐On rechargeable battery. When charging, connect the player with the computer USB port with USB cable included. BATTERY LOW ELECTRIC When the power is not enough, the player will show the presentation frame automatically, then shutdown automatically and enter into the state of Stand By, at the moment please charge in time not open again, with USB cable included. 6 ... -
Page 8: File Storage
FILE STORAGE Different classified files should be kept in different catalogue, for example: music files should be kept in music catalog, record files should be kept in record catalog. Or we won’t find the corresponding application. PLUGGING MICRO SD CARD Before use, please insert the micro SD card at first. Insert：The micro SD card positive (with word side) up (in the direction of the machine screen for the above), a little bit hard insert machine holder is connected with the machine. The machine in this state, it can play MINI SD card within the file TAKE OUT： The micro SD card gently to a push, micro SD card will rebound a section, then remove them. Notice：Please plug card when turn off the machine, otherwise, it will cause the machine internal file is missing or corrupt Attention ：please insert a micro SD card before you do any operation. Main Menu Interface This player provides a touch screen operation system, it can operate more directly. The main menu interface as below： 7 ... - Page 9 1. The upper‐left corner of the main interface is the system time display. Top right corner is the battery gauge to display. 2. In the main menu interface under point contact screen corresponding function icon, and then enter into the selected function mode. MUSIC In the main menu interface, point and contact screen "Music" function icon, and then enter into "Music" function interface. Music submenu is shown as following picture: 8 ...
- Page 10 1. All music Display all music of the micro sd card.Choose any one piece of music enter into the playing interface as picture: Press and to choose previous and next music.Press to pause the now ‐playing music or playing the music again. Press to come back to the music list interface. 2. My music list Include My play list 1, My play list 2, My play list 3, My play list 4 etc 5 playlist. 9 ...
- Page 11 3. Dir List Enter into the dir list, you will see a music list interface.Display all music of the TF card. VIDEO To view videos on your walkman, it is necessary for you to compress the videos which you will transfer. With this intention, you must download a video compressor on Internet. In the main menu interface, point and contact screen "Video" function icon, then can enter the "Video" function interface. Directly click on the video file on the screen, then starts to play the selected video. PHOTO ‐ In the main menu interface, point and contact screen "Photo" function icon，then can enter "Photo" function interface. ‐ The picture include now playing, Dir list,Scan mode,Slide effect,Slide interval 5 sub menus. FM RADIO ‐ In the main menu interface, point and contact screen "Radio" function 10 ...
- Page 12 icon, then can enter "Radio" function interface. ‐ When access to this application, if no headphone, the system will prompt the user into the headset. ‐ The frequency is from 87.5 to 108Mhz. E‐BOOK ‐ In the main menu interface, point and contact screen "Ebook " function icon, then can enter "Ebook" function interface ‐ Choose TXT file, enter the E‐book browsing interface. CAMERA ‐ In the main menu interface, point and contact screen "Camera" function icon, then can enter the "Camera" function interface. ‐ Choose a different function in the menu, photos, video. ‐ Press can exchange between photo and video. BROWSER ‐ In the main menu interface, point and contact screen "Browser” icon, then can enter "Browser” function interface. ‐ This function can be listed all store files and folders in the player，the user can choose in the interface directly under the support of the music players, video, e‐books and pictures, etc. to play; it also can directly delete 11 ...
- Page 13 operation on the selected files. RECORDER Clicking on the recorder can be directly MIC recorded on internal recording interface. Recording interface as follows: SYSTEM ‐ In the main menu interface, point and contact screen "System" function icon, and then enter into "System" function interface. ‐ It includes the functions of display, power saving ,date and time , language etc. 12 ...
-
Page 14: Default Settings
1. Display ‐ Backlight Brightness: This menu have: 1, 2, 3, 4, and 5 five options. The higher the grade, the brighter the brightness. ‐ Backlight: This menu have: 0 seconds, 5 seconds, 10 seconds, 20 seconds, 30 seconds, 1 minute, 5 minute, seven kinds of options 2. Date and time: ‐ Set date: set year ,month and day. ‐ Adjust date and time: set time. 3. Language: include English,French,Deutsch,Nederlands etc . CALIBRATE ‐ When found touch screen position is not accurate, calibrate again through this function. ‐ After entering, click calibration symbol + positive center through the fingers touch. DEFAULT SETTINGS ‐ After clicking and entering, the system will automatically warn whether to restore the system default Settings ‐ Click "YES" restore the factory default settings. Click "NO" to give up the restore operation. 13 ... -
Page 15: Technical Specifications
TECHNICAL SPECIFICATIONS Screen 2.8 inch TFT touchscreen Connection Speed USB2.0 (HIGH SPEED) Memory No internal memory Can support TF card (micro SD card) up to 16GB Lithium battery Power supply Shut off the screen and play MP3 up for longer play time Sampling 8KHz Frequency Record Record WMA，WAV，MP3 Format Record Time 68 hours (128M FLASH) Earphone’s (L) 0.03mW＋ (R) 0.03mW (32O) Max Output MP3 Bit 32K bps – 320Kbps Rate WMA , AVI MP3, WMA, WMV, 32K bps – 320Kbps ASF Rate FR 20Hz~20KHz SNR 99dB Degree of ... - Page 16 Photo format JPEG, BMP, GIF E‐book format TXT In earphone Jack 3.5mm Dimensions‐Weight 98×60×10mm – 55g Service ‐5°C ~40°C Temperature Language 6 languages supported: French, German, Spanish, English, etc. System Windows98 SE/ME/2K/XP/VISTA/ MAC OS 10 Requirement 15 ...
