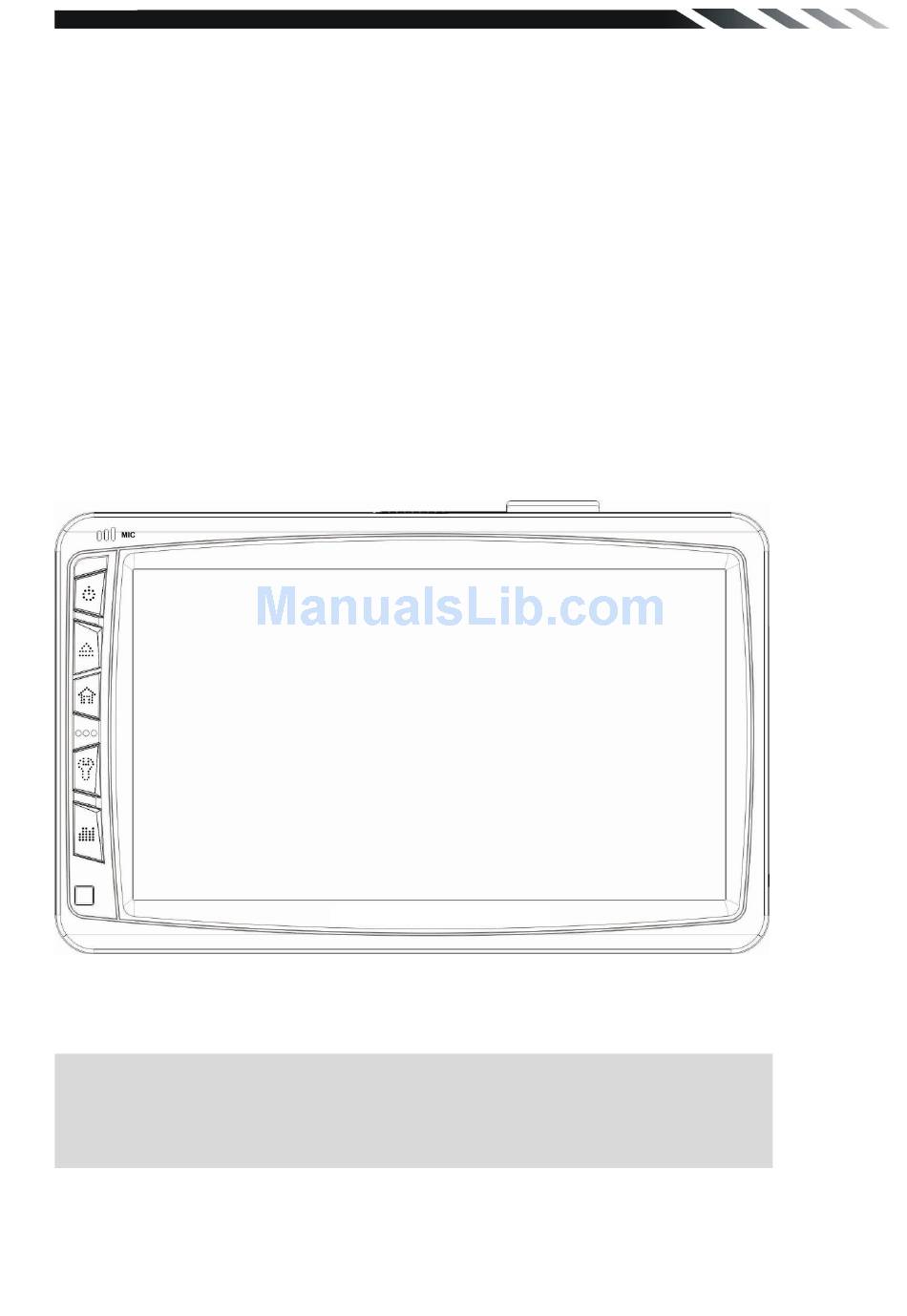

TUVVA
KSD7750B
Detachable 7" Monitor
Touch Screen
DVD/CD/MP3/MP4
AM/FM Radio
With Bluetooth
With RDS Receiver
Owner‟s Manual
Take the time to read through this owner's manual.
Familiarity with installation and operation procedures will help you obtain the best
Performance from your new DVD-receiver.
Advertisement
Table of Contents
Troubleshooting
Subscribe to Our Youtube Channel
Summary of Contents for Tuvva KSD7750B
- Page 1 TUVVA KSD7750B Detachable 7” Monitor Touch Screen DVD/CD/MP3/MP4 AM/FM Radio With Bluetooth With RDS Receiver Owner‟s Manual Take the time to read through this owner’s manual. Familiarity with installation and operation procedures will help you obtain the best Performance from your new DVD-receiver.
-
Page 2: Warning
WARNING! To promote safety, certain functions are disabled unless the parking brake is on. The Unit is designed to detect parked status and must be connected to the power supply side of the parking brake switch. Improper connection or use of his connection may violate applicable law and may result in serious injury or damage. -
Page 3: Table Of Contents
CONTENTS WARNING! ......................... 2 OPERATION PRECAUTIONS ..................2 ACCESSORIES ......................4 UNIT INSTALLATION AND REMOVAL ..............5 WIRING CONNECTIONS ................... 7 PANEL ........................9 REMOTE CONTROL ....................10 REMOVE BATTERY ....................13 MAIN MENU ......................14 ◆ RADIO PLAYER ....................14 ◆... -
Page 4: Accessories
ACCESSORIES Package contains the following accessories for installation and operation of the unit. (1) Mounting Strap (2) Bolt (3) Screw (4) Mounting Collar (Optional) (5) Release Key AV in cable（optional） User Manual Remote Control Power Cable RCA Cable Trim ring 1 Trim ring 2 (optional) Note: Product image may vary from the actual delivery. -
Page 5: Unit Installation And Removal
UNIT INSTALLATION AND REMOVAL Installation: 1) Install the mounting sleeve into the 2) Bend the tabs into place to secure the dashboard. sleeve. 3) Slide the unit into the mounting sleeve. 4) Install the trim bezel onto the unit. 5) Install the panel to the unit. 6) Make sure all faceplate tabs meet properly with the mounting plate. - Page 6 Removal: 1) Press the button. 2) Safely detach the faceplate. 3) Take faceplate off of the mounting plate. 4) Take the panel out. 5) Detach the trim bezel. 6) Insert the keys into the opening between the unit and the mounting sleeve to unlock. 7) Pull the unit out of the mounting sleeve.
-
Page 7: Wiring Connections
WIRING CONNECTIONS NOTE: Never connect cable to the system while it is connected to the battery power. Whenever the unit is disconnected from the battery, the preset memory will be erased and the unit will go back to its factory defaults. When the brown cable for steering wheel control connected to the steering wheel, we can use the steering wheel to control some unit. - Page 8 After connecting, when you start up the reverse gear, the unit will receive the picture from car rear view camera. Note: Only use groundless loudspeakers. Use only loudspeakers of minimal 40Watt, using fewer watts may result in damaging your loudspeakers at higher volumes. Use 4~8 Ω...
-
Page 9: Panel
PANEL 1. Release button Press to detach and release the front panel. When the unit was released, it will switch off automatically after a few second. Detach/Attach the Panel: Press REL button and pull out the panel towards yourself to release the panel. To attach it, press the control panel into the main unit until the “click”... -
Page 10: Remote Control
6. Home button Press it to turn to the main menu quickly. 7. SETUP button Press it to turn to setting menu quickly. Long press the button to enter into EQ setting. 8. SEL button SEL: Press it to enter SOUND SETTING menu to adjust the sound settings; EQ => BASS => TREBLE = >... - Page 11 1. POWER Power on or off. 2. MODE button Press it to select the mode: Radio, DISC (if there is a disc in unit), USB (if there is a USB device in the unit), CARD (if there is a SD/MMC card in the unit), Bluetooth and AV IN. 3.
- Page 12 During playback, press it at the starting point of section you want to repeat(A), press this button again at the ending point of the section you want to repeat (B), section A-B repeating starts. Press it again to cancel the A-B repeat function. Press it and hold for two seconds in DVD mode to zoom the image in or out in the sequence of ZOOM 2->...
-
Page 13: Remove Battery
REMOVE BATTERY Note: The distance may vary according to the brightness of ambient light. If the remote is not used for an extended period of time, remove the battery to prevent possible damage from battery leakage and corrosion. ... -
Page 14: Main Menu
MAIN MENU The best way to discover the program is to explore each screen in detail, and to find out how to move from one to another. Read this chapter for a guided tour. Unit starts by displaying the Main menu. This is the root of the screen hierarchy, and you can simply access all features by tapping on the touch screen buttons. - Page 15 Touch this button to search stations forward automatically. Touch this button to open manual select station backward. Touch this button to open manual select station forward. Touch this button to enable or disable the AF function Touch this button to enable or disable the TA function. Touch this button to display PTY information Touch this button to select stereo or mono sound reception...
-
Page 16: Dvd Player
◆ DVD PLAYER To start DVD Player, tap on DVD button from main menu screen. TOUCH SCREEN MENU You will not see any buttons while DVD is played. Buttons will appear when you tap on TFT screen. Tap the screen again to hide the buttons. Insert DVD disc NOTE DVD Player will automatically start playing when you insert any DVD disc, MEMORY... -
Page 17: Disc/Usb/Sd/Mmc Interface Operation
◆DISC/USB/SD/MMC INTERFACE OPERATION When a file disc, USB or a memory card is played, the screen will show following interface: Mute the sound. Stop button. Press it to stop playback from the current track, press it again to final stop to the very beginning Play/pause button. -
Page 18: Av-In Mode
◆AV-IN MODE To start AV-IN Mode, tap on AV-IN button from main menu screen. Connect the external audio/video signal source to this unit. Select AV-IN mode in the main menu or by pressing repeat Mode button on the front panel. Note: If there is no external video input, the TFT displays “NO SIGNAL”. -
Page 19: Display Control
DISPLAY CONTROL Tap DISPLAY button to show DISPLAY menu. BACKLIGHT Backlight setting LOW, MID, HIGH GENERAL CONTROL Tap GENERAL button to show GENERAL menu. TILT Adjust monitor tilt angle ANGLE CLOCK Set clock display time on or off. DISPLAY CLOCK Set 24hour format or 12hour HOUR format... -
Page 20: Radio Control
RADIO CONTROL Tap RADIO button to show RADIO menu. AREA: EUROPE, U.S.A, AREA SOUTH AMERICA,RUSSIA STEREO Set STEREO ON or OFF Adjust TA Volume the level Volume RETUNE select RETUNE LONG/SHORT select PI MUTE or SOUND REGION select REG ON/OFF button from RDS &... - Page 21 AF switching or PI SEEK is implemented to the station which have all PI codes are the same as current station. REG of individual segment is turned on also together with displaying “REG ON” on numeric display for a few seconds. * In double displaying mode, the individual segment may be deleted in case of not enough- space in display.
-
Page 22: Dvd Set Up Menu
DVD SET UP MENU Tap the DVD button in main menu to enter the DVD player. Press the SETUP button to enter into the system settings main menu; press the up or down arrow buttons to move to the highlighted menu item and select one of the Setup Pages: [1]. -
Page 23: System Information
[7] TV SHAPE: Set TFT screen mode to the correct ratio: Three screen ratio modes are available, Normal/PS (4:3 Pan Scan), Normal/LB (4:3 Letter Box) and Wide (16:9). Different disc formats will display different images depending this setting and the screen size used. [8] NTSC/ PAL: Select this menu item to set up your preferred video output format. -
Page 24: Bluetooth Section
When the unit have connect with phone, the BT icon will turn on and the Mobile phone name (if available) will be display on the panel. According to mobile pairing device manual, after searching new device（TUVVA）, select it, input password "0000" and confirm ok, device paring is finished. - Page 25 Voice Transfer During a call, you can change a call from Bluetooth mode to phone by tapping Transfer button. To have a call in Bluetooth mode again, tap Transfer button. NOTE: the phonebook only supports Western Characters. Any difference in character will be shown such as “+, * or # ”.
-
Page 26: Other Functions
OTHER FUNCTIONS Subwoofer Connect the subwoofer to the unit using sub output (see electrical diagram). Tap MENU on screen enter into main menu setting choose setting menu. Choose SOUND and set subwoofer ON to enable subwoofer. Parking When the car is stopped and the parking brake is working, the screen can display the video image, otherwise the screen can't display the video image Back View Camera This unit is equipped with back view camera output. -
Page 27: Notes On Disc
NOTES ON DISC Only use groundless loudspeakers. Use only loudspeakers of minimal 40Watt, using fewer watts may result in damaging your loud speakers at higher volumes. Use 4~8 Ω (Ohm impedance) loudspeakers only; using higher or lesser impedance may damage the unit. -
Page 28: Troubleshooting
TROUBLESHOOTING Symptom Cause Remedy Power does not turn Replace with fuse of the same amperage. Fuse is blown If the fuse blows again, consult your store (No sound is of purchase produced.) In correct wiring Consult your local retailer. 1. Turn off the unit. 2. -
Page 29: Troubleshooting
TROUBLESHOOTING SYMPTOM CAUSE SOLUTION IF THE POWER SUPPLY IS PROPERLY THE CAR IGNITION IS CONNECTED TO THE CAR NOT ON. ACCESSORY SWITCH THE IGNITION KEY NO POWER TO “ACC”. THE FUSE IS BLOWN. REPLACE THE FUSE. DISC CANNOT BE PRESENCE OF DISC REMOVE THE DISC IN THE PLAYER LOADED. -
Page 30: Technical Specifications
TECHNICAL SPECIFICATIONS General Power supply: 11~16V DC Current consumption: max. 10 A Maximum power output: 52W x 4 channels (max) DVD/SVCD/VCD/HDCD/MP3/MP4/VIDEO/CDDA/Picture Compatible formats: CDCD-R/-RW/DVD± R/± RW playback Dimensions (W x D x H) / 165*178*50 mm/2 kg weight: Working temperature -10℃...
