Slow Juicer

KSJ 1501

INSTRUCTION MANUAL

Table of Contents

Need help?

Do you have a question about the KSJ 1501 and is the answer not in the manual?

Questions and answers

Summary of Contents for Koryo KSJ 1501

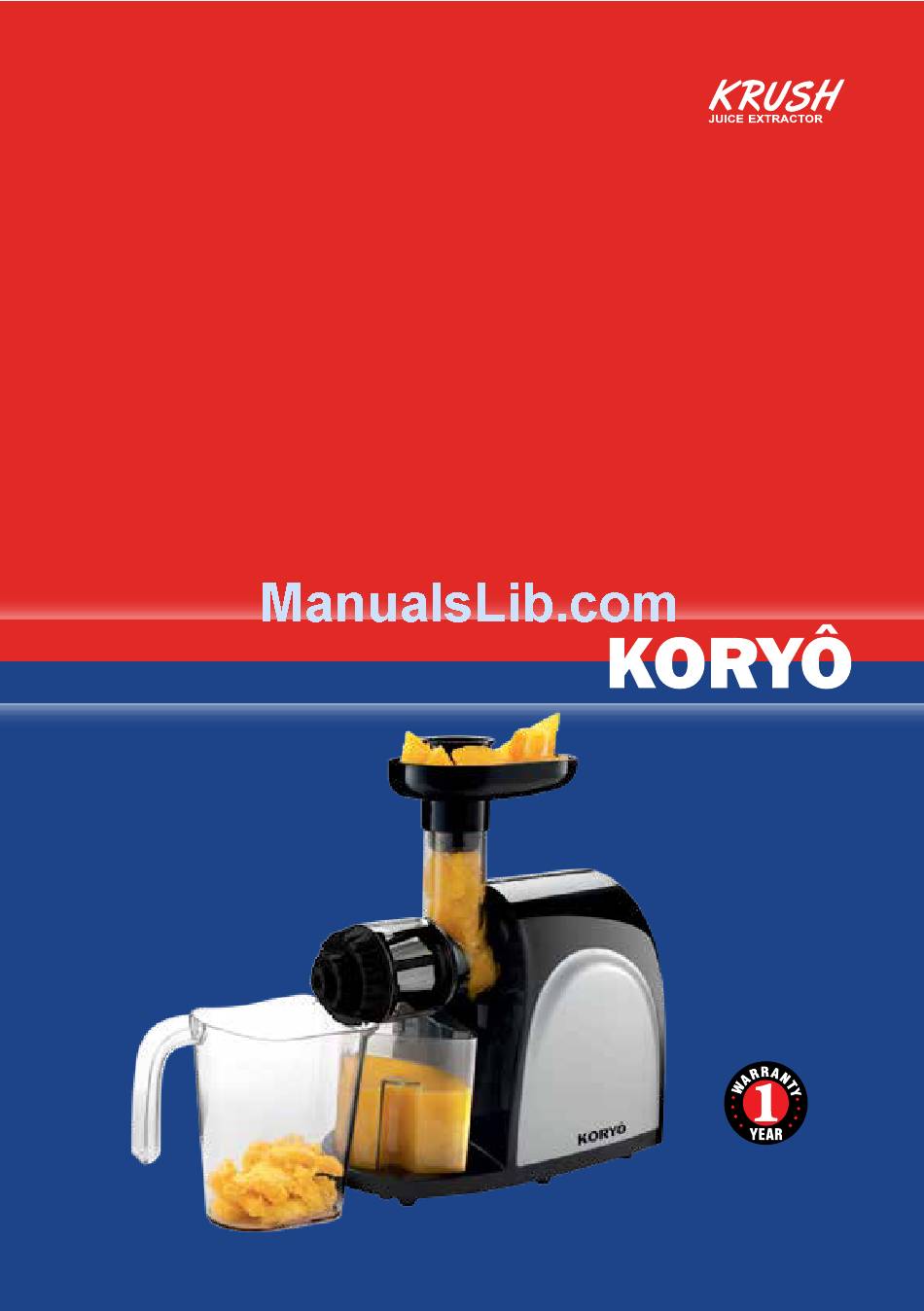

Page 1 Slow Juicer KSJ 1501 INSTRUCTION MANUAL...
Page 2: Table Of Contents
CONTENTS Introduction ......................... 3 Important Safeguards ....................3 Package Contents-Unpacking ..................6 Parts And Features ...................... 7 Assembly ........................8 Usage-Juicing ......................10 Storing Juice-Tips - Fruit / Vegetable Juicing Table ............ 11 Troubleshooting ......................13 Warranty ........................14...
Page 3: Introduction
INTRODUCTION Maximize the beneficial nutrients in your fresh fruit and vegetable juices! Extract the absolute best nutritional and taste benefits of juiced fruits and vegetables with the dual-stage extraction power. The gentle low-rpm juicing process delivers even more of the essential nutrition from every last drop of juice.
Page 4 5. If the supply cord is damaged it must be replaced by the manufacturer or an authorized service agent or a qualified technician in order to avoid a hazard. 6. Do not let cord hang over edge of table or hot surface. 7. Do not immerse plug, cord or housing into water due to the risk of electric shock. 8. Before use, please check if the power cord, the plug, the juice strainer, the spiral pusher and any other part is damaged. If any of the parts is damaged, stop using the appliance. Do not try to repair it yourself. 9. Before connecting to the power supply make sure that the juicing body, the spiral pusher, the juicing body cap and all other parts have been properly assembled. 10. The use of accessories not recommended by the manufacturer may cause injuries to persons. 11. Do not operate the appliance for other than its intended use. 12. When not in use, before putting on or taking off parts and before cleaning - unplug the appliance from the outlet.
Page 5 24. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. 25. Do not use in outdoors. 26. Do not move the appliance when in use. 27. Unplug from main power socket when not in use. 28. Servicing and repair should only be conducted by a qualified technician. 29. Do not clean the appliance with any abrasive cleaning agents or steel wool. 30. Do not submerge the main unit in water. 31. Do not sterilize any accessories of the appliance using hot water with a temperature higher than 176°F (80°C) or a microwave oven. The unit may get overheated, deformed and damaged. 32. When processing hard foods, the motor will lock. The appliance will tick and the motor will pause for 2 seconds. Then it will work in reverse for 5 seconds (to release food that is stuck) before coming to a stop. In this case, the appliance can begin to run again after the switch is moved to the “0” position and then to ON position 33. When the motor locks, stops and cannot automatically reverse, switch off the power switch and put it on the “0” position. Press the “R” button of the power switch to discharge the food ingredients in the appliance and finally press the “ON” button of the power switch for normal use of the appliance. If the motor is still locked, it is suggested to remove the food...
Page 6: Package Contents-Unpacking
PACKAGE CONTENTS-UNPACKING PACKAGE CONTENTS • Main Power Unit (Power Base) • Feeder Tube • Spiral Pusher • Juice Strainer • Large Juicing Cap • Small Juicing Cap • Pusher • Small Food Tray • Juice Cup • Pulp Cup • Cleaning Brush UNPACKING - BEFORE FIRST USE Unpack the unit and all parts and remove all packaging materials. Before using the unit for the first time, wipe the surface of the main power unit with damp cloth. Rinse all parts (not the Main Power Unit) in warm soapy water prior to use. Dry all parts thoroughly.
Page 7: Parts And Features
PARTS AND FEATURES 1. Main Power Unit-contains powerful motor 2. Power Switch-offers ON, 0 (Stop), R (Reverse) 3. Lock Button-locks the parts in place during assembly 4. Feeder Tube-food ingredients are fed through the tube to be processed 5. Spiral Pusher-used for incorporating and grinding the ingredients 6.
Page 8 PARTS AND FEATURES ASSEMBLY UNIT ASSEMBLY: Attaching Feeder Tube 1. Attach the Feeder Tube to the Main body. 2. Align the notches of the Feeder Tube to the openings on the Main Body. 3. While pushing the Feeder Tube in, rotate it counterclockwise until you hear a snap. To take the Feeder Tube off, press and hold the Lock button and rotate the Feeder Tube clockwise. Attaching Spiral Pusher Align the metal rod of the Spiral Pusher with the opening in the Main Body. Push it in. If the Spiral Pusher will not go in all the way, slightly rotate it and try again. Attaching Juicer Strainer (for juicing) With the wide opening first, align the notches on the Juicer Strainer to the openings in the Feeder Tube.
Page 9: Assembly
ASSEMBLY Attaching Large Juicer Cap (for juicing) While pushing the Large Juicer Cap into the Feeder Tube, align the notches on the Large Juicer Cap to the openings in the Feeder Tube. Turn the Juicer Cap counterclockwise. Attaching Small Juicing Cap (for juicing) Push the Small Juicing Cap into the Large Juicer Cap, aligning the notches on the Large Juicer Cap to the openings in the Small Juicing Cap. Turn the Small Juicing Cap counterclockwise until the triangle mark on the Large Juicer Cap matches up with the “2” position on the Small Juicing Cap. Small Juicing Cap...
Page 10: Usage-Juicing
PARTS AND FEATURES ASSEMBLY Placing Juice Cup and Pulp Cup 1. Put the Juice Cup in the corresponding groove on the main body and have its opening align with the bottom of the juice outlet of the juicing body. 2. Put the Pulp Cup below the pulp outlet of the juicing body and have it close to the juice cup. Placing Small Food Tray and Pusher 1.
Page 11: Storing Juice-Tips - Fruit/Vegetable Juicing Table
Juicing: 1. Connect the unit to the power supply. Please note that the unit has a three pin plug. Do not modify the plug in any way. Only use in the appropriate wall outlet. Make sure the switch is in OFF position (0) before the power supply is connected. Make sure you have installed the Small Juicing Cap for juicing. Please refer to p. 6 for Assembly. 2. Wash vegetables and fruits, cut them into pieces small enough to fit through the Feeder Tube and put them on the Small Food Tray. When processing vegetables or fruits, remove all the cores, hard seeds, thick skin or shells. 3. Press the ON switch located in the back of the unit. Due to risk of electric shock, do not touch the power switch with wet hands. The unit will run for approximately 10 minutes. 4. Place food ingredients inside the Feeder Tube and use the Pusher to push the food ingredients down. Do not push the food ingredients forcefully, use firm pressure. IMPORTANT: Never feed food by hand. Always use Pusher. Never put fingers or other objects into the Feeder Tube. 5. If the pulp cup or the juice cup get full, turn the unit OFF, disconnect the power supply and remove the pulp or pour the juice before continuing to use the appliance. 6. Once the juicing is finished and there is no more juice flowing out of the juice outlet, switch the unit OFF and disconnect the power supply. Do not take the Juice Cup away from the juice outlet until both the Spiral Pusher and the Juice Strainer have completely stopped. NOTE: To preserve the nutrients in the juice, it is highly recommended to drink the extracted juice right away.
Page 12 • During the apple juice extraction, the concentration of the apple juice depends on the type of the apples used. If apples with more juice are used, the extracted juice will be clearer. Therefore, please choose the type of the apples used for juice extraction according to the juice concentration you want. • The nutrients of common vegetables and fruits are given in the table below. FRUITS/VEGETABLES VITAMINS Apple Vitamin C Apricot Rich in dietary fiber and containing Vitamin K Beet...
Page 13: Troubleshooting
1. Remove the Pushing Rod and the Small Food Tray. 2. While pressing the Lock/Unlock button, turn the Feeder Tube assembly clockwise (with Spiral Pusher and Large Juice Cap still attached) to remove it. 3. Next disassemble the Feeder Tube assembly by taking off the Small Juicing, Noodle or Meat cap first. Then take off the Large Juicing Cap, Juice Strainer or Squeezer (depending on what you were using) and Spiral Pusher. 4. After juicing some vegetables and fruits, staining of the Juice Strainer, the Juicing Body Cap, the Spiral Pusher and other accessories may occur. It is normal. All parts except the Main Power Unit can be washed with a mild soap solution. Do not use abrasive cleansers. DO NOT SUBMERGE THE MAIN POWER UNIT, CORD OR PLUG IN WATER OR ANY OTHER LIQUID.
Page 14: Warranty
This product comes with a warranty of 12 months from the date of purchase as specified on the warranty card. This is against all defective material or workmanship. In the event of a defect, Future Value Retail Limited or KoRyo Authorized Service centre undertakes to repair the set, free of charge, during the warranty period.
Page 15: Warranty Card
W A R R A N T Y C A R D WARRANTY CARD THIS CARD IS VALID oNLy IF IT IS FILLED IN CoMPLETELy, SIGNED AND STAMPED By THE DEALER oN DATE oF PURCHASE MoDEL No SERIAL No : CUSToMER NAME ADDRESS PHoNE No...
