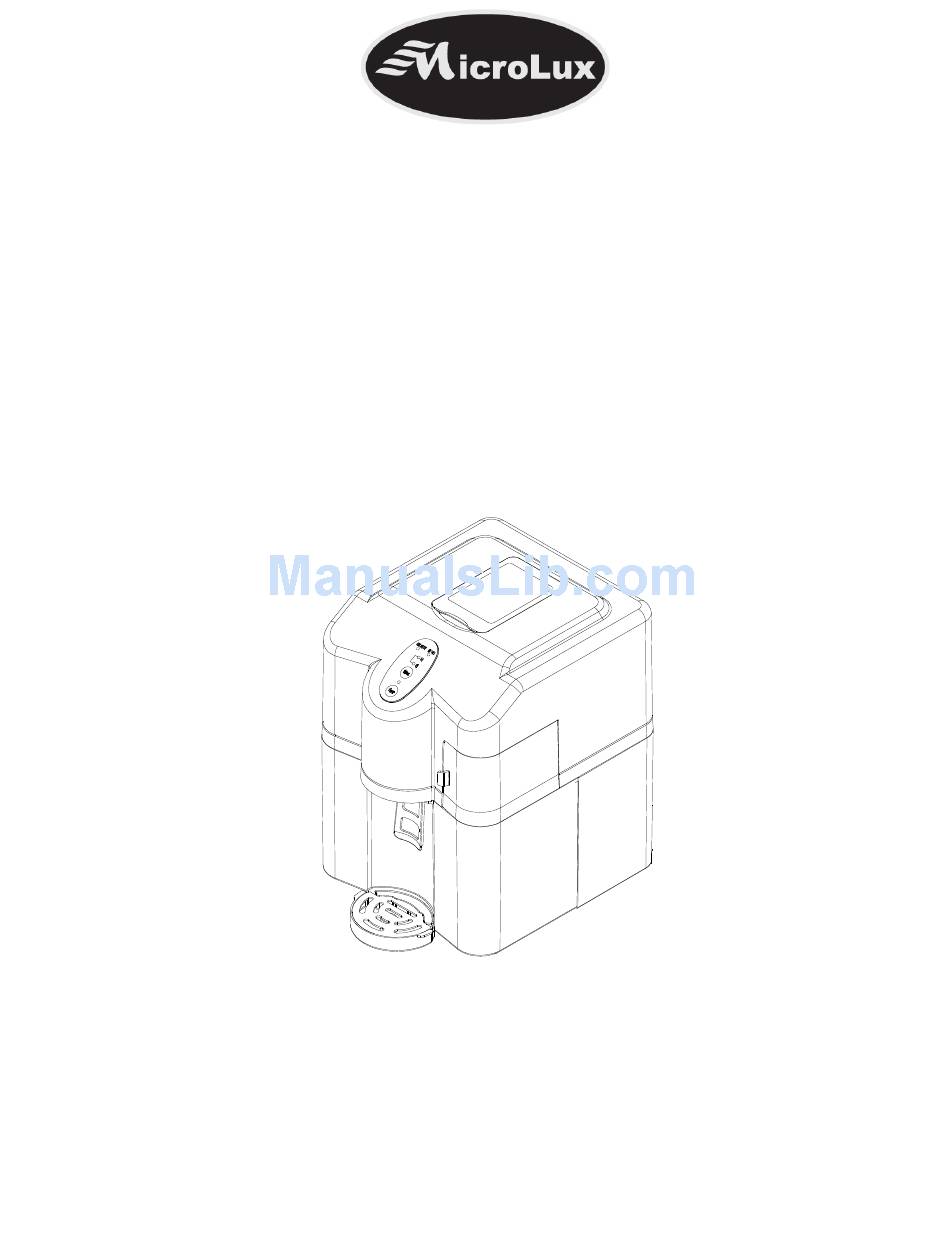

- Page 1 AUTO BEVERAGE ICE DISPENSER USER MANUAL Model:ML450SL...
-
Page 2: Table Of Contents
TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS……………………………………………….…2 PREPARING YOUR ICE MAKER FOR USE …………………………………………………………………….3 IMPORTANT SAFETY TIPS GETTING TO KNOW YOUR UNIT … … … … … … … … … … … … … … … … … … … …... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Your safety and your family’s safety is important to us. This manual provides many important safety messages. Please be sure to read this entire manual and follow all safety messages. Important safety messages can be identified by the safety alert symbol below: All safety messages will follow the safety alert symbol and the word “DANGER”... -
Page 4: Preparing Your Ice Maker For Use
PREPARING YOUR ICE MAKER FOR USE IMPORTANT SAFETY TIPS When using electrical appliances, basic safety precautions should be followed to reduce the risk of fire, electric shock, and injury to persons or property. Read all instructions before using any appliance. Do not operate this or any other appliance with a damaged or frayed cord. -
Page 5: Getting To Know Your Unit
GETTING TO KNOW YOUR UNIT 1. Water drip tray 2. Cover of the water drip tray: Also used for the support of the ice-cube container 3. Water drain cap: For draining water from water reservoir. 4. Water drain port 5. Push button for ice-cube 6. -
Page 6: Operating Procedures & Maintenance
OPERATING PROCEDURES & MAINTENANCE UNPACKING YOUR ICE MAKER 1. Remove the exterior and interior packaging. Check that all the accessories are included first. If any parts are missing, please contact our customer service. 2. Remove all the tape on the unit. Open the transparent window, take out the water filling funnel and the plastic soft tube (if supplied). -
Page 7: Using Your Ice Maker
USING YOUR ICE MAKER How to start the unit 1. Open the access door for filling water, pour water into water reservoir through the funnel. Fill with potable water only. Keep water level below the “MAX” water level mark. Filling the water here Funnel Maximum... - Page 8 Getting ice out of your ice maker Press your cup or glass against the dispensing button (No 5. Displayed in the diagram on page 4) Note: Be sure to close the transparent lid on the top of the unit when in use. For safety purposes, if the lid is open, the machine will not dispense ice.
-
Page 9: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION Stop the ice maker, fill water, and “ “ “ “ Add Water” indicator is Lack of Water. press “Power” button again to restart the unit. “Ice Full” indicator is on. There is too much ice. Remove ice from ice basket. -
Page 10: Circuit Diagram
CIRCUIT DIAGRAM Motor For ELECTRICAL DIAGRAM Start Relay Ice shovel ICE-MAKER with automatic ice-cube dispenser WATER ICE COMPRESSOR Solenoid LED3L Valve Overload LED2S Protector POWER POWER COMP VALVE MOTOR SUPPLY AC-N ON/OFF F3.15A Relay Relay Relay OPERATION PCB OPERATION PCB OPERATION PCB OPERATION PCB AC-L...
